43R03-3122-200 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 43R03-3122-200

43R03-3122-200: Description10/15A, 250VAC, FEMALE, MAINS POWER CONNECTOR, SOLDER; CategoryThe connector The connector; File Size29KB，1 Pages; ManufacturerPower Dynamics, Inc.; Websitehttp://www.powerdynamics.com/; Environmental Compliance

Download Datasheet Parametric View All

43R03-3122-200 Overview

10/15A, 250VAC, FEMALE, MAINS POWER CONNECTOR, SOLDER

43R03-3122-200 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Power Dynamics, Inc.
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	STANDARDS: IEC 60320, UL 94V-0, CSA; QUICK CONNECT
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	BRASS
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	10/15A, 250VAC
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYCARBONATE
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

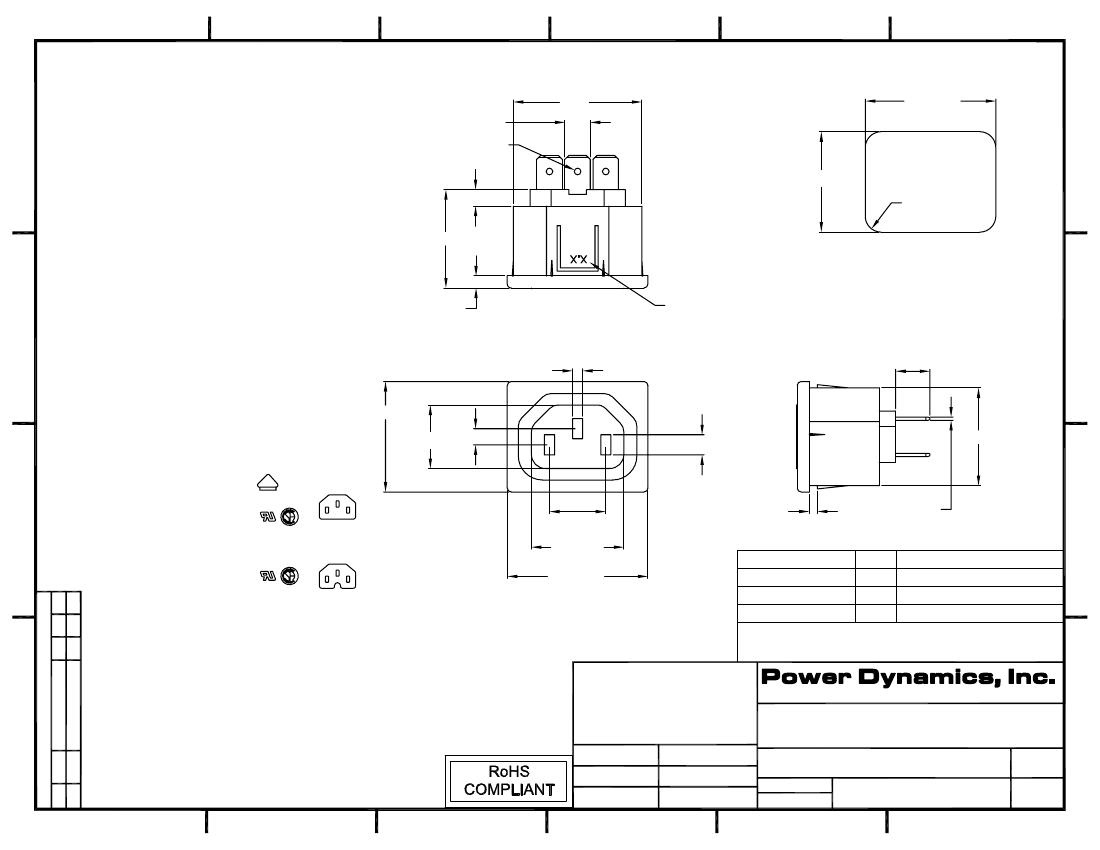

MATERIAL AND FINISH:

Insulator: Polycarbonate, UL-94V-0 rated

Contacts: Brass

32.0

ELECTRICAL SPECIFICATIONS:

Current rating: 10 A/15 A

Voltage rating: 250 VAC

Insulation resistance: 100 Mohm min. at

500 VDC

Dielectric withstanding voltage: 2000 VAC

for one minute

32.5+0.2

SEE OPTION 2

25.0+0.2

24.5

R4 TYP.

ORDERING CODE:

43R03-3 __ __ __ - __ __ __

1 2 3

1) COLOR

1 = BLACK

2 = GRAY

2) TERMINAL OPTIONS

1 = .187(4.8) WITH Ø1.4

2 = .250(6.3) WITH Ø1.65

3) ELECTRICAL CIRCUIT

CONFIGURATION

1 = 10A 250V 70°C

15A 250V 70°C

2+GROUND

2 = 10A 250V 120°C

15A 250V 120°C

2+GROUND

4) PANEL THICKNESS

D E

RECOMMENDED

PANEL CUTOUT

REPLACE WITH

CORRESPONDING

PANEL THICKNESS

3.00

3X 2.5+0.3

8.5±0.5

27.5±0.2

15.8-0.5 4.00

3X 5.0+0.5

24.5

14.0±0.2

23.0-0.5

35.0±0.2

A+0.2

0.80 TYP.

MAX. PANEL THICKNESS

P/N

43R03-3XXX-150 1.5

1.5

43R03-3XXX-200 2.0

2.0

43R03-3XXX-250 2.5

2.5

ADDITIONAL PANEL THICKNESS

AVAILABLE ON REQUEST

TOLERANCE

REVISIONS

CHNG CHCK APPR

ORDERING CODE #

CHANGE

UNLESS OTHERWISE SPECIFIED

X ± 1

X.X ± 0.4

X.XX ± 0.20

Phone: 973 560-0019

Whippany, New Jersey

Fax: 973 560-0076

PART: 10A/15A IEC 60320 APPL. OUTLET; QC

TERMINALS; SNAP-IN, PANEL MOUNT

PART #:

DRAWN

CHECK

APPR

10/8/04

DATE

DATE:

10/05/01

10/09/01

SIZE:

SCALE:

43R03-3XXX-XXX

NTS

ALL DIMENSIONS FOR REFERENCE ONLY

DIMENSIONS ARE IN MILLIMETERS

SHEET

1 of 1

REV:

REV
