43R04-1212 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 43R04-1212

43R04-1212: Description10/15A, 250VAC, FEMALE, MAINS POWER CONNECTOR, SOLDER; CategoryThe connector The connector; File Size27KB，1 Pages; ManufacturerPower Dynamics, Inc.; Websitehttp://www.powerdynamics.com/

Download Datasheet Parametric Compare View All

43R04-1212 Overview

10/15A, 250VAC, FEMALE, MAINS POWER CONNECTOR, SOLDER

43R04-1212 Parametric

Parameter Name	Attribute value
Maker	Power Dynamics, Inc.
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	STANDARDS: IEC 60320, UL 94V-0, CSA; QUICK CONNECT
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	BRASS
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
JESD-609 code	e3
MIL compliance	NO
Power Connector Ratings	10/15A, 250VAC
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYCARBONATE
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

MATERIAL AND FINISH:

Insulator: Polycarbonate, UL-94V-0 rated

Contacts: Brass, Tin Plated

ELECTRICAL SPECIFICATIONS:

Current rating: 10 A/15 A

Voltage rating: 250 VAC

Insulation resistance: 100 Mohm min. at

500 VDC

Dielectric withstanding voltage: 2000 VAC

for one minute

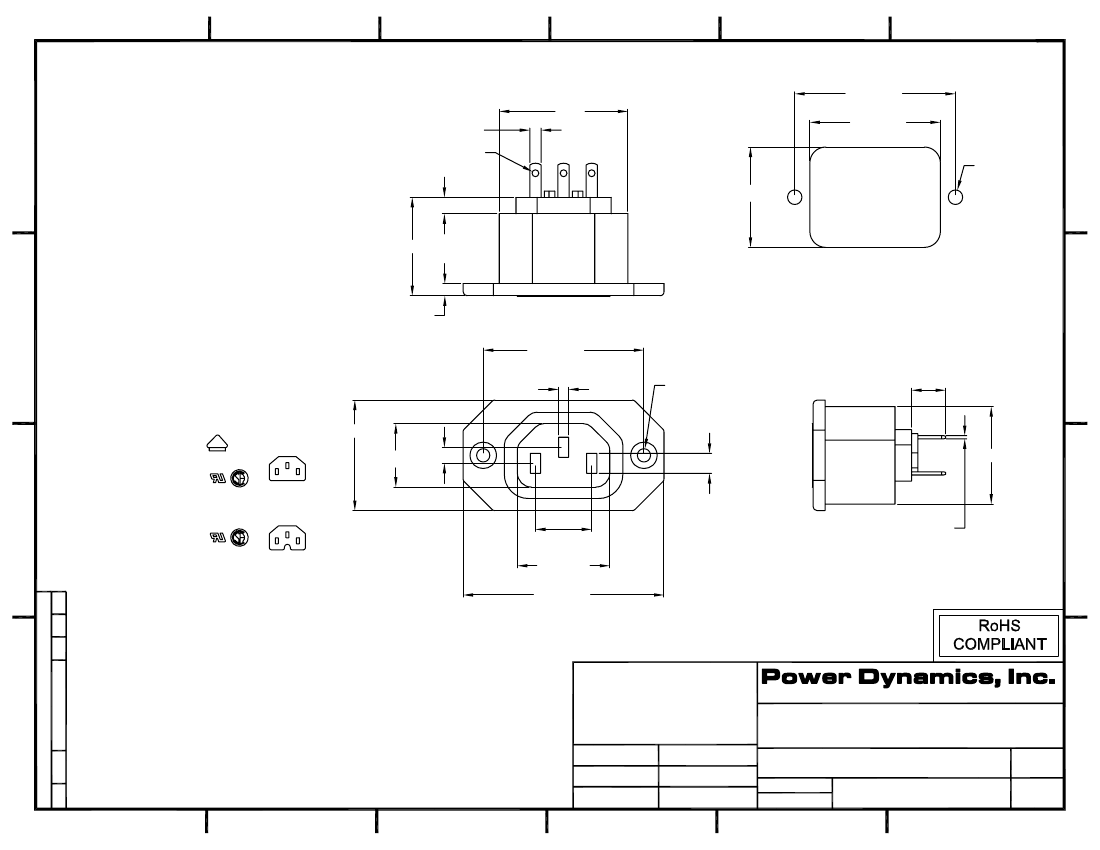

40.0±0.1

32.0

2.8±0.1 TYP.

Ø1.70 TYP.

25.0+0.2

32.5+0.2

2X Ø3.6 OR

M3 THREAD

24.5

ORDERING CODE:

43R04-1 __ 1 __

1) COLOR

1 = BLACK

2 = GRAY

2) ELECTRICAL CIRCUIT

CONFIGURATION

1 = 10A 250V 70°C

15A 250V 70°C

2+GROUND

2 = 10A 250V 120°C

15A 250V 120°C

2+GROUND

D E

RECOMMENDED

PANEL CUTOUT

3.00

40.0±0.2

3X 2.5+0.3

2X Ø3.3x90° CSK

8.5±0.5

27.5±0.2

15.8-0.5 4.00

3X 5.0+0.5

24.5

14.0±0.2

23.0-0.5

0.80 TYP.

CHNG CHCK APPR

50.0±0.2

REVISIONS

TOLERANCE

CHANGE

UNLESS OTHERWISE SPECIFIED

X ± 1

X.X ± 0.4

X.XX ± 0.20

Phone: 973 560-0019

Whippany, New Jersey

Fax: 973 560-0076

PART: 10A/15A IEC 60320 APPL. OUTLET; SOLDER

TERMINALS; SIDE FLANGE, PANEL MOUNT

PART #:

DRAWN

CHECK

APPR

DATE

DATE:

12/31/03

1/5/04

SIZE:

SCALE:

43R04-1X1X

NTS

ALL DIMENSIONS FOR REFERENCE ONLY

DIMENSIONS ARE IN MILLIMETERS

SHEET

1 of 1

REV:

REV

43R04-1212 Related Products

	43R04-1212	43R04-1111	43R04-1112	43R04-1211	43R04-1X1X
Description	10/15A, 250VAC, FEMALE, MAINS POWER CONNECTOR, SOLDER	10/15A, 250VAC, FEMALE, MAINS POWER CONNECTOR, SOLDER	10/15A, 250VAC, FEMALE, MAINS POWER CONNECTOR, SOLDER	10/15A, 250VAC, FEMALE, MAINS POWER CONNECTOR, SOLDER	10/15A, 250VAC, FEMALE, MAINS POWER CONNECTOR, SOLDER
Maker	Power Dynamics, Inc.	Power Dynamics, Inc.	Power Dynamics, Inc.	Power Dynamics, Inc.	-
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-
Reach Compliance Code	compli	compli	compli	compli	-
Other features	STANDARDS: IEC 60320, UL 94V-0, CSA; QUICK CONNECT	STANDARDS: IEC 60320, UL 94V-0, CSA, VDE; QUICK CONNECT	STANDARDS: IEC 60320, UL 94V-0, CSA; QUICK CONNECT	STANDARDS: IEC 60320, UL 94V-0, CSA, VDE; QUICK CONNECT	-
Connector type	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	-
Contact to complete cooperation	TIN	TIN	TIN	TIN	-
Contact completed and terminated	TIN	TIN	TIN	TIN	-
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	-
Contact material	BRASS	BRASS	BRASS	BRASS	-
Coupling type	SNAP	SNAP	SNAP	SNAP	-
DIN compliance	NO	NO	NO	NO	-
IEC compliance	YES	YES	YES	YES	-
JESD-609 code	e3	e3	e3	e3	-
MIL compliance	NO	NO	NO	NO	-
Power Connector Ratings	10/15A, 250VAC	10/15A, 250VAC	10/15A, 250VAC	10/15A, 250VAC	-
Installation type	PANEL	PANEL	PANEL	PANEL	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
Shell material	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	-
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	-
Total number of contacts	3	3	3	3	-
Base Number Matches	1	1	1	1	-
