43R04-3111-200 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 43R04-3111-200

43R04-3111-200: Description10/15A, 250VAC, FEMALE, MAINS POWER CONNECTOR, SOLDER; CategoryThe connector The connector; File Size30KB，1 Pages; ManufacturerPower Dynamics, Inc.; Websitehttp://www.powerdynamics.com/

Download Datasheet Parametric View All

43R04-3111-200 Overview

10/15A, 250VAC, FEMALE, MAINS POWER CONNECTOR, SOLDER

43R04-3111-200 Parametric

Parameter Name	Attribute value
Maker	Power Dynamics, Inc.
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	STANDARDS: IEC 60320, UL 94V-0, CSA, VDE; QUICK CONNECT
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	BRASS
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
JESD-609 code	e3
MIL compliance	NO
Power Connector Ratings	10/15A, 250VAC
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYCARBONATE
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

MATERIAL AND FINISH:

Insulator: Polycarbonate, UL-94V-0 rated

Contacts: Brass, Tin plated

32.0

ELECTRICAL SPECIFICATIONS:

Current rating: 10 A/15 A

Voltage rating: 250 VAC

Insulation resistance: 100 Mohm min. at

500 VDC

Dielectric withstanding voltage: 2000 VAC

for one minute

32.5+0.2

Ø1.70 TYP.

25.0+0.2

2.8±0.1 TYP.

24.5

R4 TYP.

RECOMMENDED

PANEL CUTOUT

REPLACE WITH

CORRESPONDING

PANEL THICKNESS

ORDERING CODE:

43R04-3 __ 1 __ - __ __ __

1) COLOR

1 = BLACK

2 = GRAY

2) ELECTRICAL CIRCUIT

CONFIGURATION

1 = 10A 250V 70°C

15A 250V 70°C

2+GROUND

2 = 10A 250V 120°C

15A 250V 120°C

2+GROUND

3) PANEL THICKNESS

CHNG CHCK APPR

D E

3.00

3X 2.5+0.3

(8.5)

27.5±0.2

15.8-0.5 4.00

3X 5.0+0.5

24.5

14.0±0.2

23.0-0.5

35.0±0.2

A+0.2

0.80 TYP.

REVISIONS

TOLERANCE

CHANGE

P/N

43R04-3X1X-150 1.5

1.5

43R04-3X1X-200 2.0

2.0

43R04-3X1X-250 2.5

2.5

ADDITIONAL PANEL THICKNESS

AVAILABLE ON REQUEST

UNLESS OTHERWISE SPECIFIED

X ± 1

X.X ± 0.4

X.XX ± 0.20

Phone: 973 560-0019

Whippany, New Jersey

Fax: 973 560-0076

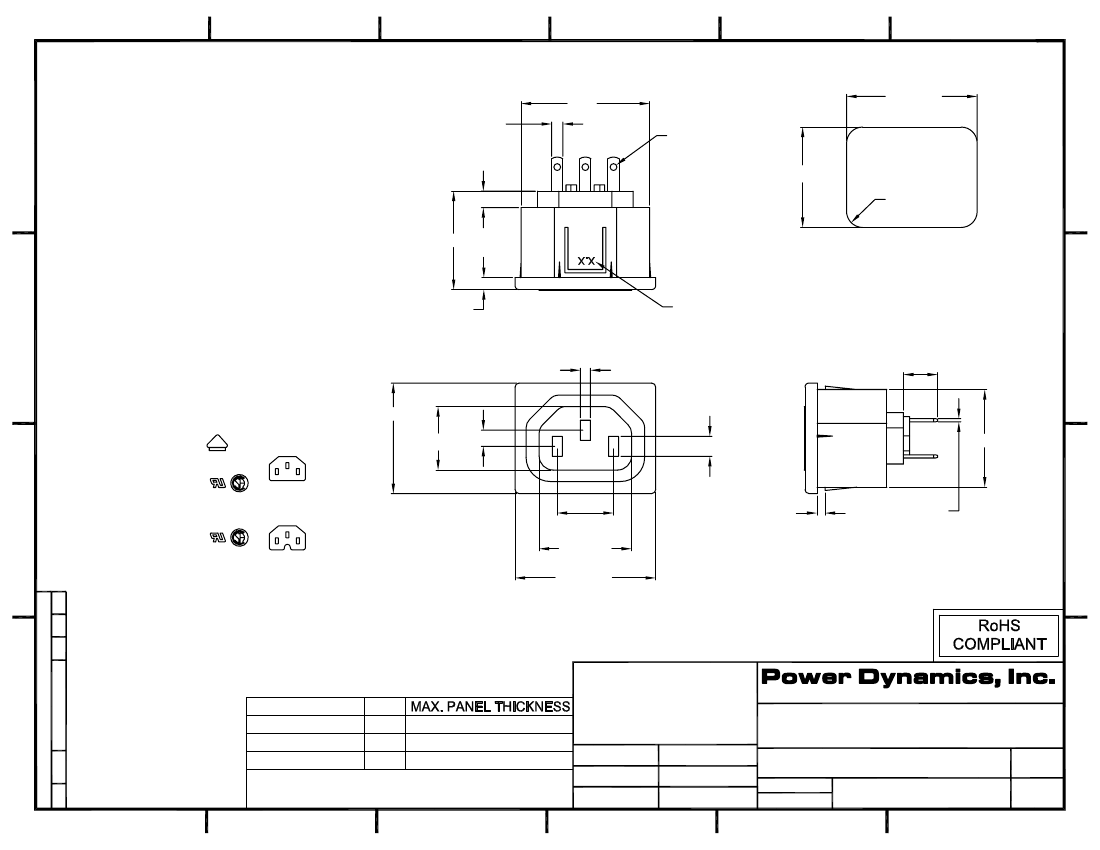

PART: 10A/15A IEC 60320 APPL. OUTLET; SOLDER

TERMINALS; SNAP-IN, PANEL MOUNT

PART #:

DRAWN

CHECK

APPR

DATE

DATE:

9/24/03

SIZE:

SCALE:

43R04-3X1X-XXX

NTS

ALL DIMENSIONS FOR REFERENCE ONLY

DIMENSIONS ARE IN MILLIMETERS

SHEET

1 of 1
