42R02-1114

Description
15A, 250V AC, MALE, MAINS POWER CONNECTOR, SOLDER
CategoryThe connector    The connector
File Size37KB,1 Pages
ManufacturerPower Dynamics, Inc.
Websitehttp://www.powerdynamics.com/
Environmental Compliance
Download Datasheet Parametric View All

42R02-1114 Overview

15A, 250V AC, MALE, MAINS POWER CONNECTOR, SOLDER

42R02-1114 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerPower Dynamics, Inc.
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresSTANDARD: IEC 60320C14
Connector typeMAINS POWER CONNECTOR
Contact to complete cooperationNICKEL
Contact completed and terminatedNickel (Ni)
Contact point genderMALE
Contact materialBRASS
Coupling typeSNAP
DIN complianceNO
IEC complianceYES
MIL complianceNO
Power Connector Ratings15A, 250VAC
Installation typePANEL
OptionsGENERAL PURPOSE
Shell materialPOLYCARBONATE
Termination typeSOLDER
Total number of contacts2
Base Number Matches1
MATERIAL AND FINISH:
Insulator: Polycarbonate, UL-94V-0 rated
Contacts: Brass, Nickel plated
ELECTRICAL SPECIFICATIONS:
Current rating: 10 A
D E
Voltage rating: 250 VAC
Current rating: 15 A
Voltage rating: 250 VAC
V
46.0±0.5
36.0±0.2
27.0
N
L
27.5+0.2
2X Ø3.6
R4.0 TYP.
19.4
36.0±0.1
RECOMMENDED
PANEL CUTOUT
0.80
20.0+0.2
2X Ø3.5
ORDERING CODE:
42R02-1 __ __ __
1 2 3
1 = TERMINAL OPTIONS
1 = .187(4.8)
2 = .250(6.3)
SEE OPTION 1
Ø1.65
10.0±0.5
3.00
2 = COLOR
1 = BLACK
2 = GRAY
3 = ELECTRICAL CIRCUIT
CONFIGURATION
1 = 15A 250V 120°C
2+GROUND
2 = 15A 250V 70°C
2+GROUND
CHNG CHCK APPR
2.00
R6
2X Ø6.0±0.1
R6
4.0±0.1
2.00±0.05
4 = 15A 250V 70°C
2 POLE
14.0±0.2
24.0+0.5
30.5+0.3
REVISIONS
CHANGE
DATE
REV
RoHS
COMPLIANT
42R02
E
19
4.00
16.0+0.5
22.5+0.3
TOLERANCE
UNLESS OTHERWISE SPECIFIED
X ± 1
X.X ± 0.4
X.XX ± 0.20
Phone: 973 560-0019
Whippany, New Jersey
Fax: 973 560-0076

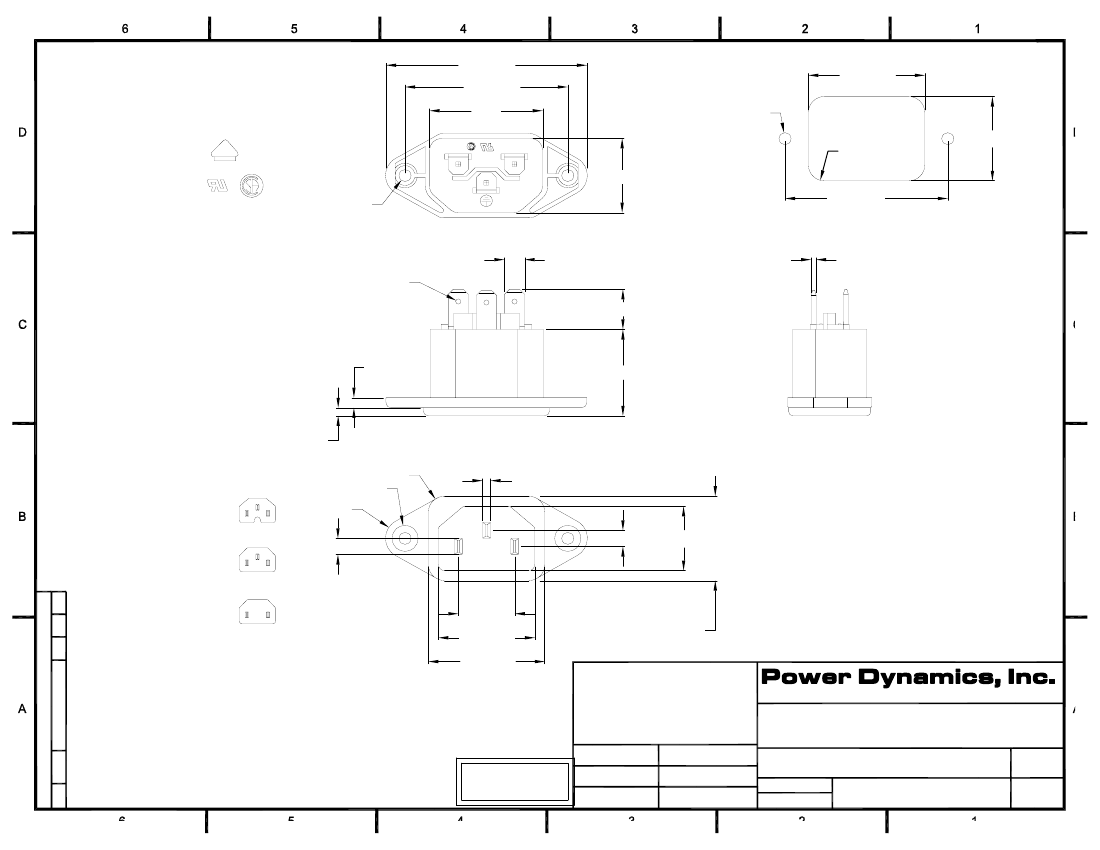

PART: IEC 60320 C14 APPL. INLET; QUICK CONNECT
TERMINALS; SIDE FLANGED, PANEL MOUNT
DRAWN
BY
CHECK
BY
APPR
BY
GQ
TD
PB
DATE:
DATE:
DATE:
8/3/01
8/13/01
8/13/01
PART #:
42R02-1XXX
A
NTS
ALL DIMENSIONS FOR REFERENCE ONLY
DIMENSIONS ARE IN MILLIMETERS
SHEET
1 of 1
REV:
SIZE:
SCALE:
