KL731JTE5N6G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> KL731JTE5N6G

KL731JTE5N6G: DescriptionGeneral Purpose Inductor, 0.0056uH, 2%, 1 Element, Ceramic-Core, SMD, CHIP, 0603; CategoryPassive components inductor; File Size265KB，3 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

KL731JTE5N6G Overview

General Purpose Inductor, 0.0056uH, 2%, 1 Element, Ceramic-Core, SMD, CHIP, 0603

KL731JTE5N6G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	KOA Speer
Reach Compliance Code	compliant
ECCN code	EAR99
core material	CERAMIC
DC Resistance	0.5 Ω
Nominal inductance(L)	0.0056 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Manufacturer's serial number	KL73
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	25
Maximum rated current	0.35 A
self resonant frequency	5000 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	500 MHz
Tolerance	2%

Preview

Download Datasheet

View All

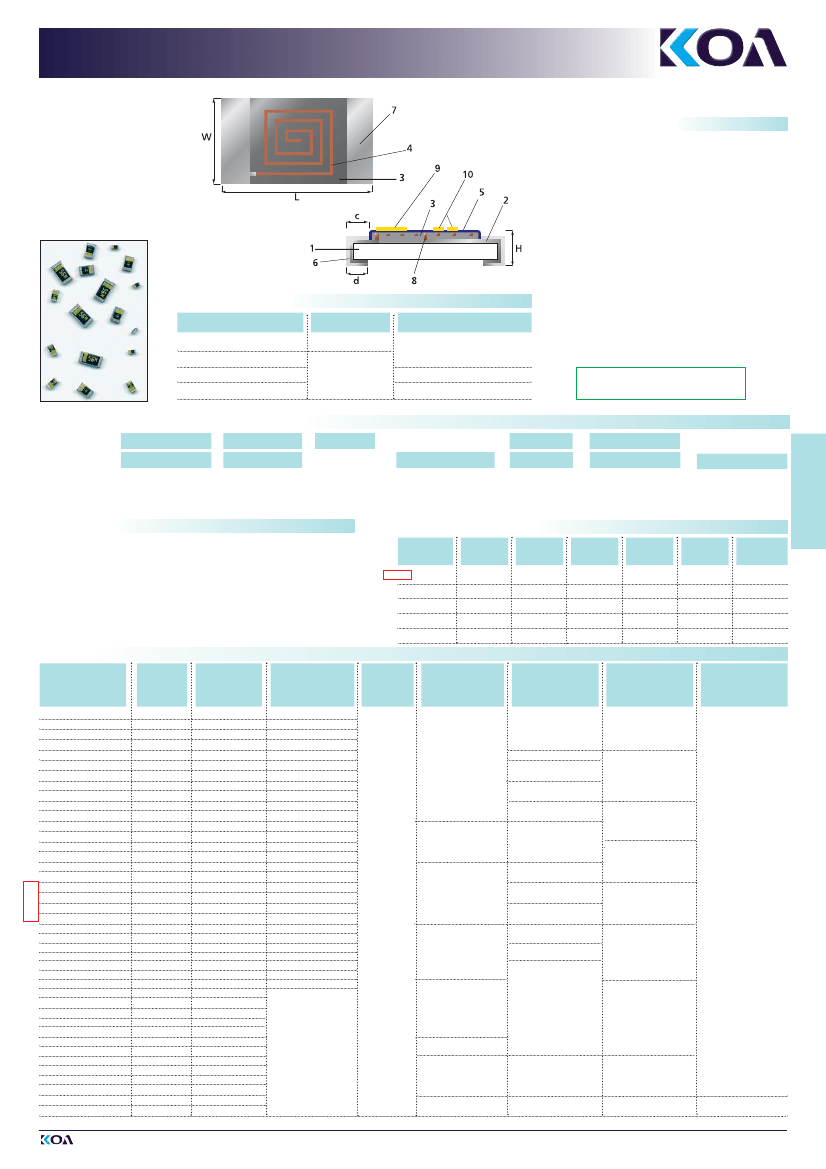

INDUCTORS

TECHNOLOGY OF TOMORROW

THIN FILM

CHIP INDUCTOR

KL73

STRUCTURE

Ceramic substrate

Cross electrode

Polymide insulated film

Cu thin film coil pattern

Epoxy protection film

Ni barrier

Solder plating

Via hole

Direction mark

Marking

IDENTIFICATION

PRODUCT CODE

KL73 1H

KL73 1E

KL73 1J, 2A

KL73 2B

COATING COLOR

Green

Dark blue

MARKING

direction mark

2 digits & direction mark

3 digits & direction mark

Products with Pb-free terminations

meet RoHS requirements

TYPE DESIGNATION (HOW TO ORDER)

Old Part No.

Specifications given herein may be changed at any time without prior notice.

Please confirm technical specifications before you order and/or use.

KL73

PRODUCT CODE

STYLE

1H: 0201

1E: 0402

1J: 0603

2A: 0805

2B: 1206

INDUCTANCE

TOLERANCE

TERMINATION

SURFACE MATERIAL

T: Sn

L: Sn/Pb

TAPING*

TB, TP, TE, BK

*Please see “PACKAGING”

2N7

B, C, G, J

FEATURES

■

Special thin-film multi-layer technology realizes low DCR and high Q

High SRF and excellent characteristics for high frequency

Low tolerance ± 2% availabe

Small size allows high density mounting (0201 ... 1206)

Suitable for automobile telephone, cordless phones, pagers and

other telecommunication equipment

■

Operating temperature range: - 40° C ... + 125° C

■

Suitable for reflow and wave soldering

■

Lab Kit availabe

DIMENSIONS (mm)

SIZE

(inch)

NEW

0201

TYPE

KL73 1H

KL73 1E

KL73 1J

KL73 2A

KL73 2B

0.6 ± 0.03

1.0 ± 0.1

1.6 ± 0.2

2.0 ± 0.2

3.2 ± 0.2

0.3 ± 0.03

0.5 ± 0.05

0.8 ± 0.1

1.25 ± 0.2

1.6 ± 0.2

0.08 ± 0.05

0.15 ± 0.1

0.3 ± 0.1

0.4 ± 0.2

0.5 ± 0.2

0.15 ± 0.05

0.25 ± 0.1

0.3 ± 0.1

0.3 ± 0.2

0.4

+0.2

–0.1

0.24 ± 0.03

0.35 ± 0.05

0.5 ± 0.1

0.6 ± 0.1

0402

0603

0805

1206

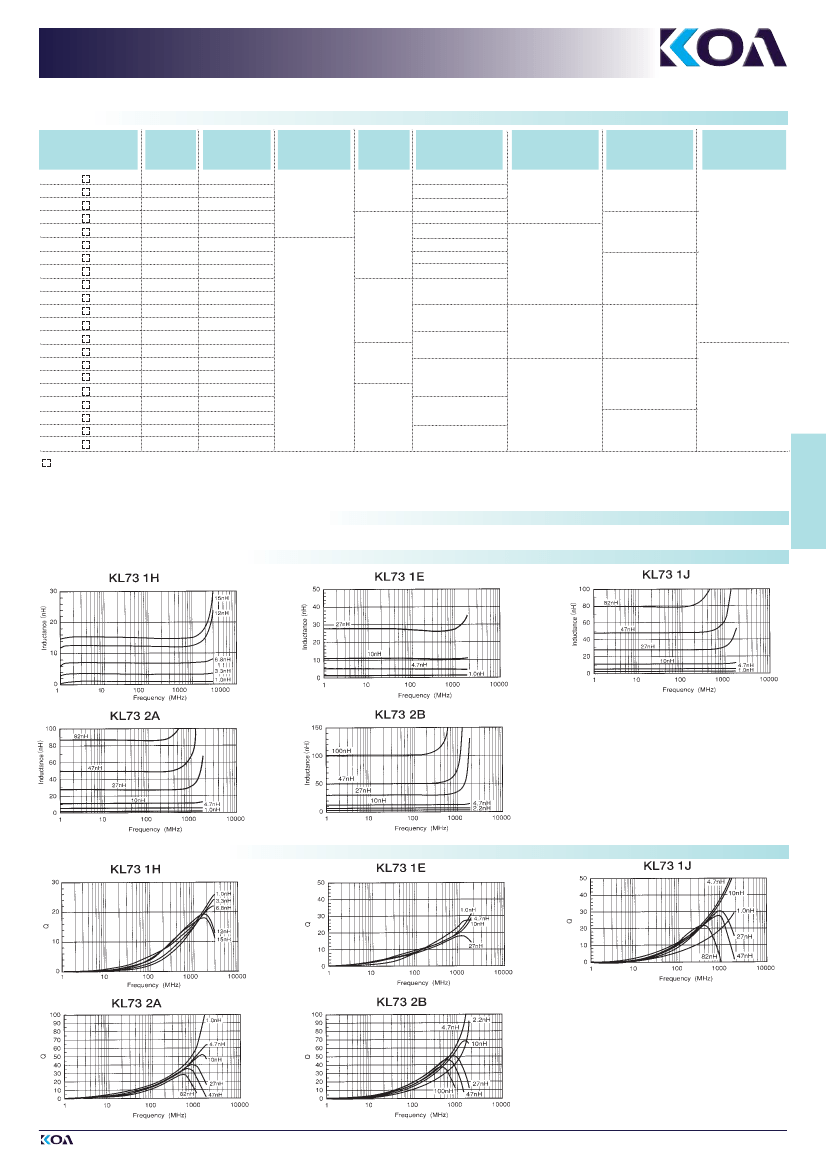

RATING

TYPE

KL73 1H T TB 0N6

■

KL73 1H T TB 0N7 B

KL73 1H T TB 0N8

■

KL73 1H T TB 0N9 B

KL73 1H T TB 1N0

■

KL73 1H T TB 1N1 B

KL73 1H T TB 1N2

■

KL73 1H T TB 1N3 B

KL73 1H T TB 1N5

■

KL73 1H T TB 1N6 B

KL73 1H T TB 1N8

■

KL73 1H T TB 2N0 B

KL73 1H T TB 2N2

■

KL73 1H T TB 2N4 B

KL73 1H T TB 2N7

■

KL73 1H T TB 3N0 B

KL73 1H T TB 3N3

■

KL73 1H T TB 3N6 B

KL73 1H T TB 3N9

■

KL73 1H T TB 4N3 B

KL73 1H T TB 4N7

■

KL73 1H T TB 5N1 G

KL73 1H T TB 5N6

■

KL73 1H T TB 6N2 G

KL73 1H T TB 6N8

■

KL73 1H T TB 7N5 G

KL73 1H T TB 8N2

■

KL73 1H T TB 9N1 G

KL73 1H T TB 10N

■

KL73 1H T TB 11N

■

KL73 1H T TB 12N

■

KL73 1H T TB 13N

■

KL73 1H T TB 15N

■

KL73 1H T TB 16N

■

KL73 1H T TB 18N

■

KL73 1H T TB 20N

■

KL73 1H T TB 22N

■

KL73 1H T TB 24N

■

KL73 1H T TB 27N

■

KL73 1H T TB 33N

■

KL73 1H T TB 39N

■

MARKING

––

NOMINAL

INDUCTANCE

0.6 nH

0.7 nH

0.8 nH

0.9 nH

1.0 nH

1.1 nH

1.2 nH

1.3 nH

1.5 nH

1.6 nH

1.8 nH

2.0 nH

2.2 nH

2.4 nH

2.7 nH

3.0 nH

3.3 nH

3.6 nH

3.9 nH

4.3 nH

4.7 nH

5.1 nH

5.6 nH

6.2 nH

6.8 nH

7.5 nH

8.2 nH

9.1 nH

10 nH

11 nH

12 nH

13 nH

15 nH

16 nH

18 nH

20 nH

22 nH

24 nH

27 nH

33 nH

39 nH

INDUCTANCE

TOLERANCE

B (± 0.1 nH), C (± 0.2 nH)

B (± 0.1 nH)

B (± 0.1 nH), C (± 0.2 nH)

B (± 0.1 nH)

B (± 0.1 nH), C (± 0.2 nH)

B (± 0.1 nH)

B (± 0.1 nH), C (± 0.2 nH)

B (± 0.1 nH)

B (± 0.1 nH), C (± 0.2 nH)

B (± 0.1 nH)

B (± 0.1 nH), C (± 0.2 nH)

B (± 0.1 nH)

B (± 0.1 nH), C (± 0.2 nH)

B (± 0.1 nH)

B (± 0.1 nH), C (± 0.2 nH)

B (± 0.1 nH)

B (± 0.1 nH), C (± 0.2 nH)

B (± 0.1 nH)

B (± 0.1 nH), C (± 0.1 nH)

B (± 0.1 nH)

B (± 0.1 nH), C (± 0.1 nH

G (± 2%)

G (± 2%), J(± 5%)

G (± 2%)

G (± 2%), J(± 5%)

G (± 2%)

G ±( 2% ), J(± 5%)

G (± 2%)

QUALITY

FACTOR

(MIN.)

SELF-RESONANT

FREQUENCY

(MIN.)

RESISTANCE

(MAX.)

0.20

Ω

0.30

Ω

ALLOWABLE

DC CURRENT

(MAX.)

MEASURING

FREQUENCY

350 mA

9000 MHz

0.35

Ω

0.50

Ω

0.60

Ω

300 mA

200 mA

8000 MHz

0.70

Ω

130 mA

500 MHz

120 mA

1.50

Ω

2.00

Ω

4000 MHz

2.50

Ω

110 mA

1.00

Ω

6000 MHz

1.30

Ω

NEW

2000 MHz

5.00

Ω

70 mA

G ± (2%)

J ± (5%)

1500 MHz

1000 MHz

800 MHz

TB = 10.000 pcs/7“reel

6.00

Ω

7.00

Ω

50 mA

40 mA

200 MHz

■

Enter the code for inductance tolerance (B, C, G, J)

EUROPE GmbH • Kaddenbusch 6 • D-25578 Dägeling / ITZEHOE • PHONE: +49 (0) 48 21 / 89 89-0 • FAX: +49 (0) 48 21/ 89 89 89 • Internet: www.koaeurope.de

Revision: 17. Jan. 2006

INDUCTORS

New Part No.

(Pb-free)

2N7

NOMINAL

INDUCTANCE

TOLERANCE
