42R04-X2X1: Description10A, 250VAC, MALE, MAINS POWER CONNECTOR, SCREW, PLUG; Categorysemiconductor Other integrated circuit (IC); File Size32KB，1 Pages; ManufacturerPower Dynamics, Inc.; Websitehttp://www.powerdynamics.com/

Download Datasheet Compare View All

42R04-X2X1 Overview

10A, 250VAC, MALE, MAINS POWER CONNECTOR, SCREW, PLUG

Preview

Download Datasheet

View All

6

5

4

3

2

1

MATERIAL AND FINISH:

Insulator: Polycarbonate, UL-94V-0 rated

Contacts: IEC C14, 70°C: Brass, Nickel plated

IEC C16, 120°C: Bronze, Nickel plated

D

ELECTRICAL SPECIFICATIONS:

Current rating: 10 A

Voltage rating: 250 VAC

12.0+1.0

-0.5

26

D

C

1) ELECTRICAL CIRCUIT

CONFIGURATION

1 = IEC C14, 10A 250V 70°C

2+GROUND

2 = IEC C16, 10A 250V 120°C

2+GROUND

2) COLOR

1 = BLACK

2 = GRAY

15.0+0.5

V

D E

L

ORDERING CODE:

42R04-__ 2 __ 1

1

2

N

26

C

29.0-0.5

24.0+0.5

4.00

16.0+0.5

21.0-0.5

18.6

B

14.0±0.2

CHNG CHCK APPR

PB

18 MIN.

55

ADD NOTES 2 & 3; RoHS

ADD C16 CONTACT MATERIAL

29.0 -0.5 WAS 28.2 +0.3

REVISIONS

NOTES:

1. Contains integral cable clamp strain relief & internal screw

type connections. Maximum wire gauge is 16AWG stranded.

2. Recommended screw torque: 1.2Nm

3. Recommended strip length for jacket and conductors:

23

N

G

L

DF

PB

TOLERANCE

UNLESS OTHERWISE SPECIFIED

X ± 1

X.X ± 0.4

X.XX ± 0.20

CHANGE

Phone: 973 560-0019

Whippany, New Jersey

Fax: 973 560-0076

A

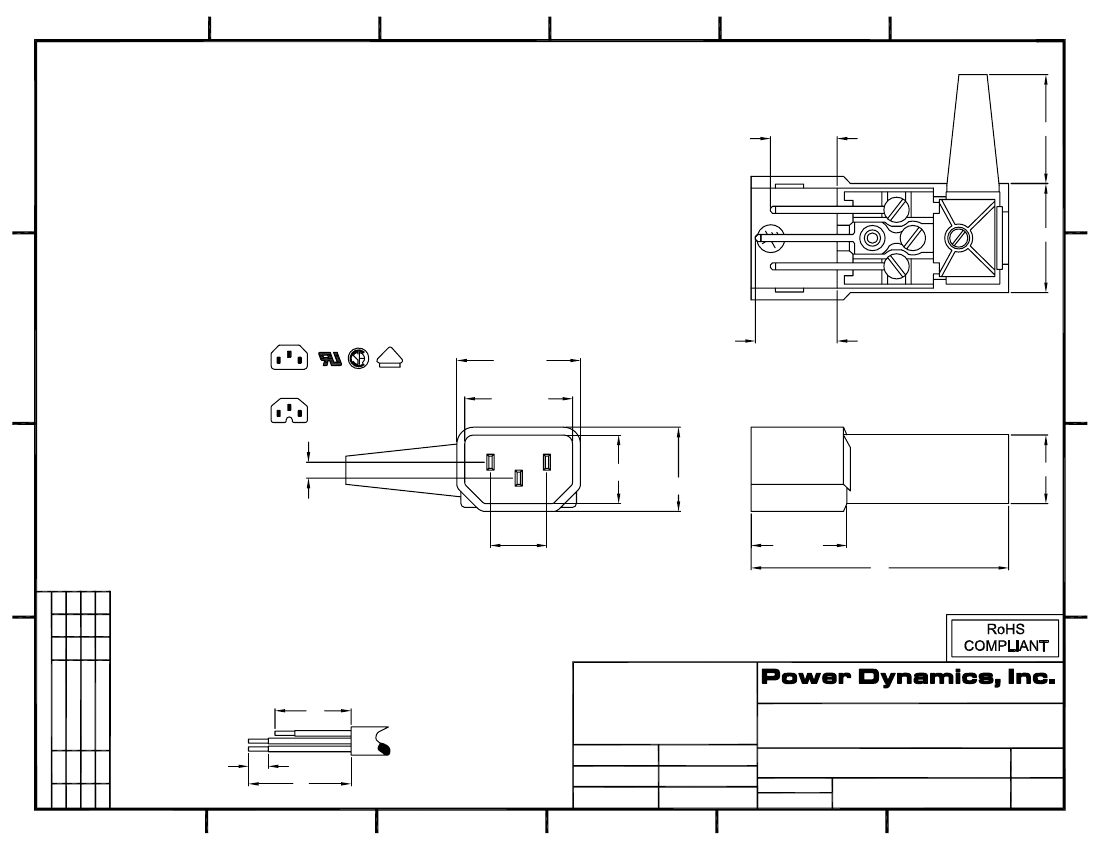

PART: IEC 60320 C14 & C16 MALE POWER CORD

PLUG; R/A RIGHT HANDED CONNECTION

PART #:

A

6.0 TYP.

31

DRAWN

BY

CHECK

BY

APPR

BY

11/10/08

1/25/07

6/9/10

DATE

GQ

TD

PB

DATE:

08/17/01

08/20/01

08/21/01

SIZE:

SCALE:

42R04-X2X1

A

NTS

ALL DIMENSIONS FOR REFERENCE ONLY

DIMENSIONS ARE IN MILLIMETERS

SHEET

1 of 1

REV:

REV

C

A

B

6

5

4

3

2

1

42R04-X2X1 Related Products

	42R04-X2X1	42R04-1211	42R04-1221	42R04-2211	42R04-2221
Description	10A, 250VAC, MALE, MAINS POWER CONNECTOR, SCREW, PLUG	10A, 250VAC, MALE, MAINS POWER CONNECTOR, SCREW, PLUG	10A, 250VAC, MALE, MAINS POWER CONNECTOR, SCREW, PLUG	10A, 250VAC, MALE, MAINS POWER CONNECTOR, SCREW, PLUG	10A, 250VAC, MALE, MAINS POWER CONNECTOR, SCREW, PLUG
Is it lead-free?	-	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to	conform to	conform to
Maker	-	Power Dynamics, Inc.	Power Dynamics, Inc.	Power Dynamics, Inc.	Power Dynamics, Inc.
package instruction	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	-	compliant	compliant	compliant	compliant
Other features	-	STANDARDS: IEC 60320/C14; UL 94V-0; CSA; VDE	STANDARDS: IEC 60320/C14; UL 94V-0; CSA; VDE	STANDARDS: IEC 60320/C16; UL 94V-0	STANDARDS: IEC 60320/C16; UL 94V-0
Body/casing type	-	PLUG	PLUG	PLUG	PLUG
Connector type	-	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR
Contact to complete cooperation	-	NICKEL	NICKEL	NICKEL	NICKEL
Contact completed and terminated	-	Nickel (Ni)	Nickel (Ni)	Nickel (Ni)	Nickel (Ni)
Contact point gender	-	MALE	MALE	MALE	MALE
Contact material	-	BRASS	BRASS	BRONZE	BRONZE
Coupling type	-	SNAP	SNAP	SNAP	SNAP
DIN compliance	-	NO	NO	NO	NO
IEC compliance	-	YES	YES	YES	YES
MIL compliance	-	NO	NO	NO	NO
Power Connector Ratings	-	10A, 250VAC	10A, 250VAC	10A, 250VAC	10A, 250VAC
Plug information	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation type	-	CABLE	CABLE	CABLE	CABLE
Options	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	-	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE
Termination type	-	SCREW	SCREW	SCREW	SCREW
Total number of contacts	-	3	3	3	3
Base Number Matches	-	1	1	1	1
