43R01-2311: Description10A, 250VAC, FEMALE, MAINS POWER CONNECTOR, SCREW, PLUG; CategoryThe connector The connector; File Size34KB，1 Pages; ManufacturerPower Dynamics, Inc.; Websitehttp://www.powerdynamics.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

43R01-2311 Overview

10A, 250VAC, FEMALE, MAINS POWER CONNECTOR, SCREW, PLUG

43R01-2311 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	STANDARDS: IEC 60320/C15; UL 94V-0; CSA; VDE
Body/casing type	PLUG
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	BRASS/BRONZE
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	10A, 250VAC
Manufacturer's serial number	43R01
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYCARBONATE
Termination type	SCREW
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

6

5

4

3

2

1

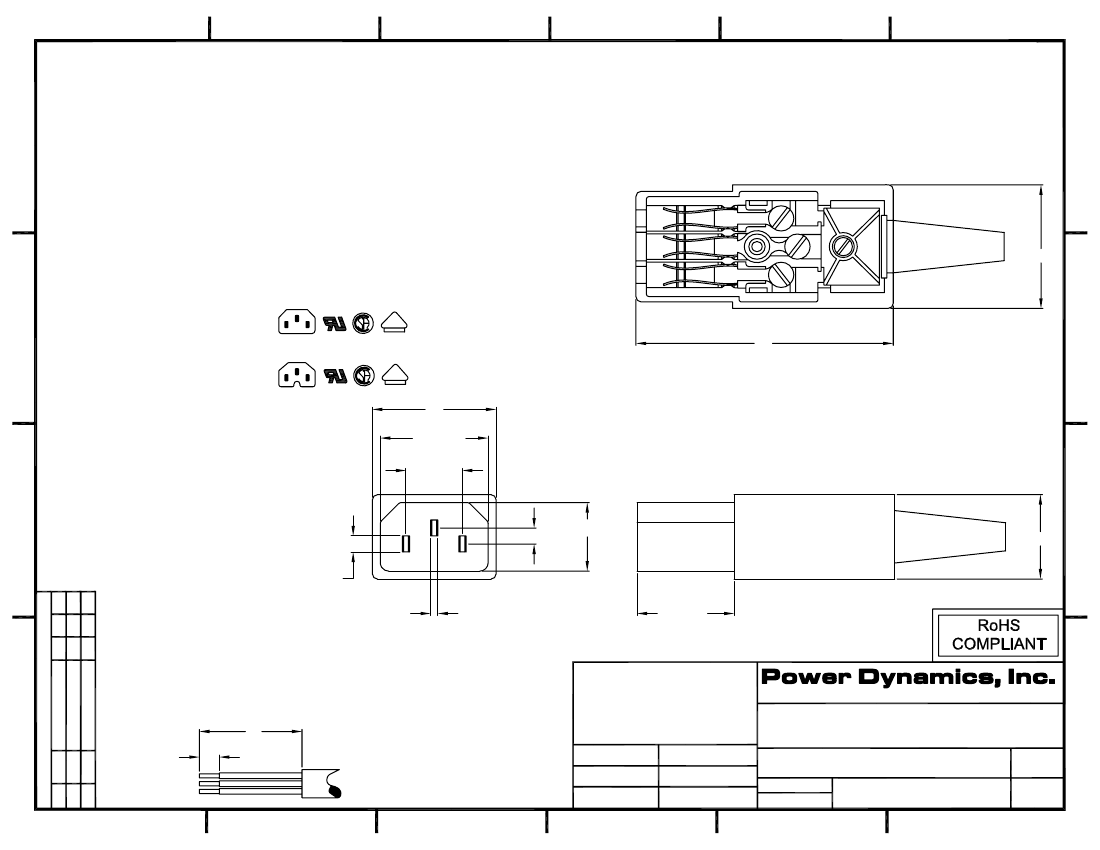

MATERIAL AND FINISH:

Insulator: Polycarbonate, UL-94V-0 rated

Contacts: IEC C13, 70°C: Brass

IEC C15, 120°C: Bronze

D

ELECTRICAL SPECIFICATIONS:

Current rating: 10 A

Voltage rating: 250 VAC

ORDERING CODE:

43R01-__ 3 __ 1

1

2

1) ELECTRICAL CIRCUIT

CONFIGURATION

26

D

C

1 = IEC C13, 10A 250V 70°C

A DIN 49 457

2 = IEC C15, 10A 250V 120°C

D DIN 49 458

2) COLOR

1 = BLACK

2 = GRAY

V

D E

C

54

V

D E

26

23.0-0.5

14.0±0.2

B

15.8-0.5

4.00

3X 5.0+0.5

CHNG CHCK APPR

B

19.0

3X 2.5+0.3

NOTES:

1. Contains integral cable clamp strain relief & internal screw

type connections. Maximum wire gauge is 16AWG stranded.

2. Recommended screw torque: 1.2Nm

3. Recommended strip length for jacket and conductors:

31

6.0

N

G

L

PB

18 MIN.

ADD C15 CONTACT MATERIAL

REVISIONS

NOTES 2 & 3; RoHS

TOLERANCE

UNLESS OTHERWISE SPECIFIED

X ± 1

X.X ± 0.4

X.XX ± 0.20

CHANGE

Phone: 973 560-0019

Whippany, New Jersey

Fax: 973 560-0076

A

PART: IEC 60320 C13 & C15 FEMALE POWER CORD

PLUG; STRAIGHT CONNECTION

A

DRAWN

BY

CHECK

BY

APPR

BY

1/25/07

6/9/10

DATE

GQ

TD

PB

DATE:

08/20/01

08/22/01

PART #:

43R01-X3X1

A

NTS

ALL DIMENSIONS FOR REFERENCE ONLY

DIMENSIONS ARE IN MILLIMETERS

SHEET

1 of 1

REV:

REV

SIZE:

SCALE:

B

A

B

6

5

4

3

2

1

43R01-2311 Related Products
