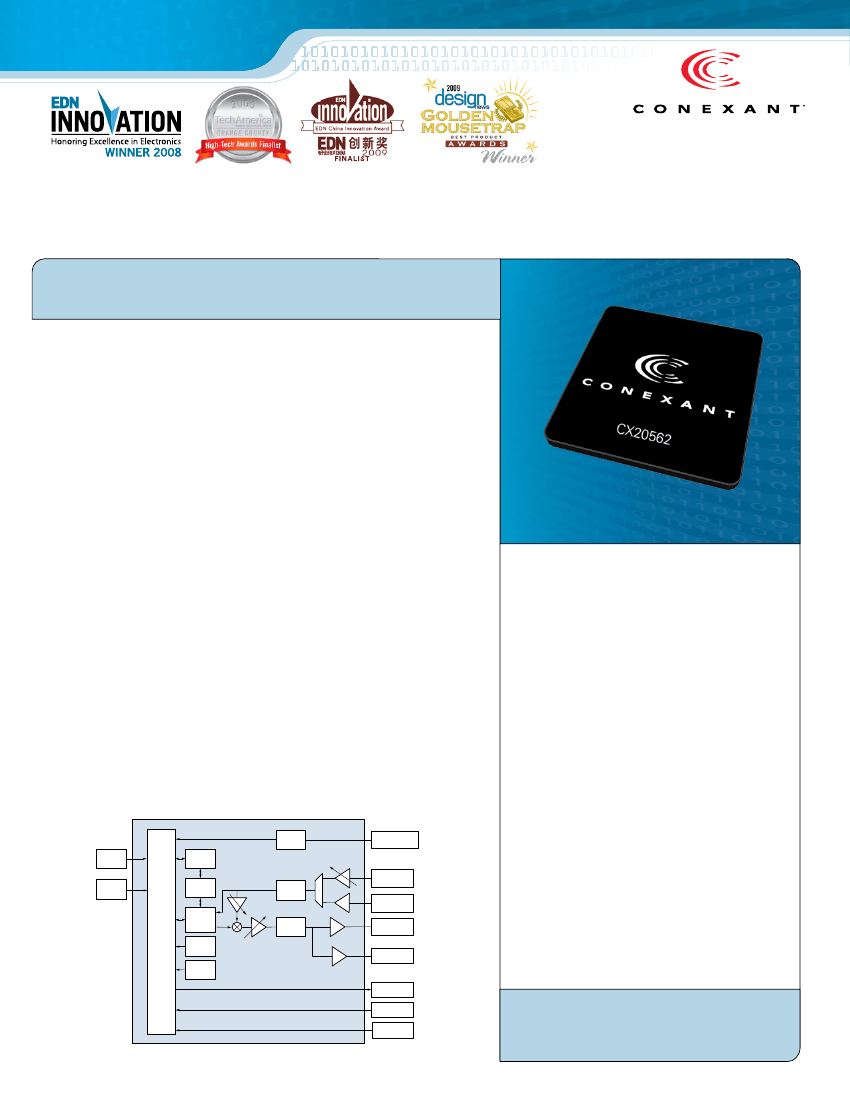

Audio
Speakers-on-a-Chip
USB Speakers-on-a-Chip with Hardware
Acoustic Echo Cancellation DSP
CX20562
Conexant’s portfolio includes a comprehensive suite of semiconductor
solutions for communications and consumer applications.
Conexant’s CX20562 is the world’s first family of “Speakers-on-a-Chip” (SPoC)
solutions that integrates the functionality of a digital audio/voice processor,
audio codec, and Class-D amplifier in one cost-effective 48-pin Quad Flat-No
Lead (QFN) package. This solution is optimized with stereo, high fidelity 24-bit
DAC for music rendering. It also features a built-in echo-free speakerphone
with wideband Acoustic Echo Cancellation (AEC) and a noise-reduction
hardware Digital Signal Processor (DSP). The high-quality music speaker and
voice speakerphone combination is made possible with the latest advances
in all-CMOS mixed-signal and DSP integration. The turnkey solution enables
manufacturers to quickly design cost-effective convergence products for high
definition audio and voice applications.
Key innovations inlclude BrightSound™, a Conexant proprietary sound
processing algorithm that dramatically improves audio quality and reduces
speaker clipping. In Night Mode, the background sound signal quality is
maintained, while allowing the user to clearly hear the vocal audio when
watching a movie or playing a video game without increasing the volume.
The CX20562 also supports many consumer-oriented features such as Music
on-hold, Aux fade-in/ fade-out, DSP Array Microphones, Global System for
Mobile Communications (GSM) noise immunity, and Instant Messaging (IM)
“hotkey” launch button.
The CX20562 has one USB interface that allows manufacturers to develop plug-
and-play products that are PC and Mac compatible and one auxiliary analog
input for connection with other audio peripherals. The device supports both
digital and analog volume control, microphone mute, and speaker mute. The
CX20562 features additional interface to 20 keys programmable keypad and
LCD display interface. The built-in Class-D amplifier is capable of driving 1.2
W on 4 ohm load via USB host power, it can also be used as the pre-amp for
larger powered speakers output. The efficiency of Class-D amplifier makes it
ideal for portable audio application.
Conexant’s SPoC solution provides the technology platform to make the
convergence of audio entertainment and voice communication a reality.
AD C
U SB
Interface
DMA
Analog Volum e
Potentiom eter
Boost
M icrophone
C rystal
M em ory
Volum e
Controller
D SP
Volum e
D AC
R OM
C lass-AB
H eadphone
OT P
C haracter
LC D
20-Button
Keypad
4-Button
Keypad
Class-D
Speakers
AD C
Auxiliary Line
In
Distinguishing Features
• Wideband Acoustic Echo Cancellation DSP
engine exceeding TIA 920 requirement
• Integrated 1.2 W Class-D amplifier, higher
output reference design available
• 24-bit DAC/ 16-bit ADC
• USB 2.0 full speed compliant
• Auxiliary line in input with jack sense
• Music-On-Hold
• Aux Fade-in/ Fade-out
• DSP Array Microphone
• BrightSound
• USB bus powered or external powered
option
A complete evaluation kit including the reference
board and all necessary technical documents and
software is available
Part Number
CX20562
Description
USB Speakers-on-a-Chip with
Hardware Acoustic Echo
Cancellation DSP
CX20562 Interface Diagram
Audio
Speakers-on-a-Chip
features
•
Wideband Acoustic Echo Cancellation DSP engine
exceeding TIA 920 requirement
• Integrated 1.2 W Class-D amplifier featuring non-clipping,
filter-less output with selectable gains
• High fidelity 24-bit, stereo DAC
-44.1, 48 kHz sampling rate
• Wideband 16-bit, stereo ADC
-44.1, 48 kHz sampling rate
• USB 2.0 full speed compliant
• Auxiliary line in input with jack sense
• Music-On-Hold
• Aux Fade-in/ Fade-out
• DSP Array Microphone (VM Central PC host software
required)
• BrightSound (VM Central PC host software required)
• IM launch (VM Central PC host software required)
• Integrated stereo headphones driver with jack sense
• Stereo Mic input with Bias
• On-chip one-time programmable memory for storing 20
characters of product description and DSP tuning
parameters
• Analog volume control
• Digital volume up/down control
• Mic Mute
• Speaker Mute
• On hook/ off hook control
• Key pad interface, up to 24 keys
• Interface to controller LCD display
• Mic Boost 10, 20, 30, 40 dB
• USB bus powered 5V, 500 mA or external powered option
• 48-pin QFN
CX20562 Feature Comparison
feature
Class-D Speaker Output
Microphone Input
Volume Control
Standard
CX20562-14Z
Yes
Yes
Yes
Yes
Yes
Multimedia
CX20562-15Z
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Professional
CX20562-16Z
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
IM Launch Button and LED
Auxiliary Line In Input
Headphone Output
Mic Mute Button and LED
Additional 20 Keypad Buttons
LCD Interface
Applications
• All-in-One PC speakers, MP3 player dock, speakerphone
• USB VoIP speakerphone
• LCD monitor with built-in speakers and speakerphone
• Notebook PC docking station
• Embedded USB audio applications
Description
Standard
Multimedia
Professional
Evaluation Kit
Ordering Information
Part Number
CX20562-14Z
CX20562-15Z
CX20562-16Z
Package
48-pin QFN
48-pin QFN
48-pin QFN
order Number
DSAC-L562-141
DSAC-L562-151
DSAC-L562-161
CX20562-EVK
Conexant Product Portfolio
The company’s broad portfolio of semiconductor products also includes client-side DSL, cable, and dial-up modem solutions; fiber optic system-on-
chips; broadcast video encoders and decoders; and digital set-top box components and systems solutions. Additional products include a complete line
of asymmetric and symmetric DSL central office solutions, which are used by service providers worldwide to deliver broadband data, voice, and video
over copper telephone lines.
