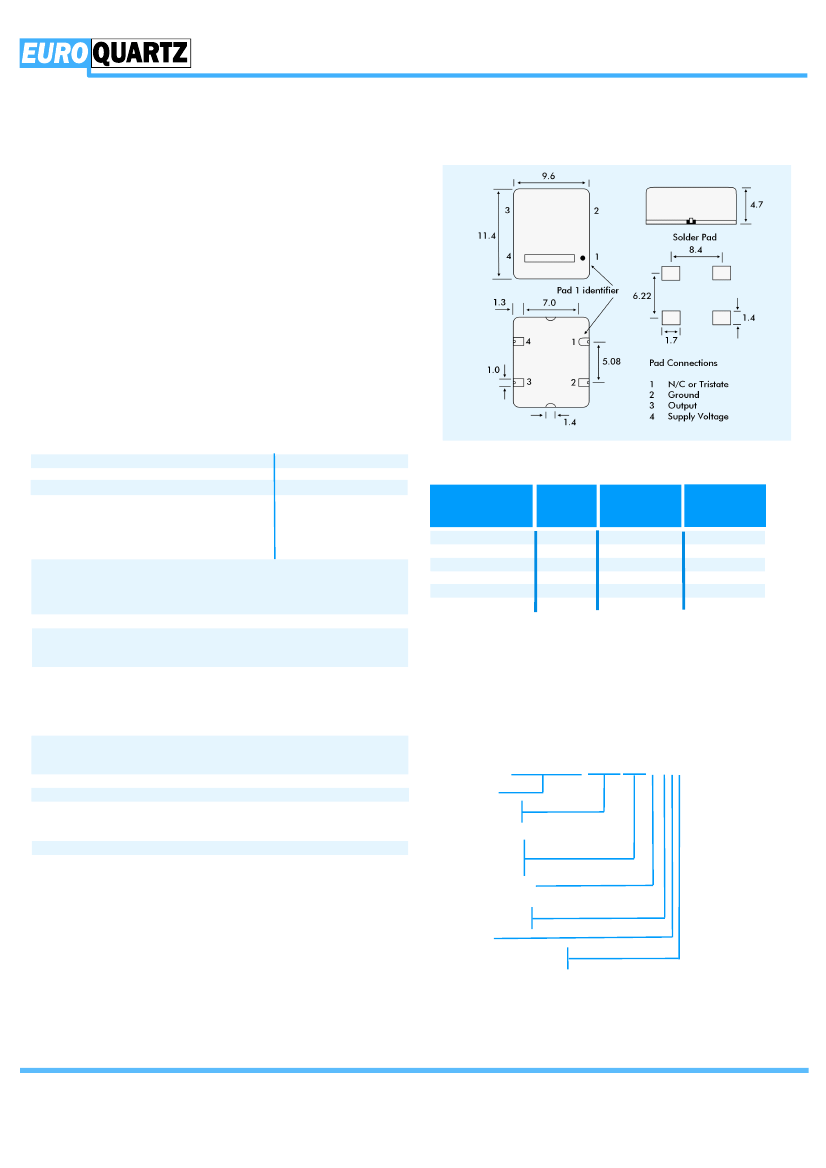

SURFACE-MOUNT OSCILLATORS

XO44 SERIES SMD OSCILLATOR

4 Pad SMD Package

DESCRIPTION

The Euroquartz XO44 series of surface-mount oscillators consist of a TTL

and CMOS compatible hybrid circuit coupled with a slimline UM-1quartz

hermetically sealed crystal. The oscillators provide a true SMD part that

may be supplied in a short leadtime, even for custom frequencies.

OUTLINES AND DIMENSIONS

FEATURES

Industry-standard 4 pad SMD package

Wide frequency range, from 20kHz to 160MHz

Wide operating temperature range, -40° to +85°C

Supply Voltage 3.3 Volts or 5.0 Volts

Open, ceramic package with hermetically sealed crystal

Optional Tristate function

Custom specifications produced and delivered quickly

SPECIFICATION

Input Voltage:

+3.3 VDC

+5.0VDC

Frequency Range:

20kHz ~ 125MHz

20kHz ~ 160MHz

Output Logic:

TTL/HCMOS

Output Voltage

TTL HIGH ‘1’:

2.4V min.

HCMOS HIGH’1’:

2.97V min.

Vcc -0.5V min.

TTL LOW ‘0’:

0.4V max.

HCMOS LOW ‘0’:

0.33V max.

0.5V max.

Operating Temp. Range

Commercial:

0° to +70°C

Industrial:

-40° to +85°C

Military:

-55° to +125°C

Frequency Stability:

see table

Output Load

TTL:

2 to 10TTL gates

HCMOS:

15pF (50pF available)

Rise/Fall Times

TTL

10ns max., 3ns typical (from 0.4V to 2.4V)

(RL=390W, CL=15pF)

HCMOS:

10ns max., 3ns typical

(from 10% to 90%Vdd, CL = 15pF)

Symmetry

TTL:

40% min. 60% max. (Measured at 1.4V)

HCMOS:

40% min. 60% max . (Measured at 50%Vdd)

Start-up Time:

10ms max, 5ms typical

Current Consumption:

15mA to 45mA (Frequency dependent)

Tristate Option:

Output is high impedance when ‘0’ (<0.8V)

is applied to Pin 1. (Internal pull-up)

Disable time = 150ns max.

Storage Temperature:

-55 to +125°C

Ageing:

±5ppm/year max.

STABILITY & PART NUMBER SELECTION

Euroquartz

Model

Number

XO44025UC

XO44050UC

XO44100UC

XO44025UI

XO44050UI

XO44100UI

Stability

ppm

±25

±50

±100

±25

±50

±100

Operating

Temperature

Range

0°~+70°C

-40°~+85°C

Supply

Voltage

3.3/5.0V

PART NUMBER GENERATION

XO44 Series oscillator part numbers are derived as follows:

EXAMPLE:

16.000MHz XO44050UCT3

Frequency -

Model No: -

(See table above)

Stability

025 = ±25ppm

050 = ±50ppm

100 = ±100ppm

U = CMOS/TTL o/p

Temperature Range

C = 0°~+70°C

I = -40°~+85°C

T = Tristate

Blank = 5.0 Volts Supply

3.3 Volts Supply

LOW FREQUENCY /LOW POWER

If you require Hz or kHz frequency oscillators with

current

consumption, for example 32.768kHz with 14mA current consumption

consider our ‘LPO’ oscillator series.

CUSTOM PARTS

The Euroquartz factory are able to produce custom frequency and

specification specification XO44 series oscillators with short leadtimes.

Check with Euroquartz Sales for details.
