ASP-103612-03
REVISION
NOTES:
F
1. USE ASP-103597-01-B BODY FOR NON-STANDARD 19 POSITION.
2.
C
REPRESENTS A CRITICAL DIMENSION.
3. BURR ALLOWANCE: .0005[0.013] MAX.
4. MINIMUM PUSHOUT FORCE: .5 LB.
5. MAXIMUM ALLOWABLE BOW: .002[0.05] INCH/INCH AFTER ASSEMBLY.
6. CONTACT TO BE FLUSH TO .003[0.08] RECESSED.
7. ONE REEL MINIMUM PLATING REQUIREMENT (85,000 CONTACTS PER REEL).
8. ALL DIMS TO BE SYMMETRICAL ABOUT THE CENTERLINE WITHIN ±.001[0.03].
9. .0025[0.064] MAX VARIATION BETWEEN SOLDERBALLS.
10. REFER TO VISUAL INSPECTION BOARD FOR SOLDERBALL APPEARANCE CHECKS.
11. THE DISTANCE FROM THE CENTER OF ANY SOLDERBALL TO THE
CENTER OF ANY ADJACENT INNER PEG SHALL BE .025±.005[0.64±0.13].
12. PARTS TO BE PACKAGED IN TUBES.

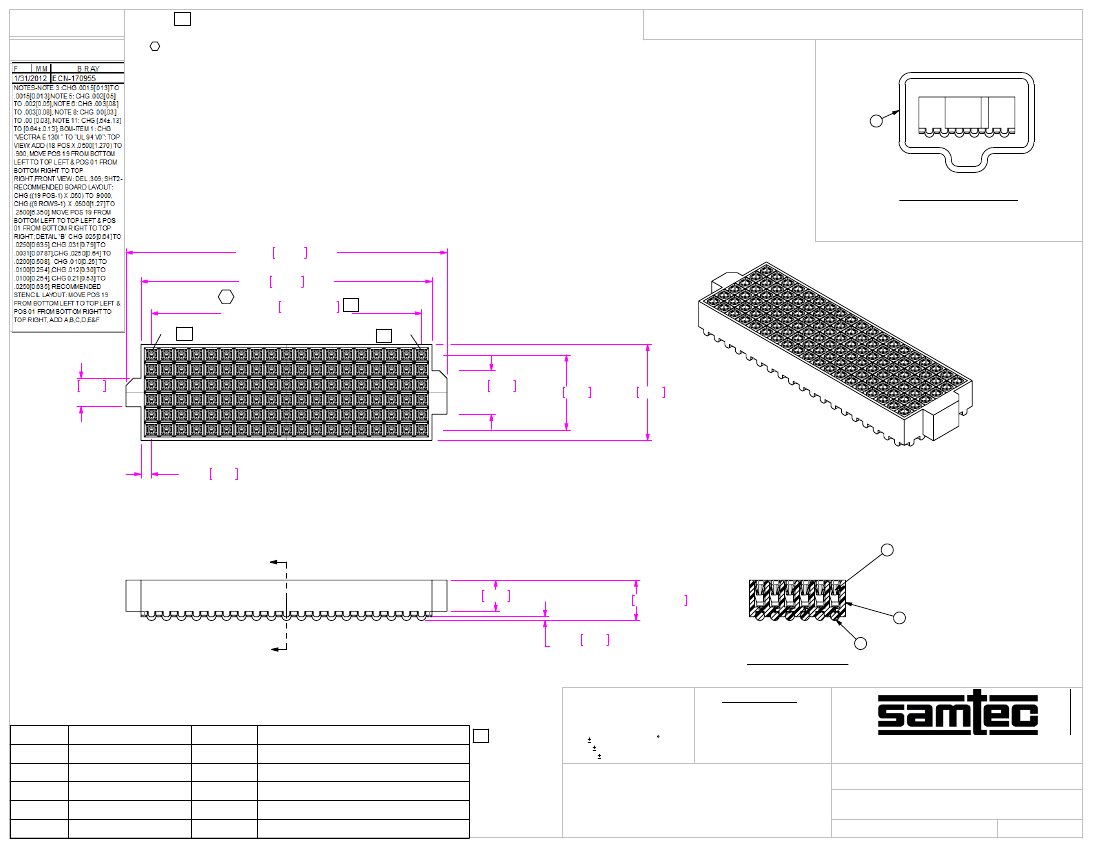

ANY REV MADE TO THIS PRINT MUST HAVE AN UPDATED MKT PRINT
4
PACKAGING VIEW
1.070 27.18 REF
.970 24.64 REF
C1
19
F
.900±.002 22.86±0.05
F
(18 POS x .0500[1.270])
F
01
A
B
C
.145 3.68
REF
D
E
F
.095 2.41
REF
.250 6.35
.320 8.13 REF
.035 0.89 REF
"A"
.104 2.64 REF
.134±.003 3.41±0.08
2
1
"A"
.012 0.31
(SEE NOTE 9)
SECTION "A"-"A"
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
3
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
ITEM NO.
1
2
3
4
5
PART NUMBER
QUANTITY
1.0000
114.00
114.00
.05000
.10000
MATERIAL
UL 94 V0, COLOR: BLACK
PHOS BRONZE, 521 HARD TEMPER
63% TIN /37% LEAD
ANTI-STATIC PVC
THERMOPLASTIC RUBBER
F
DECIMALS
ASP-103597-01-B
C-140-03-H
SDB-030-6337
PT-1-24-01-61
TP-03
.XX: .01
.XXX: .005
.XXXX: .0020
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
PLATING:
CONTACT AREA: .000030 GOLD OVER .000050 NICKEL
REMAINDER: .000003 FLASH GOLD OVER .000050 NICKEL
VITA 42 (LEAD FREE) SOCKET ASSEMBLY
ASP-103612-03
10/18/2006
SHEET
1
OF
2
F:\DWG\SW\ASP\103000\ASP-103612-03.SLDDRW
BY:
J LACKEY
ASP-103612-03
REVISION F

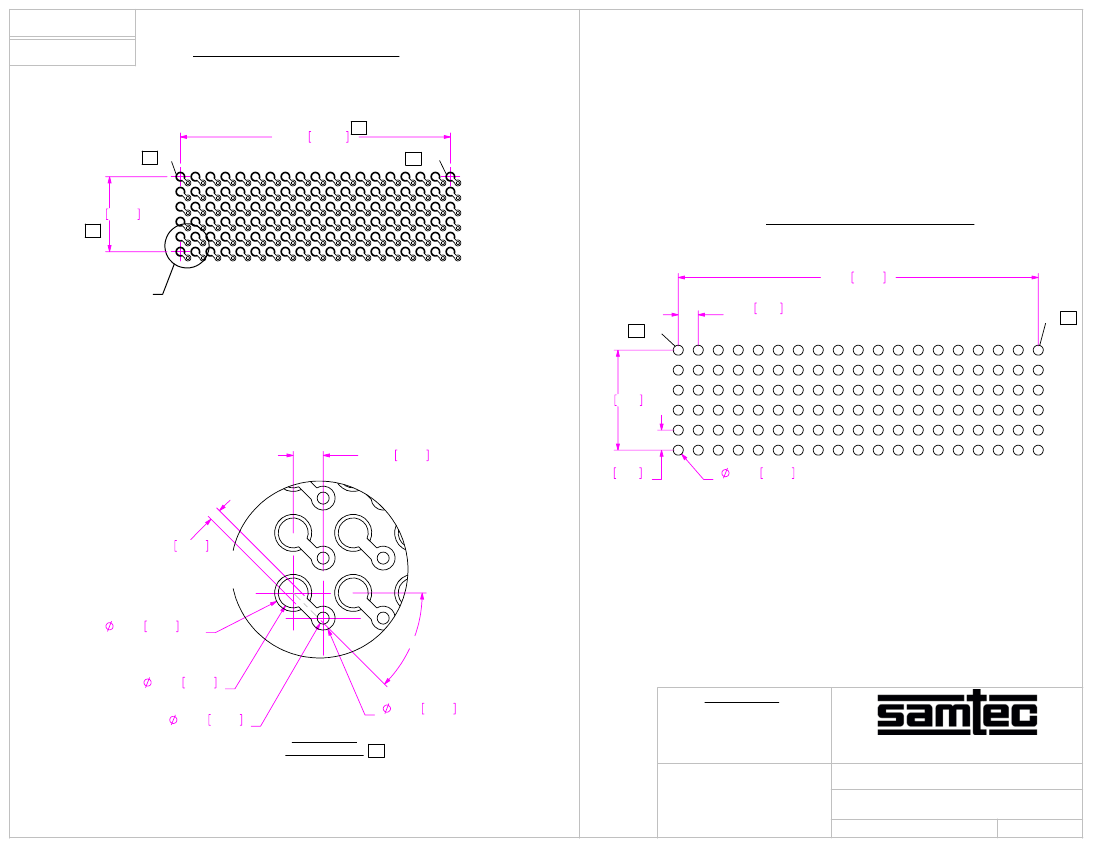

RECOMMENDED BOARD LAYOUT
.9000 22.860
F
F
01
A
B
F
19
.2500 6.350
F
C
D
E
F
"A"
RECOMMENDED STENCIL LAYOUT
STENCIL TO BE .0060[0.152] THICK
.900 22.86
.050 1.27
(TYP)
NOTE:
OUTER ROWS MAY NOT NEED VIAS - THIS IS LEFT TO
THE DISCRETION OF THE BOARD DESIGNER.
F
19
01
A
B
F
.250 6.35
C
D
E
.0250 0.635
.050 1.27
(TYP)
.0250 0.635
(TYP)
F
.0100 0.254
TRACE
.0310 0.787
FREE OF SOLDER MASK
45°
.0250 0.635
PAD
.0100 0.254
VIA (PLATED)
DETAIL "A"
SCALE 12 : 1
F
.0200 0.508
PAD
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
SHEET SCALE: 3:1
VITA 42 (LEAD FREE) SOCKET ASSEMBLY
ASP-103612-03
10/18/2006
SHEET
2
OF
2
F:\DWG\SW\ASP\103000\ASP-103612-03.SLDDRW
BY:
J LACKEY
