Single Module EN4165
Arinc 809 - BACC65 - EN4165

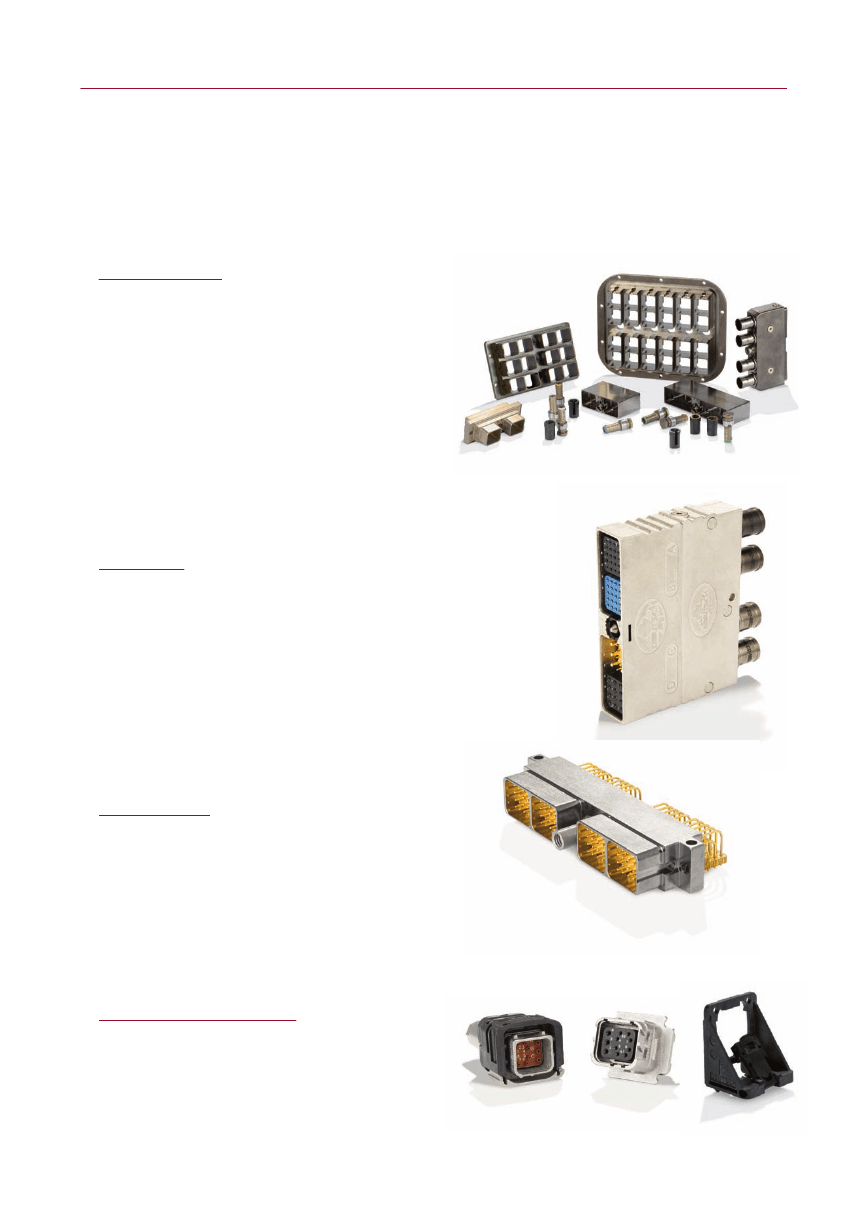

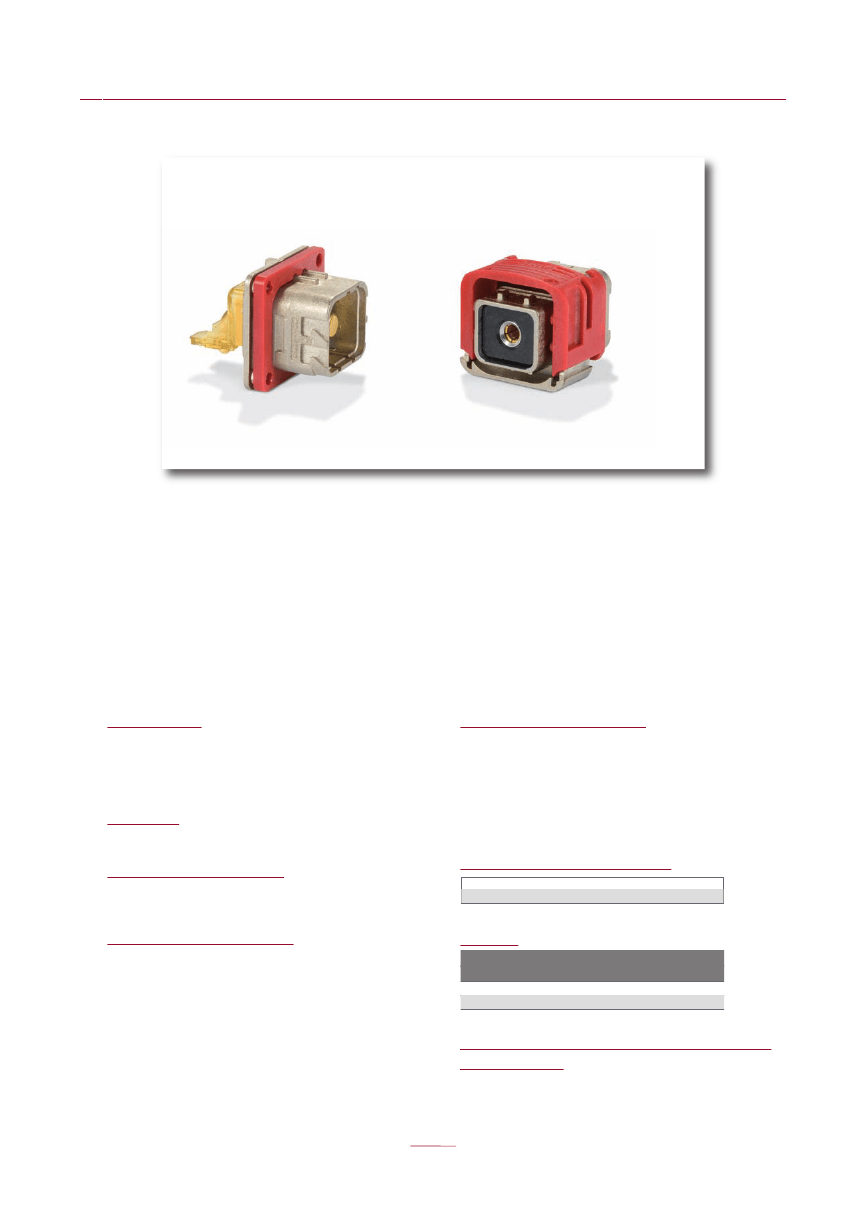

The concept
Single Module EN4165
The DMC-M is a modular rectangular connector which
was designed and developed by Deutsch in the 1980's.
It has since set the modular connector standard in the Aerospace & Military industries, and is now standardi-
sed by European Specification
EN4165.
I
The modularity
The DMC-M is designed to address a wide range of
requirements due to its wide range of contacts arran-
gements : from contacts size 22 to size 8, but also
coaxial, quadrax,
high speed Ethernet or optical
contacts.
Each mated half of the DMC-M connector can contain
both male and female configurations which allow you
to mix input and output with signal and power supply.
You can easily modify your system by simply removing
modules from the shells and replace them with a new
layout. This makes the DMC-M perfect for both
new
designs
and
retrofit applications.
I
The safety
The DMC-M provides a large number of insert layout pos-
sibilities. It allows different keying possibilities between
plugs and receptacles.
The DMC-M provides a real EMI protection following
most stritgent Aerospace and Military specifications.
In addition of Series II, DMC-M scoop proof Series III
inserts and shells
are developped to increase mating
security.
I
The reliability
To increase the level of reliability of the cabin inter-
connections, the Single Module DMC-M is compliant
with the most demanding avionic specifications, in terms
of
sealing,
vibrations,
smoke and toxicity
or mechani-
cal endurance in accordance with EN4165.
I
The weight optimization
Weight saving is commonly a high concern, the Single
Module DMC-M has been designed in
composite
with
a metallized plating for weight and mass saving.
Introduction
Single Module EN4165
ARINC 809 - BACC65 - EN4165
The New Standard Connector for Aircraft equipment and cabin systems.
I
Advantages
I
Electrical characteristics
: -55° C to + 175° C
:
≥
5000 MΩ
: Size 22 : 5 A
Size 20 : 7,5 A
Size 16 : 13 A
Size 12 : 23 A
Size 8 : 46 A
Light weight composite, modularity, color and mechani-
cal coded, push pull coupling are the key features of this
connector. In addition the EN4165 range is aluminium
cable contact compliant.
Temperature range
Insulation resistance
Maximum current
I
I
I
Standard
Markets & Application
ARINC809, BACC65, EN4165 qualified
I
I
EMI shielding performance
MHz frequency
Attenuation (dB)
100
90
200
88
300
88
400
87
800 1000
85
85
Cabin and avionic systems
Military - Railway
Technical characteristics
:
:
:
:
:
:
:
Weight
Extender
Short
Receptacle Receptacle
7 gr
0,015 lbs
6 gr
0,013 lbs
Housing
Plating
Inserts
Vibrations
Durability
Salt spray
Contacts
Composite
Nickel
Thermoplastic and FSR
20 g
500 mating cycles
500 hours
Copper alloy with gold on nickel
plating
Interfacial sealing: 1,1.10
-2
bar
Plug
Backshell
9 gr
4 - 7gr
0,020 lbs 0,009 - 0,015 lbs
I
Recommended mounting for receptacle
screw torque
0,5 ± 0,1 N.m or 4,4 ± 0,9 ln. LbF
When using DEUSCH integrated nut plate PN 787-0016-00
(see page 6)
1

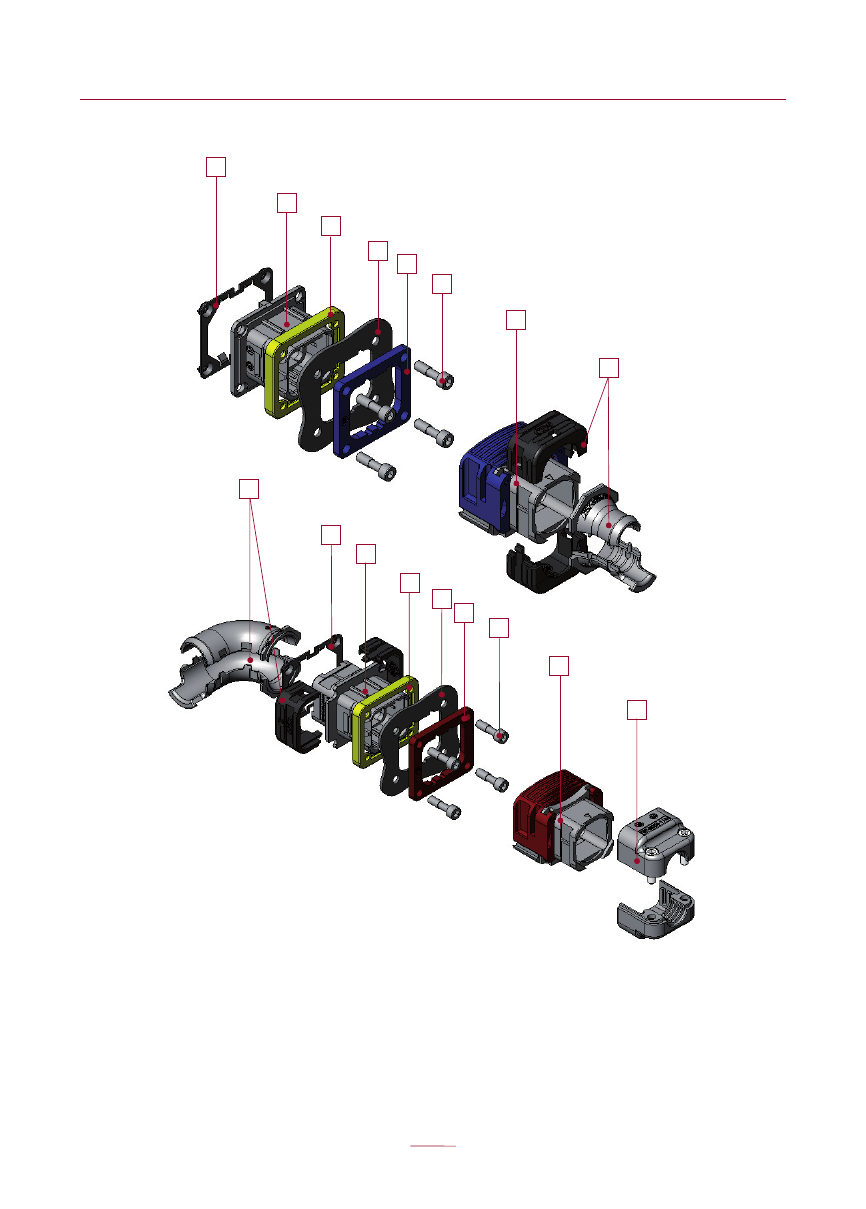

Schematic
Single Module EN4165
1
2
3
4
5
6
7
8
8
1
2*
3
4
5
6
7
8
1
2
-
-
Nut plate (option).
Short receptacle.
Extender receptacle.
Sealing gasket (option).
Panel (up to 2 mm thick).
5
6
7
8
-
-
-
-
Color coding plate (option).
Screws (non delivered).
Plug.
Backshell.
2* -
3
4
-
-
2
Part numbering system
Single Module EN4165
I
DEUTSCH designation system for the shells
Example of order
Shell type
Plug : 20
Short receptacle : 24
Extender receptacle : 26
Coding plate
Omit : Without
K : With
Nut plate
Omit : Without
T
: With
DMC-MD
Connector type
24
D
Shell keying
N-A-B-C-D-E-F-G
-
K
-
S
-
T
Sealing gasket
Omit : Without
S
: With
Only for receptacles
I
DEUTSCH designation system for the accessories
Example of order
Plating
M
: Nickel
787
Connector type
-
8055
-
10 :
11 :
12 :
13 :
20
Accessories type
Straight chimney
Clampshell
Straight tie wrap Ø 7
Straight tie wrap Ø 10
20 :
21 :
30 :
31 :
M
45° indexable chimney
45° indexable chimney tie wrap
90° indexable chimney
90° indexable chimney tie wrap
I
Standard designation system for the shells
Example of order
Sealing gasket
Finish
Composite nickel plated : M
Shell type
Monomodule : 1
Shell keying
N-A-B-C-D-E-F-G
U : Without
G : With
EN4165
Number of the basic
standard
M
0
Shell type
Plug : 6
Short receptacle : 0
Extender receptacle : 7
1
A
Type A
Series 2
D
1
Coding plate
0 : Without
1 : With
G
1
Nut plate
0 : Without
1 : With
Only for receptacles
I
Standard designation system for the accessories
Example of order
Chapter
Finish
M : Composite nickel plated
A : Tie wrap
Omit : Without
EN4165
Number of the basic
standard
-
026
M
20
Accessories type
A
10 : Straight chimney
20 : 45° indexable chimney
30 : 90° indexable chimney
10 A : Straight tie wrap Ø 10
20 A : 45° indexable chimney tie wrap
30 A : 90° indexable chimney tie wrap
3
