AS-FREQ7-S-F-4PD-H51-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> AS-FREQ7-S-F-4PD-H51-TR

AS-FREQ7-S-F-4PD-H51-TR: DescriptionSeries - Fundamental Quartz Crystal, 10MHz Min, 14.999MHz Max, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size143KB，2 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/; Environmental Compliance

Download Datasheet Parametric View All

AS-FREQ7-S-F-4PD-H51-TR Overview

Series - Fundamental Quartz Crystal, 10MHz Min, 14.999MHz Max, ROHS COMPLIANT, SMD, 4 PIN

AS-FREQ7-S-F-4PD-H51-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Raltron
package instruction	ROHS COMPLIANT, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	TAPE AND REEL; AT CUT CRYSTAL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.01%
frequency tolerance	50 ppm
Manufacturer's serial number	AS-4PD
Installation features	SURFACE MOUNT
Maximum operating frequency	14.999 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L11.4XB4.73XH5.1 (mm)/L0.449XB0.186XH0.201 (inch)
Series resistance	50 Ω
surface mount	YES

Preview

Download Datasheet

View All

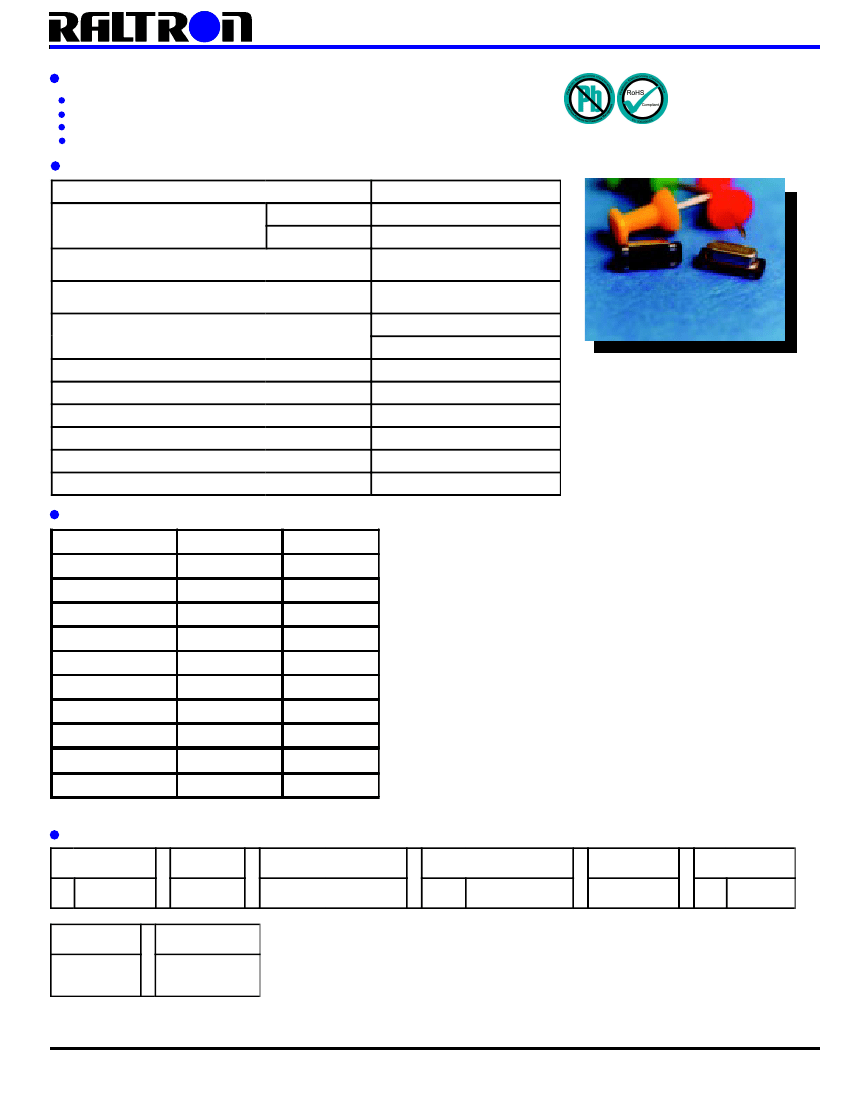

SURFACE MOUNT MICROPROCESSOR CRYSTAL

SERIES AS-4PD

FEATURES

EXCELLENT CLOCK SIGNAL GENERATOR FOR CPU’s

AVAILABLE IN EXTENDED TEMPERATURE RANGE

LOW PROFILE SURFACE MOUNT

EPSON MA506 PIN OUT COMPATIBLE

SPECIFICATIONS

FREQUENCY RANGE

FUNDAMENTAL

MODE OF OSCILLATION

THIRD OVERTONE

FREQUENCY TOLERANCE AT 25°C

FREQUENCY STABILITY OVER TEMPERATURE RANGE

24.576 MHz TO 70.00 MHz

±30 PPM TYPICAL

±50 PPM MAXIMUM

±50 PPM TYPICAL

±100 PPM MAXIMUM

-20º C TO +70º C STANDARD

OPERATING TEMPERATURE RANGE

-40º C TO +85º C EXTENDED

STORAGE TEMPERATURE RANGE

AGING

LOAD CAPACITANCE

EQUIVALENT SERIES RESISTANCE (ESR)

DRIVE LEVEL

CRYSTAL CUT

-55º C TO +125º C

±5 PPM PER YEAR MAXIMUM

10 pF TO 32 pF OR SERIES

SEE TABLE

0.1 mW TYPICAL

AT STRIP

3.20 MHz TO 70.00 MHz

3.20 MHz TO 40.320 MHz

TYPICAL FREQUENCIES AND ESR CHARACTERISTICS*

FREQUENC Y (MHz)

3.579 TO 3.999

4.000 TO 4.999

5.000 TO 5.999

6.000 TO 6.999

7.000 TO 7.999

8.000 TO 9.999

10.000 TO 14.999

15.000 TO 40.320

24.000 TO 28.999

29.000 TO 70.000

OHMS MAX

150

130

100

MOD E

FUND

3rd OT

* LOWER RESISTANCIES ARE AVAILABLE ON SPECIAL ORDER

PART NUMBERING SYSTEM

HOLDER TYPE

HC-49/S SMD

IN MHz

FREQUENCY

LOAD CAPACITANCE

10 TO 32pF FOR PARALLEL

S FOR SERIES

3OT

MODE

FUNDAMENTAL

THIRD OVERTONE

EXTENDED

TEMPERATURE

EXT

CONFIGURATION

4PD

4 PAD

SMD TYPE

HEIGHT

5.6 mm: STD

5.1 mm: H51

4.6 mm: H46

TAPE AND REEL

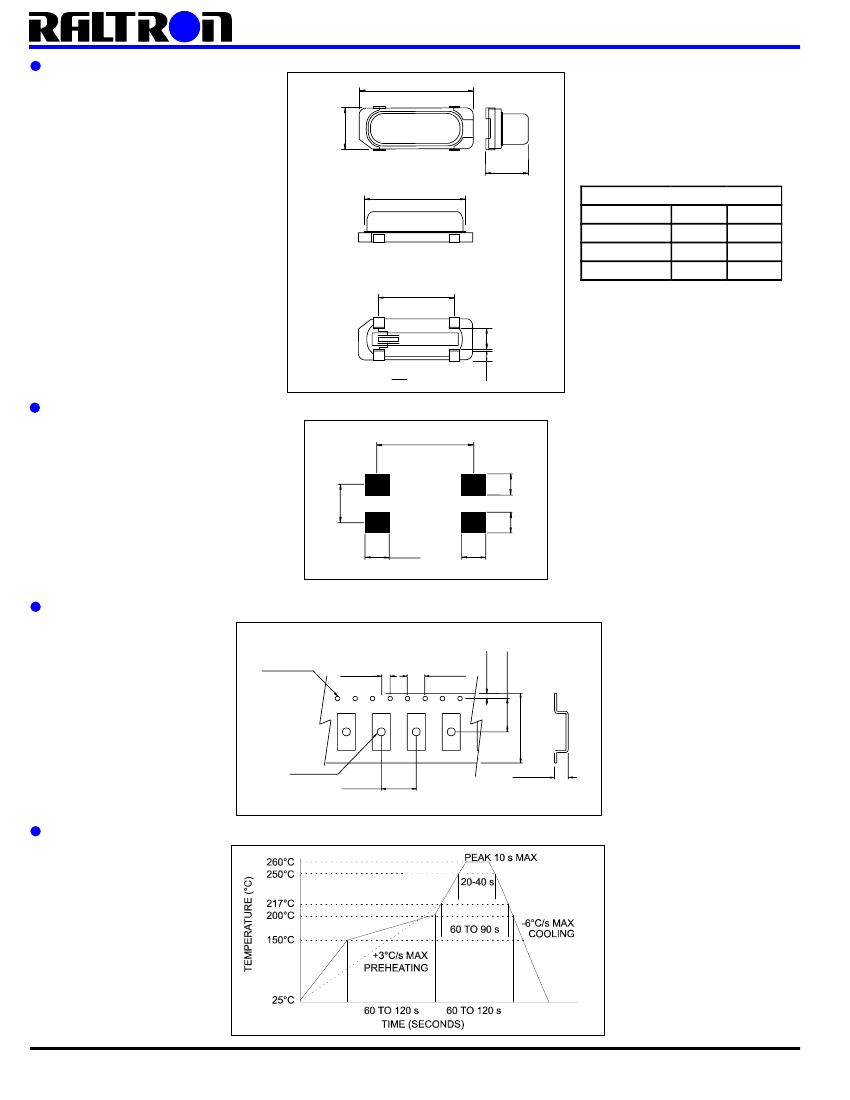

Raltron Electronics Corporation 10651 NW 19th St. Miami, Florida 33172 U.S.A.

Tel: 305-593-6033 Fax: 305-594-3973 e-mail: sales@raltron.com Internet: http://www.raltron.com
