BR9021B datasheet, PDF - EEWORLD Datasheet

BR9021B: DescriptionEEPROM, 128X16, Serial, CMOS, PDIP8, DIP-8; Categorystorage storage; File Size360KB，12 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

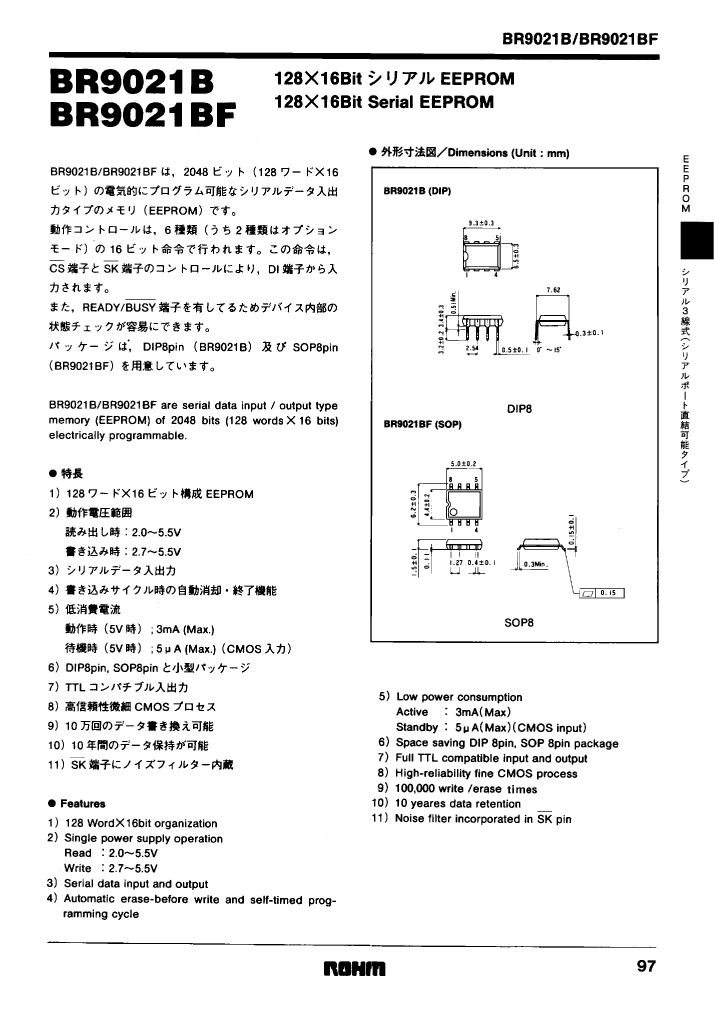

BR9021B Overview

EEPROM, 128X16, Serial, CMOS, PDIP8, DIP-8

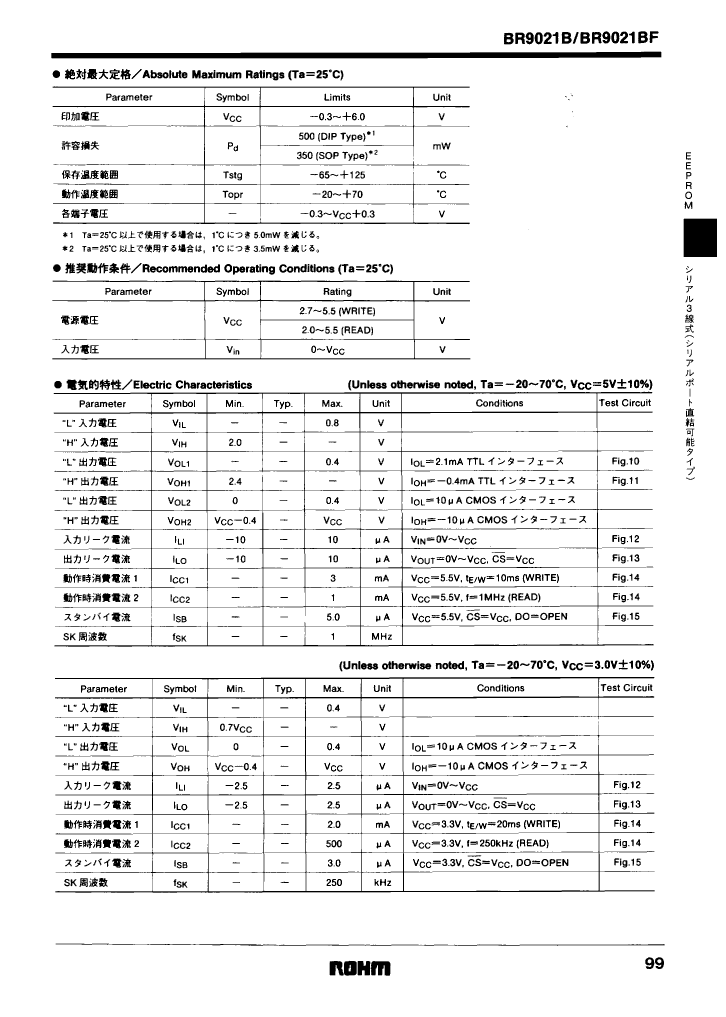

Parameter Name	Attribute value
Maker	ROHM Semiconductor
Parts packaging code	DIP
package instruction	DIP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	AUTOMATIC WRITE; TTL COMPATIBLE I/O; 100000 ERASE/WRITE CYCLES; DATA RETENTION = 10 YEARS
Maximum clock frequency (fCLK)	0.25 MHz
Data retention time - minimum	10
JESD-30 code	R-PDIP-T8
length	9.3 mm
memory density	2048 bit
Memory IC Type	EEPROM
memory width	16
Number of functions	1
Number of terminals	8
word count	128 words
character code	128
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
organize	128X16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	SERIAL
Certification status	Not Qualified
Maximum seat height	3.7 mm
Serial bus type	4-WIRE
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

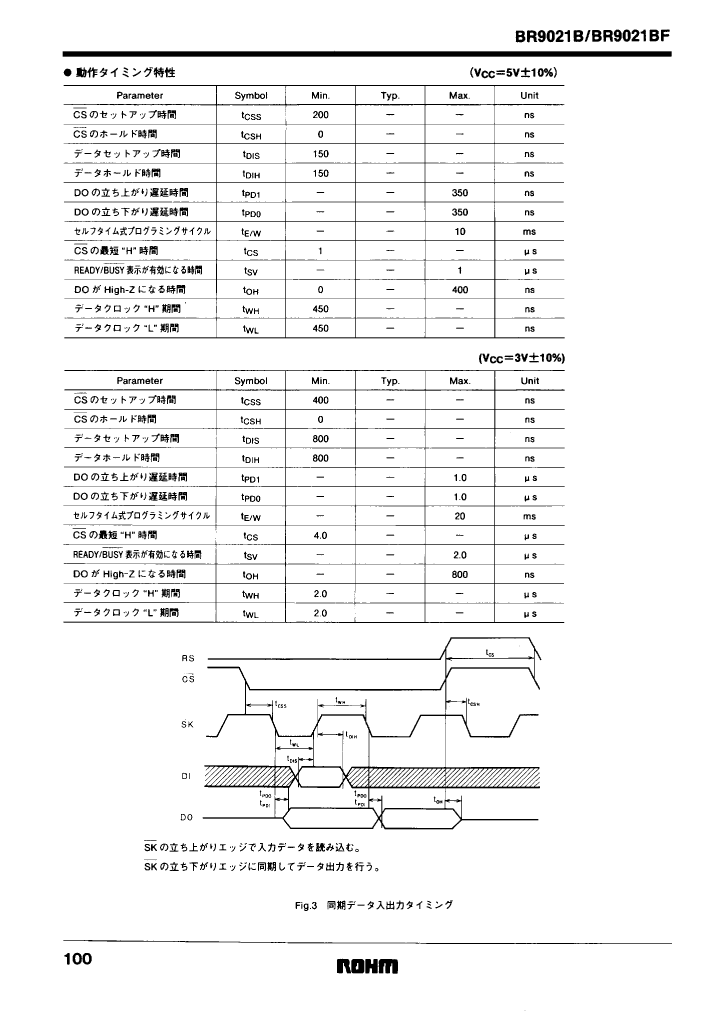

Maximum write cycle time (tWC)	20 ms

	BR9021B	BR9021BF
Description	EEPROM, 128X16, Serial, CMOS, PDIP8, DIP-8	EEPROM, 128X16, Serial, CMOS, PDSO8, SOP-8
Parts packaging code	DIP	SOIC
package instruction	DIP,	LSOP,
Contacts	8	8
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	AUTOMATIC WRITE; TTL COMPATIBLE I/O; 100000 ERASE/WRITE CYCLES; DATA RETENTION = 10 YEARS	AUTOMATIC WRITE; TTL COMPATIBLE I/O; 100000 ERASE/WRITE CYCLES; DATA RETENTION = 10 YEARS
Maximum clock frequency (fCLK)	0.25 MHz	0.25 MHz
Data retention time - minimum	10	10
JESD-30 code	R-PDIP-T8	R-PDSO-G8
length	9.3 mm	5 mm
memory density	2048 bit	2048 bit
Memory IC Type	EEPROM	EEPROM
memory width	16	16
Number of functions	1	1
Number of terminals	8	8
word count	128 words	128 words
character code	128	128
Operating mode	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
organize	128X16	128X16
Output characteristics	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	LSOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE, LOW PROFILE
Parallel/Serial	SERIAL	SERIAL
Certification status	Not Qualified	Not Qualified
Maximum seat height	3.7 mm	1.6 mm
Serial bus type	4-WIRE	4-WIRE
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
width	7.62 mm	4.4 mm
Maximum write cycle time (tWC)	20 ms	20 ms
