Datasheet> All Categories > The connector> The connector> 51730-167

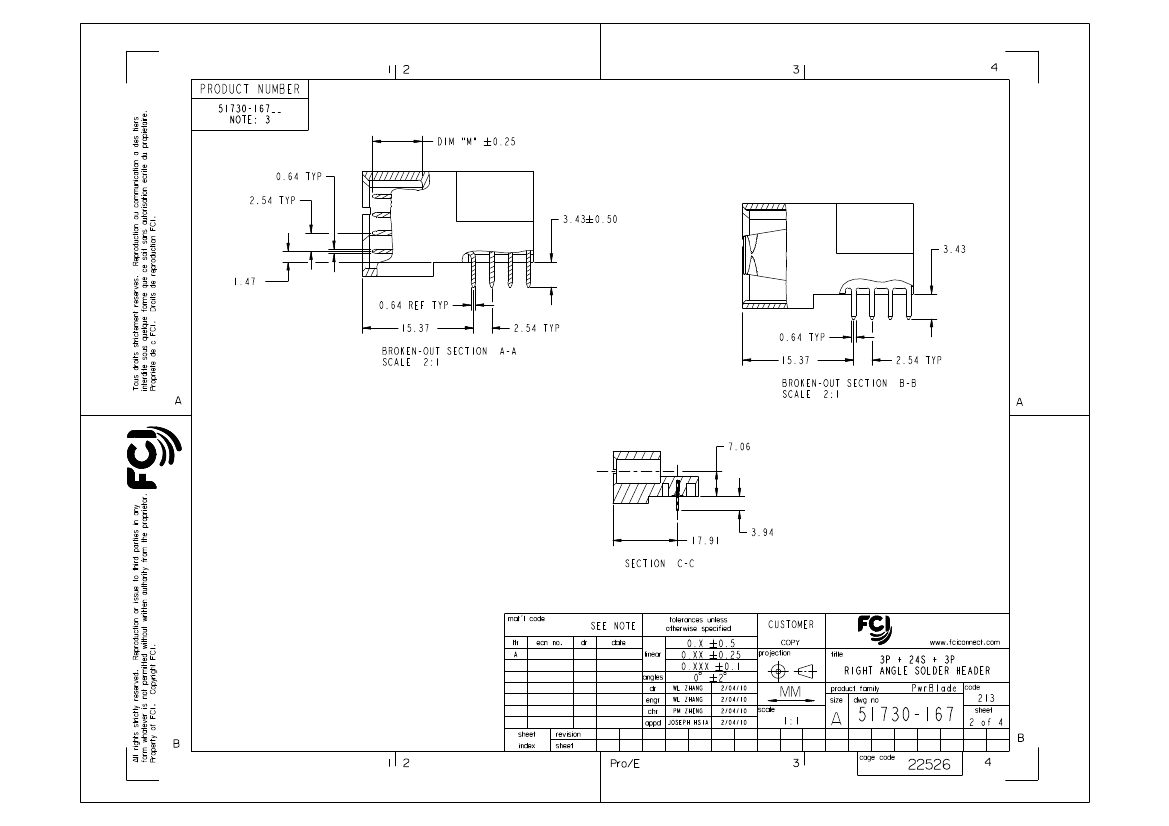

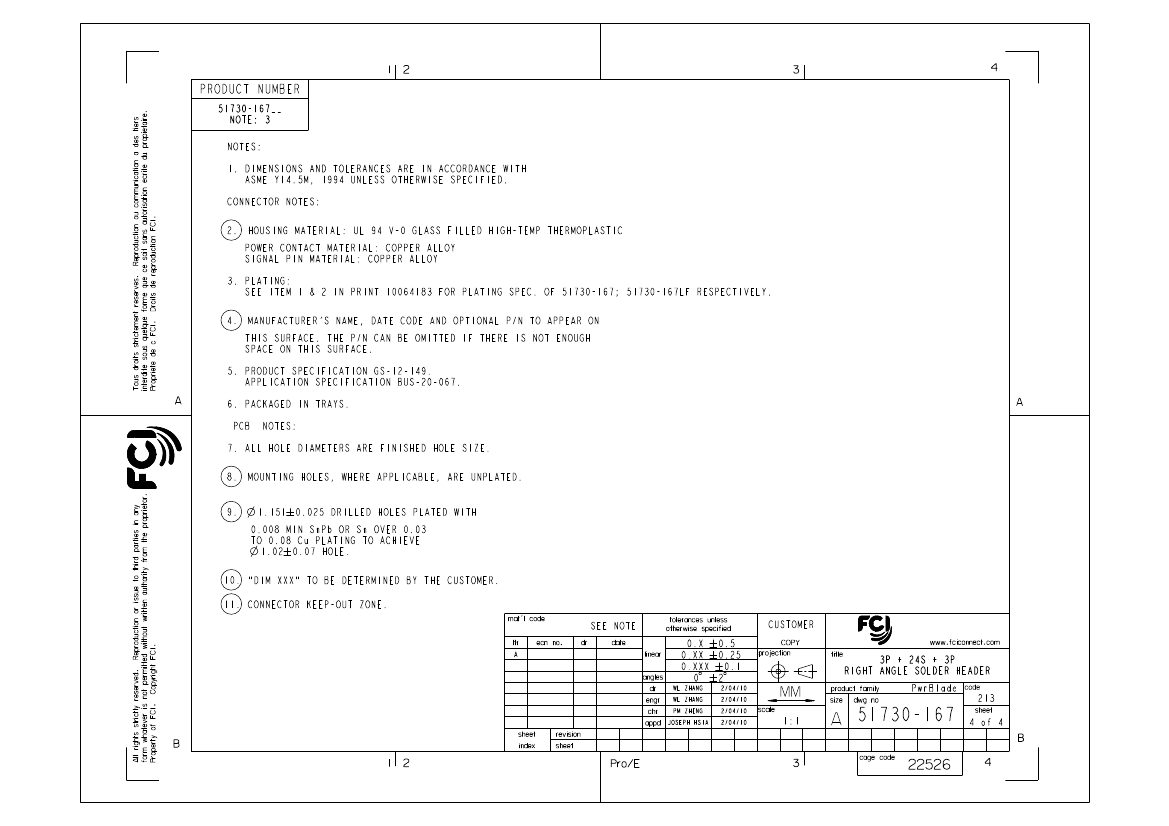

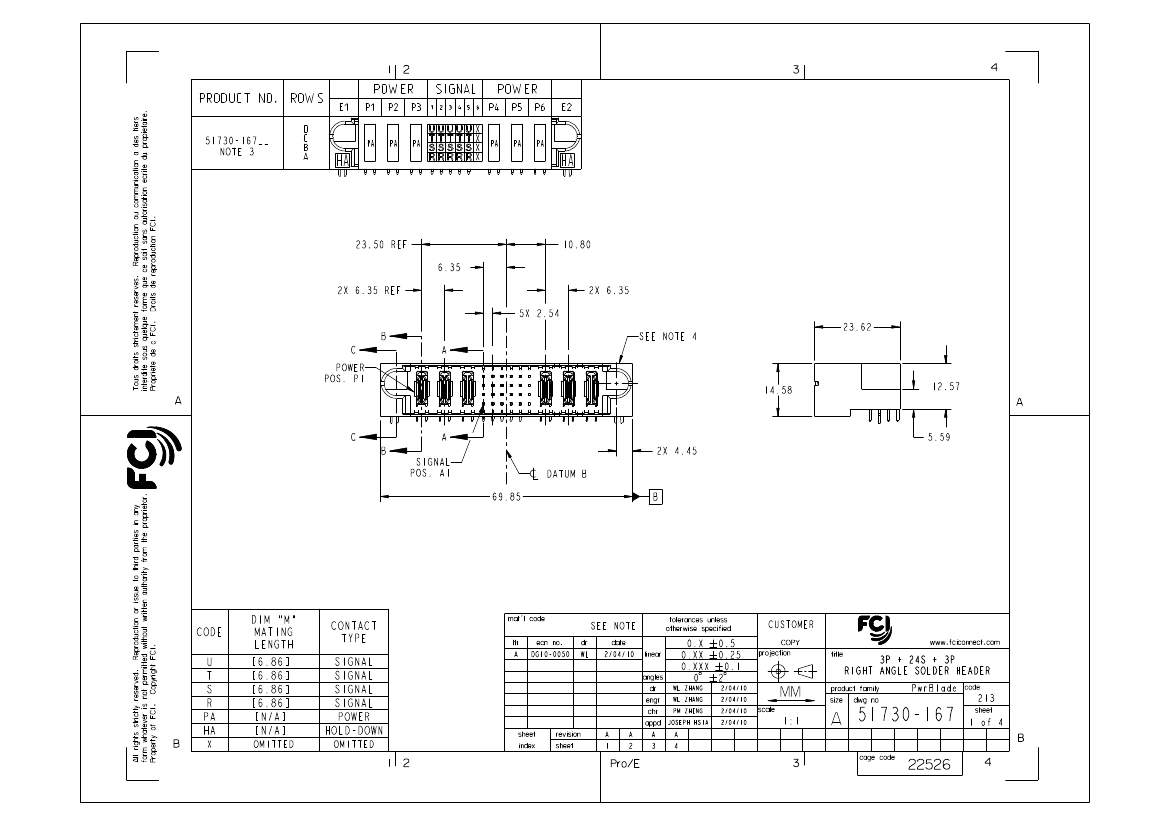

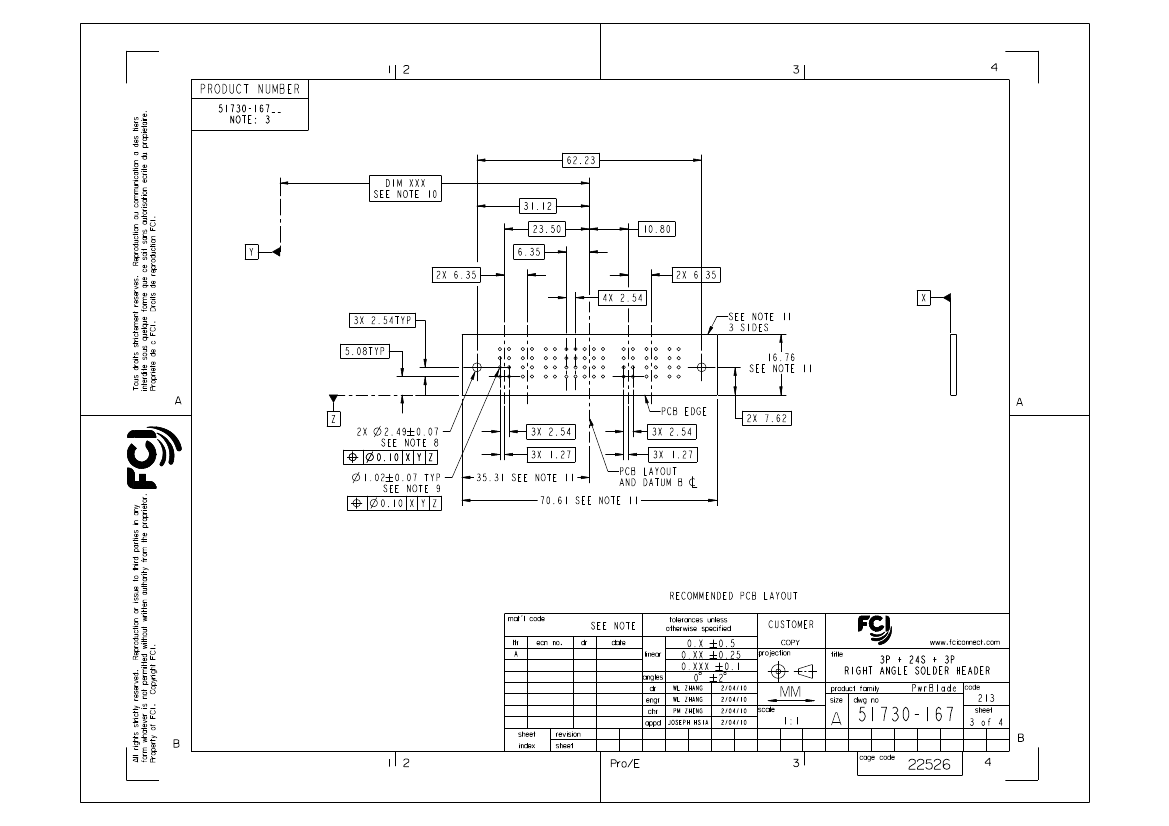

Preview

51730-167: DescriptionBoard Connector, 30 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size253KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

51730-167 Overview

Board Connector, 30 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle,

51730-167 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1757426934
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.83
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Board mount options	HOLE .086-.098
body width	0.574 inch
subject depth	0.93 inch
body length	2.75 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S24P6
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED POLYETHYLENE
MIL compliance	NO
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Rated current (signal)	3 A
Guideline	UL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	30
UL Flammability Code	94V-0
Evacuation force-minimum value	.17792 N

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: Dec 20, 2010

.

51730-167 Related Products

	51730-167	51730-167LF
Description	Board Connector, 30 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle,	PwrBlade®, Power Supply Connectors, 3P 24S 3P Right Angle Header.
Is it Rohs certified?	incompatible	conform to
Objectid	1757426934	1757426933
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
YTEOL	6.83	9.1
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Board mount options	HOLE .086-.098	HOLE .086-.098
body width	0.574 inch	0.574 inch
subject depth	0.93 inch	0.93 inch
body length	2.75 inch	2.75 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S24P6	S24P6
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN/LEAD OVER NICKEL	TIN OVER NICKEL
Contact point gender	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
Contact resistance	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID
DIN compliance	NO	NO
Dielectric withstand voltage	2500VDC V	2500VDC V
Durability	200 Cycles	200 Cycles
Filter function	NO	NO
IEC compliance	NO	NO
maximum insertion force	.973 N	.973 N
Insulation resistance	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE
MIL compliance	NO	NO
Mixed contacts	YES	YES
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Number of rows loaded	4	4
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Rated current (signal)	3 A	3 A
Guideline	UL	UL
Terminal length	0.135 inch	0.135 inch
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	30	26
UL Flammability Code	94V-0	94V-0
Evacuation force-minimum value	.17792 N	.17792 N
