2PH1-24-UA-HT

Description
Board Connector, 24 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle
CategoryThe connector    The connector
File Size109KB,1 Pages
ManufacturerAdam Tech
Environmental Compliance

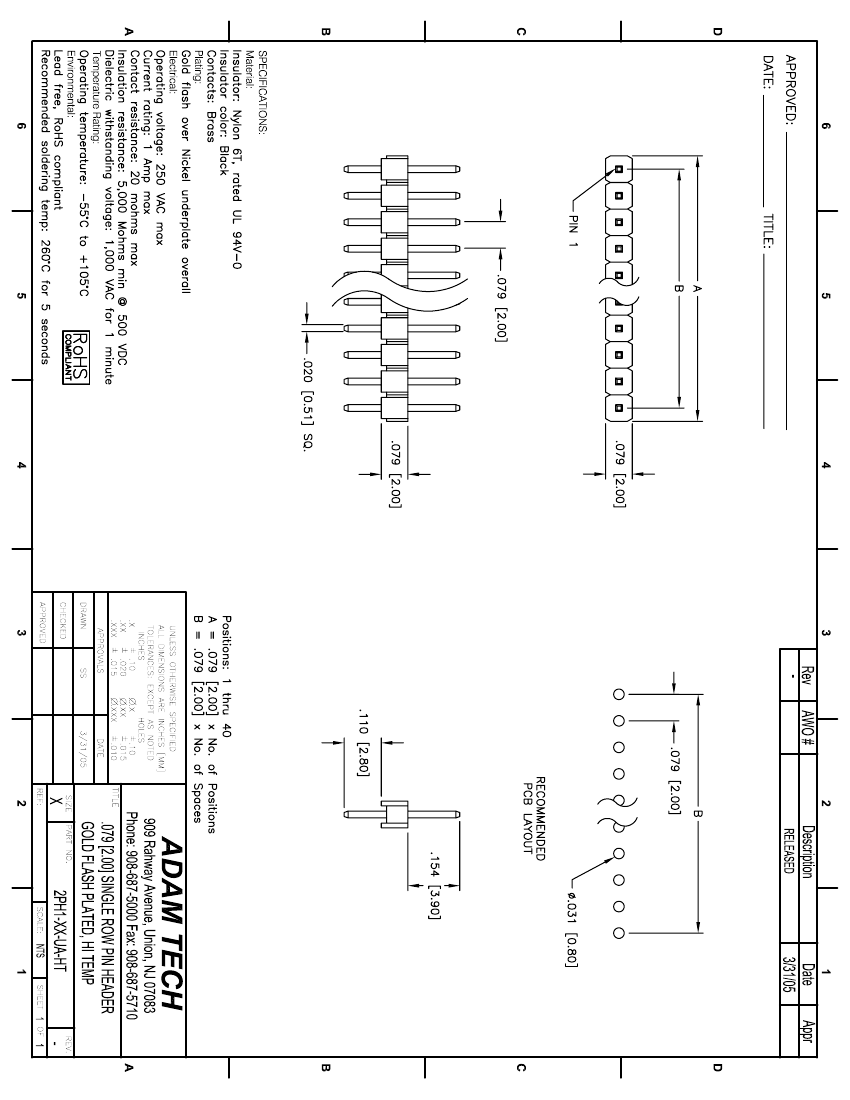

Download Datasheet Parametric View All

2PH1-24-UA-HT Overview

Board Connector, 24 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle

2PH1-24-UA-HT Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAdam Tech
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresROHS COMPLIANT
body width0.079 inch
subject depth0.079 inch
body length1.896 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedGold (Au) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1000VAC V
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialNYLON
JESD-609 codee4
Manufacturer's serial number2PH
Plug contact pitch0.079 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
Plating thicknessFLASH inch
Rated current (signal)1 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.11 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts24
