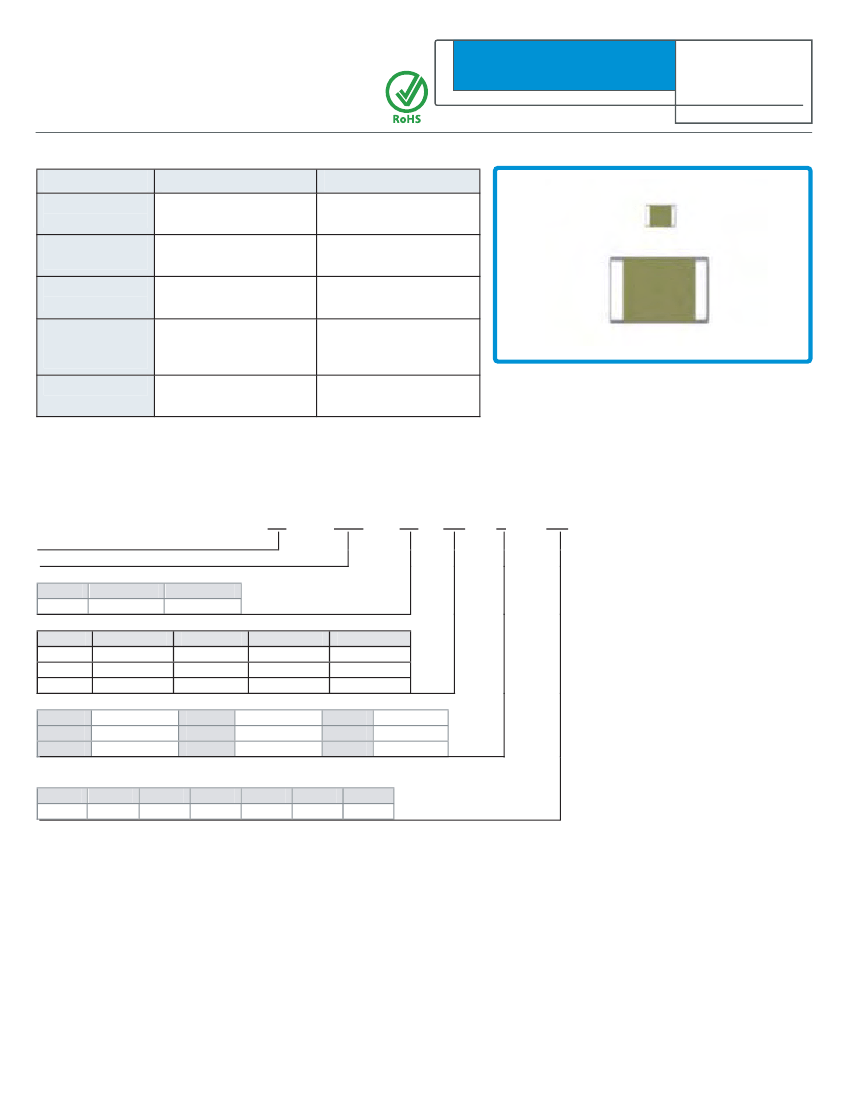

HC1206XR8R2J251: DescriptionMultilayer Ceramic Chip Capacitors; File Size89KB，1 Pages; ManufacturerMeritek Electronics; Websitehttp://www.meritekusa.com

Download Datasheet View All

HC1206XR8R2J251 Overview

Multilayer Ceramic Chip Capacitors

Preview

Download Datasheet

View All

Multilayer Ceramic Chip Capacitors

Series

(High Voltage)

MERITEK

SPECIFICATIONS

CODE

Temperature

Characteristics

Dissipation Factor

(D.F.)

Insulation

Resistance

Dielectric

Withstanding

Voltage

Standard Tolerance

NPO

0 ±30ppm/

0.1% max.

Cap >30pF

(+25

C, 1Vrms, 1MHz)

10GΩ or

500MΩ x

μF

whichever is

smaller

120% rated voltage,

25 C,

sec.

X7R

ΔC

±15%

(-55

C to +125

3.0%

max.

(+25

C, 1Vrms, 1 KHz)

10GΩ or

500MΩ x

μF

whichever is

smaller

120% rated voltage,

sec.

J (±5%), K (±10%), M (±20%)

MERITEK High Voltage Chip Capacitors are

developed for circuits requiring reliable

components in high voltage applications, such

as high voltage solid state multipliers, high

voltage power supplies, high voltage rectifier

arrays, and other similar applications

ART

UMBERING

YSTEM

Meritek Series

Size

Dielectric

CODE

COG (NPO)

8R2

8.2

Tolerance

±1%

±10%

X7R

101

100

Code

1206

101

501

Capacitance

CODE

μF

223

22000

0.022

Tolerance

±2%

±20%

104

100000

100

0.1

Code

Tolerance

±5%

+80/-20%

Tolerance

Code

Rated Voltage

2 significant digits + number of zeros

Code

101

251

501

R.V.

100V

250V

500V

102

1000V

202

2000V

302

3000V

Specifications are

subject to change without notice.

rev.6a
