SHF-044-F900-55/C4J datasheet, PDF

Datasheet> All Categories > The connector> The connector> SHF-044-F900-55/C4J

SHF-044-F900-55/C4J: DescriptionD Type Connector, 44 Contact(s), Female, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size93KB，1 Pages; ManufacturerE-tec Interconnect Ltd.; Environmental Compliance

Download Datasheet Parametric View All

SHF-044-F900-55/C4J Overview

D Type Connector, 44 Contact(s), Female, Solder Terminal, #4-40, Plug

SHF-044-F900-55/C4J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	E-tec Interconnect Ltd.
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
body width	0.494 inch
subject depth	0.639 inch
body length	2.088 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	3.4194 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e4
Manufacturer's serial number	SH
Match contact row spacing	0.078 inch
Installation option 1	#4-40
Installation option 2	JACKSCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.413 mm
Termination type	SOLDER
Total number of contacts	44
Evacuation force-minimum value	.1946 N

Preview

Download Datasheet

View All

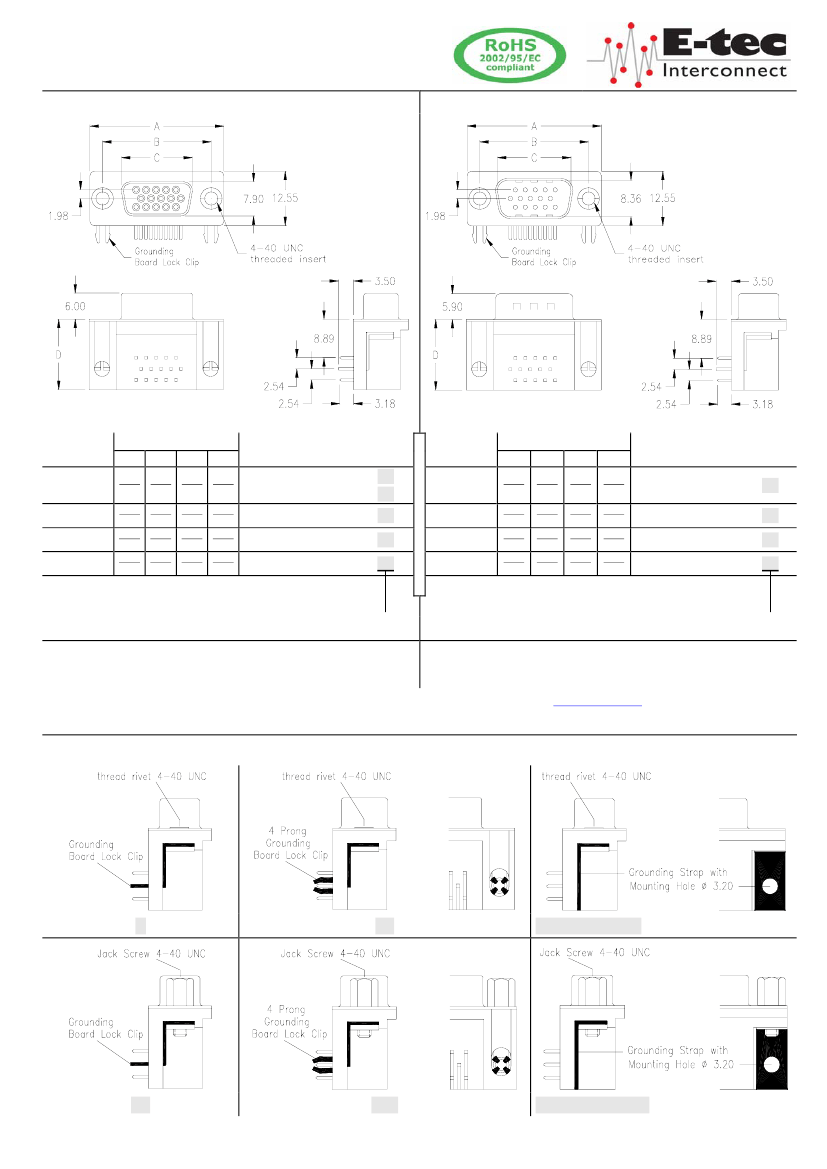

SH Series - High Density D-Sub 90°

F900

“Wave Solder” & “Pin-In-Paste” Technology

Female

male

PCB hole layout on page 38

No. of

contacts

015

026

044

062

30.81

1.213

39.14

1.541

53.04

2.088

69.32

2.729

Dimension

24.99

.984

33.32

1.311

47.04

1.852

63.50

2.500

16.33

.643

24.66

.971

38.38

1.511

54.84

2.159

16.22

.639

16.22

.639

16.22

.639

16.22

.639

Ordering Code

SHF-015-F900-55/ XX

SHF-015-F900-95/V XX

SHF-026-F900-55/ XX

SHF-044-F900-55/ XX

SHF-062-F900-55/ XX

No. of

contacts

015

026

044

062

30.81

1.213

39.14

1.541

53.04

2.088

69.32

2.729

Dimension

24.99

.984

33.32

1.311

47.04

1.852

63.50

2.500

16.92

.666

25.25

.994

38.96

1.534

55.42

2.182

16.22

.639

16.22

.639

16.22

.639

16.22

.639

Ordering Code

SHM-015-F900-55/ XX

SHM-026-F900-55/ XX

SHM-044-F900-55/ XX

SHM-062-F900-55/ XX

Plating:

-55

= gold/gold (not available for

VESA

Type)

-95

= tin

(leadfree)

/gold

SHF - xxx - F900 -

95/V

Plating:

-55

= gold/gold

Option

-95

= tin

(leadfree)

/gold (only on request)

Option

VESA

Type –

blue colour insulator

Contact #9 recessed 1.27mm to allow last mate,

first break on 5V supply

”Pin-In-Paste“ Technology - for availability pls. contact

info@e-tec.com

General Specification page 72

Options

not available with 78-contact

C4J

not available with 78-contact
