Kingbright
Features
l
UNIFORM
®
T-1 3/4 (5mm) BI-COLOR INDICATOR LAMPS
L-59 SERIES

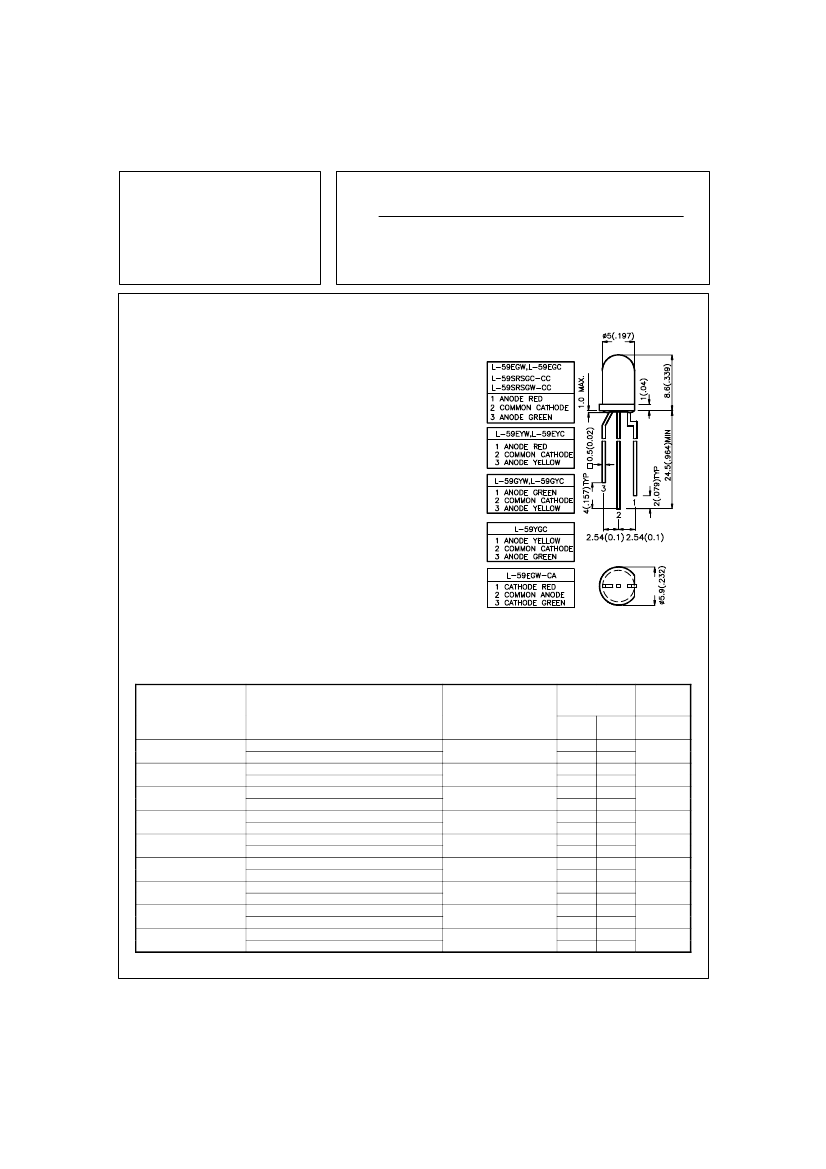

Package Dimensions
LIGHT OUTPUT.
l
LOW POWER CONSUMPTION
.
l
MILKY WHITE DIFFUSION LENS.
l
3 LEADS WITH ONE COMMON LEAD.
l
EXCEPT L-59EGW-CA IS COMMON ANODE TYPE,
ALL OTHER ITEMS ARE COMMON CATHODE TYPE.
l
THIRD COLOR (MIXED COLOR) AVAILABLE.
l
SUPER BRIGHT VERSION AVAILABLE.
l
I.C. COMPATIBLE.
l
LONG LIFE - SOLID STATE RELIABILITY
.
Description
The Green and Super Bright Green source color devices are made
with Gallium Phosphide Green Light Emitting Diode.
The High Efficiency Red source color devices are made with
Gallium Arsenide Phosphide on Gallium Phosphide Orange Light
Emitting Diode.
The Yellow source color devices are made with Gallium Arsenide
Phosphide on Gallium Phosphide Yellow Light Emitting Diode.
The Super Bright Red source color devices are made with Gallium
Aluminum Arsenide Red Light Emitting Diode.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±
0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subjected to change without notice.
Selection Guide
Part No.
L-59EGW
L-59EGW-CA
L-59EYW
L-59GYW
L-59SRSGW-CC
L-59EGC
L-59EYC
L-59GYC
L-59YGC
L-59SRSGC-CC
Dice
HIGH EFFICIENCY RED (GaAsP/GaP)
GREEN (GaP)
HIGH EFFICIENCY RED (GaAsP/GaP)
GREEN (GaP)
HIGH EFFICIENCY RED (GaAsP/GaP)
YELLOW (GaAsP/GaP)
GREEN (GaP)
YELLOW (GaAsP/GaP)
SUPER BRIGHT RED (GaAlAs)
SUPER BRIGHT GREEN (GaP)
HIGH EFFICIENCY RED (GaAsP/GaP)
GREEN (GaP)
HIGH EFFICIENCY RED (GaAsP/GaP)
YELLOW (GaAsP/GaP)
GREEN (GaP)
YELLOW (GaAsP/GaP)
SUPER BRIGHT RED (GaAlAs)
SUPER BRIGHT GREEN (GaP)
Lens Type
WHITE DIFFUSED
WHITE DIFFUSED
WHITE DIFFUSED
WHITE DIFFUSED
WHITE DIFFUSED
WATER CLEAR
WATER CLEAR
WATER CLEAR
WATER CLEAR
Iv (mcd)
@ 20 mA
Min.
20
20
3.2
3.2
20
20
20
20
100
40
100
50
100
30
50
30
300
80
Viewing
Angle
2θ1/2
60°
60°
60°
60°
60°
24°
24°
24°
24°
Max.
90
70
8
8
90
60
70
60
300
80
300
200
300
80
200
80
700
200
Note:
1.
θ
1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
2-L59-1

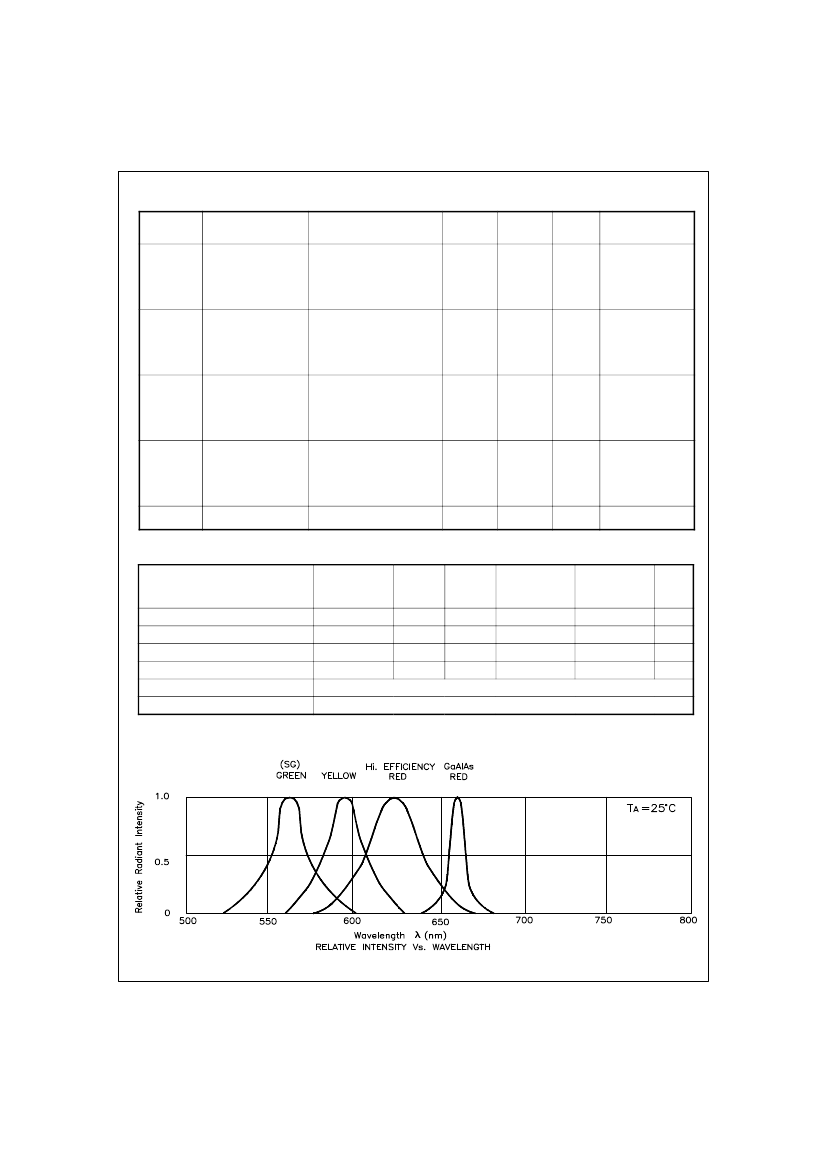

Electrical / Optical Characteristics at T
A
=25°C
Symbol
Parameter
Device
High Efficiency Red
Green
Yellow
Super Bright Red
Super Bright Green
High Efficiency Red
Green
Yellow
Super Bright Red
Super Bright Green
High Efficiency Red
Green
Yellow
Super Bright Red
Super Bright Green
High Efficiency Red
Green
Yellow
Super Bright Red
Super Bright Green
All
Typ.
625
565
590
660
565
45
30
35
20
30
12
45
10
95
45
2.0
2.2
2.1
1.85
2.2
10
Max.
Units
Test Conditions
λ
peak
Peak Wavelength
nm
IF=20mA
∆λ
1/2
Spectral Line
Halfwidth
nm
IF=20mA
C
Capacitance
pF
VF=0V;f=1MHz
v
F
I
R
Forward Voltage
2.5
2.5
2.5
2.5
2.5
V
IF=20mA
Reverse Current
uA
VR = 5V
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Soldering Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 4mm below package base .
High
Efficiency
Red
105
30
150
5
Green
105
25
150
5
Yellow
105
30
150
5
Super Bright Super Bright
Units
Red
Green
100
30
150
5
105
25
150
5
mW
mA
mA
V
-40
°C
To +85
°C
260
°C
For 5 Seconds

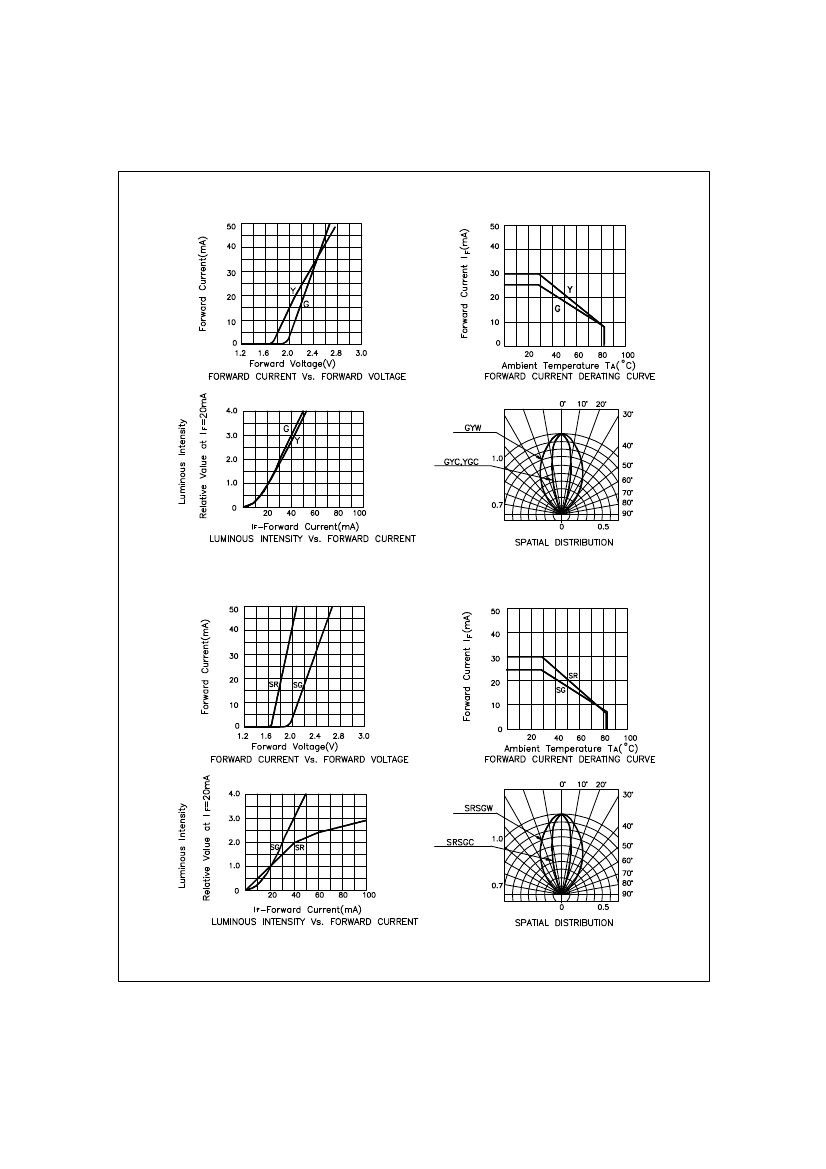

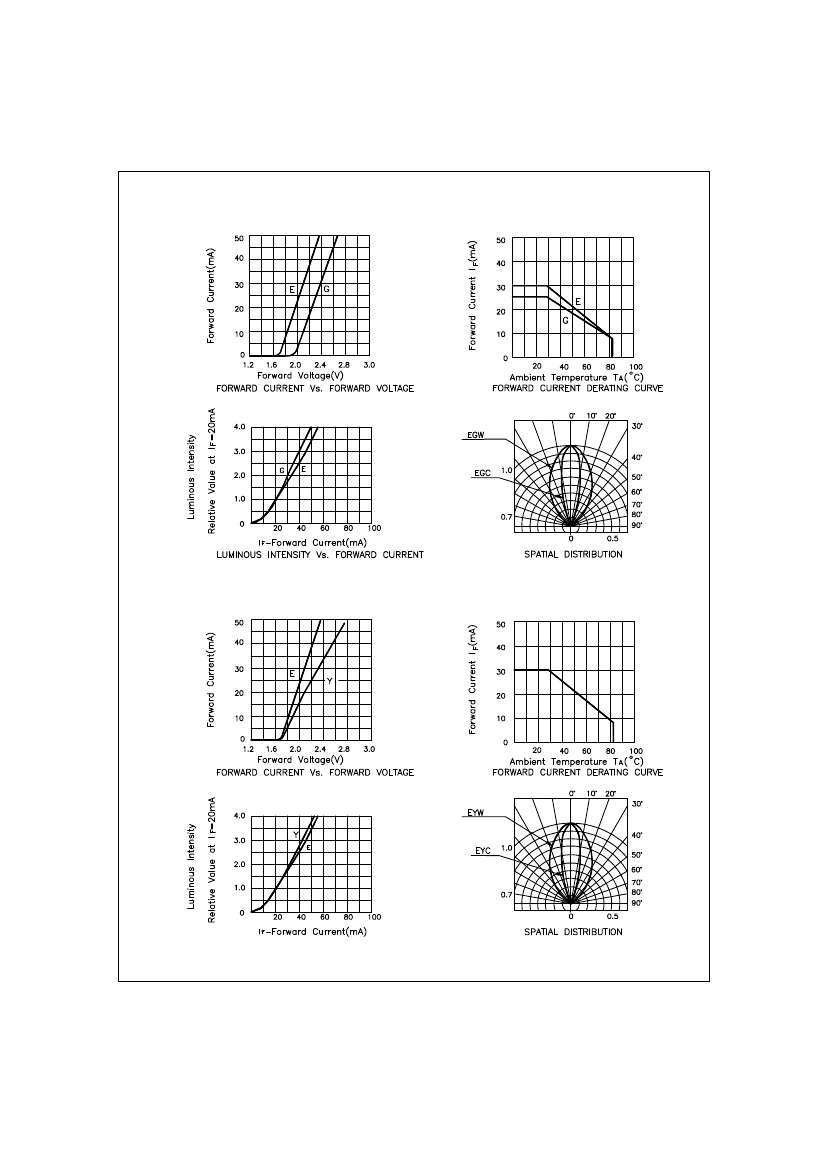

2-L59-2
