TFSDT-05-28-H-03.25-T-NDX datasheet, PDF

Datasheet> All Categories > The connector> The connector> TFSDT-05-28-H-03.25-T-NDX

TFSDT-05-28-H-03.25-T-NDX: DescriptionInterconnection Device, ROHS COMPLIANT; CategoryThe connector The connector; File Size653KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TFSDT-05-28-H-03.25-T-NDX Overview

Interconnection Device, ROHS COMPLIANT

TFSDT-05-28-H-03.25-T-NDX Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Connector type	INTERCONNECTION DEVICE

Preview

Download Datasheet

View All

F-209-2

TFSDT–05–30–H–05.00–D–NUS

TFSD–15–30–H–05.00–D–NUX

TFSS–07–28–H–05.00–S–NUS

HEADER CABLE ASSEMBLY

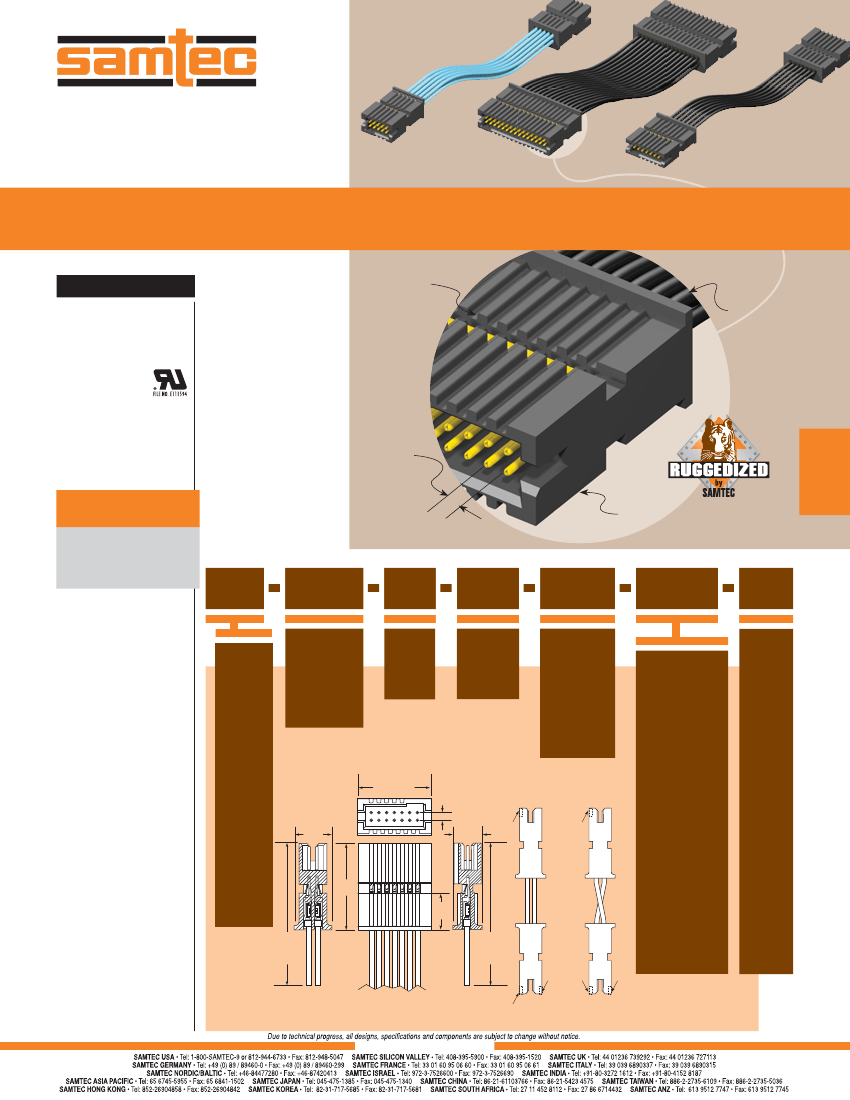

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?TFSS

www.samtec.com?TFSD,

www.samtec.com?TFSDT, or

www.samtec.com?TFSST

Insulator Material:

Black LCP

Contact Material:

BeCu

Plating:

Au over 50µ" (1,27µm) Ni

Operating Temp Range:

-55°C to +80°C (PVC)

-55°C to +125°C (*Teﬂon

)

Wire:

28 or 30 AWG

RoHS Compliant:Yes

TFSS, TFSD

SERIES

Mates with:

SFM, SFC

Single or

Doubled

Ended

28 or 30

AWG

(1,27mm)

.050"

pitch

Optional

Friction Lock

available

APPLICATION

SPECIFIC OPTION

• Color coded cable

available (*Teﬂon

N/A)

• Other plating available

Call Samtec.

TYPE

STRIP

POSITIONS

PER ROW

WIRE

GAUGE

PLATING

OPTION

ASSEMBLED

LENGTH

END

OPTION

END 2

OPTION

Requires

–D, –DL,

–T or –TL

(End No. 1

Notch Up).

TFSS

= Single

Row

PVC

Cable

–05,

–07, –10,

–15, –20,

–25, –30

(Call Samtec for

other sizes)

–30

= 30 AWG

–H

= 30µ"

(0,76µm)

Gold on

contact

–“XX.XX”

= Assembled

Length in

Inches

(76,20mm)

03.00" min. for

–S end option

(82,60mm)

03.25" min. for

–D end option

–28

= 28 AWG

–S

= Single Ended

–SL*

= Single Ended

with Friction Lock

= Double Ended

–NUS

= Notch up,

straight

TFSST

= Single

Row

*Teﬂon

Cable

No. of Positions x

(1,27) .050

+ (2,54) .100

–D

–NDS

= Notch

down,

straight

–DL*

(1,27)

.050

Notch

End 1

Notch

End 1

TFSD

= Double

Row

PVC

Cable

(6,10)

.240

= Double Ended

with Friction Lock

(4,83)

.190

TFSDT

= Double

Row

*Teﬂon

Cable

*Teflon

is a trademark

of Dupont.

Note:

For wiring option

information refer to drawing

on web.

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

Assembled

Length

± (3,18)

.125

(14,26)

.562

(6,05)

.238

Assembled

Length

± (3,18)

.125

= Transferred End

Terminal on End 1

Socket on End 2

= Transferred End

with Friction Lock

*–10, –15, –25, –30

positions only.

Call Samtec

for other sizes

TFSD, TFSDT only

–T

–NUX

= Notch up,

crossed

(TFSD/

TFSDT

only)

–TL*

–NDX

= Notch

down,

crossed

(TFSD/

TFSDT

only)

Notch Notch

End 2 End 2

(NUS) (NDX)

Notch

End 2

(NUX)

TFSD

TFSS

Notch

End 2

(NDS)

–NUX or –NDX

–NUS or –NDS
