TLSD-08-D-2.00-01-F-RN2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> TLSD-08-D-2.00-01-F-RN2

TLSD-08-D-2.00-01-F-RN2: DescriptionInterconnection Device; CategoryThe connector The connector; File Size294KB，3 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

TLSD-08-D-2.00-01-F-RN2 Overview

Interconnection Device

TLSD-08-D-2.00-01-F-RN2 Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	compliant
Connector type	INTERCONNECTION DEVICE

Preview

Download Datasheet

View All

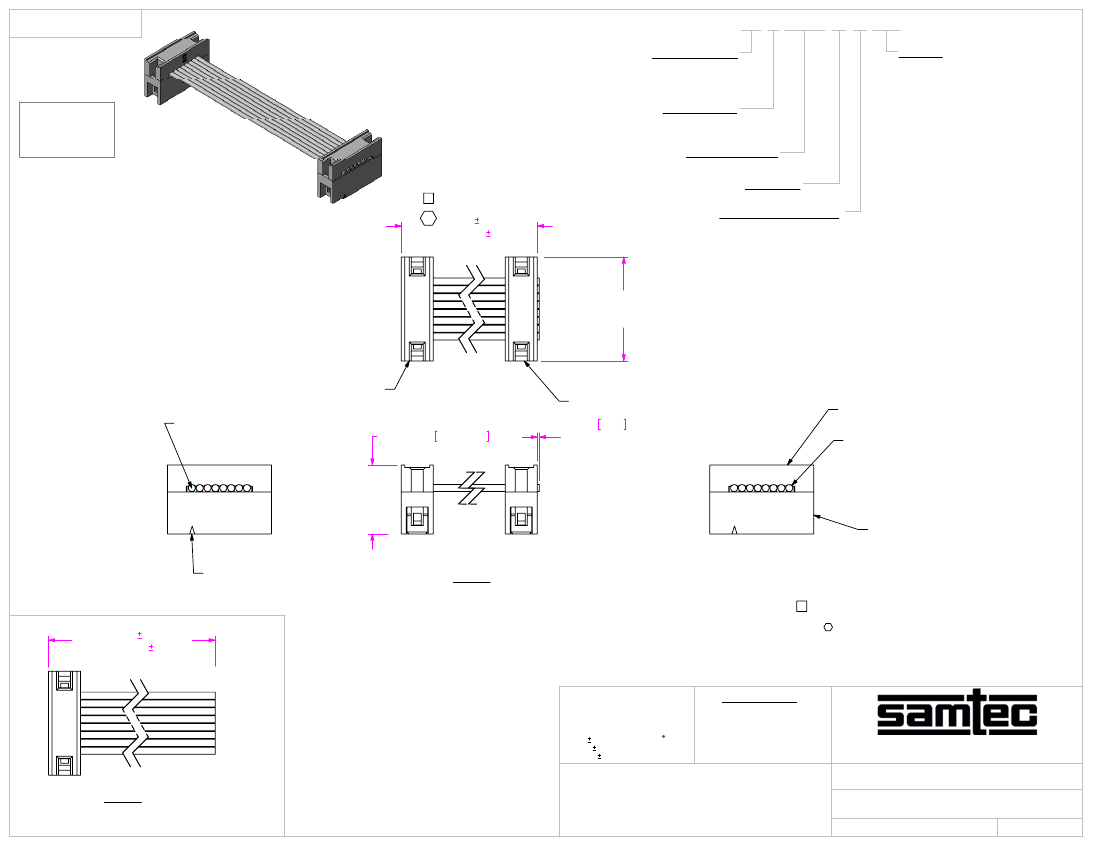

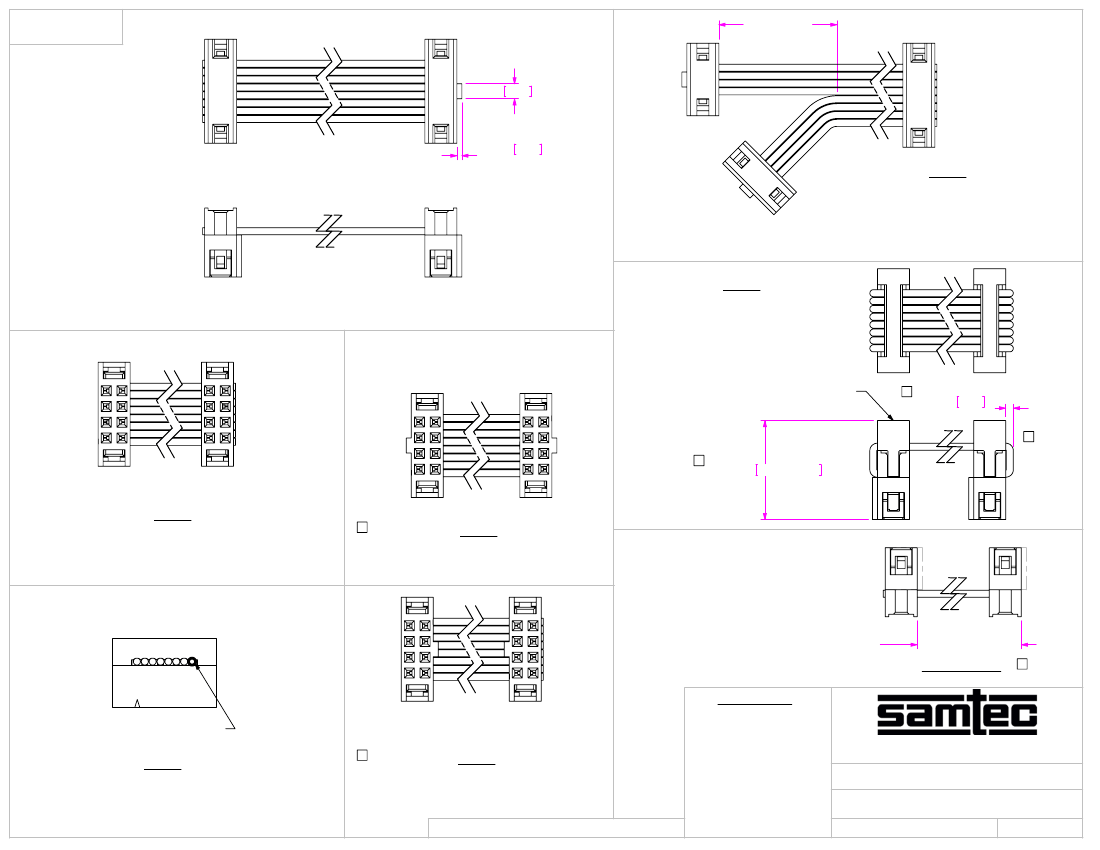

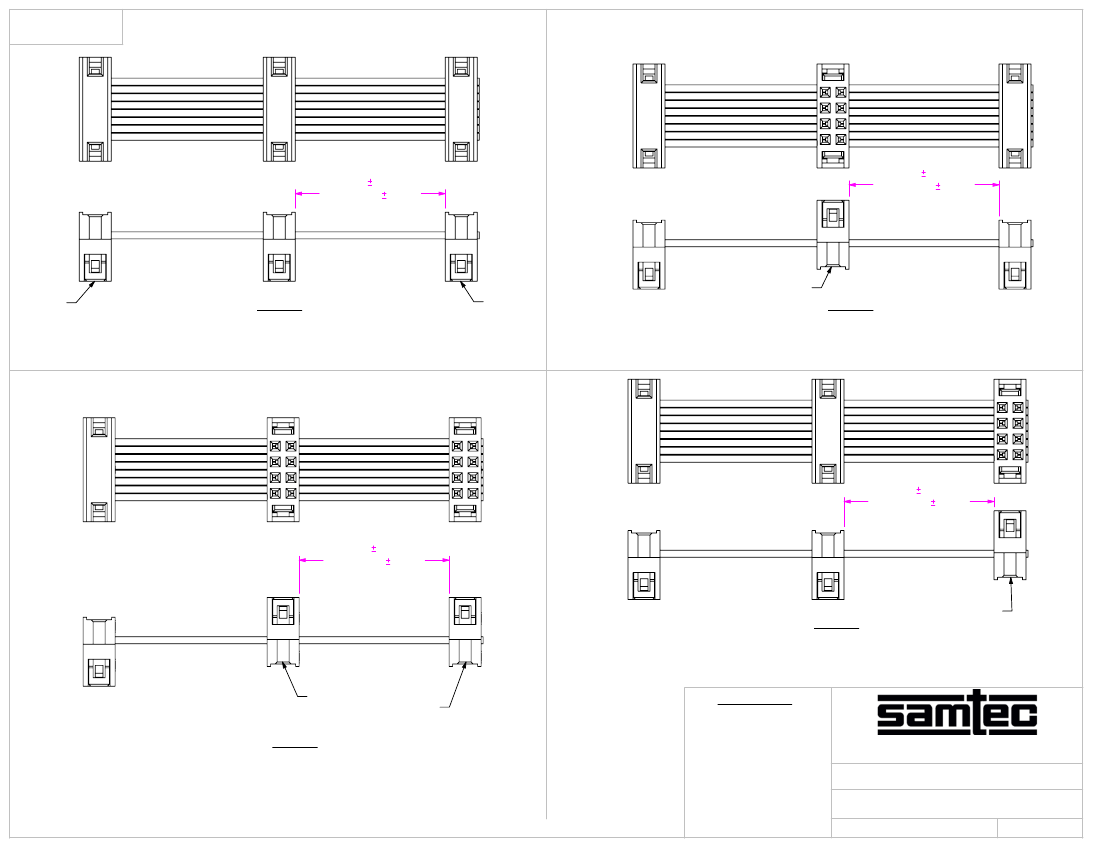

REVISION A

TLSD-XX-X-XX.XX-01-X-XXX

No OF POSITIONS

-03, -04, -05, -07, -08,

-10, -12, 13, -15, -17,

-20, -22, -25

OPTIONS

-N: NOTCH

-BXX: BREAK OUT

-PXX: POLARIZE MATING

-RW: REVERSE WIRING

-RN1: REVERSE NOTCH

END 1

-RN2: REVERSE NOTCH

END 2

-SR: STRAIN RELIEF

-DXX: DAISY CHAINED

-R: REVERSED CONNECTOR

(ONLY AVAILABLE WITH -DXX)

-M: MIDDLE REVERSED CONNECTOR

(ONLY AVAILABLE WITH -DXX)

-O: OUTSIDE REVERSED CONNECTOR

(ONLY AVAILABLE WITH -DXX)

DO NOT

SCALE FROM

THIS PRINT

END ASSEMBLY

-S: SINGLE (SEE FIG. 2)

-D: DOUBLE (SEE FIG. 1)

ASSEMBLY LENGTH

(2.00 [50.8] MIN)

LEAD STYLE

XX.XX .125

[XX.XX x 25.4 3.175]

PLATING SPECIFICATION

-L: LIGHT SELECTIVE GOLD

-F: FLASH SELECTIVE GOLD

NO. OF POS. X .07874 +.205

[NO. OF POS. X 2.00 + 5.21]

REF

END 1

BLACK WIRE TO SIDE OF

FIRST POSITION INDICATOR

END 2

.345±.010 8.76±0.25

.010 0.25 MAX.

CABLE OVERHANG

(TYP)

TLMC-XX-D

TCB-50

SUB-TLSD-XX-01-X-X-XXX

NOTCH DENOTES FIRST POSITION

TLSD-XX-D-XX.XX-01-X

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. ALL ASSEMBLIES TO BE 100 % ELECTRONICALLY TESTED

FOR SHORTS AND OPENS.

3. ALL ASSEMBLIES TO BE 100 % HI-POT TESTED AT 800V.

FIG. 1

XX.XX .125

[XX.XX x 25.4 3.175]

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

.XX: .01 [0.3]

.XXX: .005 [0.13]

.XXXX: .0020 [0.051]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 2:1

TLSD-XX-S-XX.XX-01-X

(SAME AS FIG. 1 EXCEPT AS SHOWN)

FIG. 2

INSULATOR: CELANEX 3300, COLOR: BLACK

CONTACT: PHOS BRONZE

MAX FLASH ALLOWED: .002[0.05]

MAX GATE VESTIGE: .002[0.05]

c:\enterprisevault\DWG\MISC\MKTG\TLSD-XX-X-XX.XX-01-X-XXX-MKT.SLDDRW

2mm DBL ROW FEMALE LOW COST IDC ASSEMBLY

BY:

LENNY K

TLSD-XX-X-XX.XX-01-X-XXX

2/16/07

SHEET
