D38999 Series 3 - Double Density Connector
With space and weight becoming a critical element
in the design of cabling infrastructure, the Double
density range has been specifically designed to
address this issue and take into consideration the
growing demand for more data lines in a compact
harsh environment.
Close to Double density in contacts per single
connector housing than standard D38999’s.
The increased density allows design engineers
much more scope in design flexibility when
considering equipment requirements and cable
infrastructure.
FEATURES
General in accordance with Mil-DTL-D38999
Increased number of contacts within connector shell
Threaded coupling with self locking mechanism

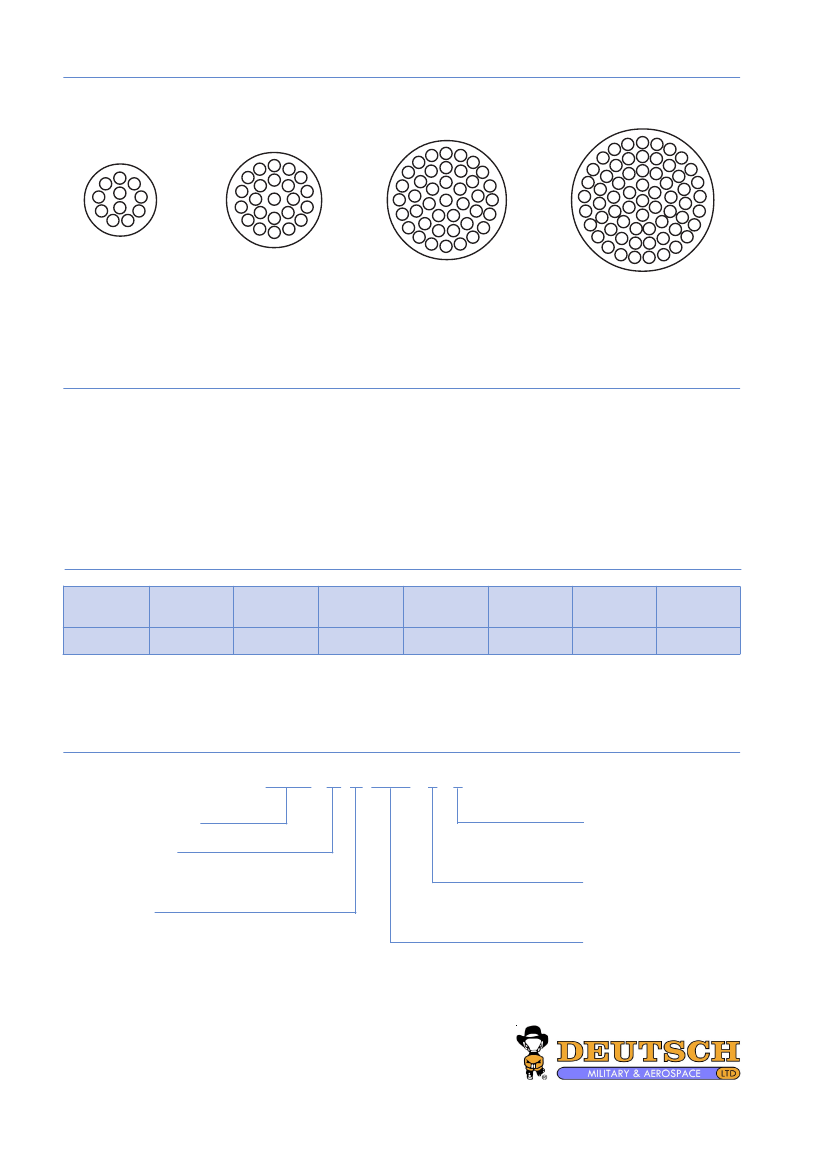

4 shell sizes available from 11 to 64 contacts
Removable crimp contacts
100% scope proof interface
GENERAL SPECIFICATION
Material:
Shell/coupling ring:
Plating:
Contacts:
Material:
Type:
RFI ring:
Material:
Plating:
Insulators:
Interface Seal:
Temperature:
Olive Drab cadmium:
Nickel plating:
Durability:
Salt spray resistance:
Olive Crab cadmium:
Nickel plating:
High Strength Aluminium Alloy
Olive Drab cadmium finish
Nickel plating (RoSH compliant)
Gold plated Copper Alloy
Size 24 removable crimp contacts
approved Mil-C-39029
Beryllium copper
Nickel/cadmium
Thermoplastic
Fluorinated Silicone
-65°C to +175°C
-65°C to +200°C
No electrical or mechanical defects
after 500 cycles
500 hours per Mil-STD-1344
method 100, test B and NFC 93422
48 hours
Up to 30,000 meters
(100,000) feet altitude
As per Mil-DTL-38999
As per Mil-DTL-38999
300 g, 3 ms in 3 axes
BENEFITS
Assured reliability
Weight saving
Compact space saving
Easy of use
Standard tooling
QUALITY APPROVALS
Civil Aviation Authority A8-1
BS EN ISO 9001
Military Spec Approvals 38999
BS9000 and CECC
Underwriters Laboratories
With 30 years experience in designing and
manufacturing at its own facilities, Deutsch Ltd
can provide interconnection solutions for the
most demanding of environments
Castleham Industrial Estate
4 Stanier Road, St Leonard-On-Sea
East Sussex TN38 9RF England
Telephone +44 (0) 1424 852721
Fax
+44 (0) 1424 857142
Email
milaero@deutsch.co.uk
www.deutschltd.com
Sealing:
Vibration:
Thermal Shock:
Physical Shock:
Contact Current Rating:
Size 24, 3 Amps max.
