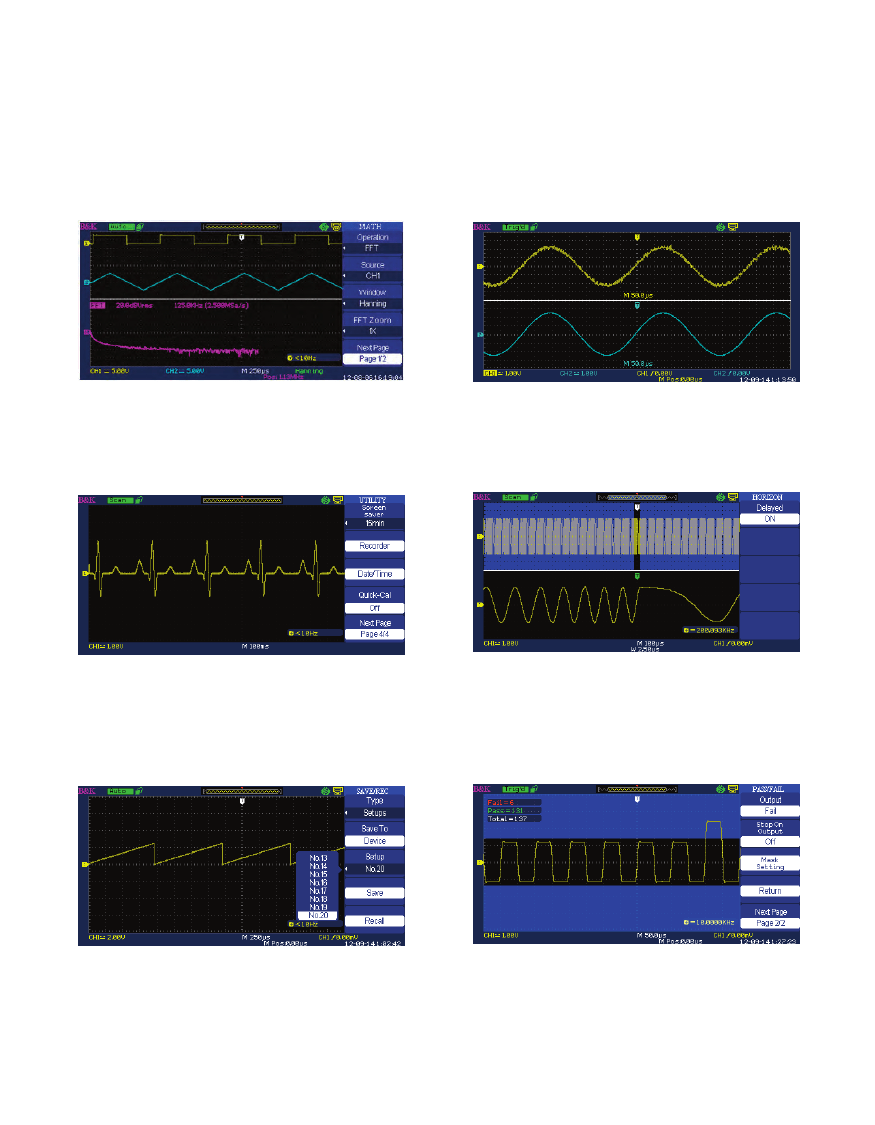

Display and measure the input signal’s frequency spectrum. Select
one of the 4 FFT windows: Rectangular, Hanning, Hamming, and
Blackman. Use cursors to measure the spectral component’s
magnitude and frequency.
Waveform recorder
Filter out unwanted signal components such as various types of noise
with built-in digital filters. Choose from Low-Pass, High-Pass,
Band-Pass, and Band-Stop filters.
Delayed sweep/zoom
Monitor and analyze long-term signal behavior by recording data
continuously over an extensive period of time and playing it back for
post acquisition analysis. Data is recorded in a sequence of up to
2500 frames.
Use the oscilloscope’s delayed sweep feature to zoom in a particular
area of a signal in real time while viewing the entire captured
waveform simultaneously.
Large internal storage
Pass/Fail testing
Minimize debug time by saving and recalling setups and waveforms
from internal memory. Save and recall up to 20 different oscilloscope
setups and 20 different waveforms.
Generate user-defined pass/fail limits to quickly identify go/no go
test results.
3
www.bkprecision.com
Digital Storage Oscilloscopes
Models 2553, 2555, 2556, 2557, 2558, and 2559

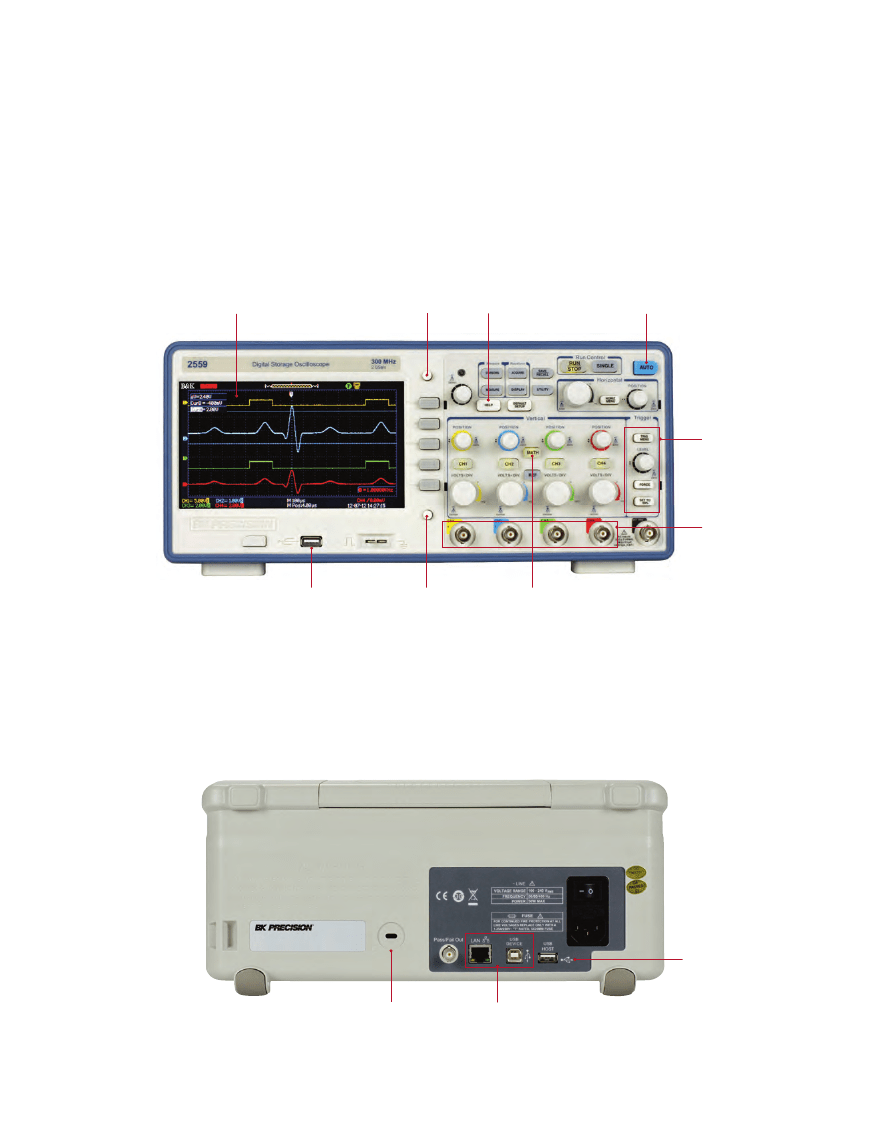

PC connectivity
High bandwidth passive oscilloscope
probes
PR150B

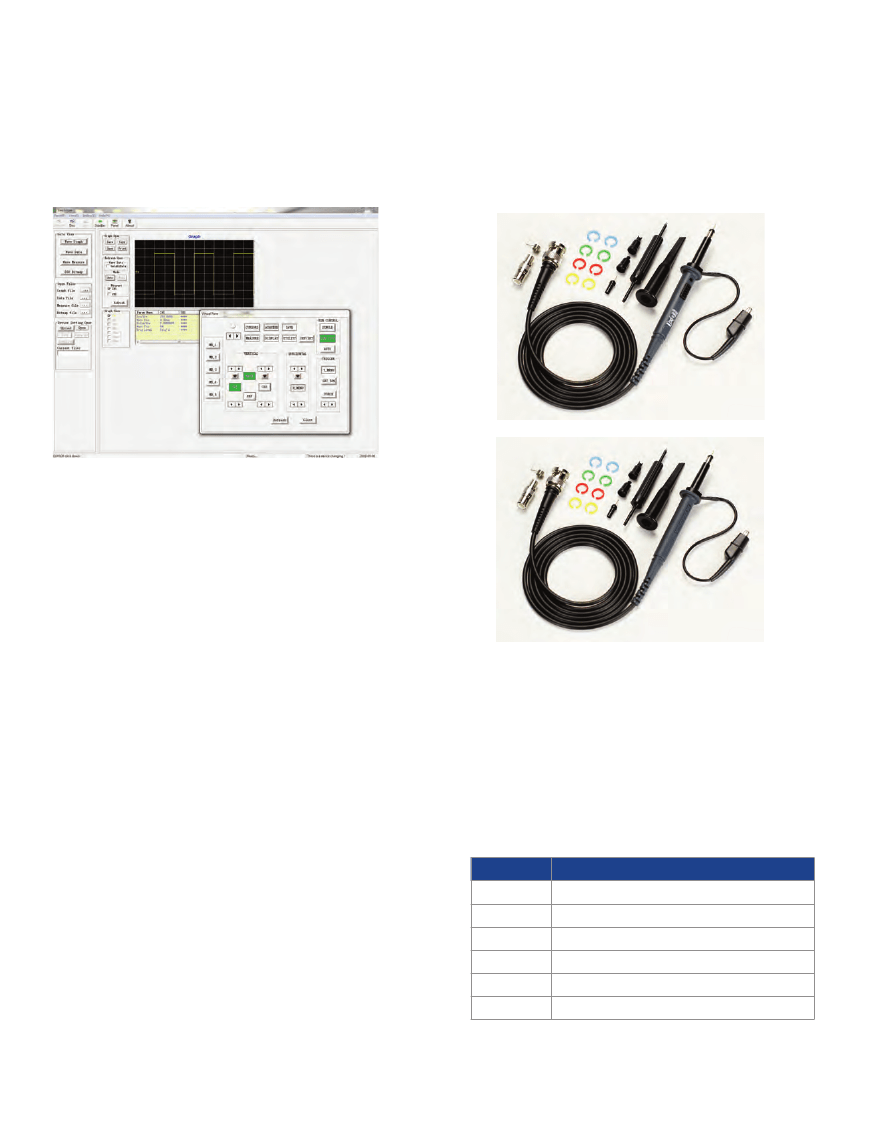

The included EasyScope software provides seamless integration
between the oscilloscope and PC. Capture and transfer waveforms,
screen images, setups and measurement results to a Windows PC via
the USB device port on the back of the instrument. A USB host port
on the front and rear allows for quick and easy screen saving.
PR250B & PR500B
Avoid limiting the bandwidth of your measurement system. All 2550
series models come standard with high bandwidth, slimline passive
probes (one per channel) to help you get the most out of your scope.
Features
I
I
I
I
I
I
Slim, stylish body
Snap-locking sprung hook
Easily replaceable tip
Large accessory set
Meets IEC 61010-031 CATII
RoHS compliant
Model
2553
2555
2556
2557
2558
2559
Included Probes
four 150 MHz bandwidth, x1/x10 probes (model PR150B)
four 150 MHz bandwidth, x1/x10 probes (model PR150B)
two 250 MHz bandwidth, x10 probes (model PR250B)
four 250 MHz bandwidth, x10 probes (model PR250B)
two 500 MHz bandwidth, x10 probes (model PR500B)
four 500 MHz bandwidth, x10 probes (model PR500B)
4
www.bkprecision.com
Digital Storage Oscilloscopes
Models 2553, 2555, 2556, 2557, 2558, and 2559
Specifications
Performance Characteristics
2553
2555
2556
2557
2558
2559
Bandwidth
Real Time Sampling Rate
Channels
Rise Time
70 MHz
100 MHz
200 MHz
300 MHz
2 GSa/s (half-channel interleaved)
(1)
, 1 GSa/s (per channel)
4
< 5 ns
< 3.5 ns
2
< 1.8 ns
>100:1 at 100 MHz
4
2
< 1.2 ns
>100:1 at 150 MHz
4
Ch to Ch Isolation
>100:1 at 35 MHz >100:1 at 50 MHz
(Both channels in same V/div setting)
Max Memory Depth
Vertical Resolution
Vertical Sensitivity
DC Gain Accuracy
Maximum Input Voltage
Position Range
Bandwidth Limit
Horizontal Scan Range
Timebase Accuracy
Input Coupling
Input Impedance
Vertical and Horizontal Zoom
I/O Interface
24 kpts (half-channel interleaved)
(1)(2)
, 12 kpts (per channel)
8 bit
2 mV/div -10 V/div (1-2-5 order)
＜±3.0%:
5 mV/div to 5 V/div in fixed gain ranges
＜±4.0%:
2 mV/div in variable gain ranges
400 V (DC+AC PK-PK, 1 MΩ input impedance, X10), CAT I, 5 Vrms (50
Ω
input impedance)
2 mV–100 mV: ±800 mV
102 mV – 5 V: ±40 V
20 MHz ±40% (Note: BW limited below 20 MHz when using probe in X1)
5 ns/div – 50 s/div
2.5 ns/div – 50 s/div
±100 ppm measured over 1 ms interval
AC, DC, GND
1 MΩ ± 2% || 13 pF ± 3 pF
1 MΩ ± 2% || 13 pF ± 3 pF
,
50
Ω
± 2%
1 ns/div – 50 s/div
Vertically or horizontally expand or compress a live or stopped waveform
USB
LAN
Pass/Fail
Acquisition Modes
Front and rear USB host ports support USB flash drives, USBTMC compliant USB device port for connecting to PC
Supports SCPI commands for remote control
Pass/Fail output
Sampling
Peak Detect
Average
Trigger System
Display sample data only
Capture the maximum and minimum values of a signal
Waveform averaged, selectable from 4, 16, 32, 64, 128, 256
Edge, Pulse Width, Video*, Slope, Alternative
Trigger Types
Trigger Modes
Trigger Coupling
Trigger Source
Pulse Width Trigger
Slope Trigger
*Support signal Formats: PAL/SECAM, NTSC
Trigger condition: odd field, even field, all lines, or line number
Auto, Normal, Single
AC, DC, LF reject, HF reject
CH1, CH2, CH3, CH4, EXT, EXT/5, AC Line
Trigger Modes: Positive Pulse (＞,＜,
＝),
Negative Pulse (＞,
＜, ＝)
Positive slope (＞,＜,
＝),
Negative slope (＞,＜,
＝)
Time: 20 ns-10 s
CH1 trigger type: Edge, Pulse, Video, Slope
CH2 trigger type: Edge, Pulse, Video, Slope
CH3 trigger type: Edge, Pulse, Video, Slope
CH4 trigger type: Edge, Pulse, Video, Slope
Alternate Trigger
Notes:
(1) On 4-Ch models, Ch1 and Ch2 are interleaved, and Ch3 and Ch4 are interleaved. Half channel operation means that only Ch1 or Ch2 and/or only Ch3 or Ch4 is active.
(2) When timebase is 25 ns or faster and maximum data depth mode is enabled.
