AR11-3686I

Description
Single Port RJ45 Connector
File Size364KB,2 Pages
ManufacturerALLIED [Allied Electronics]
Download Datasheet View All

AR11-3686I Overview

Single Port RJ45 Connector

RoHS
Single Port RJ45 Connector
AR11-3686I
10/100 Base-T Ethernet Application
Impedance: 100OHMS
RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F
Industrial Operating Temp: -40ºC to +85ºC
Contact Factory for Standard Temp.
Available in other Circuit Designs
Optional Gold Plating Thickness
Other LED Patterns available
Electrical Specifications @ 25°C
Part
Number
AR11-3686I
OCL(uH Min)
@ 100kHz, 0.1V
With 8mA DC Bias
350
Turns Ratio

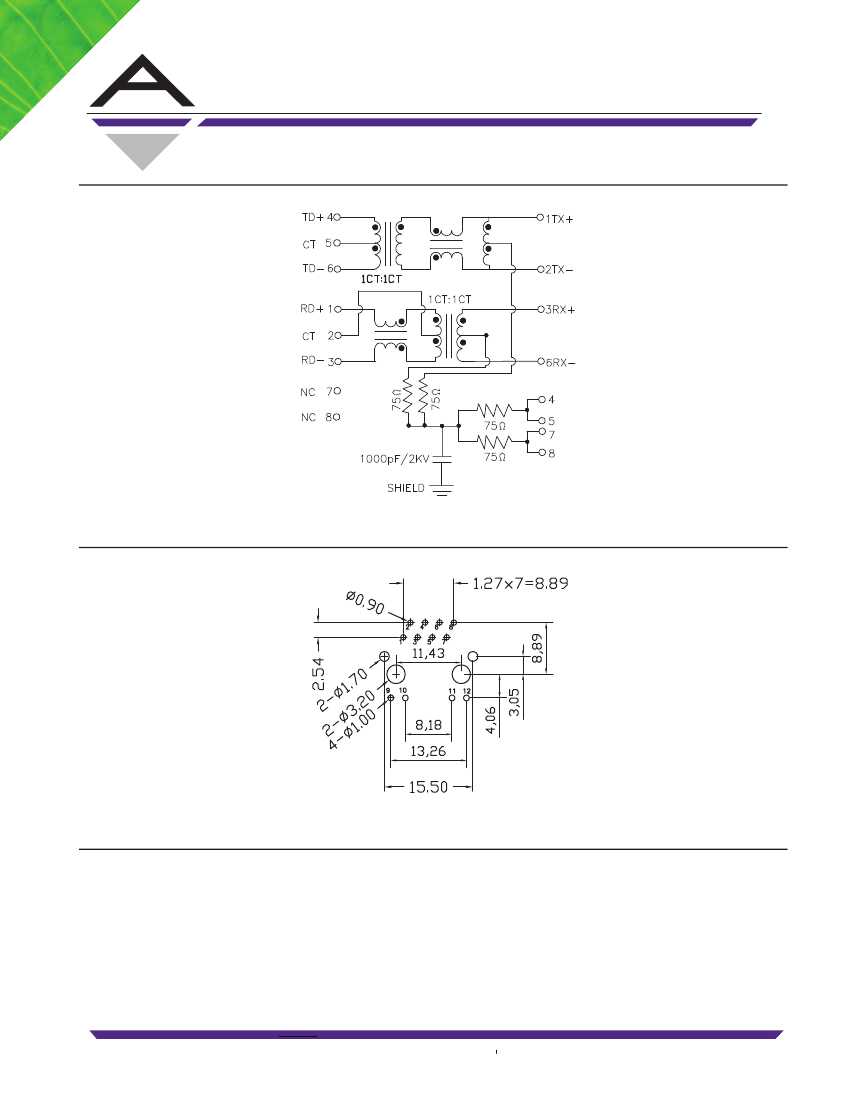

chip: cable
(±2%)
1CT:1CT
Insertion Loss
(dB Max)
1-100MHz
-1.0
1-30MHz
-18
Return Loss
(dB Min)
30-60MHz
-18-20Log(F/30MHz)
60-80MHz
-12
Electrical Specifications @ 25°C
CMR
CDMR
Cross Talk
HI-POT
(dB Min)
(dB Min)
(dB Min)
(Vrms)
0.5-1MHz 10MHz 30MHz 50MHz 100MHz 0.3-1MHz 10MHz 30MHz 60MHz 100MHz 0.3-1MHz 10MHz 30MHz 60MHz 100MHz 0.5mA/2Sec.
-35
-40
-37
-50
-50
-40
-50
-50
-30
1500
-47
-30
-42
-45
-50
-50
All specifications subject to change without notice.

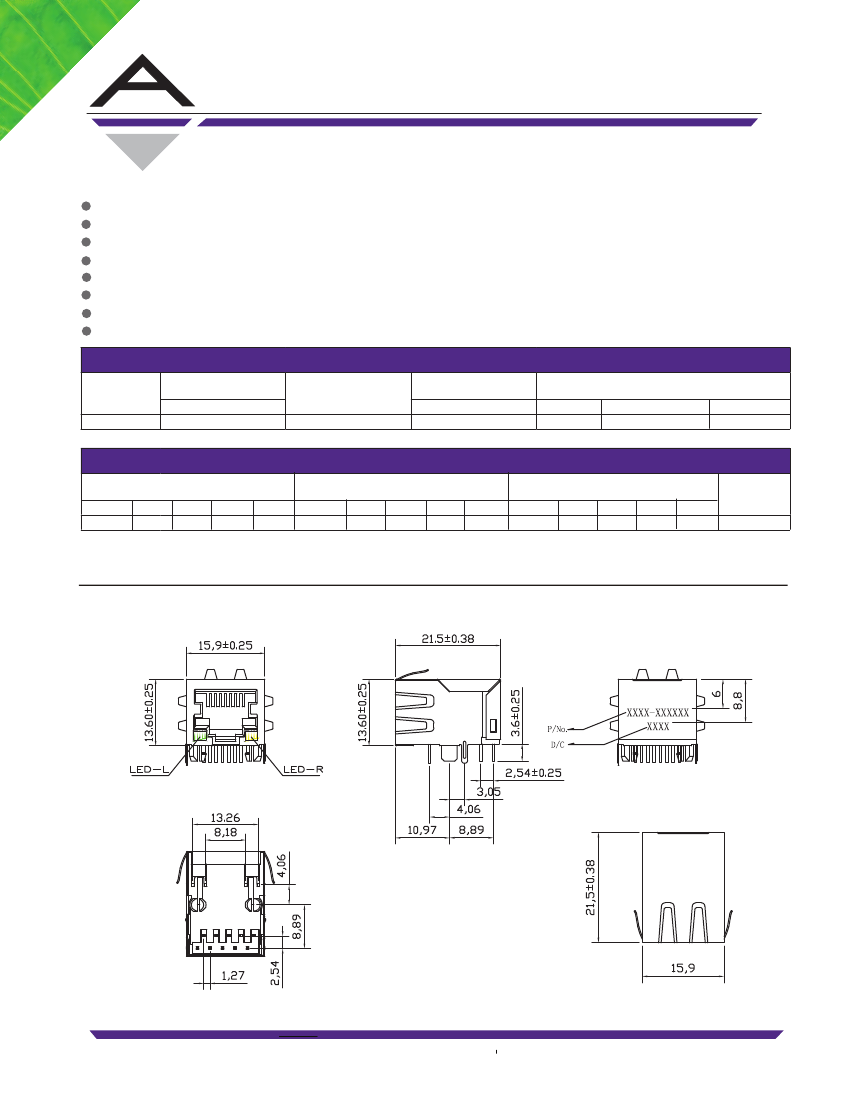

MECHANICAL
714-665-1140
ALLIED COMPONENTS INTERNATIONAL
REVISED 02/01/12
15
www.alliedcomponents.com
