AH1601CI: Description10/100 Base T Single Port LAN Filter Module; CategoryPower management transformer; File Size468KB，2 Pages; ManufacturerALLIED [Allied Electronics]; Environmental Compliance

Download Datasheet Parametric View All

AH1601CI Overview

10/100 Base T Single Port LAN Filter Module

AH1601CI Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ALLIED [Allied Electronics]
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
application	10/100 BASE-T
high	5.7 mm
Insulation voltage	1500 V
length	12.8 mm
Installation features	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L12.8XB6.9XH5.7 (mm)
Primary inductance	350 µH
surface mount	YES
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1CT:1CT; 1CT:1CT
width	6.9 mm

Preview

Download Datasheet

View All

RoHS

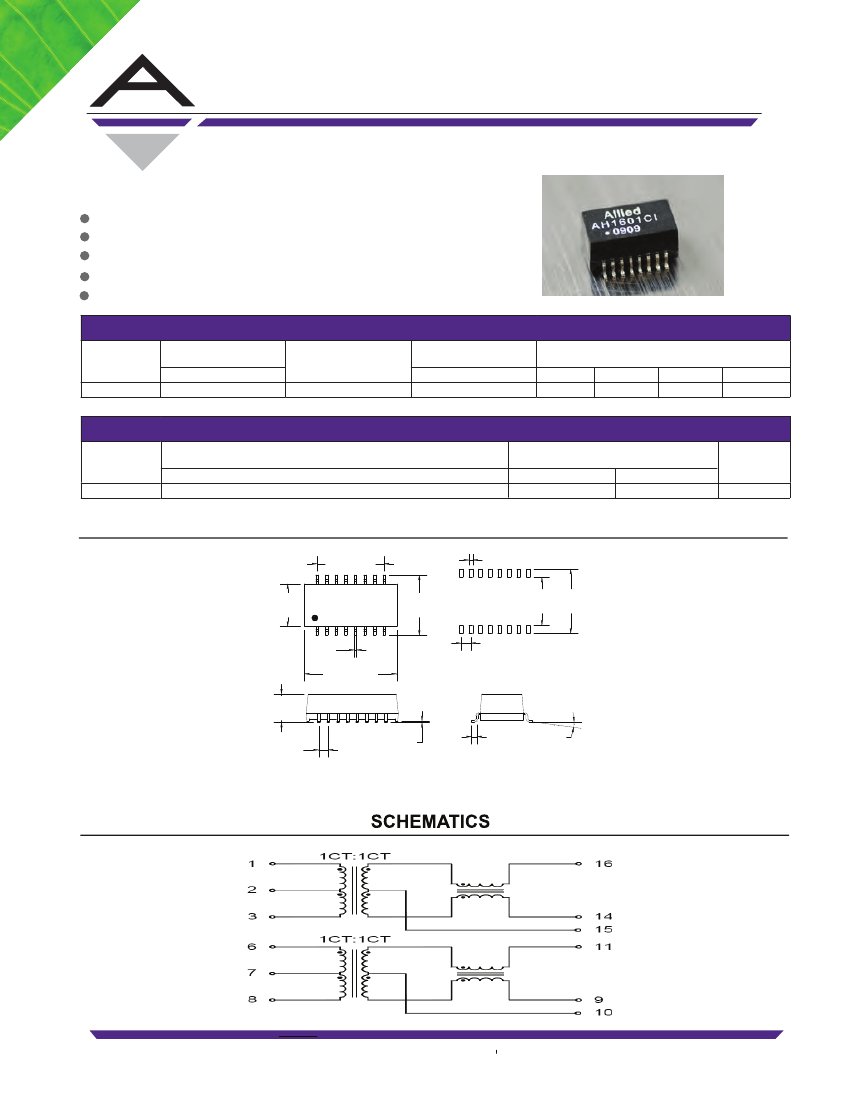

10/100 Base T Single Port LAN Filter Module

AH1601CI

Ethernet based LAN, WAN and other networking applications

LL: 0.5µH @ 100KHz, 0.2V

Cw/w: 25PF TYP @ 100KHz, 0.2V

Polarity: 1-16, 6-11, In-Phase

Operating Temperature: -40ºC to +85ºC

Electrical Speciﬁcations @ 25°C

Part

Number

AH1601CI

OCL(uH Min)

@ 100kHz, 0.2V

With 8mA DC Bias

350

Turns Ratio

chip: cable

(±3%)

1CT:1CT

Insertion Loss

(dB Max)

0.3-100MHz

-1.1

0.3-30MHz

-18

Return Loss

(dB Min)

50MHz

40MHz

-16

-14.5

60-80MHz

-12

Electrical Speciﬁcations @ 25°C

DCR

Ω

Max

1.1

Common Mode Rejection

(dB Min)

0.5-100MHz

-30

Cross Talk

(dB Min)

0.5-40MHz

-35

50-100MHz

-30

HI-POT

(Vrms)

60Sec.

1500

All specifications subject to change without notice.

MECHANICAL

0.350(8.89)

0.030(0.76)

0.272

(6

.90)

ALLIED

AH1601CI

DATECODE

0.372

(9.45)

0.340 0.420

(6.61) (10.67)

0.020

(0

.50)

0.504(12.80)

0.050(1.27)

0.224

(5.70)

0.008

(0.20)

0.030(0.75) 0°~8°

0.050

(1.27)

Dimensions:inch( mm)

Unless otherwise specified, all tolerances are ±0.010(0.25)

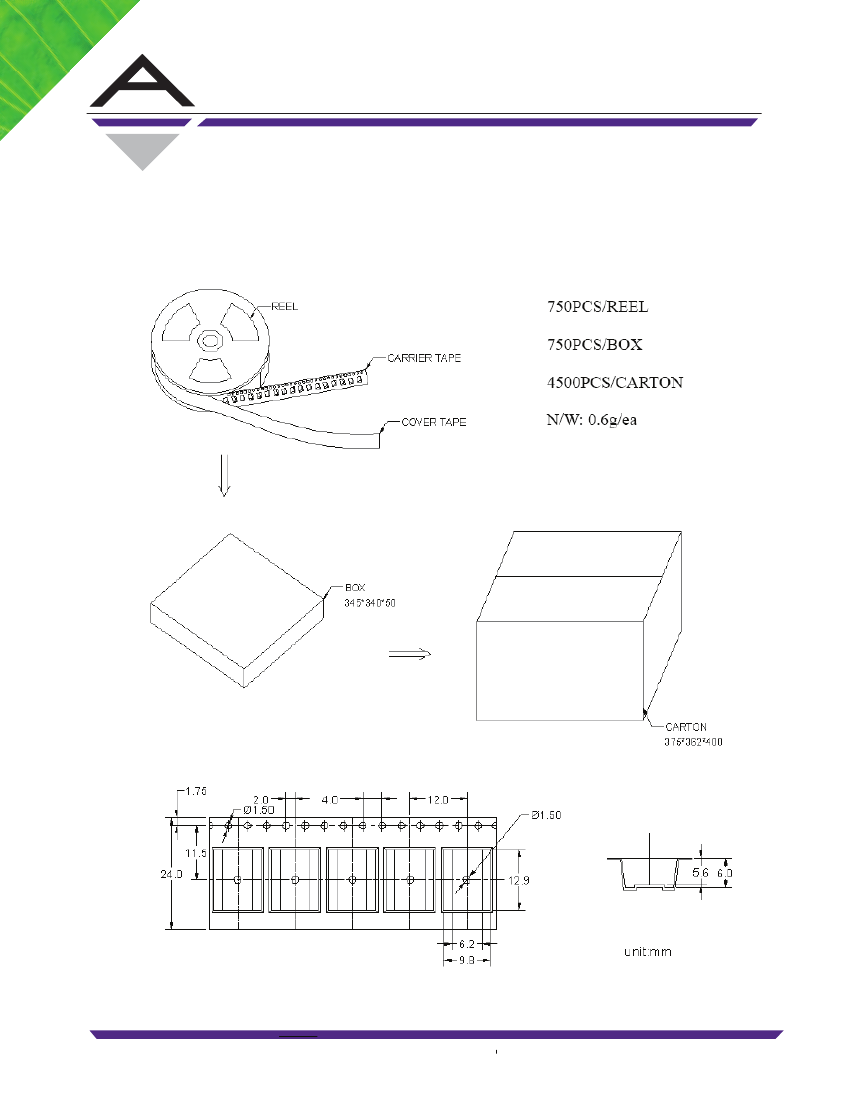

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

REVISED 11/08/12

15

www.alliedcomponents.com
