AHSC-1607PS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > AHSC-1607PS

Preview

AHSC-1607PS: Description10/100 Base T Single Port LAN Filter Module; File Size331KB，1 Pages; ManufacturerALLIED [Allied Electronics]

Download Datasheet View All

AHSC-1607PS Overview

10/100 Base T Single Port LAN Filter Module

Preview

Download Datasheet

View All

RoHS

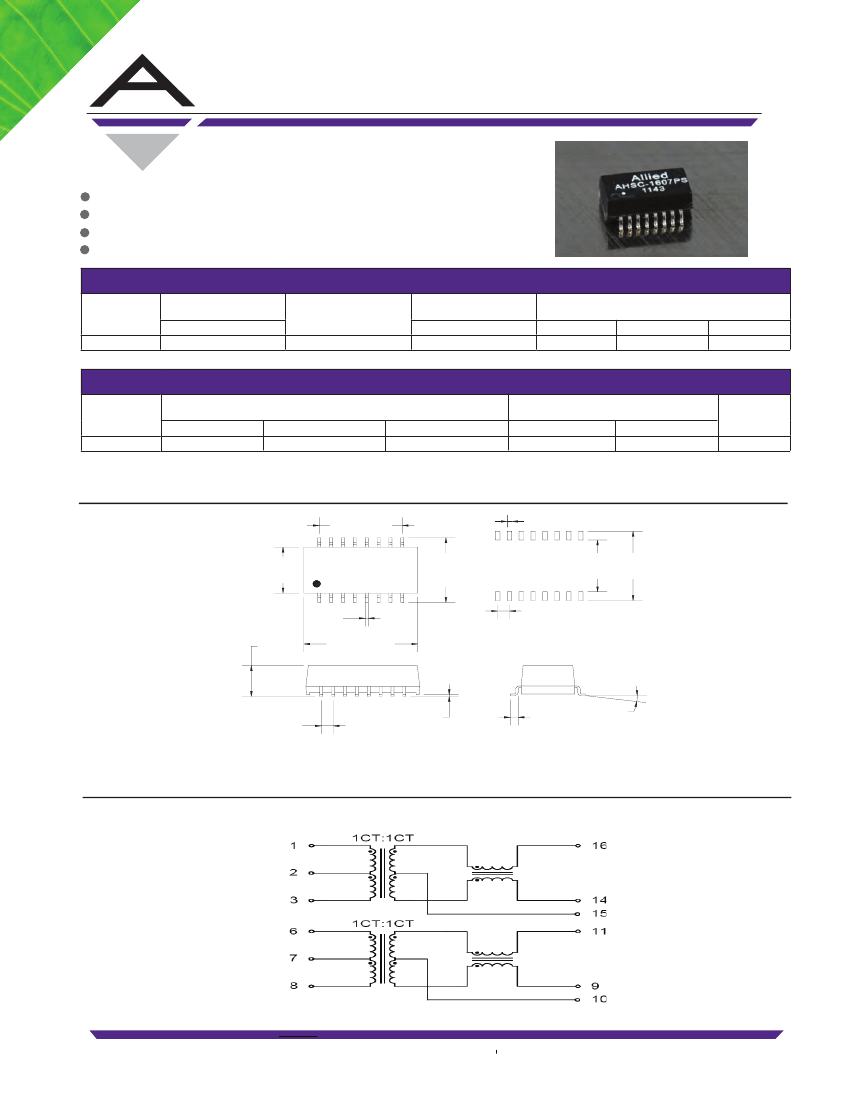

10/100 Base T Single Port LAN Filter Module

AHSC-1607PS

Ethernet based LAN, WAN and other networking applications

For PoE applications with 350mA current capability compliant to 802.3AT

Cw/w:25PF Max @ 100KHz, 0.2V

Operating Temp: 0ºC to +70ºC

Electrical Speciﬁcations @ 25°C

Part

Number

AHSC-1607PS

OCL(uH Min)

@ 100kHz, 0.2V

With 8mA DC Bias

350

Turns Ratio

chip: cable

(±3%)

1CT:1CT

Insertion Loss

(dB Max)

0.3-100MHz

-1.1

0.3-30MHz

-16

Return Loss

(dB Min)

50MHz

-12

60-80MHz

-10

Electrical Speciﬁcations @ 25°C

Part

Number

AHSC-1607PS

0.3-30MHz

-40

Common Mode Rejection

(dB Min)

60MHz

-35

Cross Talk

(dB Min)

80-100MHz

-30

0.3-60MHz

-42

60-100MHz

-35

Isolation

HI-POT

(Vrms)

1500

All specifications subject to change without notice.

MECHANICAL

0.350(8.89)

0.030(0.76)

0.272

(6.90)

ALLIED

AHSC-1607PS

DATECODE

0.40

(10.0)

Max

0.050(1.27)

0.260 0.420

(6.61) (10.67)

0.018

(0.46)

0.250

(6.30)

Max

0.504(12.80)

0.050

(1.27)

0.004

(0.10)

Min

0.020

(0.50)

Min

0°~8°

Dimensions:inch( mm)

Unless otherwise specified, all tolerances are ±0.010(0.25)

SCHEMATICS

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

12/28/12

www.alliedcomponents.com
