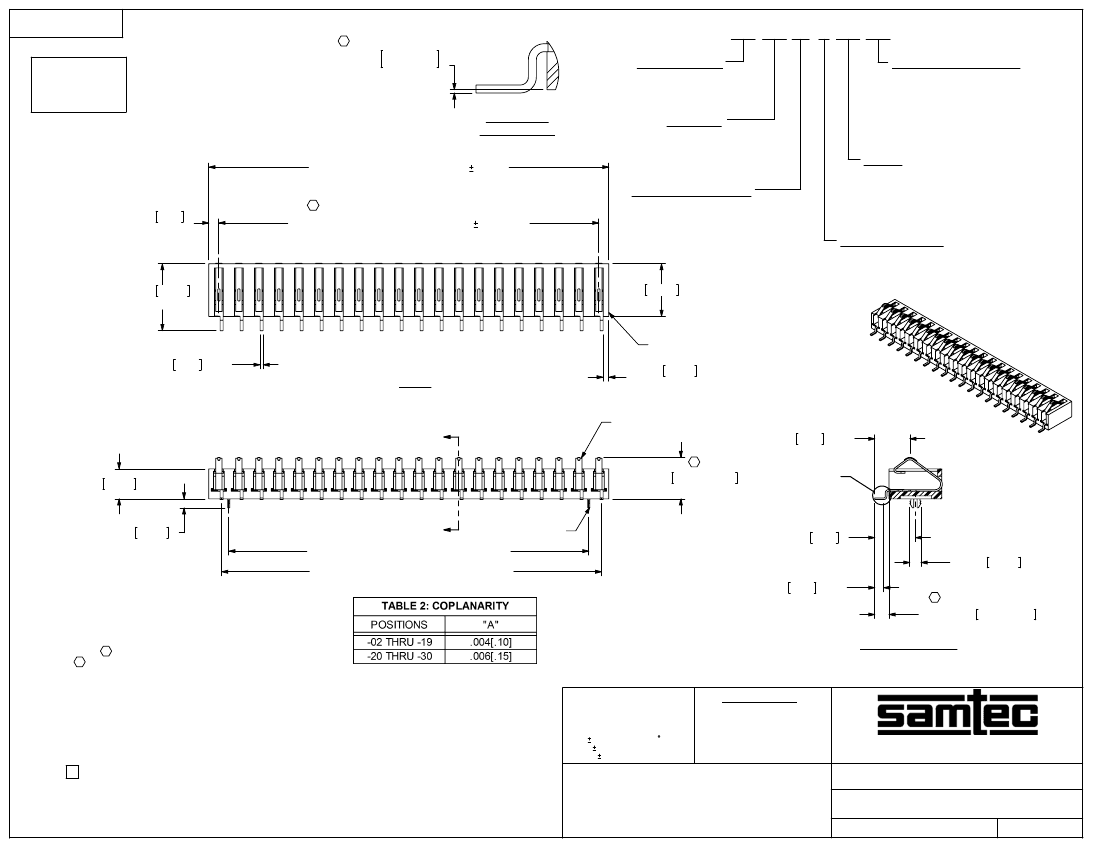

REVISION X
C
SIB-1XX-XX-XX-S-XX-XX
+.0040
+0.102
DO NOT
SCALE FROM
THIS PRINT
.0033
- .0020
0.084
- 0.051
(SEE NOTES 9 & 10)
No OF POSITIONS
-02 THRU -30
(PER ROW)
DETAIL 'A'
SCALE 10 : 1
No OF POSITIONS x .100[2.54]
C
.015[.38]
.005[.13]
LEAD STYLE
-02: SURFACE MOUNT
(USE C-228-X)
*
*
*
THREADED INSERT OPTION
[NOT AVAILABLE ON 30 POS]
-E: TI-2-56-115 (ENGLISH)
-M: TI-M2-4-115-N (METRIC)
(SEE FIG. 2, SHEET 2)
-TI: NO INSERTS PLACED IN BODY
(SEE TABLE 1 ON SHEET 2 FOR
-TI POSITIONAL OFFERINGS)
.050 1.27
REF
((No OF POSITIONS -1) x .100[2.54]) .005[.13]
PLATING SPECIFICATION
-F: FLASH SELECTIVE
(USE C-228-F)
-FM: FLASH SELECTIVE, PURE TIN,
MATTE FINISH
(USE C-228-F)
OPTION
-LC: LOCKING CLIPS
(USE LC-09-TM)(SEE NOTE 13)
[N/A WITH THREADED INSERT OPTION
-E, -M OR -TI]
ROW SPECIFICATION
-S: SINGLE (USE SIBC-XX-02-S)
.335 8.509
REF
01
.015 0.38 REF
.264 6.706 REF
*
AVAILABLE TO EXISTING CUSTOMERS ONLY
SIBC-XX-02-S
SIB-120-02-X-S-LC SHOWN
FIG 1
.0287 0.729 MIN END
WALL ON CUT PART
C-228-X
.175 4.45 REF
C
"A"
.150 3.810 REF
.207±.005 5.267±0.127
'A'
.045 1.143
"A"
(No OF POSITIONS -2) x .100[2.54] REF
(No OF POSITIONS -1) x .100(2.54) REF
LC-09-TM
.203 5.16
.0560 1.422 REF
.044 1.13 REF
C
.071±.003 1.803±0.08
NOTES:
C
X
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. COPLANARITY: SEE TABLE 2.
3. BURR ALLOWANCE: .0015[.038] MAX.
4. MAXIMUM CUT FLASH: .010[.3], CAN NOT EXTEND PAST TAIL.
5. MINIMUM PUSHOUT FORCE: 1 LB.
6. MAXIMUM ALLOWABLE BOW: .004[.10] INCH/INCH AFTER ASSEMBLY.
7. THREADED INSERT MUST HANDLE 25 IN-OZ OF TORQUE WITHOUT
ROTATING OR LOOSENING.
8. THREADED INSERT RETENTION: 10 LBS. MINIMUM.
9. MAX VARATION FROM PIN TO PIN TO BE .002.
10. MEASURED ON UNCUT PARTS.
11. NOTE DELETED.
12. NOTE DELETED.
13.
DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE -LC OPTION
IS NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC RECOMMENDS
MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH THE -LC OPTION.
SECTION "A"-"A"
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATOR: LCP, COLOR: BLACK
CONTACT: PHOSPHOR BRONZE
.100 SINGLE INTERFACE BEAM ASSEMBLY
SIB-1XX-XX-XX-S-XX-XX
9/20/2000
SHEET
1
OF
2
F:\DWG\MISC\MKTG\SIB-1XX-XX-XX-S-XX-XX-MKT.SLDDRW
BY:
DEAN P

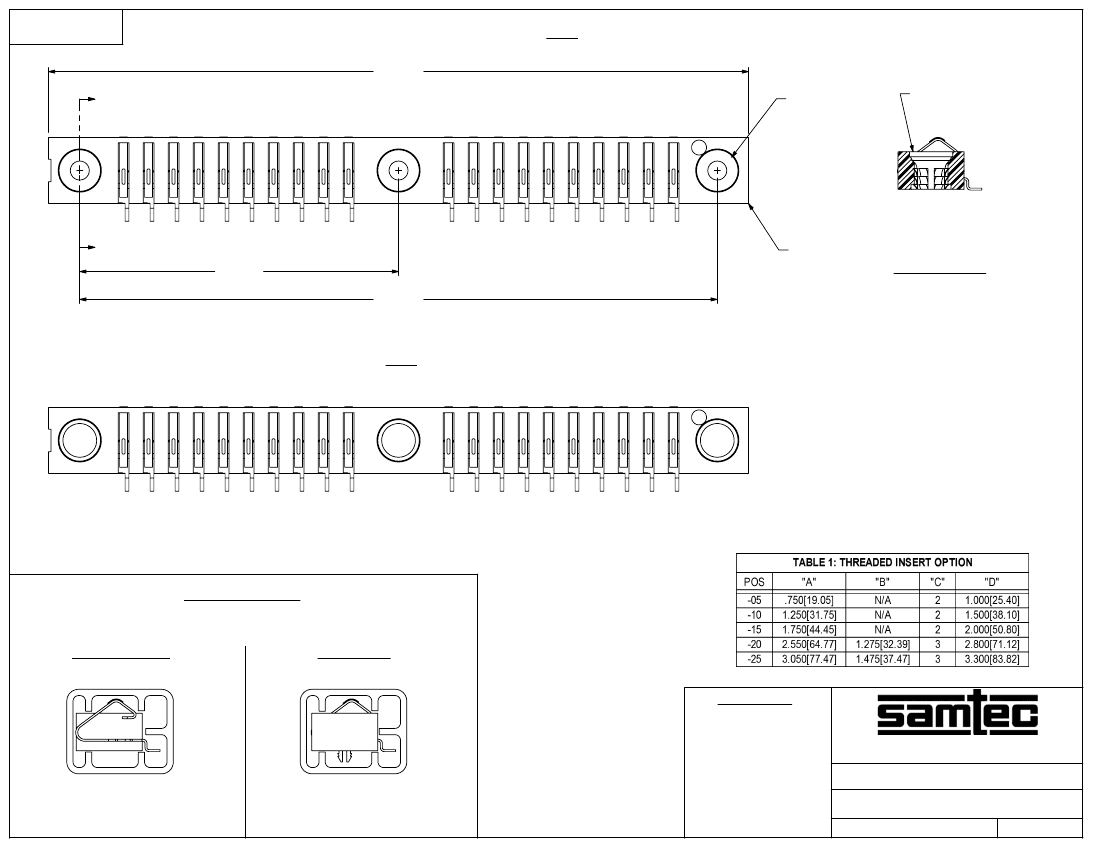

REVISION X
"D" REF
"B"
SIB-120-02-X-S-E SHOWN
FIG 2
THREADED INSERT
("C" PLCS)
THREADED INSERT TO BE
FLUSH TO BELOW TOP OF BODY
"B"
"B" REF
"A" REF
SIB-XX-02-S-TI
SECTION "B"-"B"
SIB-120-02-X-S-TI SHOWN
FIG 3
(PARTS TO HAVE POSITION #1 LOADED IN
SAME DIRECTION AS ARROW ON TUBE)
PACKAGING VIEW
NO -LC OPTION
-LC OPTION
F:\DWG\MISC\MKTG\SIB-1XX-XX-XX-S-XX-XX-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
.100 SINGLE INTERFACE BEAM ASSEMBLY
TUBE: PT-1-24-01-118
PLUG: TP-03
TUBE: PT-1-24-01-118
PLUG: TP-03
SHEET SCALE: 2.5:1
SIB-1XX-XX-XX-S-XX-XX
9/20/2000
SHEET
2
OF
2
BY:
DEAN P
