AGSC-4801S: Description100/1000 Base T Gigabit Dual Port Transformer; File Size250KB，1 Pages; ManufacturerALLIED [Allied Electronics]

Download Datasheet View All

AGSC-4801S Overview

100/1000 Base T Gigabit Dual Port Transformer

Preview

Download Datasheet

View All

RoHS

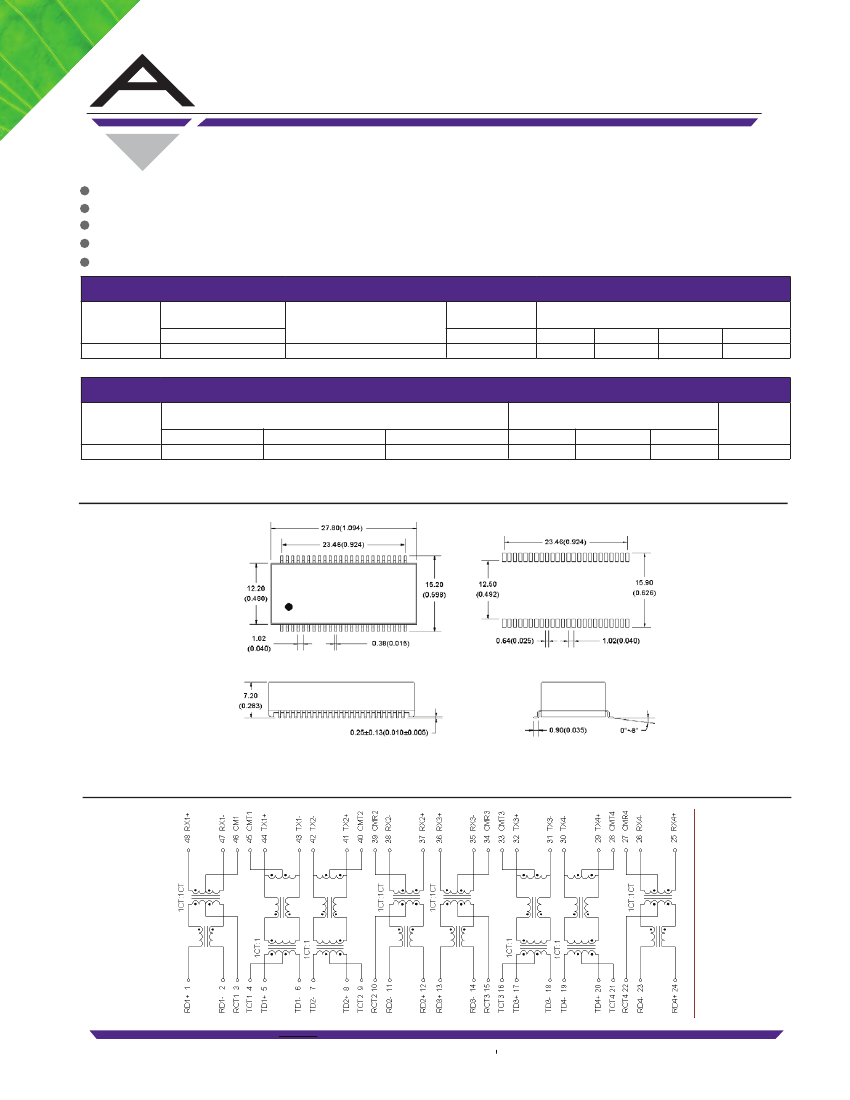

100/1000 Base T Gigabit Dual Port Transformer

AGSC-4801S

Cw/w: 25PF Typ @ 100KHz, 0.2V

LL: 0.5µH Max @ 100KHz, 0.2V

Polarity: 1-48, 5-44, 8-41, 11-38, 14-35, 17-32, 20-29, 23-26 In-Phase

DCR: 0.9

Ω

Max

Operating Temp: 0ºC to 70ºC

Electrical Speciﬁcations @ 25°C

Part

Number

AGSC-4801S

OCL(uH Min)

@ 100kHz, 0.2V

With 8mA DC Bias

350

Turns Ratio

chip: cable

(±5%)

1CT:1(TX)/1CT:1CT(RX)

Insertion Loss

(dB Max)

0.3-100MHz

-1.0

0.3-30MHz

-16

Return Loss

(dB Min)

50MHz

40MHz

-14.4

-13.1

60-80MHz

-12

Electrical Speciﬁcations @ 25°C

Part

Number

AGSC-4801S

30MHz

-43

Common Mode Rejection

(dB Min)

60MHz

-37

100MHz

-33

30MHz

-45

Cross Talk

(dB Min)

60MHz

-40

100MHz

-33

Isolation

HI-POT

(Vrms) 60S

1500

All specifications subject to change without notice.

MECHANICAL

ALLIED

AGSC-4801S

DATECODE

Dimensions: mm(inch)

Unless otherwise specified, all tolerances are ±0.25(0.010)

SCHEMATICS

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

12/30/11

www.alliedcomponents.com
