AEP080SI

Description
ADSL LINE TRANSFORMER SURFACE MOUNT MAGNETICS
File Size390KB,1 Pages
ManufacturerALLIED [Allied Electronics]
Download Datasheet View All

AEP080SI Overview

ADSL LINE TRANSFORMER SURFACE MOUNT MAGNETICS

RoHS
ADSL LINE TRANSFORMER SURFACE MOUNT MAGNETICS
EN60950 Basic Insulation compliant 250Vrms
SMD compact foot print design
Industrial operating temp: -40ºC to +85ºC
Electrical Specifications @25
o
C
Part
Number
Turns Ratio
(10KHz,0.1V)
16-9:5-8
16-9:1-4
(short 11-14,2-3) (short 11-14,6-7)
4.29:1
AEP080SI
OCL
(10KHz,0.1V)
16-9
(short 11-14)
2mH
5.8%
LL
(100KHz,0.1V)
16-9
( short11-14,1-2-3-4-5-6-7-8)
20uH max
Cww
(100KHz,0.1V)
16-9
(short11-14,1-2-3-4-5-6-7-8)
20pF max
2%
1:1
2%
Continue
DCR
16-11
0.6
max
14-9
0.6
max
1-3
0.95
2-4
max 0.95
max
0.3
5-7
max 0.3
6-8
max
THD
(30KHz
,3.162Vrms
)
-90dB max
LB
(35KHz~650KHz)
55dB min
Hi-Pot
VAC
(1mA/6s)
2500
All specifications subject to change without notice.

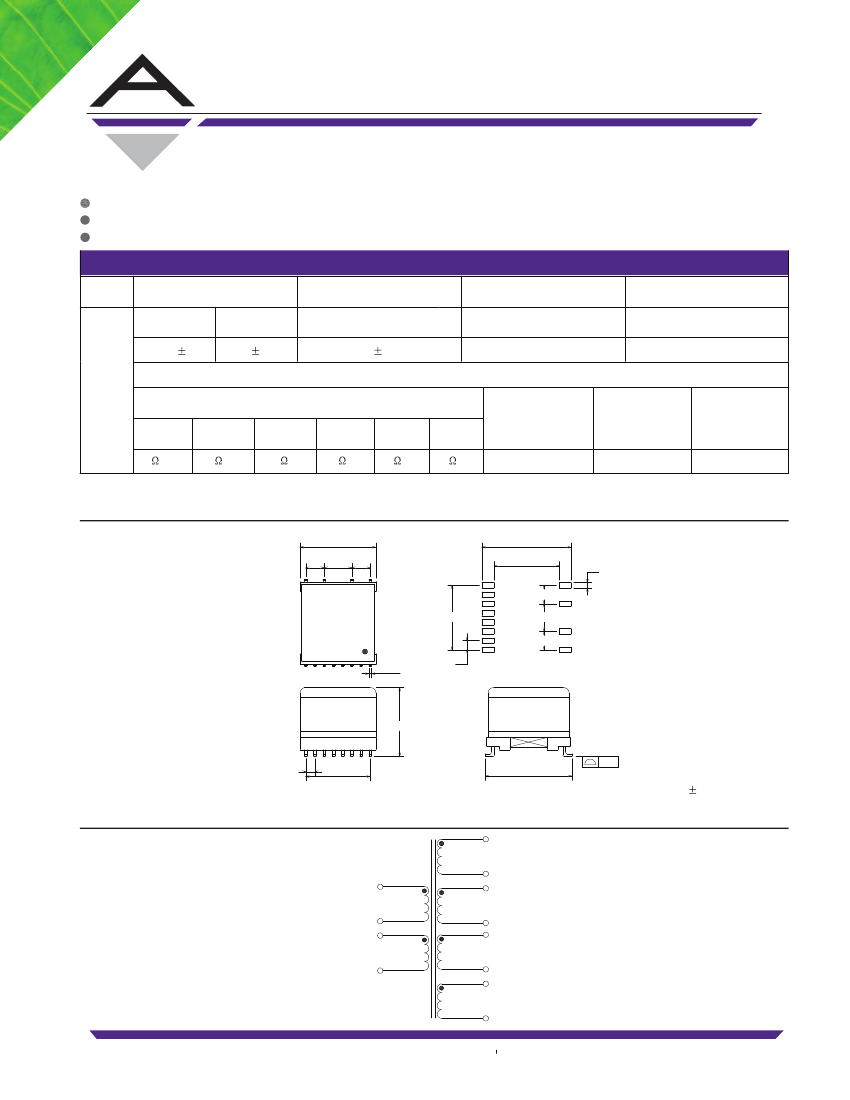

MECHANICAL
14.0max
3.4
5.1
3.4
19.0
14.0
1.0
3.4
ALLIED
AEP080SI
11.9
5.1
3.4
1.7
0.5
SUGGESTED PAD LAYOUT
YYWW
12.7max
1.7
11.9
16.5max
0.13
12 SURFACES
Units:mm
Unless otherwise specified all tolerances are: 0.25 in mm
SCHEMATICS
1
3
16
2
PRI
11
14
4
5
SEC
9
7
6
8
714-665-1140
ALLIED COMPONENTS INTERNATIONAL
REVISED 3/31/09
15
www.alliedcomponents.com
