W-P5314#51

Description
Board Connector, 14 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Natural Insulator, Plug,
CategoryThe connector    The connector
File Size60KB,2 Pages
ManufacturerSMK
Websitehttps://www.smk.co.jp/
Download Datasheet Parametric View All

W-P5314#51 Overview

Board Connector, 14 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Natural Insulator, Plug,

W-P5314#51 Parametric

Parameter NameAttribute value
MakerSMK
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.169 inch
subject depth0.362 inch
body length1.476 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN-PB
Contact completed and terminatedTIN LEAD
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1000VAC V
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorNATURAL
insulator materialPOLYAMIDE
JESD-609 codee0
MIL complianceNO
Manufacturer's serial numberSP
Plug contact pitch0.098 inch
Plug informationW-A2502-1N#51
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.138 inch
Terminal pitch2.5 mm
Termination typeSOLDER
Total number of contacts14
UL Flammability Code94V-0

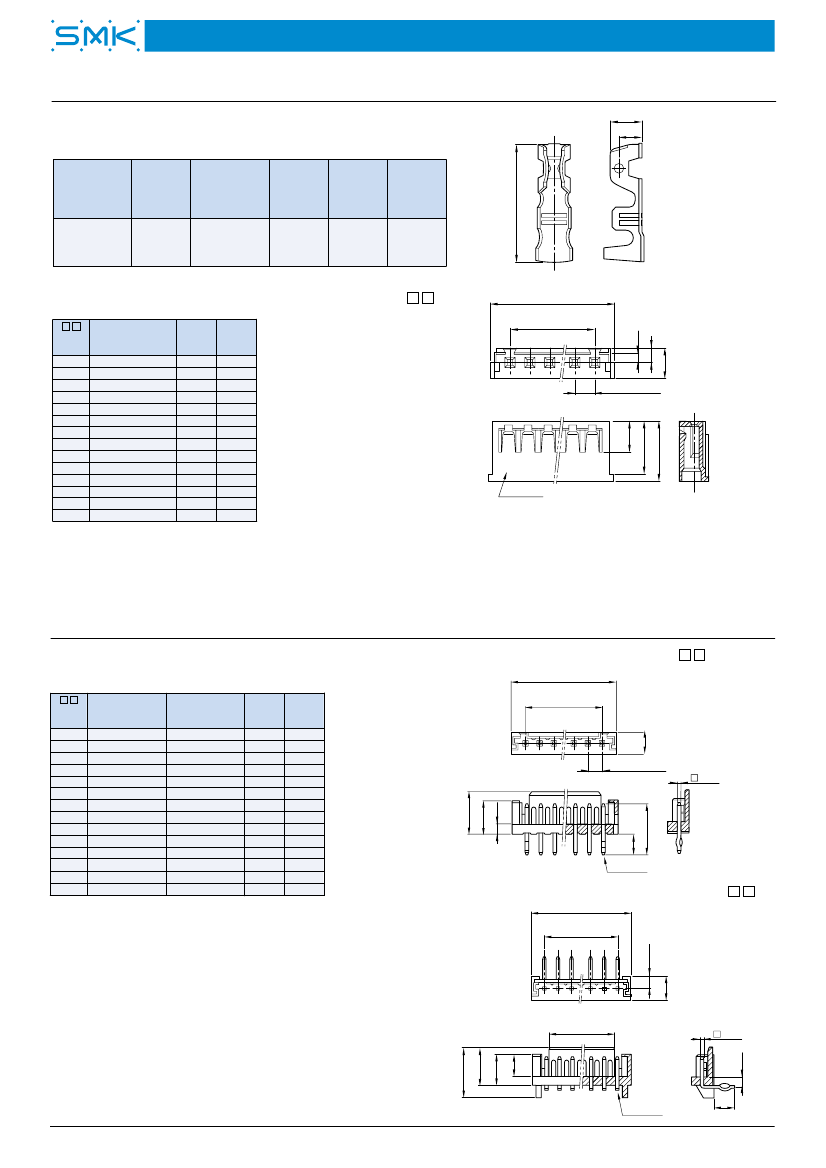

Crimp Connector
SP
Series
2.5mm Spacing
s

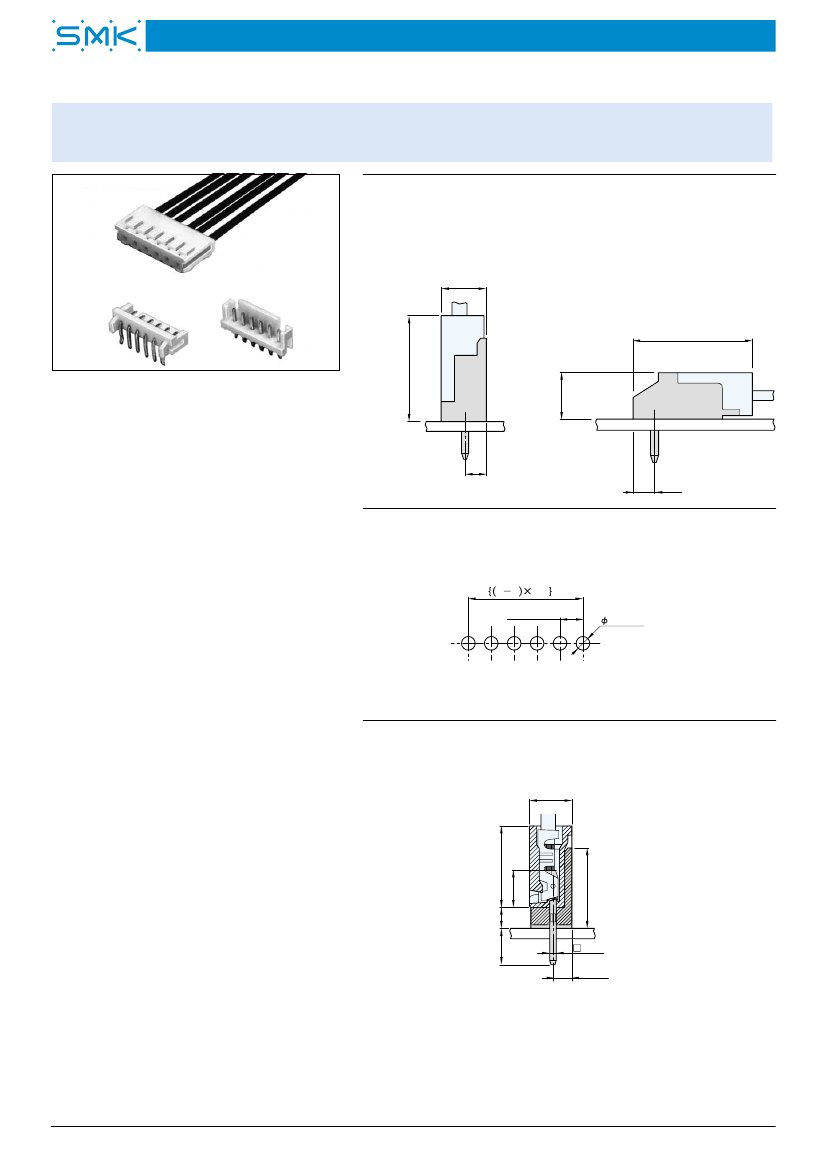

Connection Diagram
嵌合図
Straight Type
ストレートタイプ
3.8
Right-Angle Type
ライトアングルタイプ
11.2
9.3
1. Socket and plug connections for this model
measure only 9.3mm high and 3.8mm thick.
2. Connectors in this series are available in two
basic plug-in designs (straight or right-angle)
and come in an assortment of fourteen different
plug types ranging from 2P to 15P.
3. The terminal for this connector features a
tapered
“dimple”
design which is highly
resistant against even minute amounts of
friction.
4. A lock mechanism is utilized for the socket and
plug housings to ensure firm connection and to
prevent improper plug insertion.
1.8
2.1
s
Mounting Hole for PC Board
取付基板参考図
n
1
2.5
±
0.1
s
Specifications
1. Rating : 3A 125V AC/DC
2. Contact Resistance : 20mΩ max.
3. Insulation Resistance : 1000MΩ min. at 500V DC
4. Withstanding Voltage : 1000V AC for one minute.
5. Operating Temperature : –25˚C to +85˚C
6. Applicable Wire Size : AWG22 to 30
(Sheath dia. ø0.8 to ø1.7mm)
7. Applicable PC Board Thickness : 1.6mm
2.5
±
0.1
(Spacing)
4.3
s
Features
1.0
±
0.05
s
Structural Configuration Diagram
構造図
3.8
■ 特  長
1. ½ケットとプラグの結合高さ9.3mm厚さ3.8mm
の小型タイプです。
2. 極数は2∼15P、プラグはストレートとライトア
ングルタイプがあります。
3. ターミナルはディンプル構造で微摺動に対して
高い信頼性が得られます。
4. ½ケットとプラグにはロック機構があり、確実
なロックと誤挿入を防止します。
7.5
3.4
3.5
1.8
■ 仕  様
1. 定格電圧電流
2. 接 触 抵 抗
3. 絶 縁 抵 抗
4. 耐   電   圧
5. ½用温度範囲
6. 適合電線範囲
7. 適 合 基 板 厚
AC/DC 125V 3A
20mΩ以下
DC500V 1000MΩ 以上
AC1000V 1分間
−25℃∼+85℃
AWG22∼30(被覆外径φ1.7∼0.8)
1.6mm
s
Note
Custom made models will be available upon request.
掲載以外の仕様につきましては別途御相談下さい。
7.3
0.64
1.8
