85003-1603: DescriptionBoard Euro Connector, 64 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size1MB，29 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

85003-1603 Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle

85003-1603 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
Other features	STANDARDS: DIN 41612; IEC 603-2
body width	0.437 inch
subject depth	0.461 inch
body length	3.701 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD (40) OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	YES
maximum insertion force	.9452 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	85003
Plug contact pitch	0.1 inch
Match contact row spacing	0.2 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,C
PCB row number	3
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	39u inch
polarization key	ENDS
Rated current (signal)	1.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

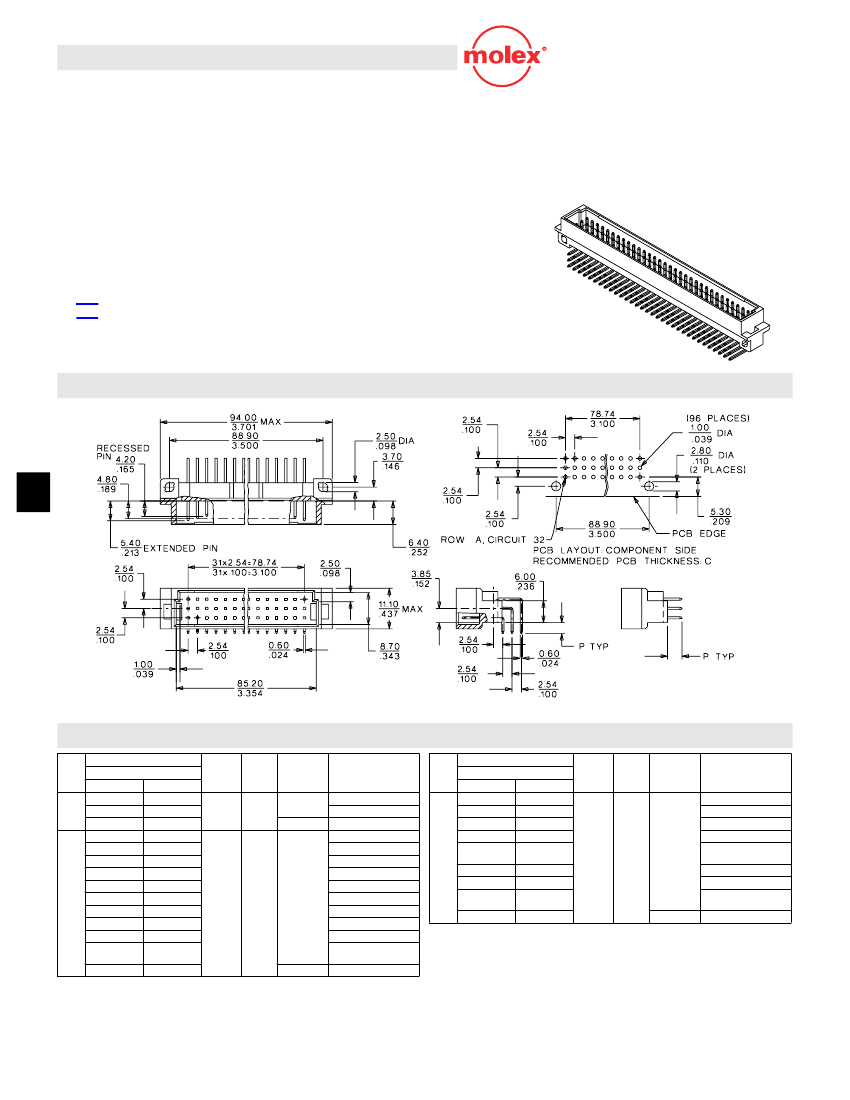

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Performance levels 1 and 2

Flux proof option

FMLB/LMFB pins (extended/recessed) available

Board lock option

Solder tails for 1.6mm (.062") PCBs

(for 2.4mm (.094") PCBs on request)

High temperature version on request

Electrical

Current: 1.5A

Physical

Housing: Glass-ﬁlled polyester, UL 94V-0

Contact: Brass

Operating Temperature: -55 to +125˚C

2.54mm (.100") Pitch

DIN 41612/IEC 603-2

Connector

85003

Male Style C

Backplane Connector Systems

Reference Information

Product Speciﬁcation: PS-85003-0001

Packaging: Tray

UL File No.: E29179

CSA File No.: LR19980-390

Mates With:

85042—Straight

female style C

85052—Right

angle female style R

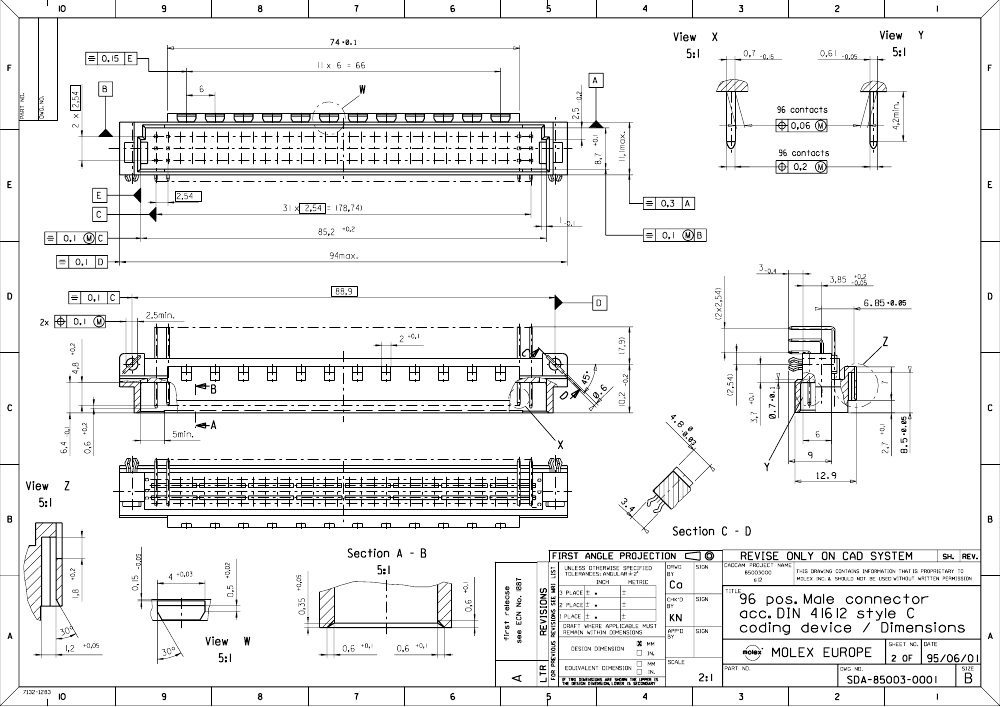

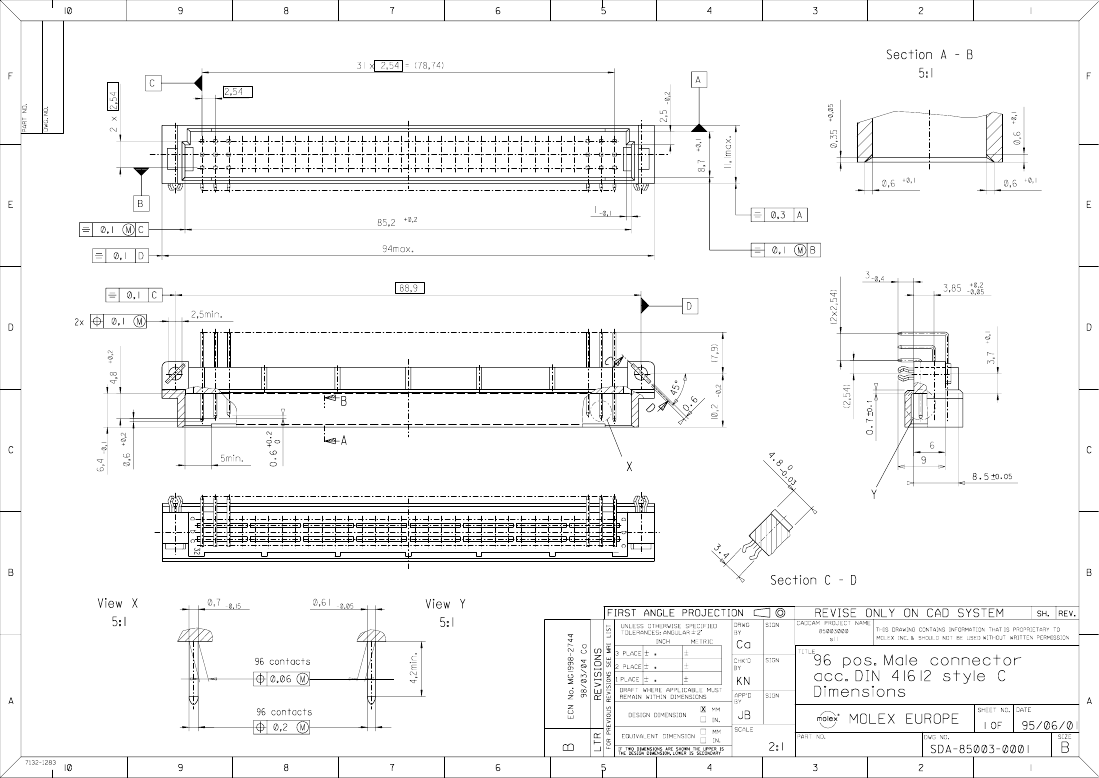

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

Order No.

Performance Level*

85003-0634

85003-0220

85003-1263

85003-0256

85003-0610

85003-0127

85003-1603

85003-0309

85003-0153

85003-0141

85003-0646

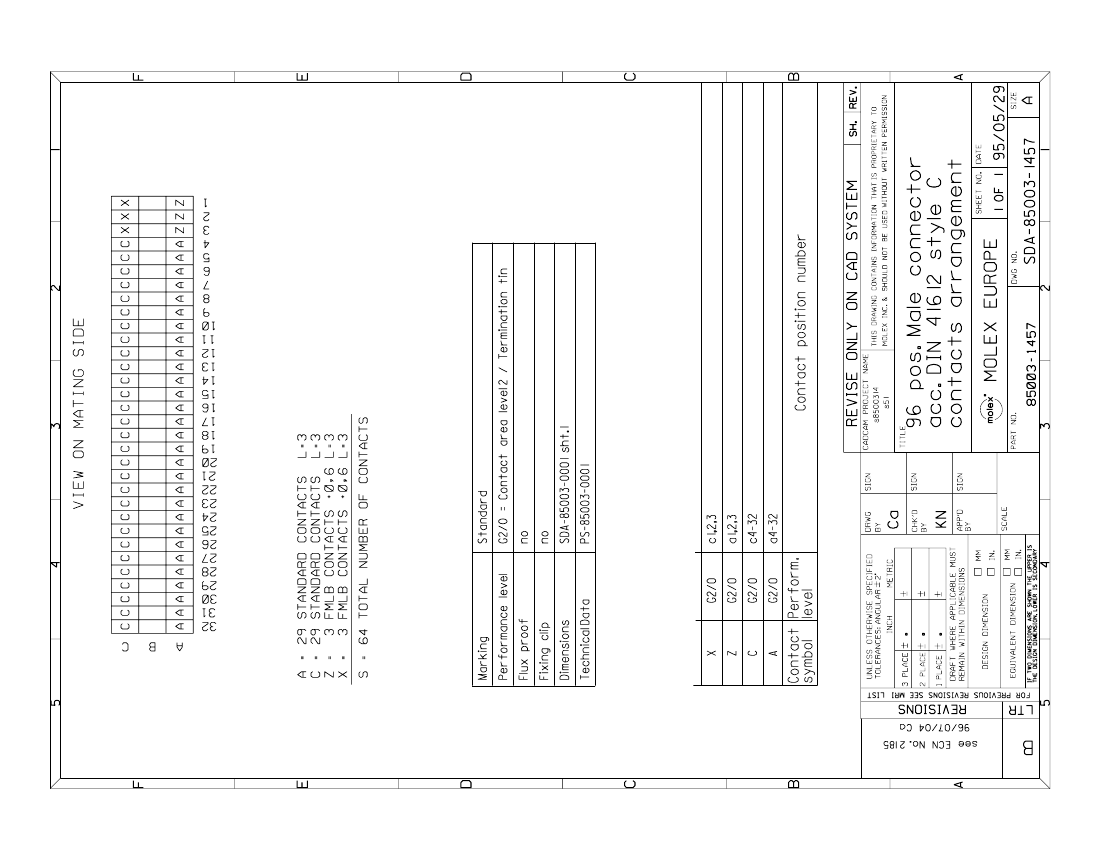

85003-1457

85003-2385

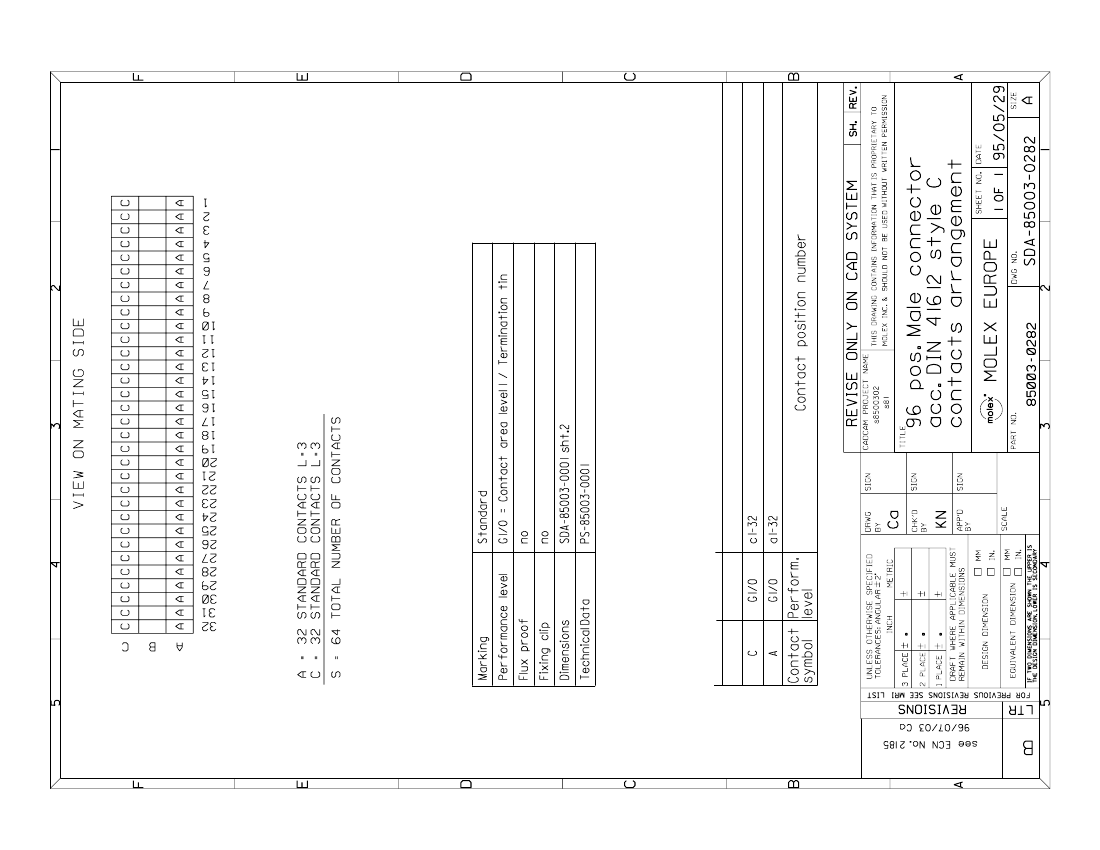

85003-0282

85003-0139

85003-1081

85003-1550

85003-0165

For other versions, including high temperature, contact Molex

* Performance levels based on test conditions per DIN 41612, part 5:

1: >500 mating cycles. 10 day industrial environment (S02)

2: >400 mating cycles. 4 day industrial environment (S02)

4.0 (.157)

Contact

Rows

Solder Tail

Dimension P

3.0 (.118)

4.0 (.157)

Option(s)

Circuits

Order No.

Performance Level*

85003-0555

85003-0177

85003-1691

85003-0567

85003-0206

85003-2529

85003-0191

85003-1483

85003-2830

85003-0294

85003-0658

85003-0189

85003-1548

85003-0359

85003-0218

4.0 (.157)

Contact

Rows

Solder Tail

Dimension P

Option(s)

Even only

a, c

Board locks, flux-proof

Straight solder tail

Board locks

Flux-proof

FMLB-4 pins: 1,32 a, c

FMLB-2 pins: 1, 32 a

FMLB-6 pins: 1, 2, 3 a, c

FMLB-4 pins: 30,32 a, c

Coding

Coding, board locks

Coding, FMLB-4 pins: 1, 32

a,c

Straight solder tail

Full

a, b, c

3.0 (.118)

Full

a, c

3.0 (.118)

Board locks

Flux-proof

FMLB-4 pins: 1,32 a+c

FMLB-6 pins: 1, 32 a, b, c,

board locks

FMLB-2 pins: 1, 32 a

Coding

Coding, FMLB-4 pins: 1, 32

a,c

Straight solder tail

J-144

MX01

85003-1603 Related Products

	85003-1603	85003-2830
Description	Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Molex	Molex
Reach Compliance Code	unknown	unknow
Other features	STANDARDS: DIN 41612; IEC 603-2	STANDARDS: DIN 41612; IEC 603-2
body width	0.437 inch	0.437 inch
subject depth	0.461 inch	0.461 inch
body length	3.701 inch	3.701 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD (40) OVER NICKEL	GOLD (40) OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrie
Contact point gender	MALE	MALE
Contact material	BRASS	BRASS
Contact resistance	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	YES	YES
Dielectric withstand voltage	1000VAC V	1000VAC V
Durability	500 Cycles	500 Cycles
Filter function	NO	NO
IEC compliance	YES	YES
maximum insertion force	.9452 N	.9452 N
Insulation resistance	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
JESD-609 code	e3	e3
MIL compliance	NO	NO
Manufacturer's serial number	85003	85003
Plug contact pitch	0.1 inch	0.1 inch
Match contact row spacing	0.2 inch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Loaded row name	A,C	A,B,C
PCB row number	3	3
Number of rows loaded	2	3
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm
Plating thickness	39u inch	39u inch
polarization key	ENDS	ENDS
Rated current (signal)	1.5 A	1.5 A
Guideline	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.118 inch	0.118 inch
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	64	96
UL Flammability Code	94V-0	94V-0
