85003-3017 datasheet, PDF - EEWORLD Datasheet

85003-3017: DescriptionBoard Euro Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size75KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

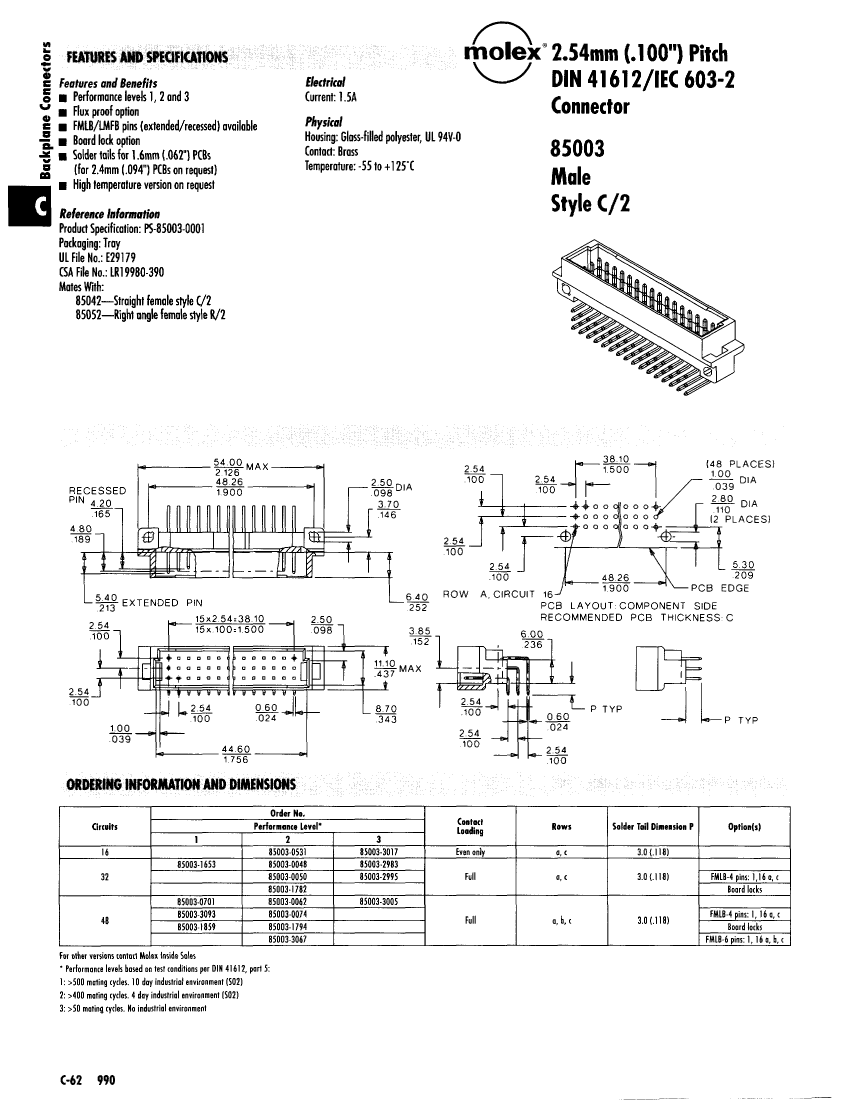

85003-3017 Overview

Board Euro Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARDS: DIN 41612; IEC 603-2
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
DIN compliance	YES
Filter function	NO
IEC compliance	YES
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	85003
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0

	85003-3017	85003-3005
Description	Board Euro Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal
Is it Rohs certified?	conform to	conform to
Maker	Molex	Molex
Reach Compliance Code	unknown	unknown
Other features	STANDARDS: DIN 41612; IEC 603-2	STANDARDS: DIN 41612; IEC 603-2
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	MALE	MALE
Contact material	BRASS	BRASS
DIN compliance	YES	YES
Filter function	NO	NO
IEC compliance	YES	YES
JESD-609 code	e3	e3
MIL compliance	NO	NO
Manufacturer's serial number	85003	85003
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of rows loaded	2	3
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	16	48
UL Flammability Code	94V-0	94V-0
