DRACN Series
• 6.2mm Din-Rail Mount (35 mm) SSR Assembly
• Ratings 24VDC @ 3.5A, 48VDC @ 100mA and 240VAC @ 2A
• UL & cUL recognized @ 40°C, 100K-Cycle Endurance Test (SSR Only)
• AC output SSR is UL rated for Pilot Duty @ 240VAC
• CE & RoHS Compliant
• Yellow LED input status indicator
• 5 & 24 VDC Control

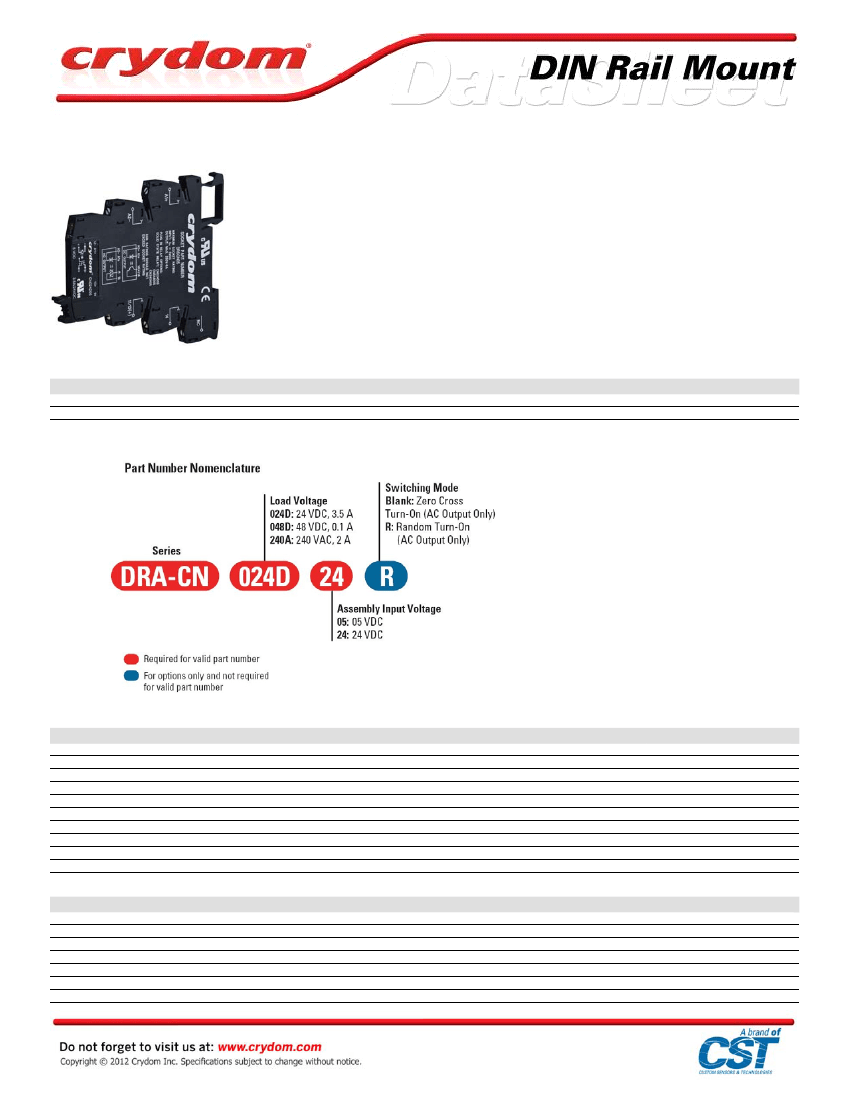

PRODUCT SELECTION
Description
3-12 VDC
15-30 VDC
3.5 A
DRA-CN024D05
DRA-CN024D24
100 mA
DRA-CN048D05
DRA-CN048D24
2A
DRA-CN240A05
DRA-CN240A24
AVAILABLE OPTIONS
OUTPUT SPECIFICATIONS (1)
Description
Operating Voltage
Maximum Load Current @ 40°C (2)
Minimum Load Current [mA]
Maximum Blocking Voltage
Maximum Surge Current [Apk]
Maximum I²t for fusing 50/60Hz (1/2 cycle) [A² sec]
Typical On-State Voltage Drop @ Rated Current (V)
Maximum Off-State Leakage Current @ Rated Voltage [mA]
Maximum PWM (Hz) (3)
Switch Configuration
DRA-CN024DXX
0-24 VDC
3.5 A
1
30 VDC
9 A (10 ms)
N.A.
0.4
0.001
500
N.O.
DRA-CN048DXX
0-48 VDC
100 mA
1
60 VDC
300 mA (10 ms)
N.A.
1.0
0.001
500
N.O.
DRA-CN240AXX
24-250 VAC
2A
70
600 VAC
120/115 A (16.6/20 ms)
285/260
1.1
4.0
N.A.
N.O.
INPUT SPECIFICATIONS for CN024 (1)
Description
Control Voltage Range
Must Turn On Voltage
Must Turn Off Voltage
Nominal Input Impedance
Typical Input Current
Typical Turn-On Time
Typical Turn-Off Time
DRA-CN024D05
3-12 VDC
3.0 VDC
1.0 VDC
500 Ohm
10 mA @ 5.0 VDC
120 µs
100 µs
DRA-CN024D24
15-30 VDC
15 VDC
5 VDC
2.67K Ohm
9 mA @ 24 VDC
350 µs
80 µs
INPUT SPECIFICATIONS for CN048 (1)
Description
Control Voltage Range
Must Turn On Voltage
Must Turn Off Voltage
Nominal Input Impedance
Typical Input Current
Typical Turn-On Time
Typical Turn-Off Time
DRA-CN048D05
3-12 VDC
3.0 VDC
1.0 VDC
833 Ohm
6 mA @ 5.0 VDC
20 µs
130 µs
DRA-CN048D24
15-30 VDC
15 VDC
5 VDC
3.43K Ohm
7 mA @ 24 VDC
20 µs
130 µs
INPUT SPECIFICATIONS for CN240 (1)
Description
Control Voltage Range
Must Turn On Voltage
Must Turn Off Voltage
Nominal Input Impedance
Typical Input Current
Typical Turn-On Time
Typical Turn-Off Time
DRA-CN240A05
3-12 VDC
3.0 VDC
1.0 VDC
333 Ohm
15 mA @ 5.0 VDC
1/2 Cycle
1/2 Cycle
DRA-CN240A24
15-30 VDC
15 VDC
5 VDC
3.43K Ohm
7 mA @ 24 VDC
1/2 Cycle
1/2 Cycle
GENERAL SPECIFICATIONS
Description
Dielectric Strength, Input/Output (5)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (typical)
Housing Material
Overvoltage Category
Polution Degree
Degree of protection (SSR Encapsulation)
Max. Torque (output screws)
Max. Wire Size (load side)
Parameters
2.5 KV
1.5 pF
-25 to 60°C
-40 to 80°C
0.067 lb (31g)
UL 94 V0
lll
2
IP67
5-7 in lb (0.56-0.8 Nm)
24-14 AWG Solid or Stranded
GENERAL NOTES
(1) All parameters at 25°C unless otherwise specified.
(2) See derate curves for more information
(3) Operating frequency above 500Hz will damage the SSR (DC output only).
(4) Turn-on time for random turn-on version is 0.1msec
(5) 3.75KV for CN048Dxx

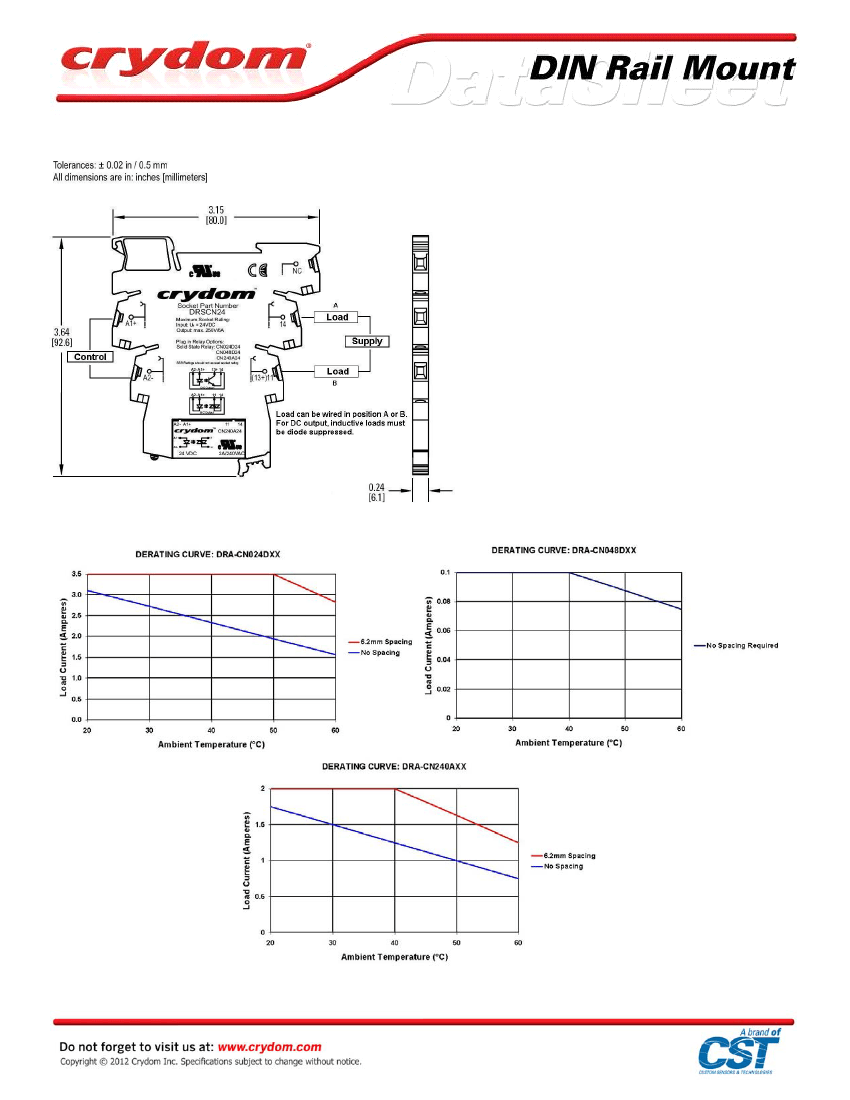

MECHANICAL SPECIFICATIONS
THERMAL DERATE INFORMATION
AGENCY APPROVALS
Designed in accordance with the requirements of IEC 62314
E334072. AC output relay is UL rated for Pilot Duty @ 240VAC
Rev. 052112

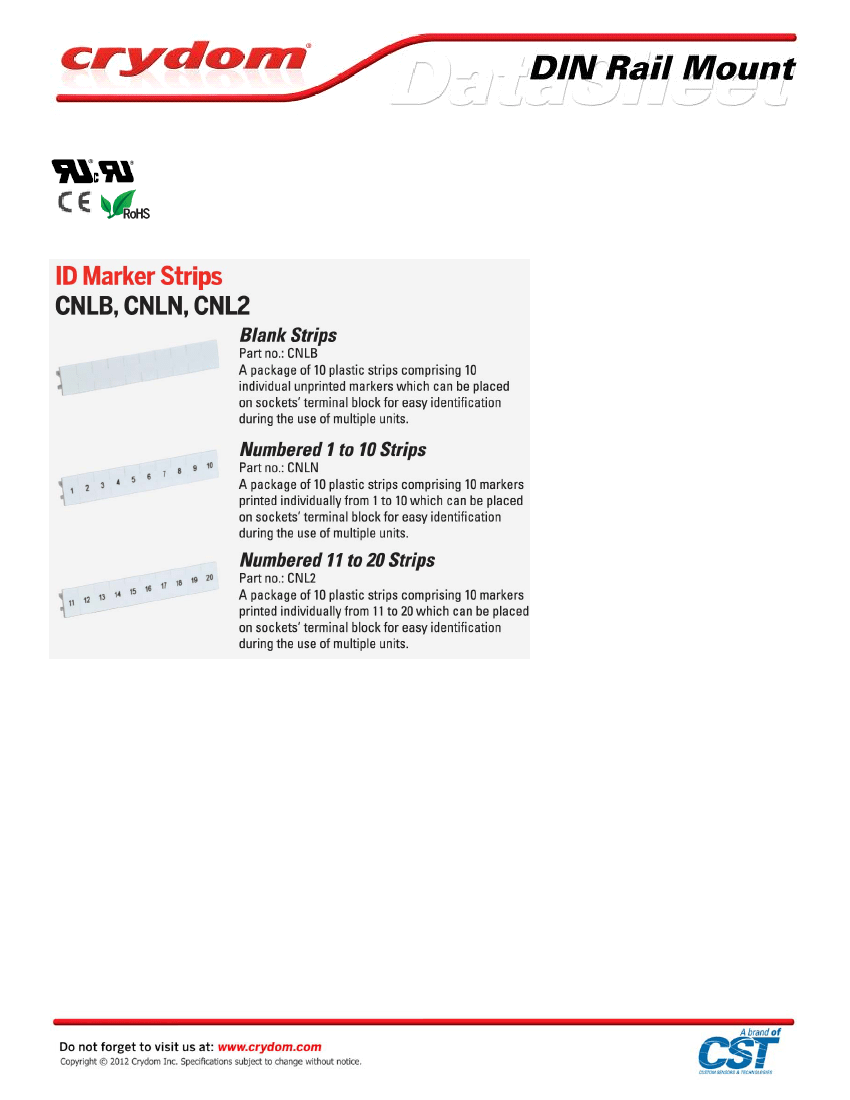

ACCESSORIES
