IXGH30N50A datasheet, PDF - EEWORLD Datasheet

IXGH30N50A: DescriptionInsulated Gate Bipolar Transistor, 50A I(C), 500V V(BR)CES, N-Channel; CategoryDiscrete semiconductor The transistor; File Size664KB，7 Pages; ManufacturerIXYS

Download Datasheet Parametric View All

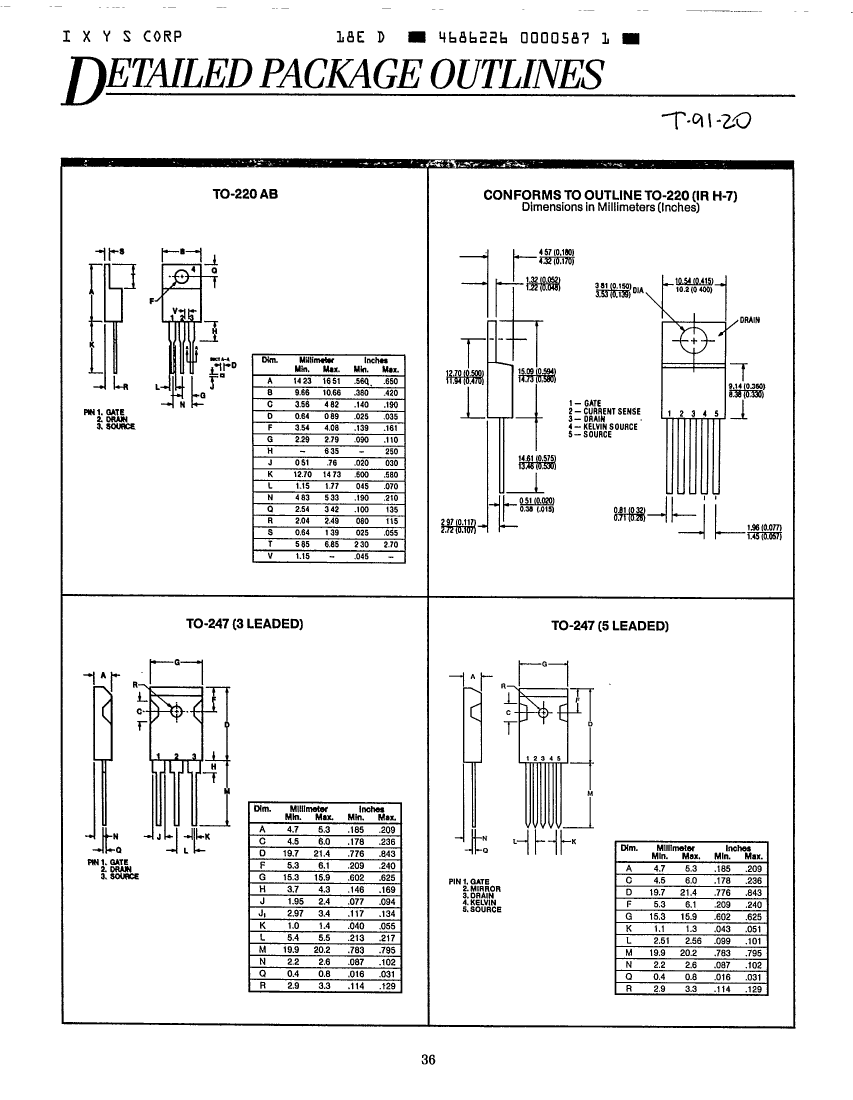

IXGH30N50A Overview

Insulated Gate Bipolar Transistor, 50A I(C), 500V V(BR)CES, N-Channel

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IXYS
Reach Compliance Code	unknown
Maximum collector current (IC)	50 A
Collector-emitter maximum voltage	500 V
Maximum landing time (tf)	500 ns
Gate emitter threshold voltage maximum	5 V
Gate-emitter maximum voltage	30 V
JESD-609 code	e0
Maximum operating temperature	150 °C
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	200 W
Maximum rise time (tr)	200 ns
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
