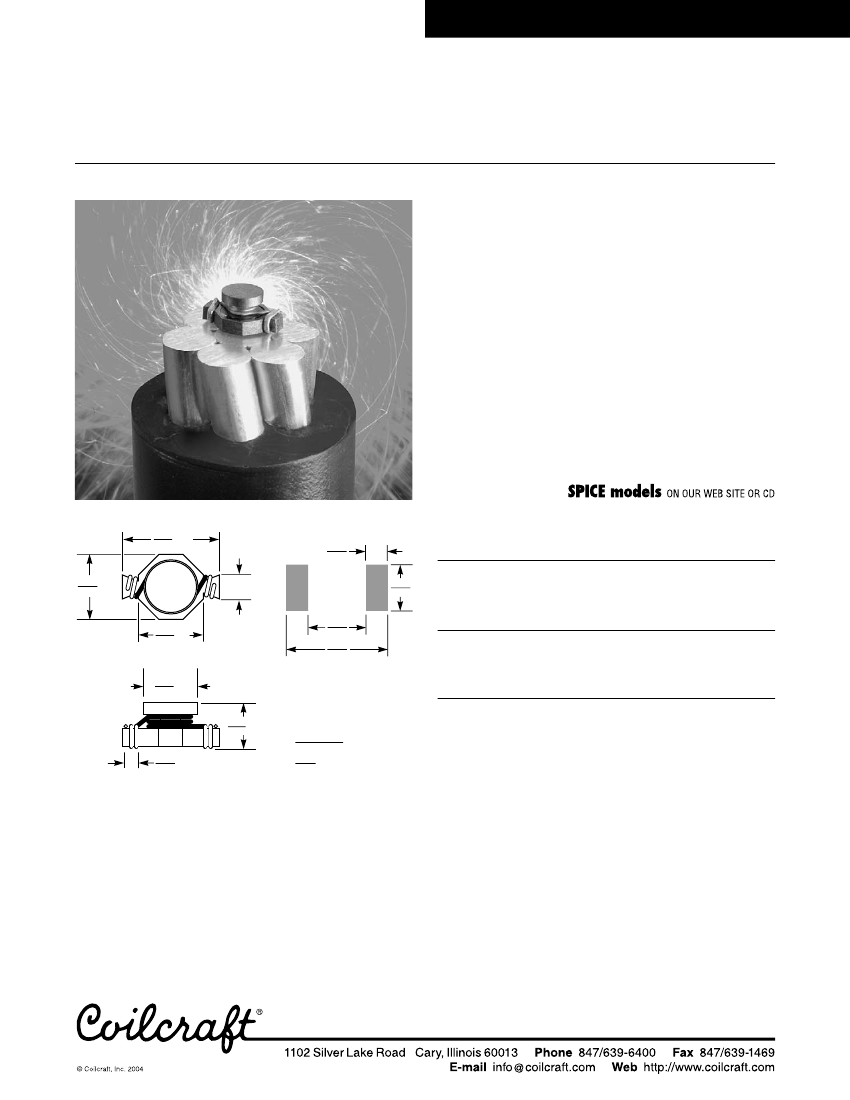

Document 207-1
SMT Power Inductors – DO1813HC Series
With rms current ratings up to 10 Amps, the DO1813HC
Series offers the high current, low inductance values
required for high power DC-DC applications.
These inductors are less than 0.2″ (5 mm) high. They
have very low resistance and a rugged self-leaded
construction.
Standard inductance values range from 0.18 to 48 µH
and custom values are available to meet specific
requirements.
Coilcraft
Designer’s Kit C131
contains samples of all
inductance values. To order, please contact Coilcraft or
order on-line at
http://order.coilcraft.com.
0.350 max
8,89
0.075
1,91
See
note
0.160
4,06
0.240 max
6,10
0.230 typ
5,84
0.200
5,08
0.350
8,89
0.180 dia
4,57
Recommended
Land Pattern
0.197
max
5,0
0.050
max
1,27
Note:
0.080 ±0.010
body
2,03 ±0,25
0.100
leads, based on -561HC
2,54
Part number
1
DO1813P-181HC
DO1813P-331HC
DO1813P-561HC
DO1813P-122HC
DO1813P-222HC
DO1813P-332HC
DO1813P-472HC
DO1813P-682HC
DO1813P-103HC
DO1813P-153HC
DO1813P-223HC
DO1813P-333HC
DO1813P-473HC
L
ref
(µH)
0.18
0.33
0.56
1.2
2.2
3.3
4.7
6.8
10.0
15.0
22.0
33.0
47.0
L typ DCR
SRF
±20%
2
max
typ
Isat
3
Irms
4
(µH) (Ohms) (MHz) (A)
(A)
0.18 0.003
800 14.0 10.0
0.33 0.004
600 10.0
7.0
0.56 0.010
200 7.7
6.0
1.15 0.017
140 5.3
4.4
2.06 0.035
100 3.5
3.1
3.20 0.040
80 3.0
2.7
4.70 0.054
50 2.6
2.2
6.80 0.080
45 2.2
1.8
9.55 0.11
40 1.9
1.5
15.3
0.17
30 1.5
1.2
22.6
0.25
25 1.2
1.0
32.5
0.35
20 0.99 0.82
48.1
0.47
15 0.87 0.72
Weight:
278 – 315 mg
Terminations:
Tin/lead over copper
Tape and reel:
1000/13″ reel 16 mm tape width
For packaging data see Tape and Reel Specifications section.
1. Part number on reel label may have a B suffix to indicate that reel is
not machine ready.

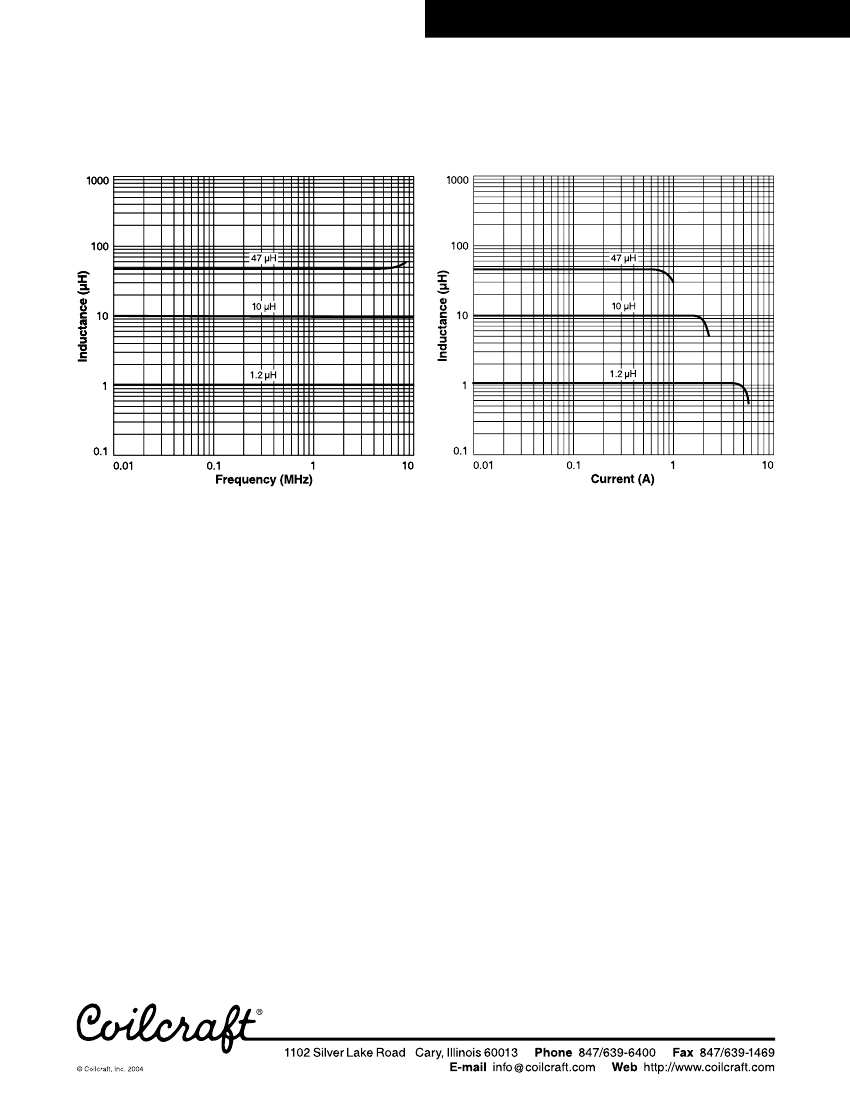

2. Inductance tested at 0.25 Vrms, 100 kHz, 0 Adc.
3. DC current at which the inductance drops 30% (typ) from its
value without current.
4. Average current for a 40°C rise above 25°C ambient.
5. Storage and operating temperature -55°C to +125°C.
6. Electrical specifications at 25°C.
See Qualification Standards section for environmental and test data.
Specifications subject to change without notice.
Please check our website for latest information. Document 207-1
Revised 04/28/04
