DLF1-28-3.0-100/A datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> DLF1-28-3.0-100/A

Preview

DLF1-28-3.0-100/A: DescriptionGeneral Purpose Inductor, 100uH, 15%, 1 Element,; CategoryPassive components inductor; File Size194KB，1 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/

Download Datasheet Parametric Compare View All

DLF1-28-3.0-100/A Overview

General Purpose Inductor, 100uH, 15%, 1 Element,

DLF1-28-3.0-100/A Parametric

Parameter Name	Attribute value
Maker	SCHURTER
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	0.07 Ω
Nominal inductance(L)	100 µH
Inductor Applications	DC-DC CONVERTER
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	DLF
Number of functions	1
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum rated current	3 A
self resonant frequency	7.5 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	NO
Terminal location	DUAL IN-LINE
Terminal shape	FLAT
Tolerance	15%

Preview

Download Datasheet

View All

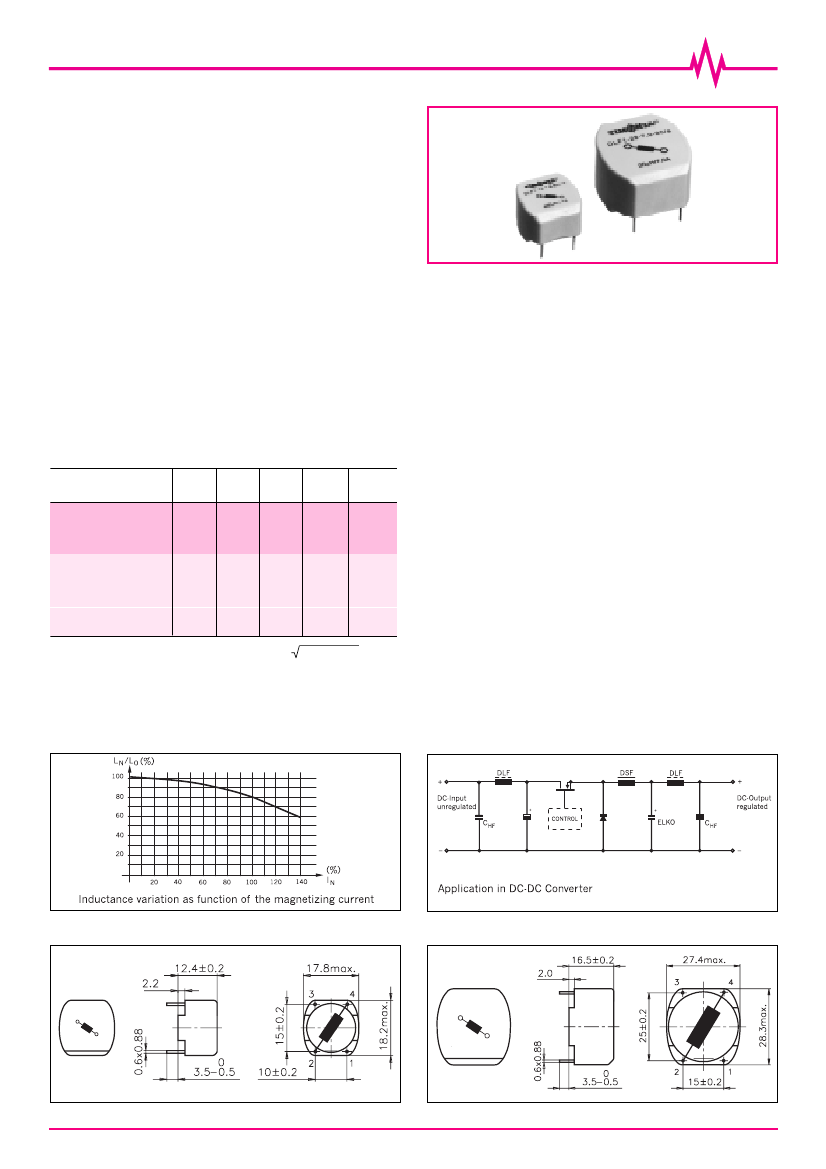

Linear Chokes

DLF

Series, flat housing

Nominal current:

Nominal inductance:

Max. working voltage:

Application range:

Isolation voltage:

Climatic category:

Plastic case:

Potting resin:

0.6 - 7 A @

ϑ

a 70°C

15 - 3000

µ

H/tol. ± 15%

600 VDC

up to 20 kHz

2 kV eff. / wdg.-ambient

40/125/21 acc. to IEC 60068-1

UL 94 V-0

All types of chokes correspond to the international specifications for

radio interference chokes (EN 138100).

This range of chokes enables horizontal mounting, thus reducing the height

of the mounted circuit. Finest quality core materials allow the highest

electrical performance with minimum component volume. Good design

with easy assembly allows good cost/performance ratios.

This type of choke is essential in the field of power electronics, e.g. switching

power supplies, chopper amplifiers, DC drives and stepper motor controls.

DLF

Linear chokes are mainly used as smoothing or RFI suppres-

sion circuits.

Environmental Ratings:

The

DLF chokes

can only be used with direct current or with low

frequency alternating current (max. 400 Hz) and up to max I

N

•

1.1.

They operate only as attenuation devices for HF-interference with

reduced amplitude (DI << I

N

) up to the range of their self-reso-

nance (∼f

Res

).

SMD-version upon request.

Technical Data

Type

DLF1-18-0.6-650/a

DLF1-18-1.5-110/a

DLF1-18-4.0-15/a

DLF1-28-0.6-3000/a

DLF1-28-1.0-1000/a

DLF1-28-1.5-500/a

DLF1-28-3.0-100/a

DLF1-28-7.0-20/a

I

N

(1)

[A]

L

N

(2)

[µH]

R

cu

(3)

[mΩ]

[MHz]

∼

f

Res

Case

04-1

15-1

0.6

1.5

4.0

0.6

1.0

1.5

3.0

7.0

650

110

15

3000

1000

500

100

20

690

150

17

1700

550

270

70

13

1

8

28

0.3

0.8

1.2

7.5

20

(125-ϑa)/55

(1)

@

ϑa

70°C; current derating over 70°C: I = I

N

x

(2)

Nominal inductance measured according to EN 138100,

(3)

Resistance @

ϑa

25°C

see introduction of this catalog, paragraph 3.4

Typical curves

Application

Case 04-1

Case 15-1

20

DLF1-28-3.0-100/A Related Products

	DLF1-28-3.0-100/A	DLF1-28-0.6-3000/A	2589-218242	DLF1-18-0.6-650/A	DLF1-18-1.5-110/A	DLF1-18-4.0-15/A	DLF1-28-7.0-20/A	DLF1-28-1.5-500/A
Description	General Purpose Inductor, 100uH, 15%, 1 Element,	General Purpose Inductor, 3000uH, 15%, 1 Element,	Board Connector, 18 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle	General Purpose Inductor, 650uH, 15%, 1 Element,	General Purpose Inductor, 110uH, 15%, 1 Element,	General Purpose Inductor, 15uH, 15%, 1 Element,	General Purpose Inductor, 20uH, 15%, 1 Element,	General Purpose Inductor, 500uH, 15%, 1 Element,
Reach Compliance Code	compliant	compliant	unknown	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Manufacturer's serial number	DLF	DLF	2589	DLF	DLF	DLF	DLF	DLF
Maker	SCHURTER	SCHURTER	-	-	-	SCHURTER	SCHURTER	SCHURTER
DC Resistance	0.07 Ω	1.7 Ω	-	0.69 Ω	0.15 Ω	0.017 Ω	0.013 Ω	0.27 Ω
Nominal inductance(L)	100 µH	3000 µH	-	650 µH	110 µH	15 µH	20 µH	500 µH
Inductor Applications	DC-DC CONVERTER	DC-DC CONVERTER	-	DC-DC CONVERTER	DC-DC CONVERTER	DC-DC CONVERTER	DC-DC CONVERTER	DC-DC CONVERTER
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	-	1	1	1	1	1
Number of terminals	4	4	-	4	4	4	4	4
Maximum operating temperature	125 °C	125 °C	-	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum rated current	3 A	0.6 A	-	0.6 A	1.5 A	4 A	7 A	1.5 A
self resonant frequency	7.5 MHz	0.3 MHz	-	1 MHz	8 MHz	28 MHz	20 MHz	1.2 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	-	NO	NO	NO	NO	NO
surface mount	NO	NO	-	NO	NO	NO	NO	NO
Terminal location	DUAL IN-LINE	DUAL IN-LINE	-	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE
Terminal shape	FLAT	FLAT	-	FLAT	FLAT	FLAT	FLAT	FLAT
Tolerance	15%	15%	-	15%	15%	15%	15%	15%
