Electrical / Environmental
•
•
•
•
•
•
Inductance Range
Standard Tolerance
Operating Temperature Range
Ambient Temperature, Maximum
Resistance to Solder Heat
Terminal Pull Strength, Minimum
1.0µH to 220µH
±10%(<3.3µH = ±20%)
-40°C to +105°C
80°C
260°C for 10 sec.
0.5 kg

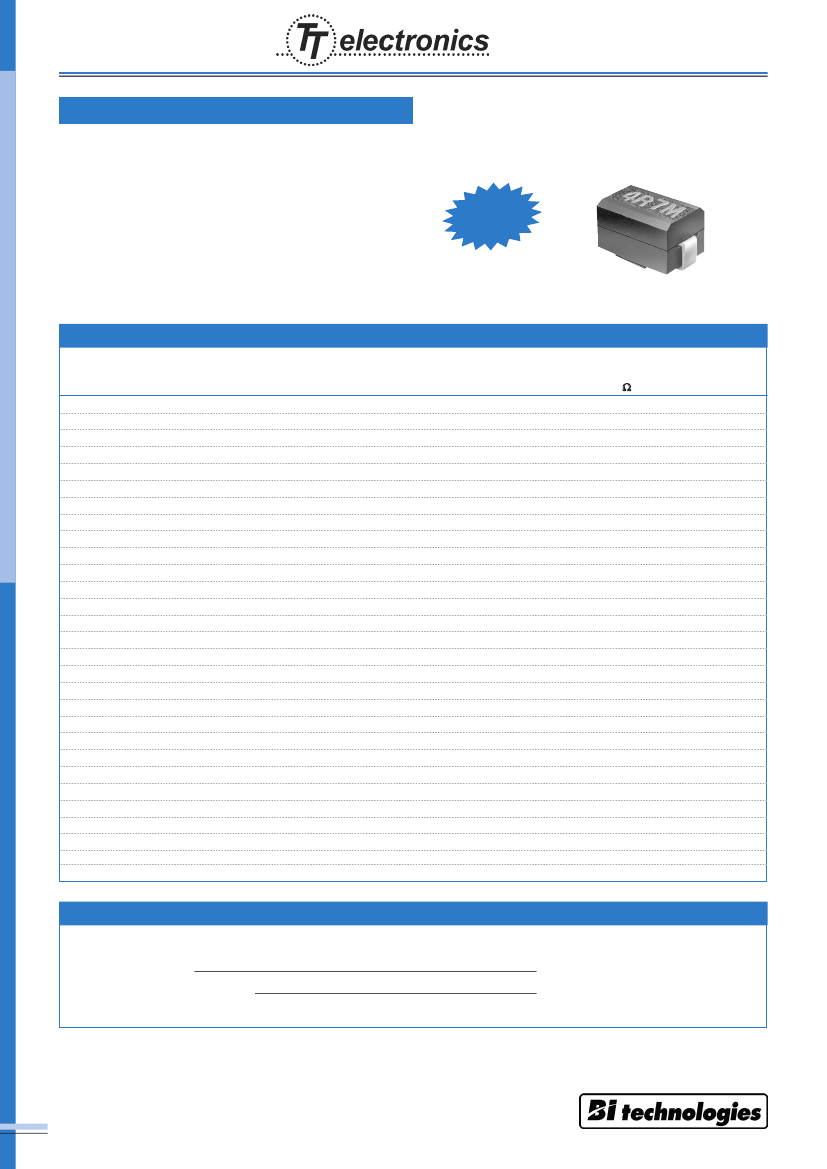

1210 Industry Size Surface Mount Inductors
BCL 322522
S
RoH
liant
mp
Co
Specifications
Part
Number
BCL322522-1R0MLF
BCL322522-1R2MLF
BCL322522-1R5MLF
BCL322522-1R8MLF
BCL322522-2R2MLF
BCL322522-2R7MLF
BCL322522-3R3KLF
BCL322522-3R9KLF
BCL322522-4R7KLF
BCL322522-5R6KLF
BCL322522-6R8KLF
BCL322522-8R2KLF
BCL322522-100KLF
BCL322522-120KLF
BCL322522-150KLF
BCL322522-180KLF
BCL322522-220KLF
BCL322522-270KLF
BCL322522-330KLF
BCL322522-390KLF
BCL322522-470KLF
BCL322522-560KLF
BCL322522-680KLF
BCL322522-820KLF
BCL322522-101KLF
BCL322522-121KLF
BCL322522-151KLF
BCL322522-181KLF
BCL322522-221KLF
Inductance
µH
1.0±20%
1.2±20%
1.5±20%
1.8±20%
2.2±20%
2.7±20%
3.3±10%
3.9±10%
4.7±10%
5.6±10%
6.8±10%
8.2±10%
10.0±10%
12.0±10%
15.0±10%
18.0±10%
22.0±10%
27.0±10%
33.0±10%
39.0±10%
47.0±10%
56.0±10%
68.0±10%
82.0±10%
100±10%
120±10%
150±10%
180±10%
220±10%
Q Min.
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
20
20
20
20
20
Test
Frequency
MHz
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
0.796
0.796
0.796
0.796
0.796
SRF
MHz Min.
120
100
85
80
75
70
60
55
50
45
40
35
30
20
20
20
20
20
17
16
15
13
12
11
10
8
8
6
6
DC
Resistance
W
Max
0.70
0.75
0.85
0.90
1.00
1.10
1.20
1.30
1.50
1.60
1.80
2.00
2.10
2.50
2.80
3.30
3.70
5.00
5.60
6.40
7.00
8.00
9.00
10.00
11.00
12.00
16.00
17.00
21.00
Rated
Current
IDC mA
400
390
370
350
320
290
260
250
220
200
180
170
150
140
130
120
110
80
70
65
60
55
50
45
40
70
65
60
50
Packaging
Standard:
Embossed Tape & Reel
Reel:
Diameter:
Capacity:
=
=
7” (177.8mm)
1000 Units
132
MAGNETIC COMPONENTS SELECTOR GUIDE 2009/10 EDITION
We reserve the right to change specifications without prior notice.
www.bitechnologies.com

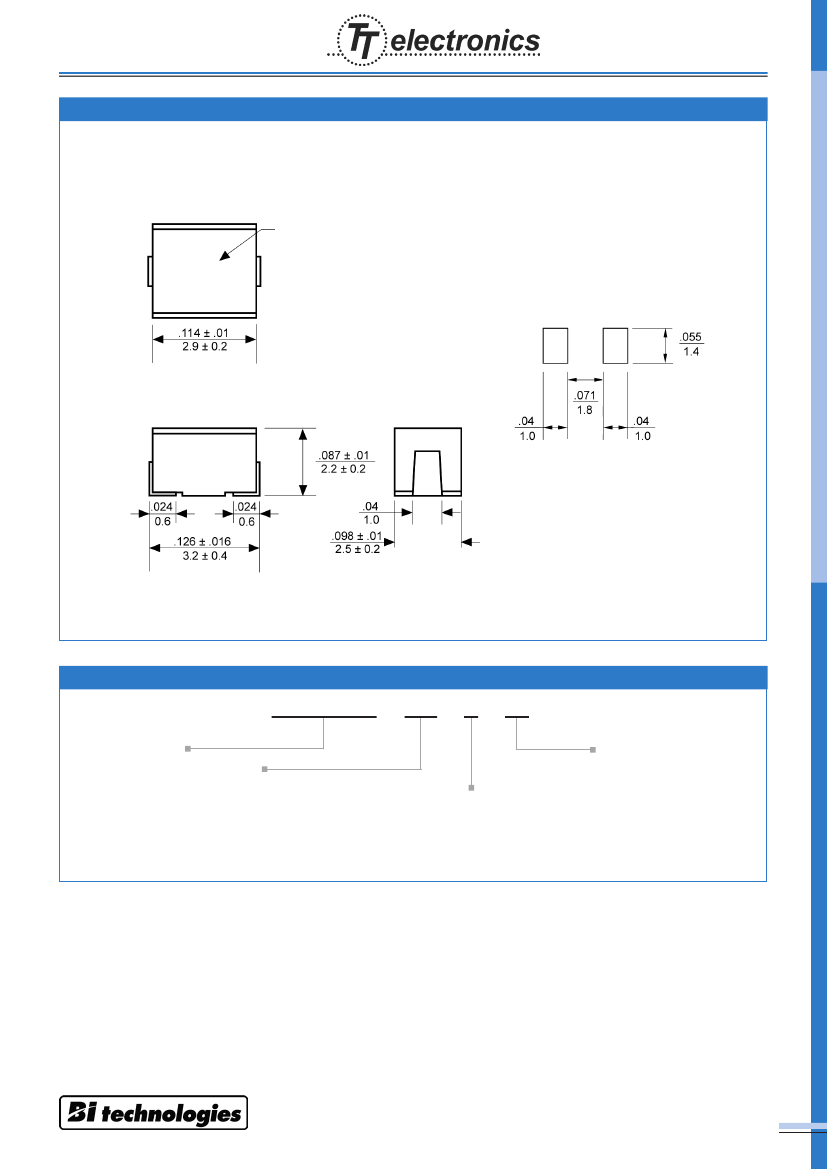

Outline Dimensions (Inch/mm)
Inductance Code
marked on this Surface
Recommended PCB Layout
Ordering Information
BCL322522 - 330
Model Series
Inductance Code:
First 2 digits are significant. Last digit
denotes the number of trailing zeros.
For values below 10µH, ‘R’ denotes
the decimal point.
K
LF
Lead-Free
Inductance Tolerance:
J = ±5% (Full inductance range)
K = ±10% (Full inductance range)
M = ±20% (Full inductance range)
www.bitechnologies.com
2009/10 EDITION MAGNETIC COMPONENTS SELECTOR GUIDE
133
We reserve the right to change specifications without prior notice.
