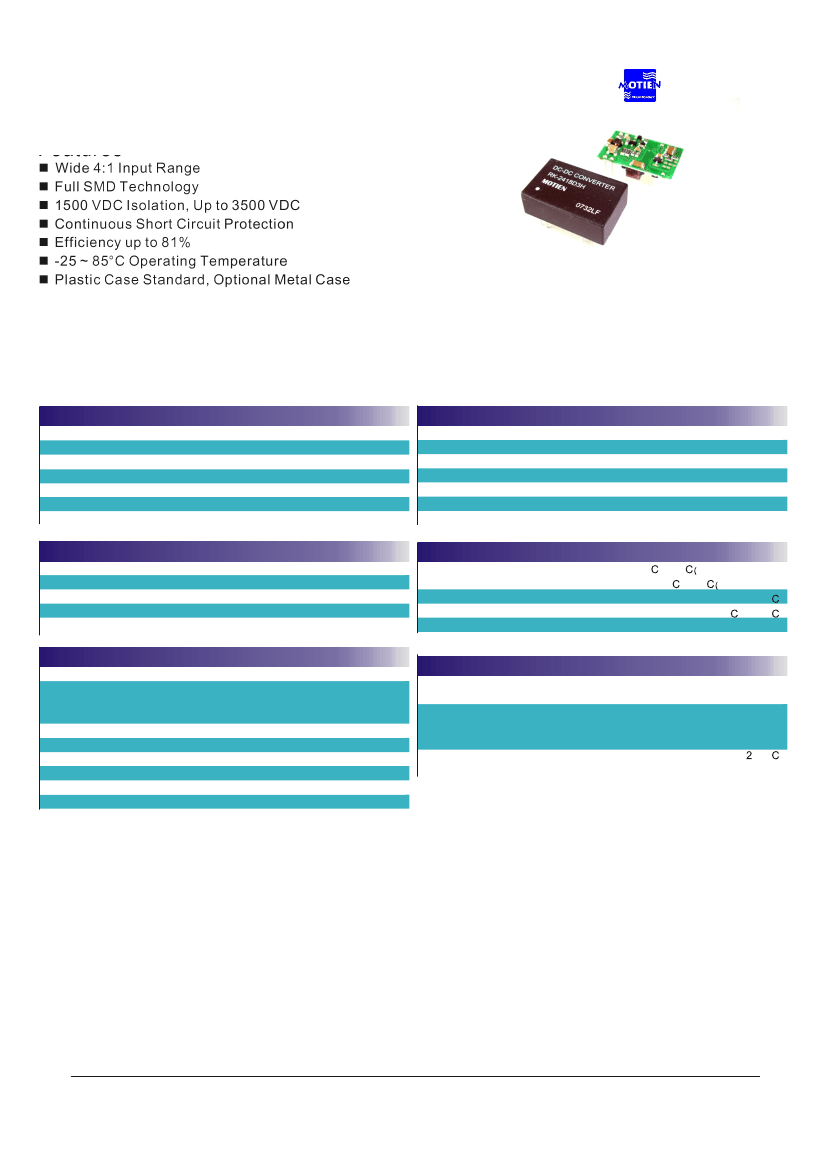

RK-5W Series
5W 4:1 Regulated Single & Dual output
Features
MOTIEN
TECHNOLOGY
he RK series is a family of cost effective 5W single & dual output DC-DC converters. These converters combine Plastic case in a 24-pin
DIL package with high performance features such as 1500 VDC ~ 3500VDC input/output isolation voltage, continuous short circuit
protection with automatic restart and tight line / load regulation. Devices are encapsulated using flame retardant resin. Input voltages of 24
and 48 with output voltage of 3.3, 5, 12, 15,
±5, ±12
and
±15
Vdc. High performance features include high efficiency operation up to 81% and
output voltage accuracy of
±1%
maximum.
All specifications typical at Ta=25°C, nominal input voltage and full load unless otherwise specified
OUTPUT SPECIFICATIONS
Voltage accuracy
Line regulation
Load regulation
Ripple & noise
(20 MHz bandwidth)(1)
Short circuit protection
Temperature coefficient
Capacitor load
(2)
INPUT SPECIFICATIONS
Voltage Range
Max. Input Current
No-Load Input Current
Input Filter
Input Reflected Ripple Current
(3)
GENERAL SPECIFICATIONS
Efficiency
I/O Isolation Voltage
(3 sec)
Input/Output
Metal Case/Input & Output
I/O Isolation Capacitance
I/O Isolation Resistance
Switching Frequency
Humidity
Reliability Calculated MTBF
(MIL-HDBK-217 F)
Safety Standard :
(designed to meet)
±1%
±0.5%
±0.5%
60mV pk-pk
Continuous
±0.02%/°C
See table
PHYSICAL SPECIFICATIONS
Case Material
Non-conductive Black Plastic(UL94V-0 rated)
Nickel-coated Copper
Non-conductive Black Plastic(UL94V-0 rated)
Base Material
¨0.5mm
Brass Solder-coated
Pin Material
Potting Material
Epoxy (UL94V-0 rated)
Weight
12.5g(Plastic Case)/15.0g(Metal
Case)
Dimensions
1.25”x0.8”x0.4”
ENVIRONMENT SPECIFICATIONS
Operating Temperature
-25° ~85°
See Derating Curve)
-25° ~71°
For 100% load)
Maximum Case Temperature
100°
Storage Temperature
-40° ~125°
Cooling
Nature Convection
T
See table
See table
See table
PI Type
35mA pk-pk
See table
, typ
1500~3500Vdc
1000Vdc
500 pF Typ.
1000M Ohm
100~400kHz
95% rel H
>2.199 Mhrs
IEC 60950-1
ABSOLUTE MAXIMUM RATINGS
(4)
These are stress ratings. Exposure of devices to any of these
conditions may adversely affect long-term reliability.
Input Voltage
(100mS)
-0.7~40 Vdc
24 Modes
-0.7~80 Vdc
48 Modes
60°
Soldering Temperature
(1.5mm from case 10 sec.)
The information and specifications contained in this data sheet are believed to be correct at time of publication. However,
MOTIEN Technologies
accepts no responsibility
for consequences arising from printing errors or inaccuracies. Specifications are subject to change without notice. No rights under any patent accompany the sale of any
such product(s) or information contained herein.
1
RK - 5W 4:1 Regulated Single & Dual output
PART NUMBER STRUCTURE
Derating Curve
R K - 24 05 S 5 H M
Series Name
Input Voltage Range
24
- 9 ~ 36V
48
- 18 ~ 72 V
5 Watt
Metal Case.
Optional, if no suffix " M"
mean plastic Case
3.5KVdc Isolation.
Optional, if no suffix "H"
mean1.5KVdc Isolation
100%
OUTPUT POWER
75%
50%
Output Type
S
- Single output
D
- Dual Output
S.O.A.
S.O.A.
-15
0
20
40
60
71
80
100
120
AMBIENT TEMPERATURE(°
25%
Output Voltage
3R3-
3.3 V
5
- 5V
12
- 12V
15
- 15V
-25
MODEL SELECTION GUIDE
MODEL NUMBER
RK-243R3S5
RK-2405S5
RK-2412S5
RK-2415S5
RK-2405D5
RK-2412D5
RK-2415D5
RK-483R3S5
RK-4805S5
RK-4812S5
RK-4815S5
RK-4805D5
RK-4812D5
RK-4815D5
INPUT
Voltage Range
(Vdc)
9-36
9-36
9-36
9-36
9-36
9-36
9-36
18-72
18-72
18-72
18-72
18-72
18-72
18-72
INPUT Current
No-Load
Full Load
(mA)
(mA)
20
236
20
20
20
20
20
20
15
15
15
15
15
15
15
278
258
260
278
260
263
121
141
136
136
145
138
138
OUTPUT
Voltage
(Vdc)
3.3
5
12
15
5
12
15
3.3
5
12
15
5
12
15
OUTPUT Current
Min. load
Full load
(mA)
(mA)
300
1200
250
105
84
125
53
42
300
250
105
84
125
53
42
1000
416
333
500
208
166
1200
1000
416
333
500
208
166
EFFICIENCY
@FL(%)
70
75
81
80
75
80
79
68
74
77
77
72
76
76
Capacitor
Load(uF)
2200
1000
470
330
470
100
68
2200
1000
470
330
470
100
68
Suffix
“H”
means 3.5KVdc isolation
Suffix
“M”
means Metal Case instead of standard Plastic case
NOTE
1.
2.
3.
4.
5.
6.
Typical value at nominal input voltage and full load.
Test by nominal input voltage and constant resistor load.
Measured Input reflected ripple current with a simulated source inductance of 12uH.
Exceeding the absolute ratings of the unit could cause damage. It is not allowed for continuous operating.
Operation under no-load conditions will not damage these devices, however they may not meet all listed specifications.
It’s necessary to add minimum capacitor in output for some models, please check single model datasheet for detail value.
The models listed above is just for standard type. If you need the special specification product, please contact our service member by telephone presented in shortform cover or e-mail
to : sales@motien.com.tw
2
RK - 5W 4:1 Regulated Single & Dual output
MECHANICAL SPECIFICATIONS
31.75
(1.25)
Printed Face
10.16
(0.40)
PIN CONNECTIONS
PIN NUMBER
2
SINGLE
V Input
V Input
N.P.
N.C.
DUAL
V Input
V Input
Common
V Output
+V Output
Common
20.32
(0.80)
DC-DC CONVERTER
RK-XXXXXX
MOTIEN
d/c
3.05
(0.12)
Min.
3
9
22.86
(0.9)
0.50
(0.02)
2 3
9
11
11
14
16
22
23
Bottom View
23 22
16
14
15.24
(0.60)
24 Pin DIL Package
Non-Conductive Plastic
Notes: All dimensions are typical in millimeters ( inches ).
1. Pin diameter: 0.5
±0.05
( 0.02
±0.002
)
2. Pin pitch tolerance:
±0.35
(
±0.014
)
3. Case Tolerance:
±0.5
(
±0.02
)
+
V Output
V Output
+
V Input
+
V Input
+
V Input
+
V Input
0.50
(0.02)
5.08
(0.20)
The Pin Connection of high isolation one is the same with normal one.
MECHANICAL SPECIFICATIONS
31.75
(1.25)
22.86
(0.9)
PIN CONNECTIONS
9
11
15.24
(0.60)
DC-DC CONVERTER
RK-XXXXXXM
MOTIEN
d/c
Printed Face
DIA
0.50
(0.02)
2 3
PIN NUMBER
2
3
9
11
SINGLE
V Input
V Input
N.P.
N.C.
DUAL
V Input
V Input
Common
V Output
+V Output
Common
20.32
(0.8)
Bottom View
23 22
16
14
Built-in stand-offs
to ease PCB cleaning
2.54
(0.10)
10.16
(0.40)
For
“M” Case
Min.
14
16
22
23
+
V Output
V Output
3.05
(0.12)
24 Pin DIL Package
Nickel-Coated Copper
Notes: All dimensions are typical in millimeters ( inches ).
1. Pin diameter: 0.5
±0.05
( 0.02
±0.002
)
2. Pin pitch tolerance:
±0.35
(
±0.014
)
3. Case Tolerance:
±0.5
(
±0.02
)
+
V Input
+
V Input
+
V Input
+
V Input
The Pin Connection of high isolation one is the same with normal one.
