BSS333 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> BSS333

BSS333: DescriptionGeneral Purpose Inductor, 33000uH, 20%, Ferrite-Core,; CategoryPassive components inductor; File Size17KB，1 Pages; ManufacturerWilco Corporation

Download Datasheet Parametric Compare View All

BSS333 Overview

General Purpose Inductor, 33000uH, 20%, Ferrite-Core,

BSS333 Parametric

Parameter Name	Attribute value
Maker	Wilco Corporation
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Cylindrical
core material	Ferrite
DC Resistance	12.18 Ω
Nominal inductance(L)	33000 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Package diameter	7.62 mm
Package length	18.415 mm
Package form	Axial
method of packing	TR
series	BSS
Tolerance	20%

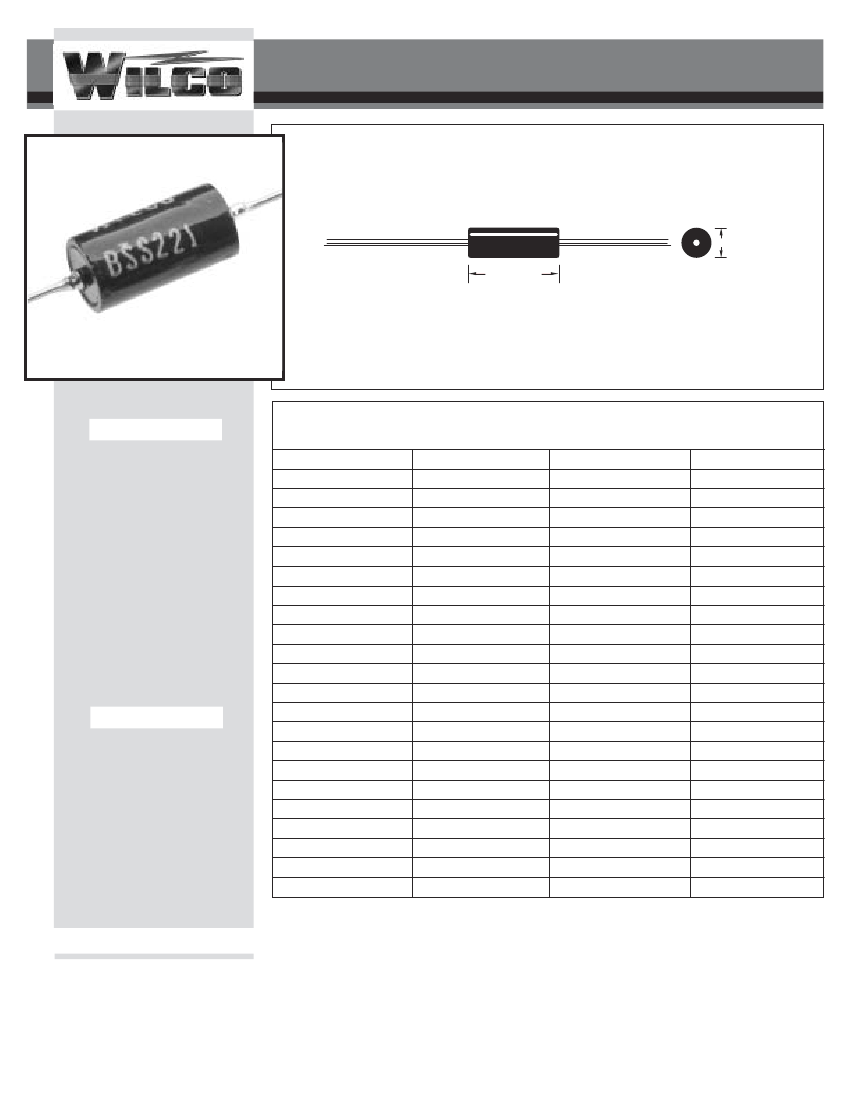

Preview

Download Datasheet

View All

HCF Series High Current Filters

BSS Series Small Shielded Inductors

BSL Series Large Shielded Inductors

MSB Series Shielded Inductors

ITL Series Toroidal Inductors

.300 MAX

.725

ITS Series Small

MAX

Toroidal Inductors

HFT Series Toroidal Inductors

TBM PCB Mount Toroids

FEATURES

• Available in a wide range of

inductance values.

• Small size make them

extremely useful

• Excellent low cost

alternative to fixed pot

cores.

• Magnetic shielding reduces

EMI

• Intermediate values

available

APPLICATIONS

• Low Level Power Supplies

• Compact Audio Filters

• Switching Circuits

• Telecommunications

• Tone Control Circuits

• Amplifiers

Wilco

Part Number

MAX DCR

(Ohms)

Suggested Rated

Current (AC Amps)

200 Series Choke Coils

BSS330

33 uH

BSS470

BSS680

BSS101

BSS151

BSS221

BSS331

BSS471

BSS681

BSS102

BSS222

BSS472

BSS103

BSS333

BSS473

BSS683

BSS104

BSS154

BSS224

BSS334

BSS474

BSS684

BSS105

47 uH

68 uH

100 uH

150 uH

220 uH

330 uH

470 uH

680 uH

1 mH

2.2 mH

4.7 mH

10 mH

33 mH

47 mH

68 mH

100 mH

150 mH

220 mH

330 mH

470 mH

680 mH

Inductance

FB Series Wide - Band Chokes

MF Series High Q Coils

MP Series Multi-PI Choke Coils

MU Series Miniature Universal Choke Coils

U Series Universal Wound Choke Coils

MM Series Choke Coils

CC Series Epoxy Conformal Coated Inductors

W Series Single Layer Solenoid Type Choke Coils

• Intermediate and Custom Inductance Values Available

• -55˚C to +100˚C

• 20% Tolerance

• Protective Tubing Optional

• Available Taped and Reeled

• Inductance measured at 1KHz

• Thermosetting varnish standard

• Not recommended for DC applications due to low saturation

.038

.040

.047

.054

.073

.082

.132

.170

.235

.400

.925

1.69

4.18

12.18

17.18

27.38

42.84

61.56

90.0

117.0

183.0

282.0

410.0

.707

.550

.437

.350

.224

.175

.110

.071

.058

.043

.034

.027

.022

.017

.014

.011

Wilco Corporation

6451 Saguaro Ct.

Indianapolis, IN 46268

Hotline 800•611•2343

Fax 317•293•9462

w w w. w i l c o c o r p. c o m

ML Series Miniature Layer Choke Coils

600 Series Choke Coils

L Series Single Layer Solenoid Type Choke Coils

AC Series Air Coils

BSS333 Related Products

	BSS333	BSS101	BSS334	BSS331	BSS680	BSS680-LF	BSS681-LF	BSS683	BSS684	BSS684-LF
Description	General Purpose Inductor, 33000uH, 20%, Ferrite-Core,	General Purpose Inductor, 100uH, 20%, Ferrite-Core,	General Purpose Inductor, 330000uH, 20%, Ferrite-Core,	General Purpose Inductor, 330uH, 20%, Ferrite-Core,	General Purpose Inductor, 68uH, 20%, Ferrite-Core,	General Purpose Inductor, 68uH, 20%, Ferrite-Core,	General Purpose Inductor, 680uH, 20%, Ferrite-Core,	General Purpose Inductor, 68000uH, 20%, Ferrite-Core,	General Purpose Inductor, 680000uH, 20%, Ferrite-Core,	General Purpose Inductor, 680000uH, 20%, Ferrite-Core,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
structure	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical
core material	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
DC Resistance	12.18 Ω	0.054 Ω	117 Ω	0.132 Ω	0.047 Ω	0.047 Ω	0.235 Ω	27.38 Ω	282 Ω	282 Ω
Nominal inductance(L)	33000 µH	100 µH	330000 µH	330 µH	68 µH	68 µH	680 µH	68000 µH	680000 µH	680000 µH
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package diameter	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Package length	18.415 mm	18.415 mm	18.415 mm	18.415 mm	18.415 mm	18.415 mm	18.415 mm	18.415 mm	18.415 mm	18.415 mm
Package form	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial
method of packing	TR	TR	TR	TR	TR	TR	TR	TR	TR	TR
series	BSS	BSS	BSS	BSS	BSS	BSS	BSS	BSS	BSS	BSS
Tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%	20%
Maker	Wilco Corporation	-	Wilco Corporation	Wilco Corporation	Wilco Corporation	Wilco Corporation	Wilco Corporation	Wilco Corporation	Wilco Corporation	Wilco Corporation
