TF-FSB-860B-A10-V datasheet, PDF

Datasheet> All Categories > TF-FSB-860B-A10-V

Preview

TF-FSB-860B-A10-V: DescriptionFull-Size SBC With Intel Pentium 4/ Celeron Socket 478 Processor; File Size292KB，2 Pages; ManufacturerAAEON; Websitehttp://www.aaeon.com

Download Datasheet Compare View All

TF-FSB-860B-A10-V Overview

Full-Size SBC With Intel Pentium 4/ Celeron Socket 478 Processor

Preview

Download Datasheet

View All

Full-Size SBCs (PICMG 1.0)

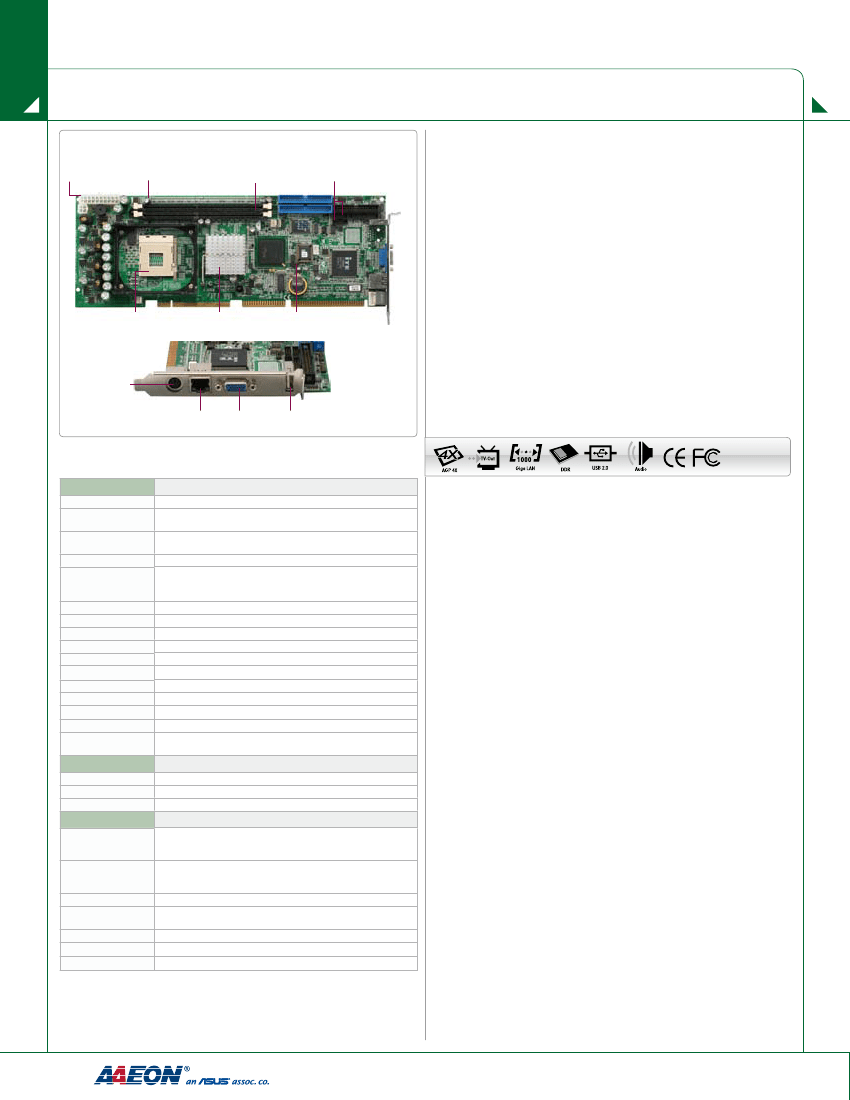

FSB-860B

Full-Size SBC With Intel® Pentium® 4/ Celeron® Socket 478 Processor

ATX Power Connector

DDR 266/ 333 184-pin

CompactFlash™ Socket (Back) DIMM up to 2 GB

USB2.0 Pin Header x 4

■

Intel® Pentium® 4/

Pentium

4 Socket 478

Intel® 845GV

Audio Pin Header

Celeron® Processor

■

Intel® 845GV + Intel® ICH4

■

DDR333 Memory Up To 2 GB

■

10/100/10000Base-TX Ethernet x 2 (Gigabit Ethernet Optional)

■

Integrated AGP 4X 2D/3D Graphics Accelerator

■

AC97 Codec Audio Daughter Board (Optional)

■

Ultra ATA100 x 2, CompactFlash™ Type 2 x 1

■

USB2.0 x 5, COM x 2, Parallel x 1, IrDA x 1

■

ISA, PCI Expansions

■

ATX 2.1

■

ISA High-driver Supports Up To 20 Slots 64mA Fan-out

■

PICMG 1.0

Features

Keyboard & Mouse

10/100/1000 LAN (Optional)

VGA

USB x 1

Specifications

System

Form Factor

Processor

System Memory

Chipset

Ethernet

BIOS

Expansion Interface

Watchdog Timer

RTC

Battery

Power Requirement

Operating Temperature

Board Size

Gross Weight

MTBF (Hours)

Power Consumption

(Typical)

PICMG Full-Size SBC

Intel® Pentium® 4/ Celeron® processor

FSB: 400/ 533 MHz

184-pin 2.5V DDR DIMM Socket x 2, up to 2 GB

Supports DDR 333 memory (DDR 266/333)

Intel® 845GV and Intel® 82801DB (ICH4)

Intel® 82562ET/82551QM: 10/100Base-TX

Intel® 82541GI: 10/100/1000Base-TX (optional)

RJ-45 x 2

Award Plug & Play FWH BIOS-4 Mb ROM

ISA/ PCI Connector

1~255 steps, and can be set with software on Super I/O

Internal RTC

Lithium battery

ATX 2.1

32°F ~ 140°F (0°C ~ 60°C )

13.3” (L) x 4.8” (W) (339mm x 122mm )

1.2 lb (0.5 kg)

75,000

58W, with Pentium® 4 2.4 GHz/ FSB 533 MHz/ 512 KB L2 Cache

Packing List

•

1701340704

Flat Cable, 34P, 70cm, Gray for Floopy Disk Drive

•

1701400453

Cable, 40P 2.54mm IDC w/—se w/Fold, 40P 2.54mm IDC with —se w/Fold, 45cm, Blue ATA-100

•

1709100201

USB Cable, 20cm 2.0mm, with Bracket

•

1700060192

Cable, 6P-6P-6P, 19cm, IVORY PS2/ Keyboard & Mouse

•

1701260307

Flat Cable, 9P/DB9P Male & 25P DB25P Female, 10P 2mm & 26P 2mm/ IDC — Fold, 30cm, with Bracket

•

1701100305

Flat Cable, 9P/DB9P Male, 10P/ 2.0mm Pitch/ IDC — Fold, 30cm, with Bracket

•

1703030501

Wire, 3P 2.5mm Housing, 3P 2.5mm Housing, 50cm

•

Product CD

•

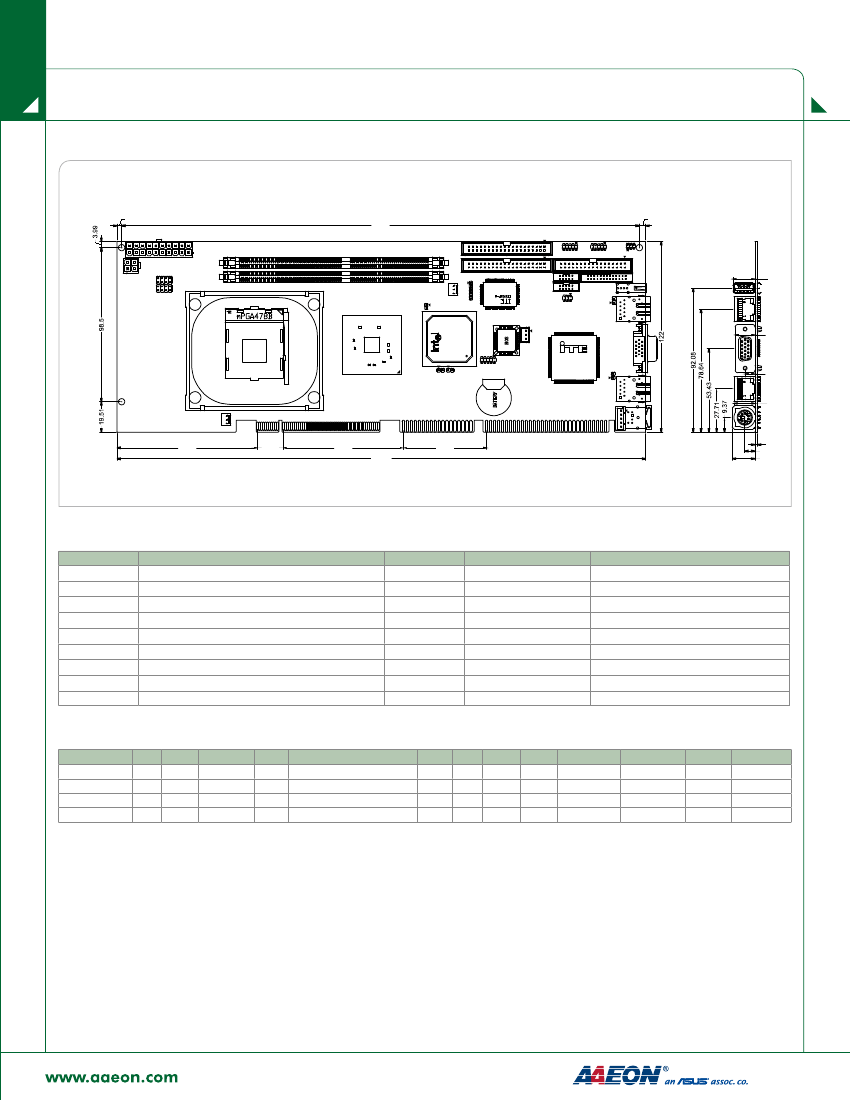

FSB-860B

Display

VGA Controller

Memory

Resolutions

Integrated Intel® 845GV, AGP 4X, Core™ frequency up to 266 MHz

Shared memory up to 32 Mb

Up to 2048 x 1536 for CRT

ITE IT8712 FA

ATA-100 x 2 channel (Support two ATAPI devices)

CompactFlash™ Type 2 x 1 (USB to IDE)

Standard Floppy connector x 1 (up to 2 devices)

COM x 2: (Internal pin header x 2)

COM 1: RS-232

COM 2: RS-232/ 422/ 485

Supports SPP/ EPP/ ECP mode

USB2.0 x 5

(Internal 5 x 2-pin header x 2, up to 4 USB, Type-A connector onboard x 1)

Keyboard x 1; Mouse x 1

Realtek ALC655 AC97 Codec, MIC-in/ Line-in/ Line-out/ CD-in

Supports IrDA header x 1

I/O

Storage

Serial Port

Parallel Port

Universal Serial Bus

PS/2 Port

Audio (Daughter Board)

IrDA

11-15

Note: All specifications are subject to change without notice.
