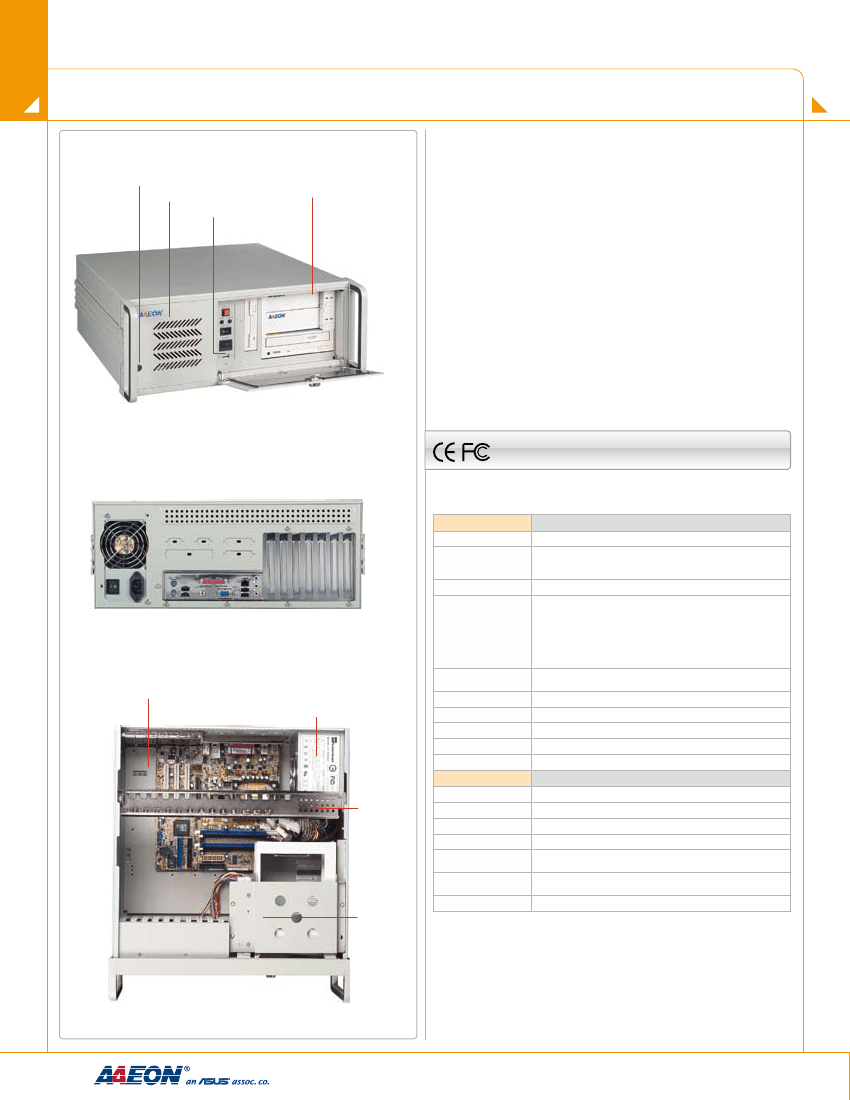

Industrial Chassis - Rackmount
ARC-640M
4U Rackmount Chassis, Industrial Main Board Support
Features
PS/2 Keyboard Connector
Air Filter
USB x 2
Drive Bays Support up to Three
5.25” and One 3.5” or 2.5”
Drive Bays
■
■
4U Height 19” Rackmount Chassis
■
■
Standard Motherboard ATX, Micro
ATX Form Factors
■
■
5.25” x 3 and 3.5” x 1 or 2.5” Front Accessible Disk Drive Bays
■
■
Internal 3.5” Disk Drive Bay For Hard Disk x 1
■
■
Lockable Door For Protecting The Running System
■
■
USB Port x 2 and Keyboard Connector x 1 On Front Panel
Specifications
System
Construction
Storage
Internal:
System Fan
Heavy-duty Steel
External:
3.5” Drive Bay x 1
5.25” Drive Bay x 3
3.5” Drive Bay x 1
12 cm Ball Bearing Fan with Removable Filter x 1
Power ON/OFF Switch x 1
Keyboard Lock Switch x 1
Reset Button x 1
Power ON LED x 1
Hard Disk Drive Active LED x 1
USB Port x 2
PS/2 Keyboard Connector x 1
AT Keyboard Connector x 1
Reserved Cut-out for DB-25 Connector x 1
White (Pantone 413C)
19” (W) x 19” (D) x 7” (H) (483 mm x 482mm x 177mm)
21.7” (W) x 24.9” (D) x 13” (H) (551mm x 633mm x 330mm)
31.9 lb (14.5 kg)
37.4 lb (17 kg)
Front Panel
Rear Panel
Supports 14-Slot PICMG Backplanes
PS/2 Or Mini
Redundant
Power Supply
Color
Dimensions
Carton Size
Net Weight
Gross Weight
Environmental
Operating Temperature
Hold-down
Bar
Storage Temperature
Operating Humidity
Storage Humidity
Vibration
Shock
EMC
One Internal
3.5” Drive Bay
32°F ~ 122°F (0°C ~ 50°C)
-4°F ~ 176°F (-20°C ~ 80°C)
10 ~ 90%
10 ~ 90% @ 40°C, non-condensing
0.5 g rms/ 5 ~ 500 Hz/ operation (2.5” Hard Disk Drive)
1.5 g rms/ 5~ 500 Hz/ non operation
15 G peak acceleration (11 m sec. duration), operation
30 G peak acceleration (11 m sec. duration), non operation
CE/FCC Class A
16-7
Note: All specifications are subject to change without notice.

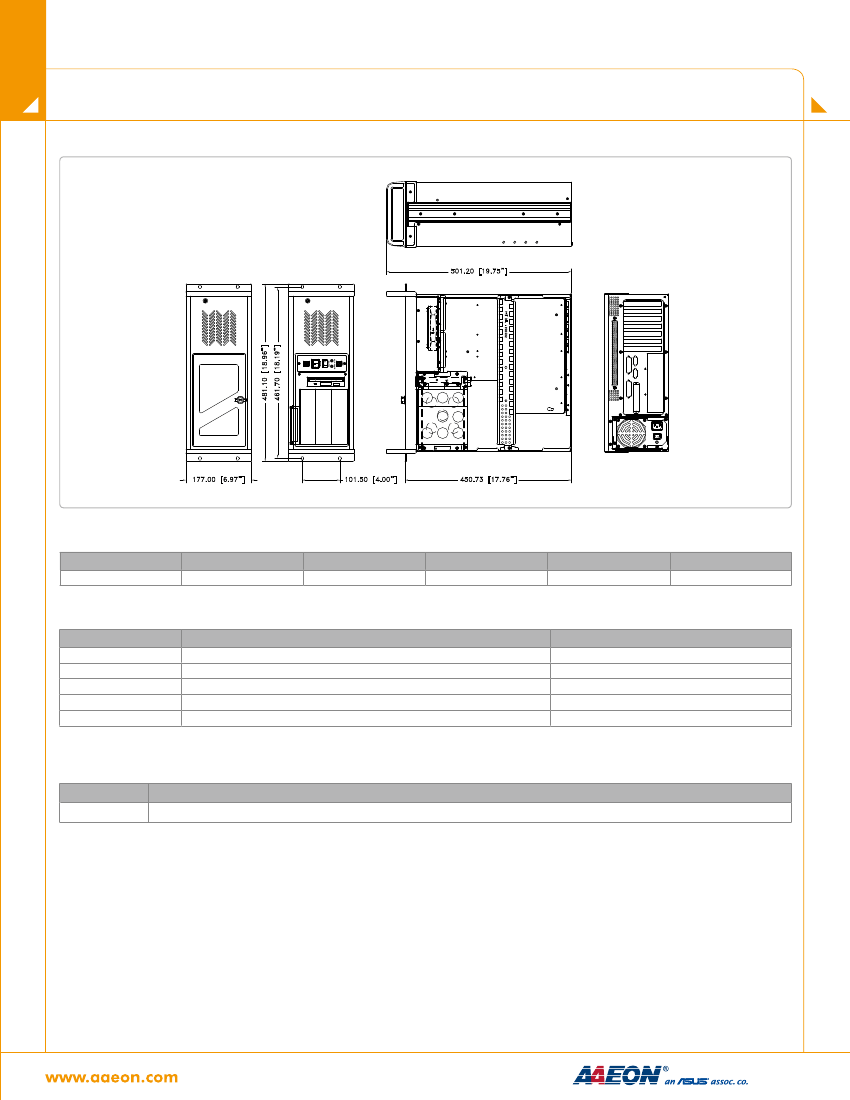

ARC-640M
Dimension
Unit: mm
Power Supply Options
P/N
1757940014
ATX
TYPE
PFC Support
Active PFC
Input Voltage
Auto 100-240V
400W
Watt
PS2
Size
Passive Backplane Options
CPU Card
TF-IMBA-967
TF-IMBA-910
TF-IMBA-880
TF-IMBM-935
TF-IMBM-700
CPU Level
Socket LGA1155, Intel® Core™ i3/i5/i7 CPU, TDP 95W
Socket LGA775, Intel® Pentium® D/ Core™ 2 Duo CPU, TDP 95W
Socket LGA775, Intel® Pentium® 4/ Celeron® D CPU, TDP 95W
Socket LGA775, Intel® Core™ 2 Duo/ Core™ 2 Quad, TDP 95W
VIA C7™ 1.0 GHz onboard (FSB 400 MHz)
Remark
Recommend with Min 400W Power Supply
Recommend with Min 400W Power Supply
Recommend with Min 400W Power Supply
Recommend with Min 400W Power Supply
Ordering Information
Model/Name
TF-ARC-640M-W-00
Description
Rackmount 4U Chassis, Bare for 14-Slot Backplane, Power PS2, PS_SW (ATX), Color:413C-03
16-8
