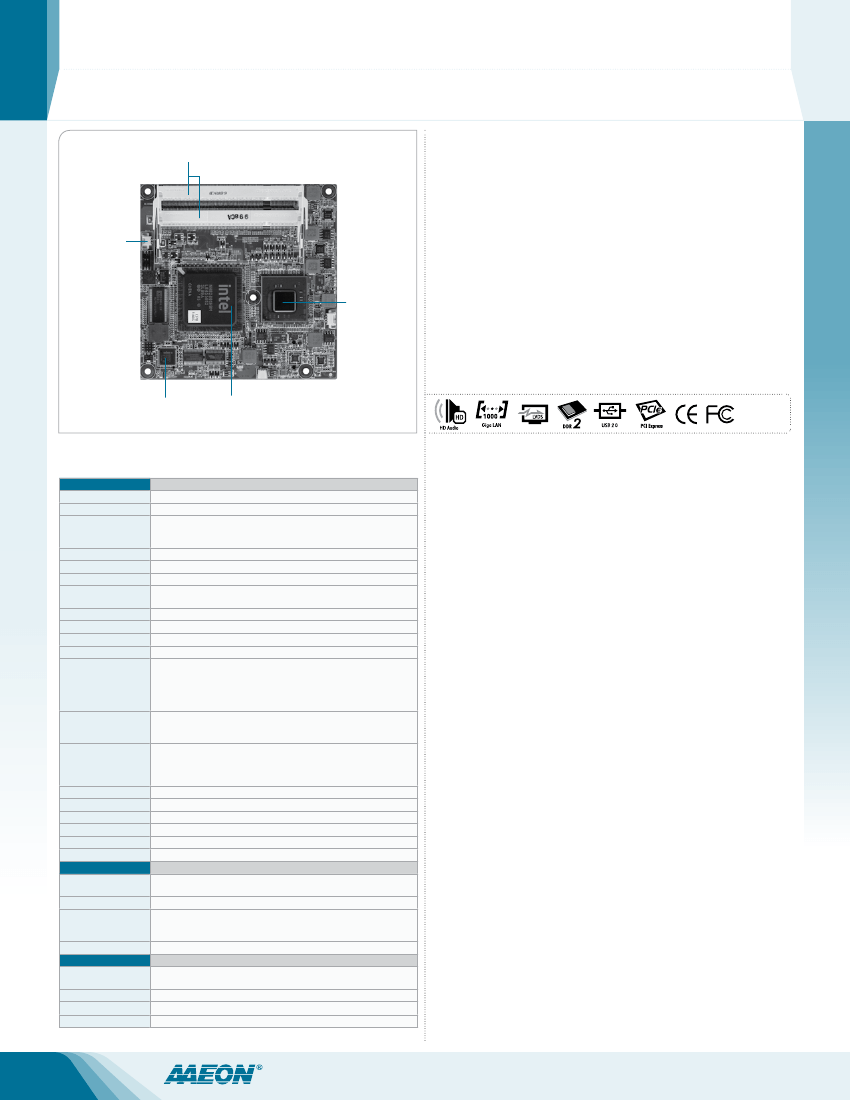

COM-LN A1.0
07
COM Express CPU Modules
I/O
Storage
USB
Audio
GPIO
PATA x 1 (Two devices)
SATA 3.0Gb/s x 3
USB2.0 x 8
High definition audio
Up to 4 in or 4 out
COM Express CPU Module With Onboard Intel® Atom™ N450/D410/D510 Processors
DDR2 SODIMM
Features
Onboard
Intel® Atom™ N450/D410/D510 Processors
Intel®
ICH8M
SODIMM
DDR2 533/667/800 Memory, Max. 4 GB
Gigabit
Ethernet
CRT,
18-bit Single-channel LVDS LCD
High
Definition Audio Interface
PATA
x 1, SATA 3.0Gb/s x 3
USB2.0
x 8
PCI
x 4, PCI-Express [x1] x 5 (x 6: Optional)
Wide
DC Input Range, +8.5V To +19V (Optional)
COM
Express Pin-out Type 2
Compact
Module Size, 95mm x 95mm, COM.0 Rev. 1.0/2.0
2-pin Wafer for
RTC Battery
Onboard Intel®
Atom™ N450/ D410/
D510
Intel® 82567V
Gigabit
Ethernet
Intel® ICH8M
Specifications
System
Form Factor
Processor
System Memory
I/O Chipset
Ethernet
TPM
BIOS
EEPROM
Wake on LAN
Watchdog Timer
H/W Status Monitoring
COM Express compact module, Pin-out Type 2, COM.0 Rev. 1.0/2.0
Onboard Intel® Atom™ N450/D410/D510 processors, 1.66 GHz
200-pin DDR2 SODIMM x 2
TF-COM-LN-A10: Max. 2 GB (DDR2 533/667)
TF-COM-LN-A10-01/-02: Max. 4 GB (DDR2 667/800)
ICH8M
Intel® 82567V, 10/100/1000Base-TX
—
AMI BIOS
SPI type, 2 MB ROM
Atmel AT24C02, save BIOS and configuration data (Optional)
Yes
Fintek F75111
Supports CPU temperature monitoring
PCI-Express [x1] x 5 (x 6: Optional, GbE on the module: Disabled)
32-bit PCI x 4
LPC bus x 1
SMBus x 1
I2C x 1
Wide DC input range, +8.5V to +19V (Optional)
Nominal: +12V
2-pin wafer for RTC battery
Intel® Atom™ D510 1.66 GHz, DDR2 667 2GB
1.08A @ +12V
0.74A @ +5V
w/ ECB-916M
3.74" (L) x 3.74" (W) (95mm x 95mm)
0.55 lb (0.25 Kg)
-40°F ~ 176°F (-40°C ~ 80°C)
0% ~ 90% Relative Humidity, Non-Condensing
90,000
Supports CRT/LCD simultaneous/ dual view displays
Intel® N450/ D410/ D510 integrated
Integrates hardware MPEG2 decoder
Shared system memory up to 384 MB/ DVMT 4.0
Up to 2048 x 1536 (QXGA) @ 60 Hz for CRT (D410/D510)
Up to 1400 x 1050 (SXGA) @ 60 Hz for CRT (N450)
Up to 1366 x 768 or 1280 x 800 (WXGA) for LCD
18-bit single-channel LVDS
Packing List
•
M2.5 Screw x 4
•
Product CD
•
COM-LN A1.0
Ordering Information
•
TF-COM-LN-A10
COM Express CPU Module Onboard Intel® Atom™ N450, Dual DDR2, Gigabit Ethernet, SATA, USB2.0,
Rev. A1.0
COM Express CPU Module Onboard Intel® Atom™ D510, Dual DDR2, Gigabit Ethernet, SATA, USB2.0,
Rev. A1.0
COM Express CPU Module Onboard Intel® Atom™ D410, Dual DDR2, Gigabit Ethernet, SATA, USB2.0,
Rev. A1.0
•
TF-COM-LN-A10-01
•
TF-COM-LN-A10-02
Expansion Interface
Optional Accessories
•
TF-ECB-916M-A21
•
TF-PER-A083
•
TF-PER-A084
•
TF-PER-A085
COM Express Carrier Board, microATX, 2 Gigabit Ethernet, 7.1CH Audio, 2 COM (Winbond), USB, PCI-
Express, AT/ATX, Rev.A2.1
CPU Cooler, For COM-LN, Onboard CPU, 12V Fan
Passive Heatsink, For COM-LN, Onboard CPU
Heat Spreader Kit, For COM-LN, Onboard CPU
Power Requirement
Power Consumption
(Typical)
Board Size
Gross Weight
Storage Temperature
Operating Humidity
MTBF (Hours)
Display
Chipset
Memory
Resolutions
LCD Interface
Operating Temperature 32°F ~ 140°F (0°C ~ 60°C)
07-11
Note: All specifications are subject to change without notice.
