M83446/05-47F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> M83446/05-47F

M83446/05-47F: DescriptionGeneral Purpose Inductor, 0.056uH, 10%, 1 Element, SMD, 1111, CHIP, 1111; CategoryPassive components inductor; File Size173KB，2 Pages; ManufacturerCoast Advanced Chip Magnetics

Download Datasheet Parametric Compare View All

M83446/05-47F Overview

General Purpose Inductor, 0.056uH, 10%, 1 Element, SMD, 1111, CHIP, 1111

M83446/05-47F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Coast Advanced Chip Magnetics
package instruction	1111
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	1111
structure	Chip
DC Resistance	0.09 Ω
Nominal inductance(L)	0.056 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Manufacturer's serial number	5000
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	2.159 mm
Package length	2.667 mm
Package form	SMT
Package width	2.794 mm
method of packing	TR
Minimum quality factor (at nominal inductance)	47
Maximum rated current	0.52 A
Guideline	M83446/05
self resonant frequency	900 MHz
series	5000
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	DUAL ENDED
Terminal shape	FLAT
Test frequency	100 MHz
Tolerance	10%

Preview

Download Datasheet

View All

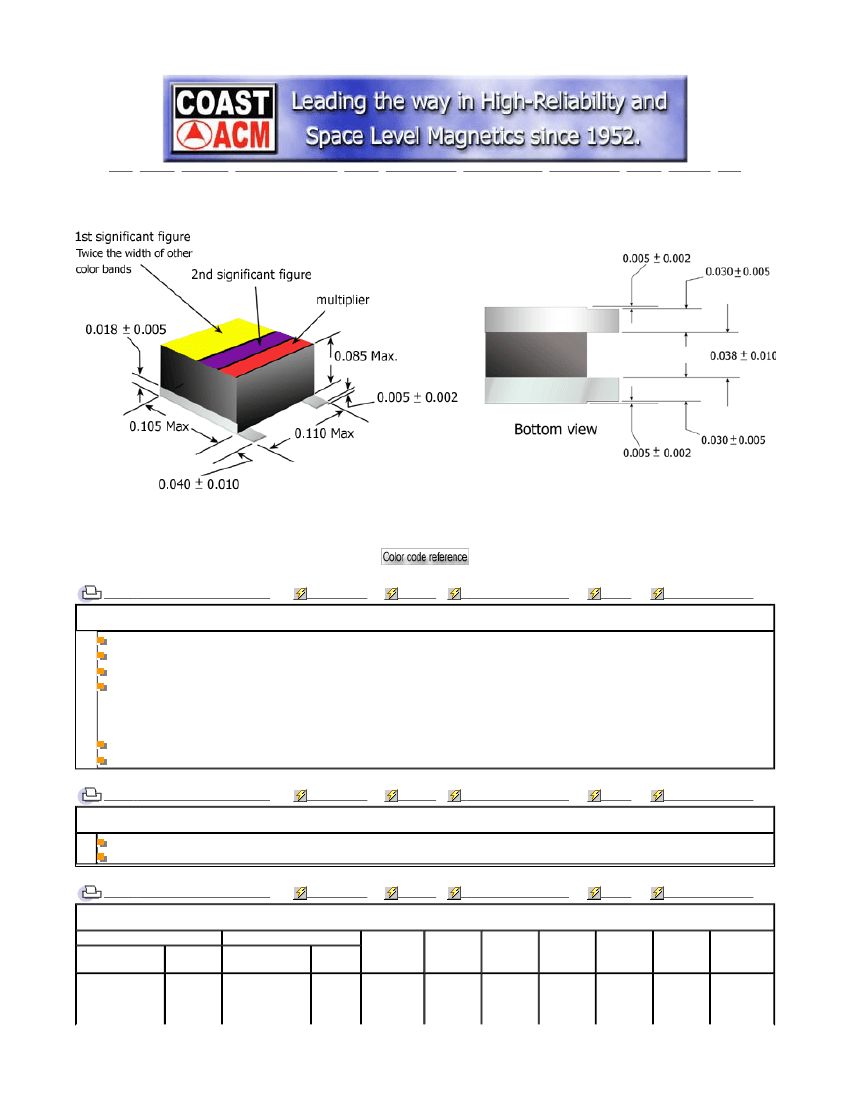

COAST / ADVANCED CHIP MAGNETICS - M83446

Page 1 of 2

MIL-Spec / QPL

5000 Series

Fixed Chip Inductors

M83446/5

Printer-friendly version in PDF format

Specifications

Features

Electrical Characteristics


VE Cross Reference

SPECIFICATIONS

Operating temperature range: -55°C to +125°C

Weight: 0.5 gram maximum.

Inductance requirement: Tighter tolerances and other inductance values on request.

Termination finish:

A: Gold.

F: Tin-lead.

Solderability per MIL-STD-202, Method 208.

Space Application: Available to MIL-STD-981.

Outgassing: TML < 1%.

Printer-friendly version in PDF format

Specifications

Features

Electrical Characteristics


VE Cross Reference

FEATURES

Military QPL Approved.

Pick-and-place compatible.

Printer-friendly version in PDF format

Specifications

Features

Electrical Characteristics


VE Cross Reference

ELECTRICAL CHARACTERISTICS

With Tabs

Without Tabs

Inductance

±10%

Mil Spec

C/ACM

Mil Spec

C/ACM

(µH)

Dash Number

P/N

Dash Number

P/N

M83446/05-01 5001 M83446/05-38 5038

0.010

M83446/05-02 5002 M83446/05-39 5039

0.012

M83446/05-03 5003 M83446/05-40 5040

0.015

min

typ

Test

freq

(MHz)

150

SRF

(min)

(MHz)

2000

1800

DCR

(max)

(Ohms)

0.025

0.040

Current

(max)

(mA)

750

http://www.coastacm.com/M5000Series.asp

19-Sep-2011

M83446/05-47F Related Products

	M83446/05-47F	M83446/05-49F	M83446/05-62F	M83446/05-43F	M83446/05-42F	M83446/05-45F
Description	General Purpose Inductor, 0.056uH, 10%, 1 Element, SMD, 1111, CHIP, 1111	General Purpose Inductor, 0.082uH, 10%, 1 Element, SMD, 1111, CHIP, 1111	General Purpose Inductor, 1uH, 10%, 1 Element, SMD, 1111, CHIP, 1111	General Purpose Inductor, 0.027uH, 10%, 1 Element, SMD, 1111, CHIP, 1111	General Purpose Inductor, 0.022uH, 10%, 1 Element, SMD, 1111, CHIP, 1111	General Purpose Inductor, 0.039uH, 10%, 1 Element, SMD, 1111, CHIP, 1111
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	1111	1111	CHIP, 1111	1111	1111	1111
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
uppercase and lowercase codes	1111	1111	1111	1111	1111	1111
structure	Chip	Chip	Chip	Chip	Chip	Chip
DC Resistance	0.09 Ω	0.11 Ω	0.65 Ω	0.04 Ω	0.04 Ω	0.07 Ω
Nominal inductance(L)	0.056 µH	0.082 µH	1 µH	0.027 µH	0.022 µH	0.039 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0	e0	e0	e0	e0	e0
Manufacturer's serial number	5000	5000	5000	5000	5000	5000
Number of functions	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package height	2.159 mm	2.159 mm	2.159 mm	2.159 mm	2.159 mm	2.159 mm
Package length	2.667 mm	2.667 mm	2.667 mm	2.667 mm	2.667 mm	2.667 mm
Package form	SMT	SMT	SMT	SMT	SMT	SMT
Package width	2.794 mm	2.794 mm	2.794 mm	2.794 mm	2.794 mm	2.794 mm
method of packing	TR	TR	TR	TR	TR	TR
Minimum quality factor (at nominal inductance)	47	47	52	45	45	47
Maximum rated current	0.52 A	0.47 A	0.19 A	0.075 A	0.075 A	0.6 A
Guideline	M83446/05	M83446/05	M83446/05	M83446/05	M83446/05	M83446/05
self resonant frequency	900 MHz	750 MHz	120 MHz	1200 MHz	1400 MHz	1200 MHz
series	5000	5000	5000	5000	5000	5000
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO
surface mount	YES	YES	YES	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Test frequency	100 MHz	100 MHz	25 MHz	100 MHz	100 MHz	100 MHz
Tolerance	10%	10%	10%	10%	10%	10%
Maker	Coast Advanced Chip Magnetics	-	Coast Advanced Chip Magnetics	Coast Advanced Chip Magnetics	Coast Advanced Chip Magnetics	Coast Advanced Chip Magnetics
