Due to the special conditions of the manufacturing processes of LED the typical data of technical parameters can only reflect statistical figures and do not necessarily
correspond to the actual parameters of each single product which could differ from the typical data.
+) Preliminary Data
**) Discontinued

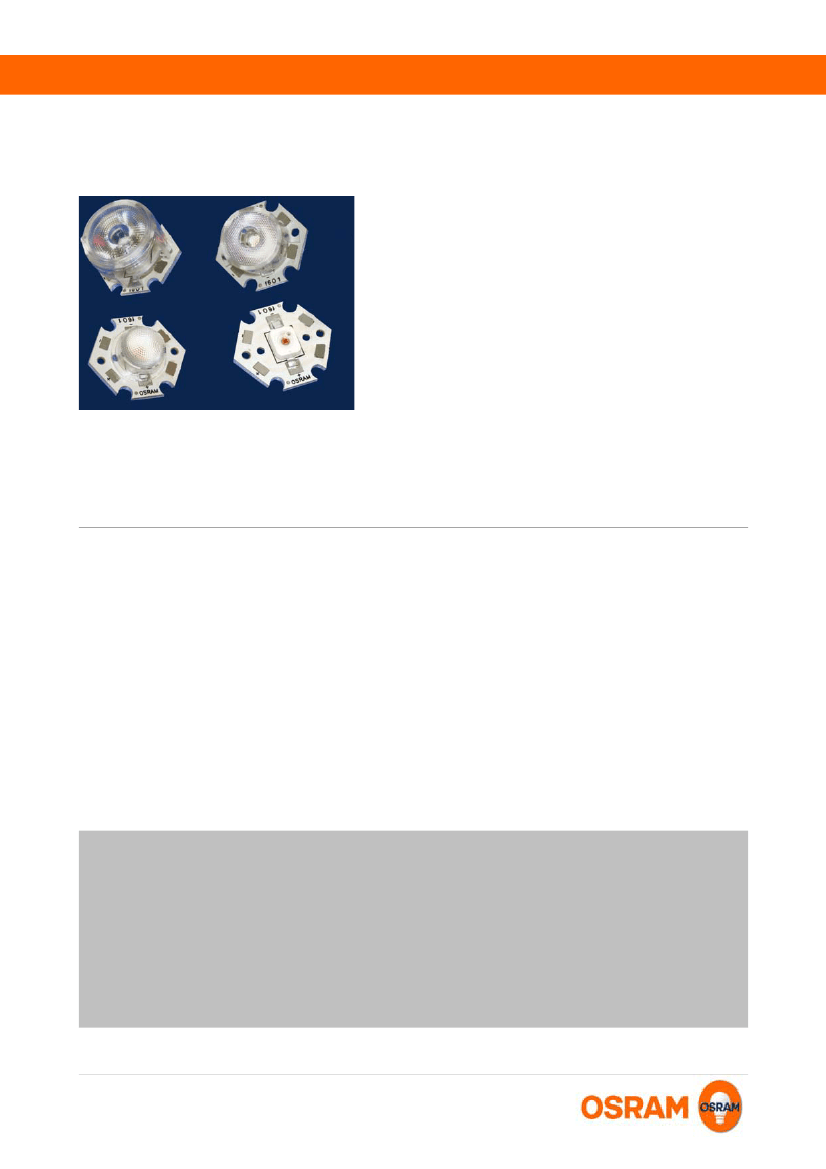

Technical Features
Easy assembly with M3 screws
Operation only with OPTOTRONIC® constant
Dimensions for DX1-xx-L12 (L x W x H): 20 mm
x 23 mm x 14.5 mm
Dimensions for DX1-xx-L30 (L x W x H):
current devices (see page 3)
Metal Core PCB for good heat dissipation
For 500 mA the maximum power is 1.7 W.
20 mm x 23 mm x 11 mm
Dimensions for DX1-xx-L60 (L x W x H):
Luminous flux increases to 130%.
Up to 70,000 h lifetime
20 mm x 23 mm x 8.2 mm
Dimensions for DX1-xx (L x W x H):
20 mm x 23 mm x 3.6 mm
DX1 - 01.01.2009 - P
Page 1 of 5
Minimum and Maximum Ratings
Product
DX1-W3-865**
DX1-W3-865-L60**
DX1-W3-865-L30**
DX1-W3-865-L12**
DX1-W3-854**
DX1-W3-854-L60**
DX1-W3-854-L30**
DX1-W3-854-L12**
DX1-W3-733**
DX1-W3-733-L60**
DX1-W3-733-L30**
DX1-W3-733-L12**
Operating Temperature
at Tc-Point [ °C ] *
-30 ... 85
-30 ... 85
-30 ... 85
-30 ... 85
-30 ... 85
-30 ... 85
-30 ... 85
-30 ... 85
-30 ... 85
-30 ... 85
-30 ... 85
-30 ... 85
Storage Temperature
[ °C ] *
-30 ... 85
-30 ... 85
-30 ... 85
-30 ... 85
-30 ... 85
-30 ... 85
-30 ... 85
-30 ... 85
-30 ... 85
-30 ... 85
-30 ... 85
-30 ... 85
Max. Current
[ A dc ] *
0,5
0,5
0,5
0,5
0,5
0,5
0,5
0,5
0,5
0,5
0,5
0,5
Reverse Voltage
[ V dc ] *
0
0
0
0
0
0
0
0
0
0
0
0
The module is designed to work with current sources. The maximum output voltage may not exceed 100 V DC. Reverse operation is not allowed and may
destroy the module.
*)
Exceeding maximum ratings for operating and storage temperature will reduce expected life time or destroy the LED Module.
Exceeding maximum ratings for operating current will cause hazardous overload and will likely destroy the LED Module. Several modules may be connected in series up to the
maximum voltage of 100 V DC (outside SELV limits).
The temperature of the LED module must be measured at the Tc-point according to EN60598-1 in a thermally constant status with a temperature sensor or a temperature
sensitive label. For exact location of the Tc-point see drawing below.

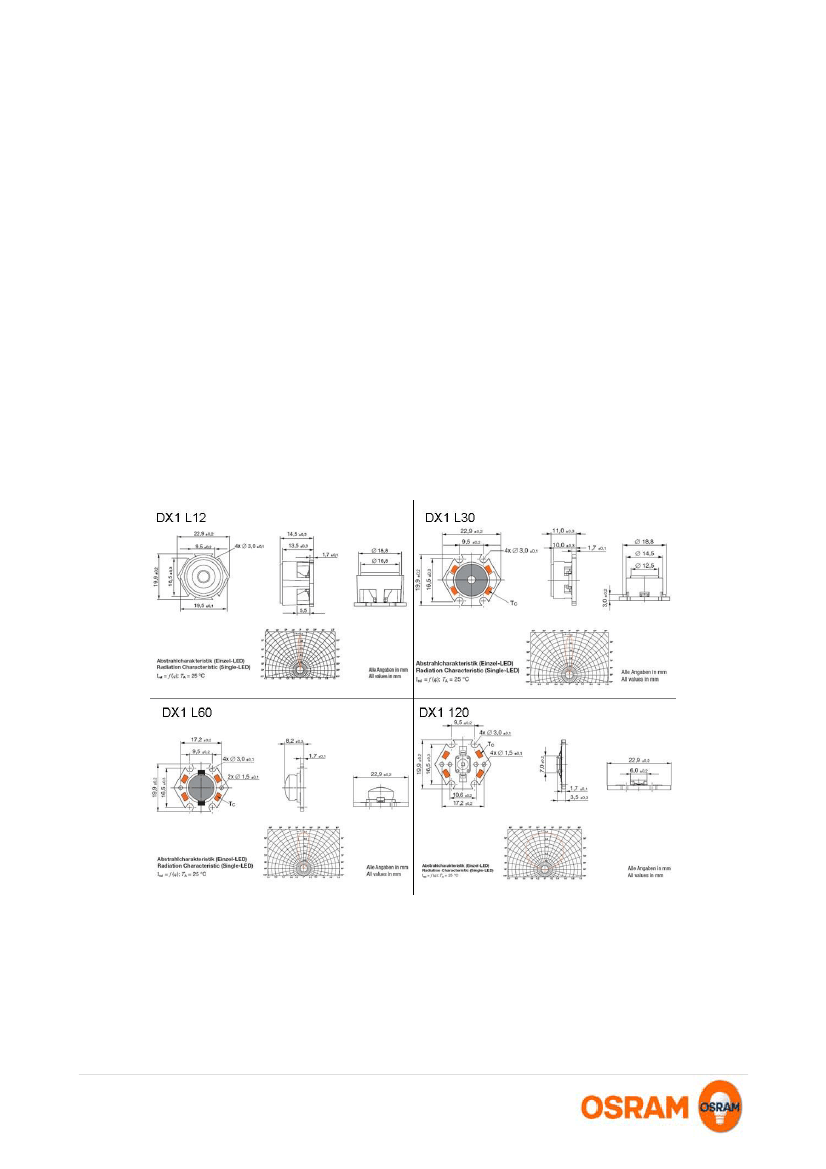

Drawings
Drawing is missing !!!
DX1 - 01.01.2009 - P
Page 2 of 5
DX1 - 01.01.2009 - P
Page 3 of 5
Safety Information
The LED module itself and all its components must not be mechanically stressed.
Assembly must not damage or destroy conducting paths on the circuit board.
In order to drive OSRAM LED-Modules safely, it is absolutely necessary to operate them with an electronically stabilised power
supply protecting against short circuits, overload and overheating.
To also ease the luminaire/installation approval, electronic control gear for LED or LED modules should carry the CE mark and be ENE
certified. In Europe the declarations of conformity must include the following standards:
CE: EC 61374-2-13, EN 55015, IEC 61547 and IEC 61000-3-2 - ENEC: 61374-2-13 and IEC/EN 62384.
Also check for the mark of an independent authorized certification institute.
Please see the relevant brochure for more detailed information (see "Related and Further Information")
OSRAM OPTOTRONIC® electronic control gear complies to all relevant standards and guarantees safe operation.
Installation of LED modules (with power supplies) needs to be made with regard to all applicable electrical and safety standards. Only
qualified personnel should be allowed to perform installations.
Correct electrical polarity needs to be observed. Wrong polarity may destroy the module.
Serial connection is highly recommended as safe electrical operation mode.
Parallel connection is not recommended. Unbalanced voltage drop can cause hazardous overload and damage the LED module.
Pay attention to standard ESD precautions when installing the module. See also ESD application note.
Recommended power supply:
1) 350 mA constant current operation: OT 9/200-240/350 or OT 9/100-120/350(E)
2) 350 mA constant current PWM dimming, 1..10V interface: OT 9/10-24/350 DIM, OT 9/10-24/350 DIM(E)
3) 0-350 mA constant current operation, 1..10 V interface (dimming), strain relief: OT 9/200-240/350 DIM
The maximum number of DX1 for all OT9 or OT18 is 6.
0-500 mA constant current operation, 1..10 V interface (dimming), strain relief: OT 18/200-240/700 DIM.
The OT18 comes with preset limitation to 500mA, thus giving 12W due to SELV (<=25V)
DX1 - 01.01.2009 - P
Page 4 of 5
Assembly Information
The mounting of the module is facilitated by means of M3 screws on the screw hole of the metal-core circuit board (MCPCB). For the
protection of the MCPCB the use of a plastic washer is recommended.
The module should be mounted on a heat sink on lighting fixtures or luminaires. For the mounting 4 M3 screw are recommended to
enable maximum heat sinking. For an optimum heat dissipation the module needs to be in good thermal contact with the designed
metallic mounting surface. The use of an appropriate thermal interface material (e.g. thermal grease) is recommended to eliminate air
gaps. The metal surface needs to be planar and clean (dirt and oil free).
Do not apply traction-, shear- or peel-forces to the module during assembly. Pay attention to pull relief for the cable in the application.
To obtain maximum LED lifetime please carefully read the recommended procedures concerning thermal management in our applicat
note "Lifetime of LED-modules" before beginning construction of luminaires. This application note is available from your OSRAM
representative or in the internet (see Related and Further Information).
Ordering Guide
Productgroup
DRAGON-X®
DRAGON-X®
DRAGON-X®
DRAGON-X®
DRAGON-X®
DRAGON-X®
DRAGON-X®
DRAGON-X®
DRAGON-X®
DRAGON-X®
DRAGON-X®
DRAGON-X®
*) EAN: Ordering number per single module
S-Unit: Modules per shipping unit
Productname
DX1-W3-865**
DX1-W3-865-L60**
DX1-W3-865-L30**
DX1-W3-865-L12**
DX1-W3-854**
DX1-W3-854-L60**
DX1-W3-854-L30**
DX1-W3-854-L12**
DX1-W3-733**
DX1-W3-733-L60**
DX1-W3-733-L30**
DX1-W3-733-L12**
EAN *
4008321166159
4008321166135
4008321166111
4008321166098
4008321166234
4008321166210
4008321166197
4008321166173
4008321166319
4008321166296
4008321166272
4008321166258
S-Unit *
120
120
120
120
120
120
120
120
120
120
120
120
Note: Typical performance data are subject to change without any further notice, particularly as LED technology evolves.
