DSA-CSS-RS2-1 datasheet, PDF - EEWORLD Datasheet

DSA-CSS-RS2-1: DescriptionSingle Color LED, Amber, 2.5mm, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size924KB，15 Pages; ManufacturerDOMINANT; Websitehttp://www.dominant-semi.com/; Environmental Compliance

Download Datasheet Parametric View All

DSA-CSS-RS2-1 Overview

Single Color LED, Amber, 2.5mm, ROHS COMPLIANT, PLASTIC PACKAGE-2

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DOMINANT
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	unknown
Other features	SUPPORTS INFRARED
color	AMBER
color@wavelength	Amber
Configuration	SINGLE
Maximum forward current	0.02 A
Maximum forward voltage	2.3 V
minimum luminous intensity	0.1125 cd
Nominal luminous intensity	180.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.2 mm
method of packing	TAPE AND REEL 7\"
Maximum reverse voltage	12 V
shape	RECTANGULAR
size	2.5 mm
surface mount	YES
Terminal pitch	4.2 mm
perspective	120 deg

DOMINANT

Innovating Illumination

DATA SHEET:

Opto Technologies

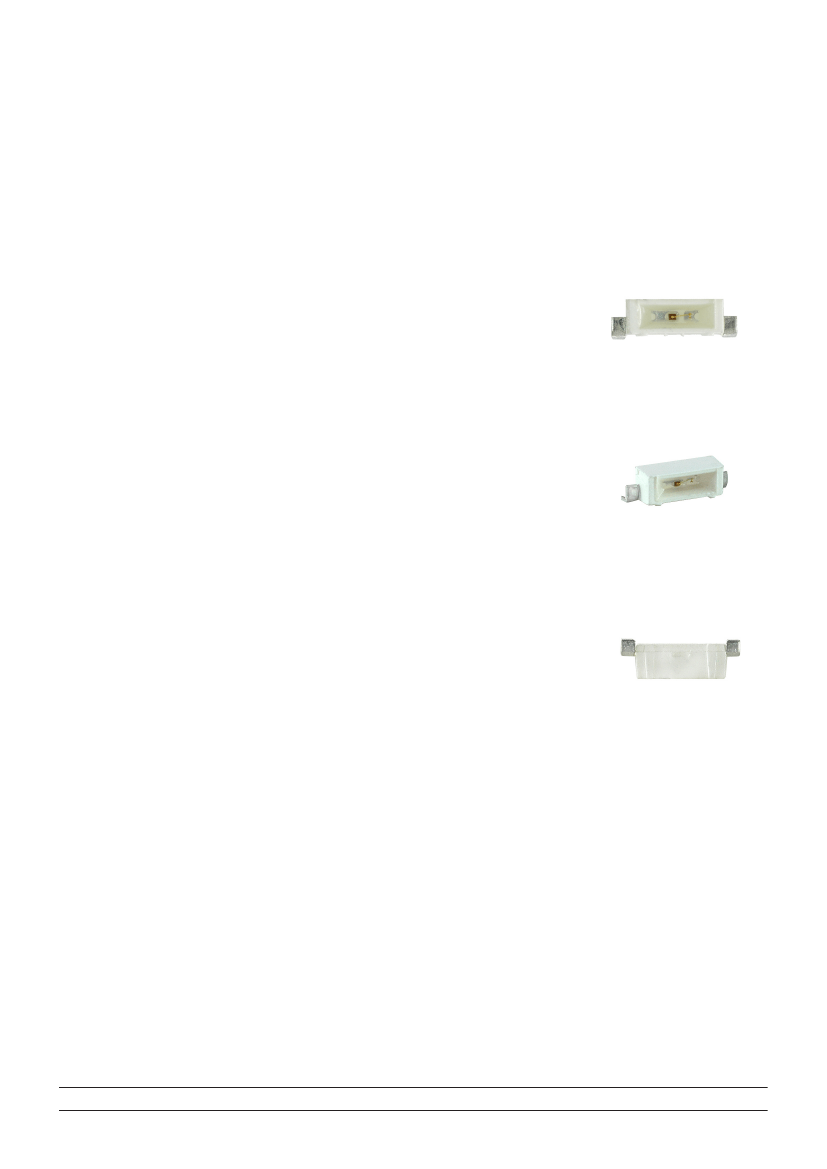

Right Angle DomiLED

AlInGaP : DSx-xSS

DomiLED

Synonymous with function and performance, the

DomiLED

series is

perfectly suited for a variety of cross-industrial applications due to its

small package outline, durability and superior brightness.

Features:

High brightness surface mount LED.

Designed for sideway illumination.

120° viewing angle.

Small package outline.

Qualified according to JEDEC moisture sensitivity Level 2.

Compatible to IR reflow soldering.

Applications:

Automotive: interior applications, eg: switches, telematics,

climate control system, dashboard, etc.

Consumer Appliances: LCD illumination as in PDAs, LCD TV.

Display: full color display video notice board.

Industry: white goods (eg: Oven, microwave, etc.).

12/11/2013 V22.0
