RUSBF155-2: DescriptionPTC Resettable Fuse, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size127KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

RUSBF155-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RUSBF155-2	-	-	View	Buy Now

RUSBF155-2 Overview

PTC Resettable Fuse, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

RUSBF155-2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	RADIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	RESISTANCE RANGE(MIN-MAX): 0.040-0.0705
JESD-609 code	e3
Manufacturer's serial number	RUSB
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	11.7 mm
Package length	6.9 mm
Package shape	DISK PACKAGE
Package width	3.1 mm
method of packing	TR, 14.6 INCH
physical size	6.9mm x 3.1mm x 11.7mm
Rated (AC) voltage (URac)	6 V
Rated power dissipation(P)	0.6 W
Guideline	CSA, TUV, UL
Resistor type	PTC RESETTABLE FUSE
surface mount	NO
Terminal surface	Tin (Sn)
Terminal location	RADIAL
Terminal shape	WIRE
Thermistor Applications	TEMPERATURE SENSING
Operating Voltage	6 V

Preview

Download Datasheet

View All

PolySwitch®

PTC Devices

Overcurrent Protection Device

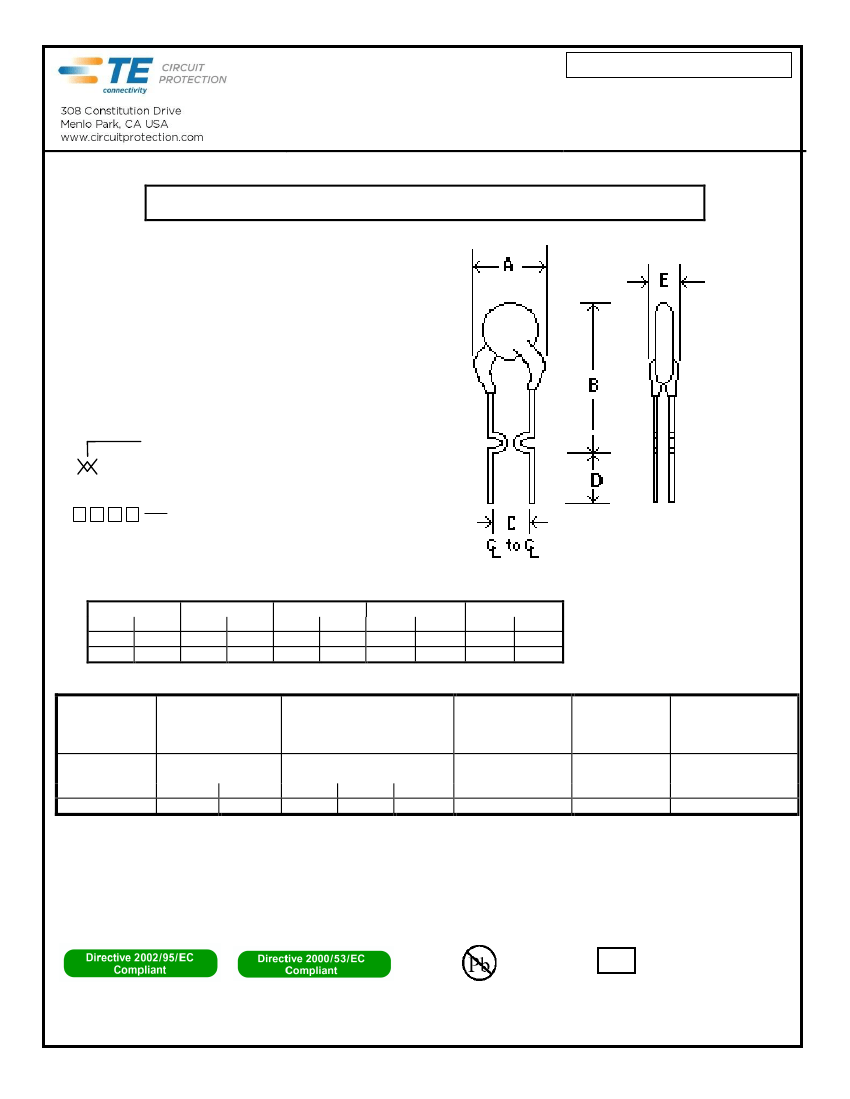

PRODUCT: RUSBF155

DOCUMENT: SCD25246

REV LETTER: F

REV DATE: MARCH 12, 2013

PAGE NO.: 1 OF 1

Specification Status: Released

Electrical Rating

Voltage: 6V

DC

MAX

Current: 40A MAX

Insulating Material:

Cured, Flame Retardant Epoxy Polymer

meets UL 94 V-O Requirements

Lead Material:

24 AWG Tin Plated Copper Clad Steel

Marking:

Manufacturer’s Mark

R155

and Part Identification

Lot Identification

TABLE I. DIMENSIONS:

A

mm:

in*:

MIN

--

MAX

6.9

(0.27)

MIN

--

B

MAX

11.7

(0.46)

MIN

4.3

(0.17)

C

MAX

5.9

(0.23)

MIN

7.6

(0.30)

D

MAX

--

MIN

--

E

MAX

3.1

(0.12)

TABLE II. PERFORMANCE RATINGS :

I HOLD

RATED

CURRENT

RATINGS

INITIAL RESISTANCE

VALUES

ONE HOUR

POST-TRIP

RESISTANCE

STANDARD TRIP

OHMS

AT 20C

MAX

0.10

TIME TO TRIP

@ 7.75A

TRIPPED-STATE

POWER

DISSIPATION

AMPERS

AMPERES

OHMS

SECONDS AT

WATTS

AT 20C

20C

AT 20C

HOLD

TRIP

MIN

TYP

MAX

1.55

2.65

0.04

0.06

0.0705

2.2

0.6

Agency Recognitions:

UL, CSA, TUV

Reference Documents:

PS300

Precedence:

This specification takes precedence over documents referenced herein.

Effectivity:

Reference documents shall be the issue in effect on the date of invitation for bid.

CAUTION:

Operation beyond the rated voltage or current may result in rupture, electrical arcing or flame.

Materials Information

ROHS Compliant

ELV Compliant

Pb-Free

Halogen Free*

HF

* Halogen Free refers to: Br≤900ppm, Cl≤900ppm, Br+Cl≤1500ppm.

RUSBF155-2 Related Products

	RUSBF155-2	RUSBF155	RUSBF155-AP
Description	PTC Resettable Fuse, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	PTC Resettable Fuse, 0.1ohm, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	PTC Resettable Fuse, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to
package instruction	RADIAL LEADED, ROHS COMPLIANT	RADIAL LEADED, ROHS COMPLIANT	,
Reach Compliance Code	unknown	unknown	unknown
Other features	RESISTANCE RANGE(MIN-MAX): 0.040-0.0705	RESISTANCE RANGE(MIN-MAX): 0.040-0.0705	RESISTANCE RANGE(MIN-MAX): 0.040-0.0705
Manufacturer's serial number	RUSB	RUSB	RUSB
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package shape	DISK PACKAGE	DISK PACKAGE	DISK PACKAGE
method of packing	TR, 14.6 INCH	BULK	AMMO PACK
Rated (AC) voltage (URac)	6 V	6 V	6 V
Rated power dissipation(P)	0.6 W	0.6 W	0.6 W
Resistor type	PTC RESETTABLE FUSE	PTC RESETTABLE FUSE	PTC RESETTABLE FUSE
surface mount	NO	NO	NO
Terminal location	RADIAL	RADIAL	RADIAL
Terminal shape	WIRE	WIRE	WIRE
Thermistor Applications	TEMPERATURE SENSING	TEMPERATURE SENSING	TEMPERATURE SENSING
Is it lead-free?	Lead free	Lead free	-
Maker	TE Connectivity	-	TE Connectivity
ECCN code	EAR99	-	EAR99
JESD-609 code	e3	e3	-
Package height	11.7 mm	11.7 mm	-
Package length	6.9 mm	6.9 mm	-
Package width	3.1 mm	3.1 mm	-
physical size	6.9mm x 3.1mm x 11.7mm	6.9mm x 3.1mm x 11.7mm	-
Guideline	CSA, TUV, UL	CSA, TUV, UL	-
Operating Voltage	6 V	6 V	-
