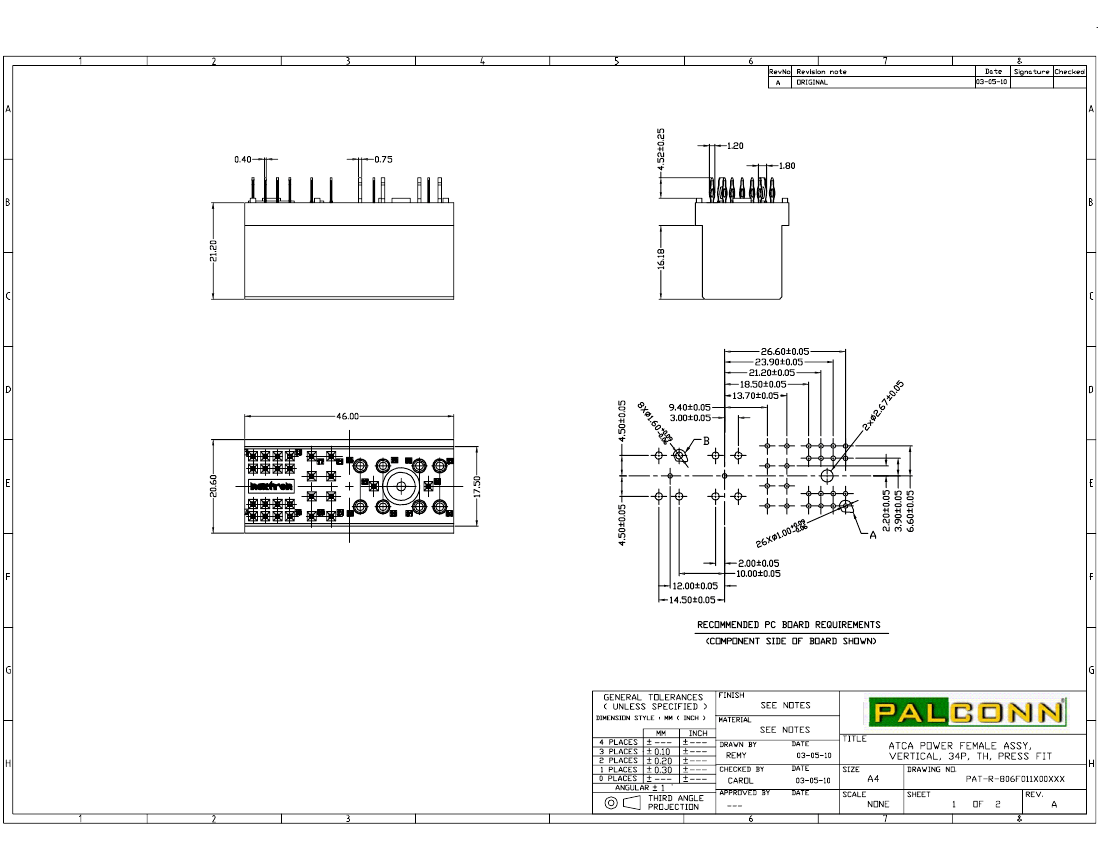

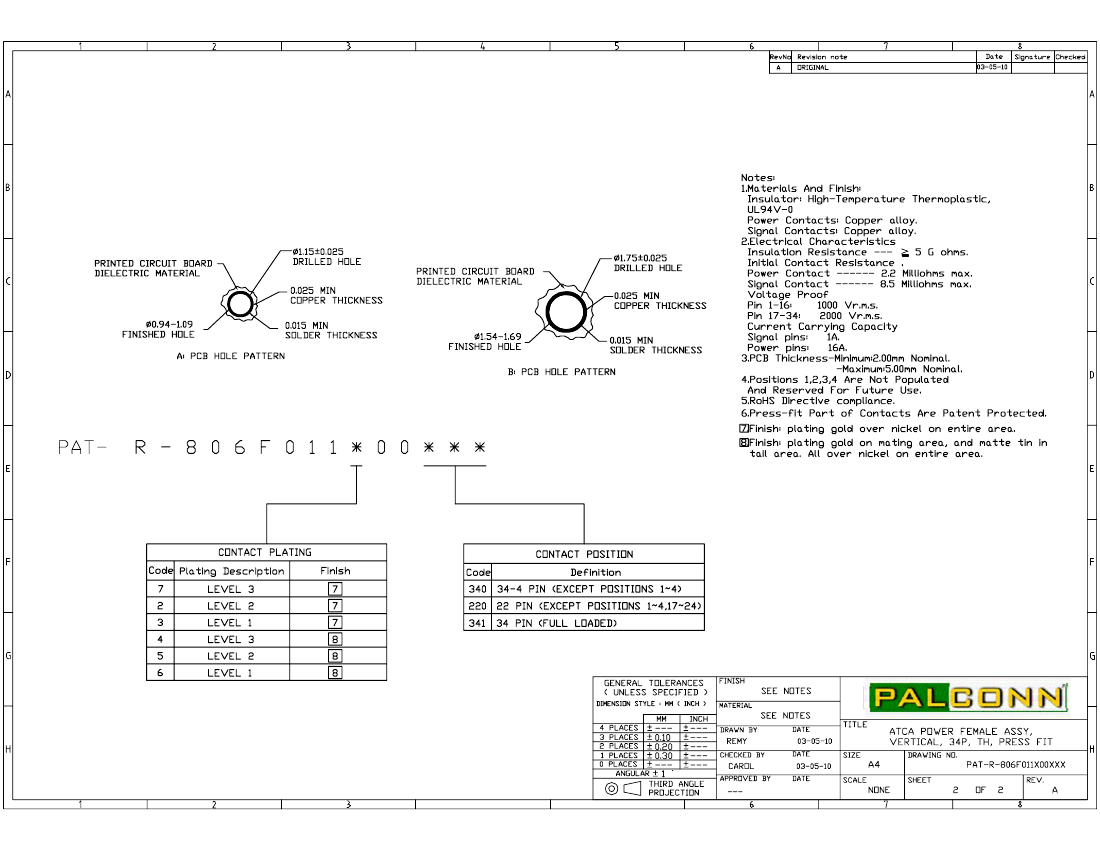

PAT-R-806F011500340: DescriptionBoard Connector, 34 Contact(s), Female, Straight, Press Fit Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size389KB，2 Pages; ManufacturerPalPilot; Environmental Compliance

Download Datasheet Parametric Compare View All

PAT-R-806F011500340 Overview

Board Connector, 34 Contact(s), Female, Straight, Press Fit Terminal, Black Insulator, Plug

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	ROHS COMPLIANT
body width	0.811 inch
subject depth	0.835 inch
body length	1.811 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact arrangement	S26P8
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrie
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	8.5 mΩ
Contact style	HYBRID
Dielectric withstand voltage	2000VDC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e3
Manufacturer's serial number	PAT
Mixed contacts	YES
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.178 inch
Termination type	PRESS FIT
Total number of contacts	34
Base Number Matches	1

	PAT-R-806F011500340	PAT-R-806F011400340
Description	Board Connector, 34 Contact(s), Female, Straight, Press Fit Terminal, Black Insulator, Plug	Board Connector, 34 Contact(s), Female, Straight, Press Fit Terminal, Black Insulator, Plug
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	compli	compliant
Other features	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.811 inch	0.811 inch
subject depth	0.835 inch	0.835 inch
body length	1.811 inch	1.811 inch
Body/casing type	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S26P8	S26P8
Contact to complete cooperation	AU ON NI	AU ON NI
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY
Contact resistance	8.5 mΩ	8.5 mΩ
Contact style	HYBRID	HYBRID
Dielectric withstand voltage	2000VDC V	2000VDC V
Insulation resistance	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK
insulator material	THERMOPLASTIC	THERMOPLASTIC
JESD-609 code	e3	e3
Manufacturer's serial number	PAT	PAT
Mixed contacts	YES	YES
Installation option 2	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Rated current (signal)	1 A	1 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.178 inch	0.178 inch
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	34	34
Base Number Matches	1	1
