TSM931-TSM934
Ultra Low-Power Single/Dual-Supply Comparators with Reference
FEATURES
♦
Alternate source for MAX931-MAX934
♦
Ultra-Low Quiescent Current Over Temperature
TSM931 Single+Reference: 4μA (max)
TSM932/TSM933 Dual+Reference: 6μA (max)
TSM934 Quad+Reference: 8.5μA (max)
♦
Single or Dual Power Supplies:
Single: +2.5V to +11V
Dual: ±1.25V to ±5.5V
♦
Input Voltage Range Includes Negative Supply
♦
12μs Propagation Delay at 10mV Overdrive
♦
Push-pull TTL/CMOS-Compatible Outputs
♦
Crowbar-Current-Free Switching
♦
Continuous Source Current Capability: 40mA
♦
Internal 1.182V ±2% Reference:
TSM931/TSM932/TSM933
♦
Adjustable Hysteresis:
TSM931/TSM932/TSM933
DESCRIPTION
The TSM931–TSM934 family of single/dual/quad,
low-voltage, micropower analog comparators is
electrically and form-factor identical to the MAX931-
MAX934 family of analog comparators. Ideal for 3V or
5V single-supply applications, the TSM931–TSM934
family can operate from single +2.5V to +11V
supplies or from ±1.25V to ±5.5V dual supplies. The
single TSM931 draws less than 4μA (max) supply
current over temperature. The dual TSM932/933 and
the quad TSM934 each draw less than 3μA per
comparator over temperature.
All comparators in this family exhibit an input voltage
range from the negative supply rail to within 1.3V of
the positive supply. In addition, the comparators’
push-pull output stages are TTL/CMOS compatible
and capable of sinking and sourcing current. The
TSM931/TSM932/TSM933 each incorporates an
internal 1.182V ±2% voltage reference. Without
complicated feedback configurations and only
requiring two additional resistors, adding external
hysteresis via a separate pin is available on the
TSM931, the TSM932, and the TSM933.
APPLICATIONS
Threshold Detectors
Window Comparator
Level Translators
Oscillator Circuits
Battery-Powered Systems
TYPICAL APPLICATION CIRCUIT
INTERNAL COMPARATORS INTERNAL
REFERENCE PER PACKAGE HYSTERESIS
Yes
1
Yes
Yes
2
Yes
Yes
2
Yes
Yes
4
No

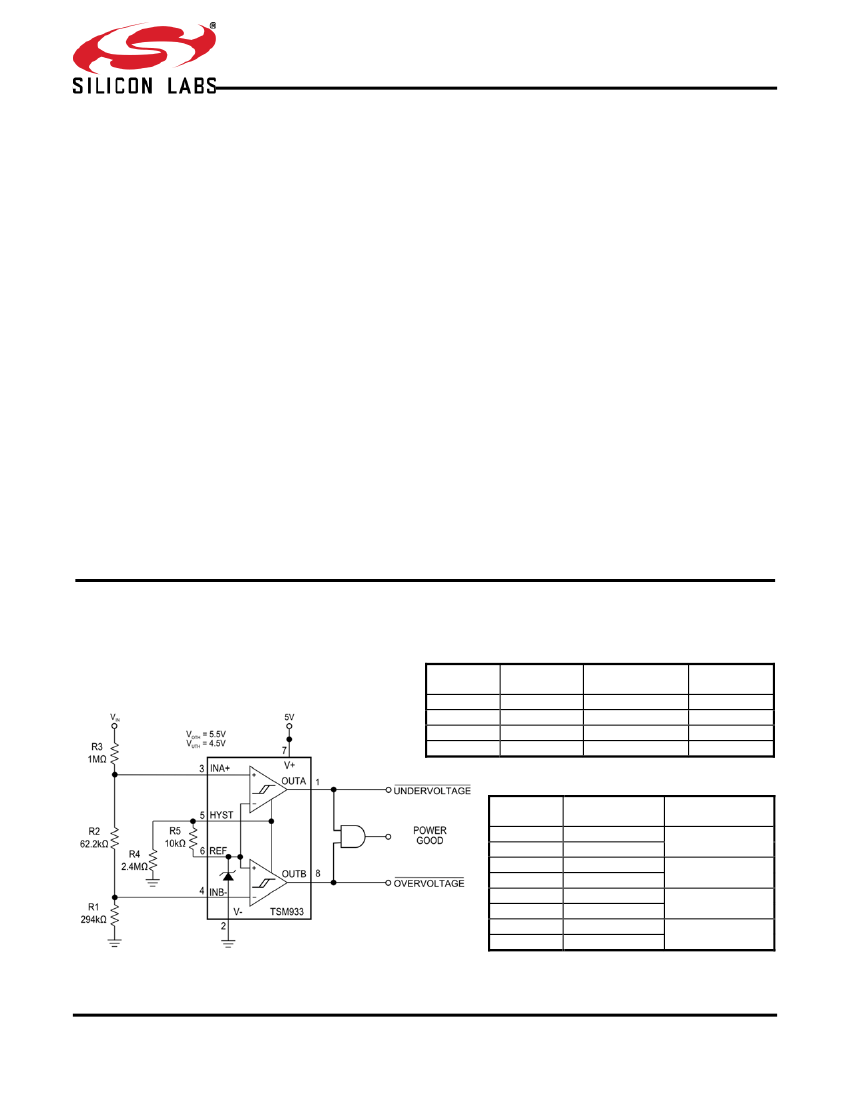

A 5V, Low-Parts-Count Window Detector
PART
TSM931
TSM932
TSM933
TSM934
PART
TSM931C
TSM931E
TSM932C
TSM932E
TSM933C
TSM933E
TSM934C
TSM934E
TEMPERATURE
PACKAGE
RANGE
0ºC to 70ºC
8-Pin MSOP/SOIC
-40ºC to 85ºC
0ºC to 70ºC
8-Pin MSOP/SOIC
-40ºC to 85ºC
0ºC to 70ºC
8-Pin MSOP/SOIC
-40ºC to 85ºC
0ºC to 70ºC
16-Pin SOIC
-40ºC to 85ºC
Page 1
© 2014 Silicon Laboratories, Inc. All rights reserved.
TSM931-TSM934
ABSOLUTE MAXIMUM RATINGS
Supply Voltage (V+ to V-, V+ to GND, GND to V-)......-0.3V, +12V
Voltage Inputs
(IN+, IN-)..............................................(V+ + 0.3V) to (V- - 0.3V)
HYST…………………………………….(REF + 5V) to (V- - 0.3V)
Output Voltage
REF..................................................... (V+ + 0.3V) to (V- - 0.3V)
OUT (TSM931/934)...........................(V+ + 0.3V) to (GND - 0.3V)
OUT (TSM932/933)...............................(V+ + 0.3V) to (V- - 0.3V)
Input Current (IN+, IN-, HYST)..............................................20mA
Output Current
REF…………………………………………………………….20mA
OUT…………………………………………………………….50mA
Output Short-Circuit Duration (V+
≤
5.5V) ...................Continuous
Continuous Power Dissipation (T
A
= +70°C)
8-Pin MSOP (derate 4.1mW/°C above +70°C) .................330mW
8-Pin SOIC (derate 5.88mW/°C above +70°C)..................471mW
16-Pin SOIC (8.7mW/°C above +70°C) ............................696mW
Operating Temperature Range
TSM93xC..................................................................0°C to +70°C
TSM93xE...............................................................-40°C to +85°C
Storage Temperature Range .................................-65°C to +150°C
Lead Temperature (soldering, 10s) ......................................+300°C
Electrical and thermal stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These
are stress ratings only and functional operation of the device at these or any other condition beyond those indicated in the operational sections
of the specifications is not implied. Exposure to any absolute maximum rating conditions for extended periods may affect device reliability and
lifetime.

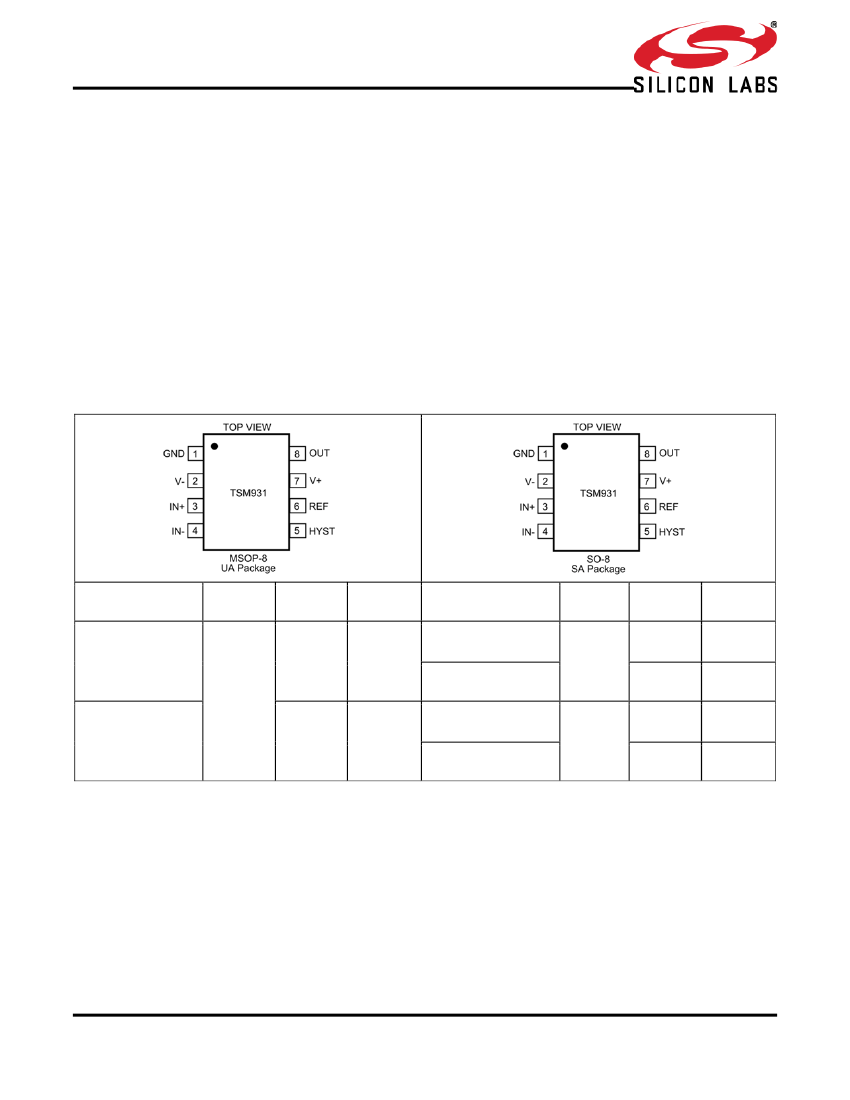

PACKAGE/ORDERING INFORMATION
ORDER NUMBER
PART
CARRIER QUANTITY
MARKING
ORDER NUMBER
TSM931CSA+
PART
CARRIER QUANTITY
MARKING
Tube
TS931
Tape
& Reel
Tube
TS931E
Tape
& Reel
97
2500
97
2500
TSM931CUA+
TAAX
TSM931CUA+T
Tube
50
TSM931CSA+T
TSM931ESA+
2500
TSM931ESA+T
Tape
& Reel
Page 2
TSM931/34 Rev. 1.0
TSM931-TSM934

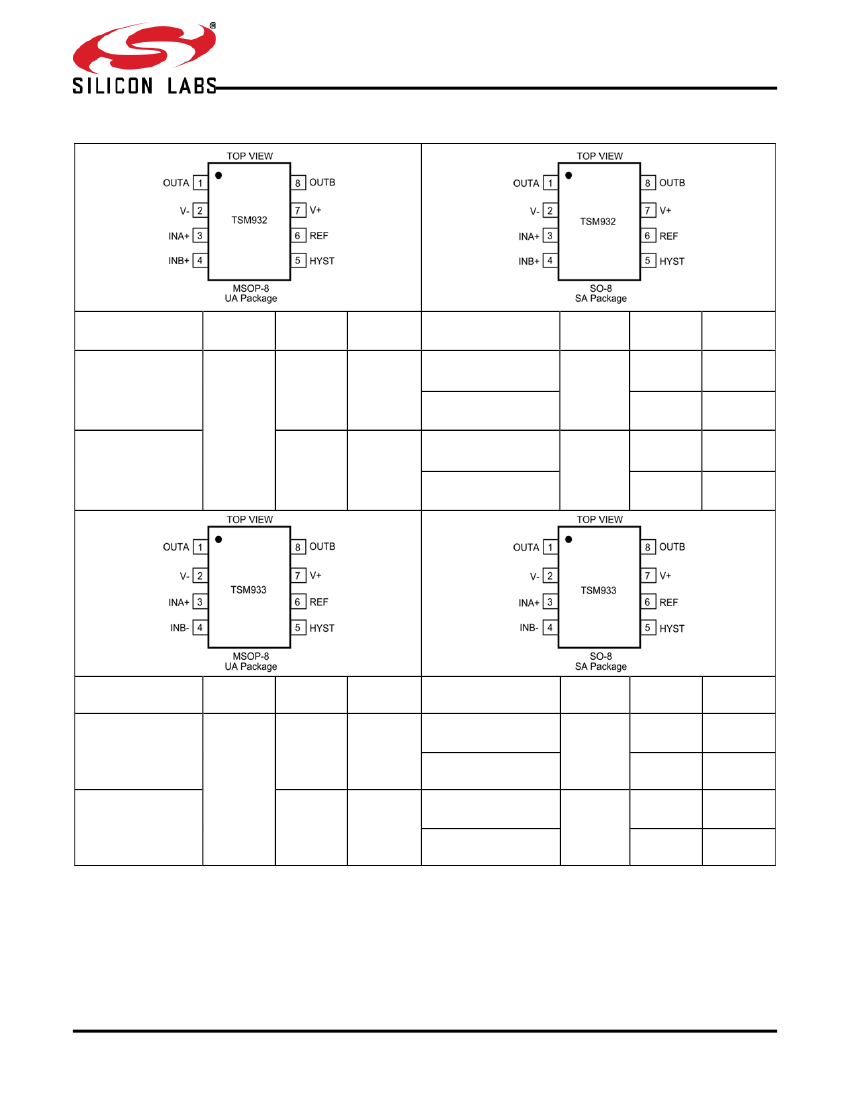

PACKAGE/ORDERING INFORMATION
ORDER NUMBER
PART
CARRIER QUANTITY
MARKING
ORDER NUMBER
TSM932CSA+
PART
CARRIER QUANTITY
MARKING
Tube
TS932
Tape
& Reel
Tube
TS932E
Tape
& Reel
97
2500
97
2500
TSM932CUA+
TABD
TSM932CUA+T
Tube
50
TSM932CSA+T
TSM932ESA+
2500
TSM932ESA+T
Tape
& Reel
ORDER NUMBER
PART
CARRIER QUANTITY
MARKING
ORDER NUMBER
TSM933CSA+
PART
CARRIER QUANTITY
MARKING
Tube
TS933
Tape
& Reel
Tube
TS933E
Tape
& Reel
97
2500
97
2500
TSM933CUA+
TABB
TSM933CUA+T
Tube
50
TSM933CSA+T
TSM933ESA+
2500
TSM933ESA+T
Tape
& Reel
TSM931/34 Rev. 1.0
Page 3
TSM931-TSM934
PACKAGE/ORDERING INFORMATION
ORDER NUMBER
TSM934CSE+
PART
CARRIER QUANTITY
MARKING
Tube
TS934
Tape
& Reel
48
2500
ORDER
NUMBER
TSM934ESE+
PART
CARRIER QUANTITY
MARKING
Tube
TS934E
Tape
& Reel
48
2500
TSM934CSE+T
TSM934ESE+T
Lead-free Program:
Silicon Labs supplies only lead-free packaging.
Consult Silicon Labs for products specified with wider operating temperature ranges.
Page 4
TSM931/34 Rev. 1.0
TSM931-TSM934
ELECTRICAL CHARACTERISTICS – 5V OPERATION
V+ = 5V, V- = GND = 0V; T
A
= -40ºC to +85ºC, unless otherwise noted. Typical values are at T
A
= +25ºC. See Note 1.
PARAMETER
POWER REQUIREMENTS
Supply Voltage Range
CONDITIONS
See Note 2
T
A
= +25°C
TSM931;
HYST = REF T
A
= -40°C to +85°C
T
A
= +25°C
TSM932
HYST = REF T
A
= -40°C to +85°C
T
A
= +25°C
TSM933
HYST = REF T
A
= -40°C to +85°C
T
A
= +25°C
TSM934
T
A
= -40°C to +85°C
MIN
2.5
2.5
3.1
3.1
5.5
TYP
MAX
11
3.2
4
4.5
6
4.5
6
6.5
8.5
±10
±5
V+ – 1.3V
1
1
REF
12
4
V+ – 0.4
V- + 0.4
GND + 0.4
1.158
1.147
15
6
8
4
1.182
25
15
100
1.206
1.217
UNITS
V
Supply Current
IN+ = IN- + 100mV
μA
COMPARATOR
Input Offset Voltage
Input Leakage Current (IN-, IN+)
Input Leakage Current (HYST)
Input Common-Mode Voltage Range
Common-Mode Rejection Ratio
Power-Supply Rejection Ratio
Voltage Noise
Hysteresis Input Voltage Range
Response Time
Output High Voltage
Output Low Voltage
REFERENCE
Reference Voltage
Source Current
Sink Current
Voltage Noise
V
CM
= 2.5V
IN+ = IN- = 2.5V
T
A
= -40°C to +85°C
TSM931, TSM932, TSM933
V-
V- to (V+ – 1.3V)
V+ = 2.5V to 11V
100Hz to 100kHz
TSM931, TSM932, TSM933
Overdrive = 10mV
Overdrive = 100mV
T
A
= -40°C to +85°C: I
OUT
= 17mA
T
A
= -40°C to +85°C: TSM932, TSM933
I
OUT
= 1.8mA
TSM931, TSM934
T
A
= +25°C; 100pF load
T
A
= 0°C to +70°C
T
A
= -40°C to +85°C
T
A
= +25°C
T
A
= -40°C to +85°C
T
A
= +25°C
T
A
= -40°C to +85°C
100Hz to 100kHz
±0.01
±0.02
0.1
0.1
20
REF- 0.05V
mV
nA
nA
V
mV/V
mV/V
μV
RMS
V
μs
V
V
V
V
V
μA
μA
μV
RMS
TSM931/34 Rev. 1.0
Page 5
