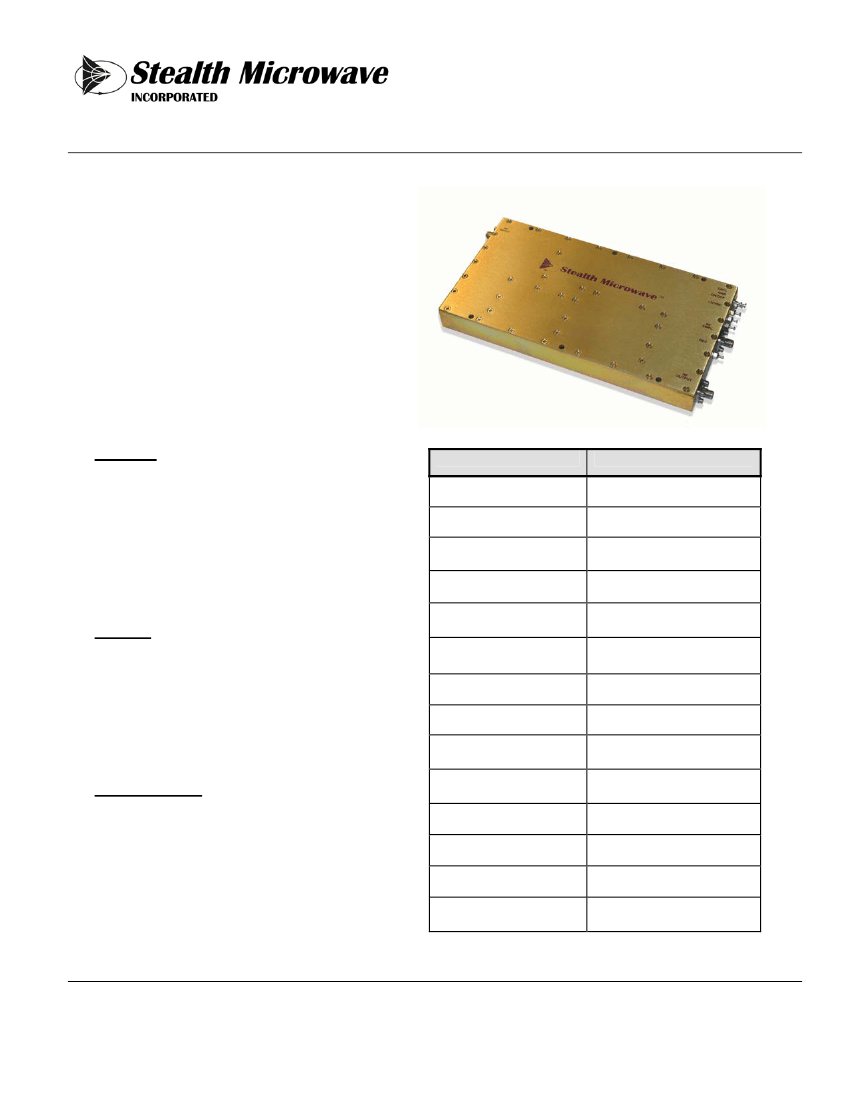

Model SM2325-47L
2300-2500 MHz
50 Watt Linear Power Amplifier
FOR ISM, WCS, & WLL APPLICATIONS
The
SM2325-47L
is a solid state GaAs
amplifier designed for the ISM, Fixed
Wireless, and Wireless Local Loop markets.
The amplifier operates from 2.3 to 2.5 GHz,
provides 56 dB of linear gain, and the
output power at P1dB is 50 watts. By using
the latest surface mount technologies, this
small amplifier can easily fit into tightly
packed transmitters and repeaters. The unit
is available in modular form (non-heatsink
version with thru-holes) or as a rack
mountable amplifier.
Features
•
•
•
•
•
•
Mis-Match Protected
Single Power Supply
Over/Reverse Voltage Protection
Thermal Protection with Auto Reset
Temperature Compensation
Integral Output Isolator
Parameter
Frequency Range
Pout (P1dB)
Third Order Intercept
Point
Linear Gain
Gain Flatness over
Full Band
Gain Change over
Temperature
Input/Output Return
Loss
DC Input Voltage
DC Input Current
Mechanical Dimensions
(With Heatsink)
RF Connectors
Operating Temperature
Operating Humidity
Operating Altitude
Specification
2.3 - 2.5 GHz
+ 47 dBm (typ.)
+ 63 dBm
55 dB ± 1 dB
± .5 dB
± .5 dB
-14 dB /-18 dB
+ 12 Volts
18 Amperes
(Varies per application)
7.5 x 5.0 x 3.3 inches
SMA Female
0ºC to +55ºC
95% Non-condensing
Up to 10,000 feet above Sea
Level
Options
•
•
•
•
•
Forward/Reverse Power Detection
RF Sampling
High Speed Switching for TDD
Logic On/Off Control
Integral Heatsink
Configurations
•
•
Module
19” Rack
1007 Whitehead Road Ext., Trenton, NJ 08638
Tel: (609) 538-8586
♦
Fax: (609) 538-8587
Email: sales@stealthmicrowave.com
♦
Web site: www.stealthmicrowave.com
Model SM2325-47L
2300-2500 MHz
50 Watt Linear Power Amplifier
FOR ISM, WCS, & WLL APPLICATIONS

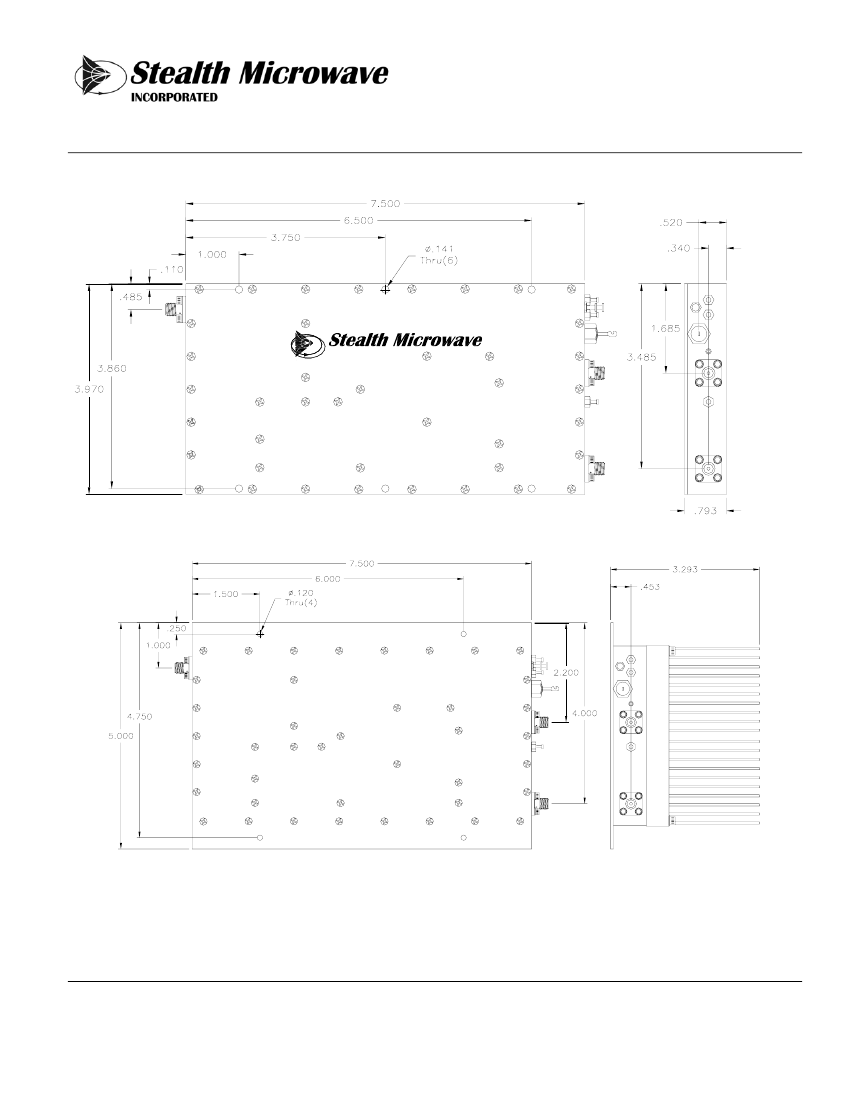

DIMENSIONS IN INCHES
CNTRL
RF
INPUT
GND
ON/OFF
+12VDC
INCORPORATED
RF
SAMPLE
REV
Made in USA
RF
OUTPUT
HEATSINK OPTION
GND
ON/OFF
CNTL
+12VDC
RF
INPUT
1007 Whitehead Road Ext., Trenton, NJ 08638
Tel: (609) 538-8586
♦
Fax: (609) 538-8587
Email: sales@stealthmicrowave.com
♦
Web site: www.stealthmicrowave.com
RF SMPL
REV
Made in USA
RF
OUTPUT
Model SM2325-47L
2300-2500 MHz
50 Watt Linear Power Amplifier
FOR ISM, WCS, & WLL APPLICATIONS
Pin
RF Input
RF OUT
RF SAMPLE
GND
REV
FWD
+12VDC
On/Off
Description
Input Connector (SMA Female)
Output Connector (SMA Female)
Sample RF Port (SMA Female)
Ground Turret
Reverse Power Detector
Forward Power Detector
DC Input Voltage
TTL Logic On/Off
Values
- 9 dBm, typical
+47 dBm @P1dB
30 dBr
---
∞
VSWR @ + 38 dBm
≈
+ 1.0 Volts
+ 38 dBm Output Power
≈
+ 2.5 Volts
+ 12 Volts @ 18 Amperes (typ.)
0 Volts = Off, + 5 Volts = On
Specifications subject to change without notice.
