PO49FCT32806A Overview

Potato Semiconductorâs PO49FCT32806A is designed for world top performance using submicron CMOS technology to achieve 700MHz TTL output frequency with less than 200ps output pulse skew.

Preview

Download Datasheet

View All

PO49FCT32806A

www.potatosemi.com

1.2V - 3.6V Dual 1:5 CMOS Invert Clock Driver

700MHz TTL/CMOS Potato Chip

FEATURES:

. Operating frequency up to 700MHz with 2pf load

. Operating frequency up to 500MHz with 5pf load

. Operating frequency up to 300MHz with 15pf load

. Operating frequency up to 120MHz with 50pf load

. Very low output pin to pin skew < 250ps

. Very low pulse skew < 200ps

. VCC = 1.65V to 3.6V

. Propagation delay < 2.9ns max with 15pf load

. Low input capacitance: 3pf typical

. Dual 1:5 invert fanout

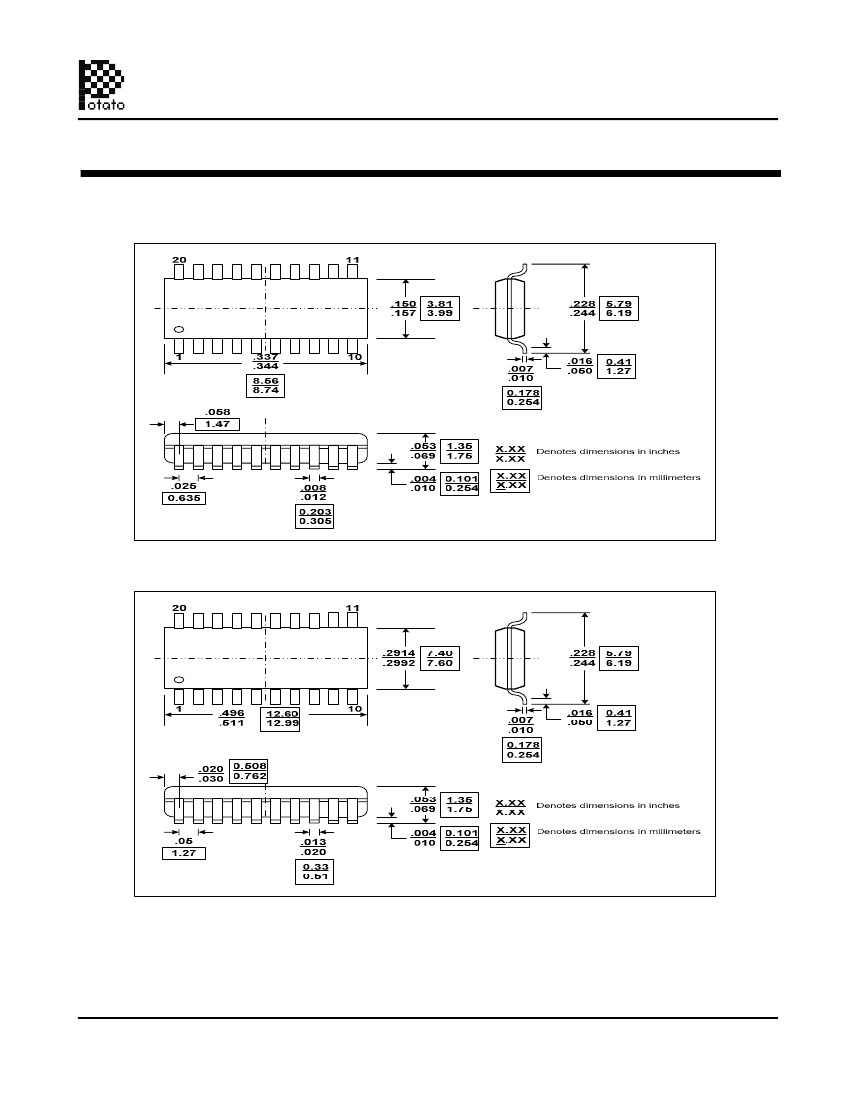

. Available in 20pin 300mil wide SOIC package

. Available in 20pin 150mil wide QSOP package

DESCRIPTION:

Potato Semiconductor’s PO49FCT32806A is

designed for world top performance using

submicron CMOS technology to achieve

700MHz TTL output frequency with less than

200ps output pulse skew.

PO49FCT32806A is a 3.3V CMOS Dual 1 input

to 5 outputs Invert Buffered driver to achieve

700MHz output frequency with integrated series

damping resistors on all outputs to match 50 ohm

transmission line impedance. Typical applications

are crystal oscillator, ring oscillator, clock and

signal distribution.

Pin Configuration

Logic Block Diagram

Pin Description

Pin Name

INA, INB

Description

Signal or clock Inputs

Hi-Z State Output Enable Inputs (Active LOW)

OAn, OBn

MON

Vcc, GND

Signal or clock Outputs

Monitor Output

Power, Ground

Inputs

INA, INB

Outputs

OAn, OBn

MON

Potato Semiconductor Corporation

01/01/10
