PO49HSTL3803A

www.potatosemi.com

3.3V 1:7 Differential to TTL Translator Driver

500MHz TTL/CMOS Potato Chip

FEATURES:

. Patented technology

. Max input frequency > 1GHz

. Operating frequency up to 500MHz with 2pf load

. Operating frequency up to 450MHz with 5pf load

. Operating frequency up to 300MHz with 15pf load

. Operating frequency up to 150MHz with 50pf load

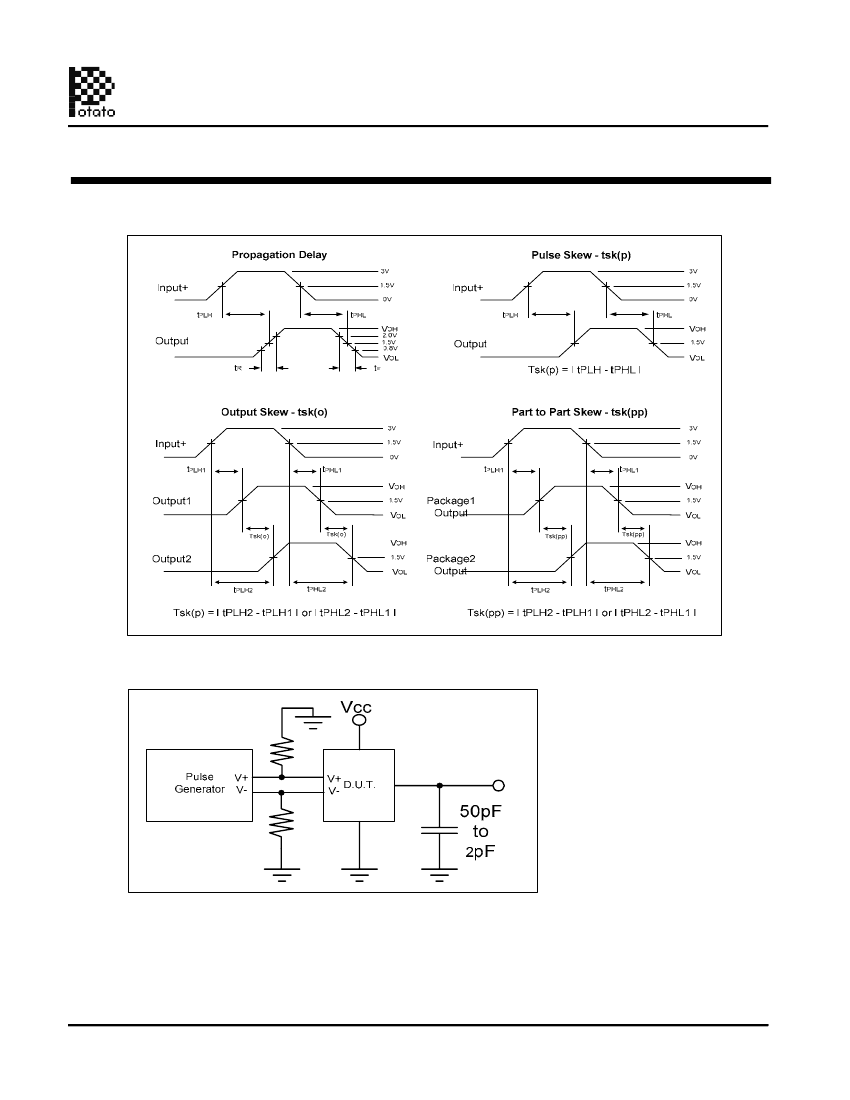

. Very low output pin to pin skew < 200ps

. Very low pulse skew < 100ps

. VCC = 1.65V to 3.6V

. Propagation delay < 2.5ns max with 15pf load

. Low input capacitance: 3pf typical

. 1:7 fanout

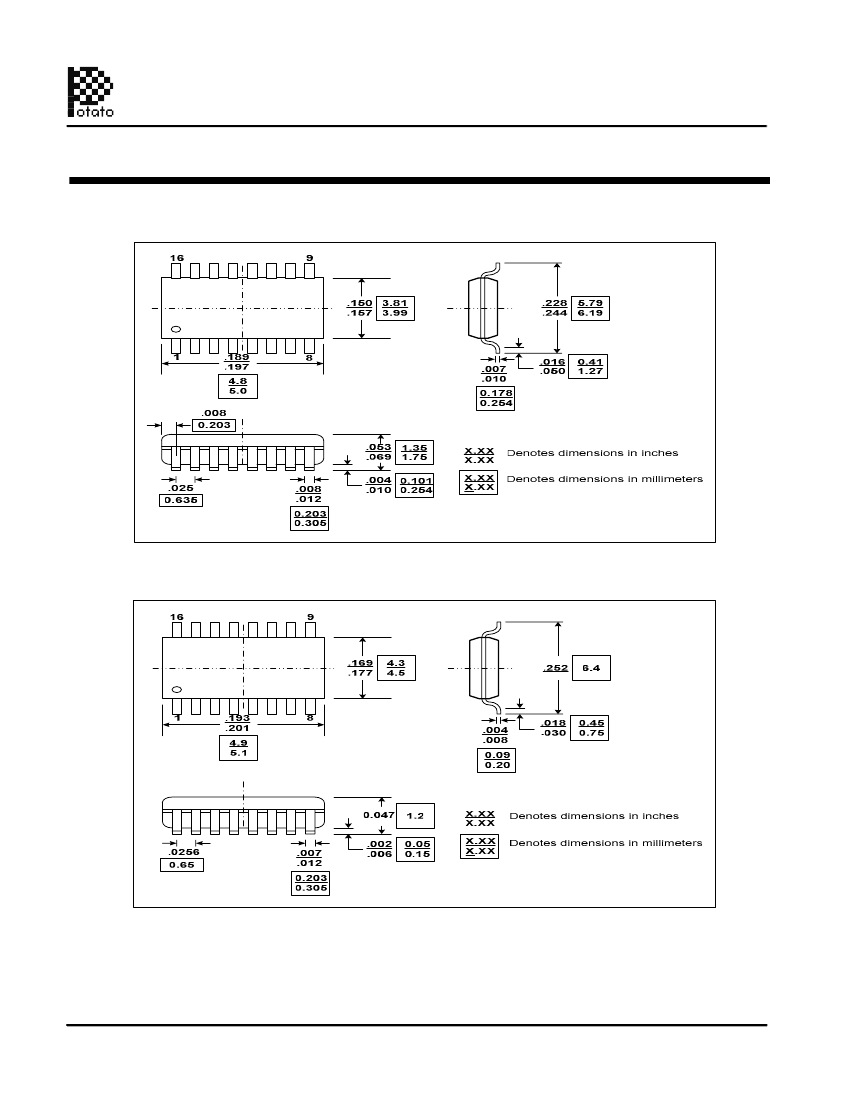

. Available in 16pin 150mil wide QSOP package

. Available in 16pin 173mil wide TSSOP package

DESCRIPTION:

Potato Semiconductor’s PO49HSTL3803G is

designed for world top performance using

submicron CMOS technology to achieve

500MHz TTL output frequency with less than

100ps output pulse skew.

PO49HSTL3803G is a 3.3V 1 high speed

comparator inputs to 7 TTL output buffered

driver to achieve higher than 500MHz output

frequency. Typical applications are HSTL, PECL,

LVDS to TTL translator, crystal or ring

oscillator, clock and signal distribution.

Pin Configuration

Logic Block Diagram

Pin Description

Pin Name

IN+, IN-

O1 to O7

Description

Inputs

Outputs

Potato Semiconductor Corporation

01/01/10
